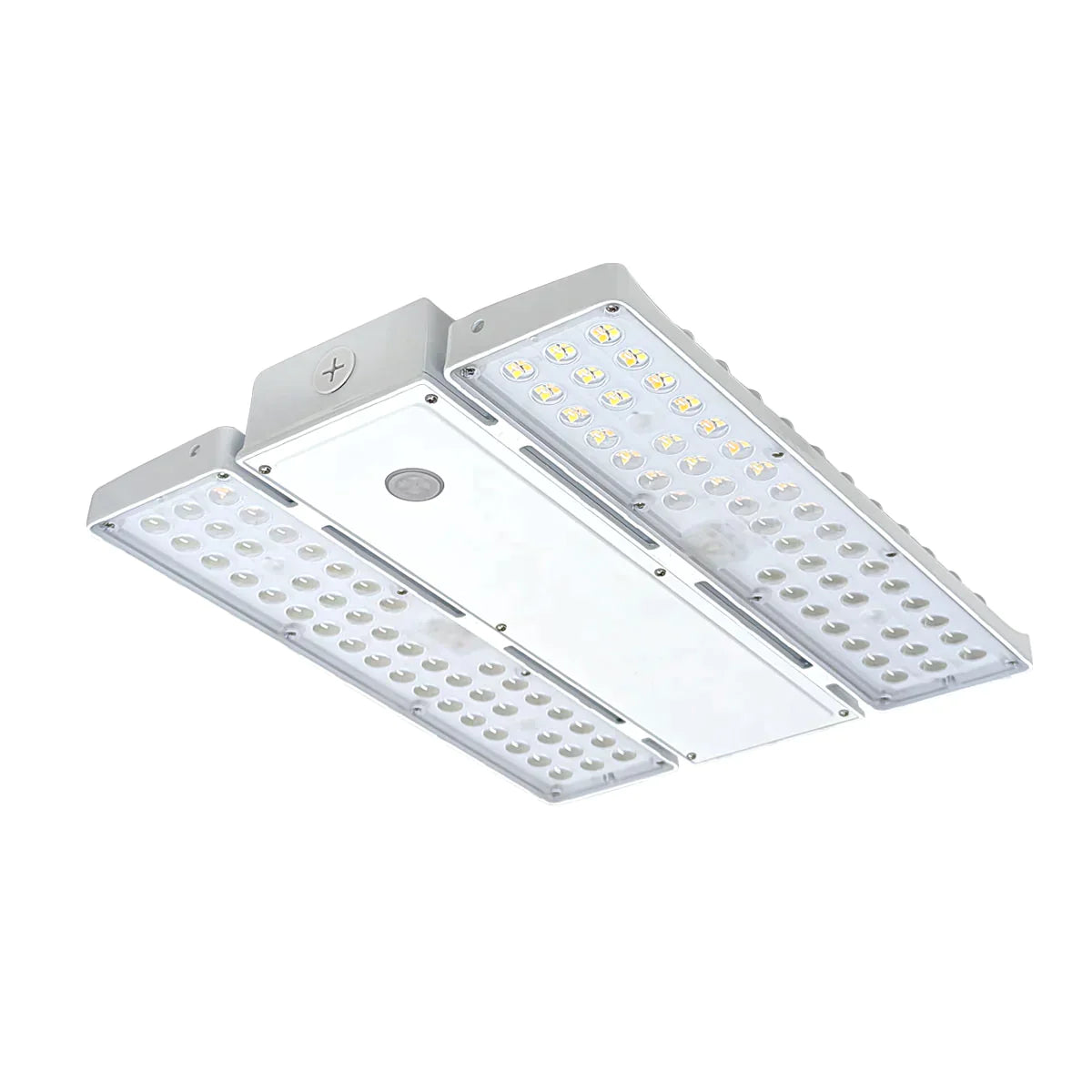

LHB02 Series Linear LED High Bay

130W Selectable LED Linear High Bay for Open Areas

130W Selectable LED Linear High Bay for Open Areas

Configure your correlated color temperature (CCT), input voltage, and emergency backup driver when ordering.

  • 13,500 to 20,020 lumens
  • 130W/105W/90W Selectable
  • 4000K/5000K selectable CCT
  • 95° beam angle

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Input Voltage
Emergency Backup

Quick Ship | SKU:

Return to main product:
LHB02 Series Linear LED High Bay View full details

DLC SPECIFICATIONS

LLTVLHB02-130W-CS
DLC Specifications

Configuration
120-277VAC
No Emergency Backup
DLC Classification
Premium
DLC Lumens
20150 lm
DLC Wattage
130.0 Watts
Luminous Efficacy
155 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB02-130W-CS-E
DLC Specifications

Configuration
120-277VAC
90-Minute Li-ion Battery
DLC Classification
Premium
DLC Lumens
20150 lm
DLC Wattage
130.0 Watts
Luminous Efficacy
155 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVLHB02-130W-CS-480
DLC Specifications

Configuration
277-480VAC
No Emergency Backup
DLC Classification
Premium
DLC Lumens
20150 lm
DLC Wattage
130.0 Watts
Luminous Efficacy
155 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

ACCESSORIES

Mounting options: Use a safety line for hanging installation, or install an optional fixed ceiling bracket or a ±60° adjustable bracket for ceiling mounting.

Sensors: Dimming capability is included. Add more controls with a microwave or PIR motion sensor and/or a daylight sensor with daylight harvesting function. Motion sensors are IP65 rated, daylight sensor is IP20 rated. A remote controller is available for programming.

Return to main product: LHB02 Series Linear LED High Bay
