V01 Series LED Vapor Tight Lights

2V01-025 Selectable 2ft LED Vapor Tight Light - Up to 3,500 Lumens

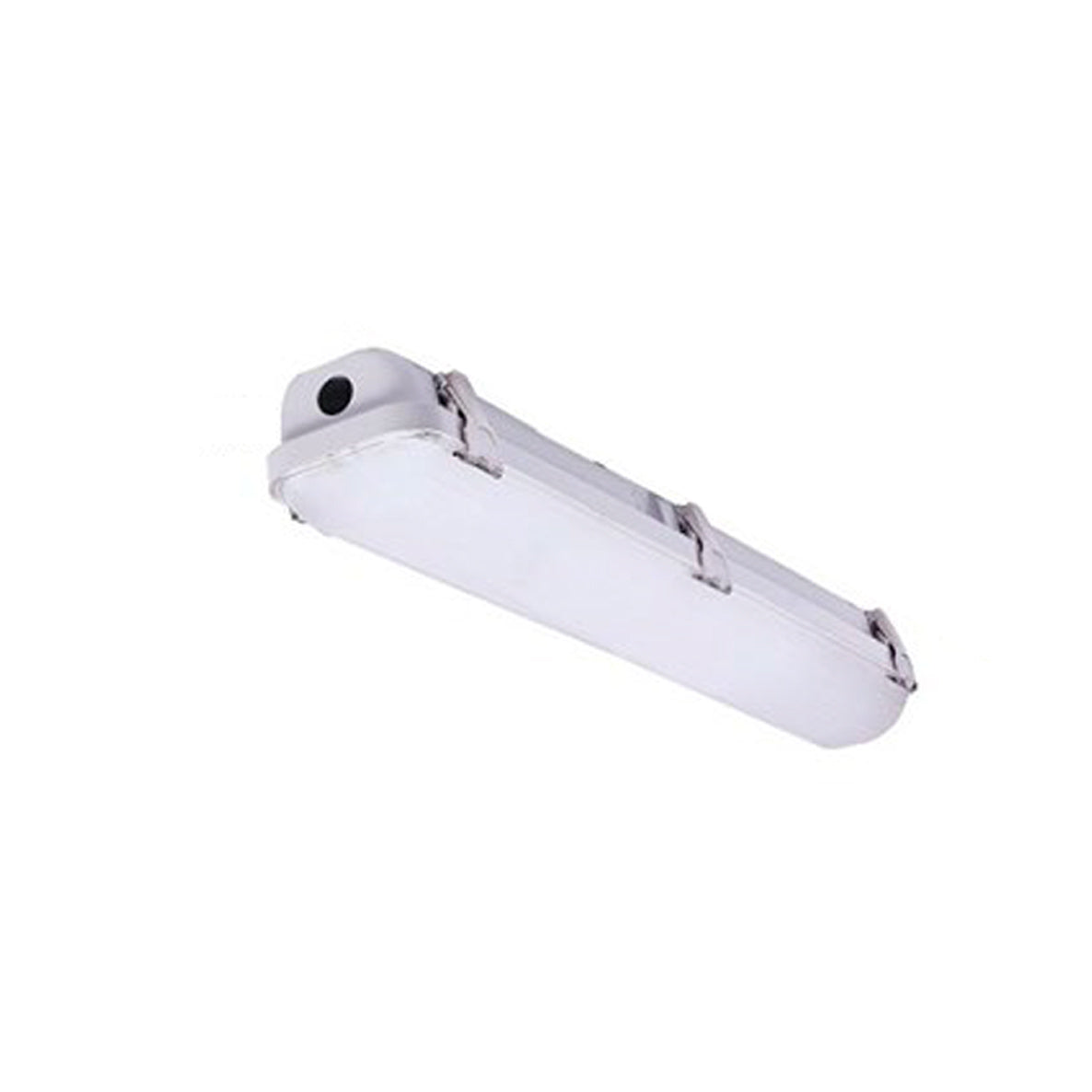

2V01-025 Selectable 2ft LED Vapor Tight Light - Up to 3,500 Lumens

CCT and power-selectable 2ft long LED vapor tight light with IP66 and IK10 rated housing.
  • Up to 3,500 lumens
  • 25W/20W/15W
  • 3500K, 4000K & 5000K CCT
  • 110° Beam Angle
  • 120-277VAC

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Lens
Sensor
Driver

SKU:

Return to main product:
V01 Series LED Vapor Tight Lights View full details
DLC Listed ETL Listed Wattage Selectable CCT Selectable CRI 80 120-277V 0-10V Dimming IP-66 Rated Enclosure IK-10 Impact Rating

DOWNLOADS

Download Spec Sheet V01 Series Vapor Tight Luminaires Datasheet

DLC SPECIFICATIONS

LLTV2V01-025WCS-C DLC Specifications

Configuration
Anti-glare clear
No Sensor
Standard Driver
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-CE DLC Specifications

Configuration
Anti-glare clear
No Sensor
With Emergency Backup
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-C-MM DLC Specifications

Configuration
Anti-glare clear
Motion Sensor
Standard Driver
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-C-MME DLC Specifications

Configuration
Anti-glare clear
Motion Sensor
With Emergency Backup
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-F DLC Specifications

Configuration
Frosted
No Sensor
Standard Driver
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-FE DLC Specifications

Configuration
Frosted
No Sensor
With Emergency Backup
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-F-MM DLC Specifications

Configuration
Frosted
Motion Sensor
Standard Driver
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV2V01-025WCS-F-MME DLC Specifications

Configuration
Frosted
Motion Sensor
With Emergency Backup
DLC Lumens
3250 lm
DLC Wattage
25.0 Watts
Luminous Efficacy
130 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires
