V01 Series LED Vapor Tight Lights

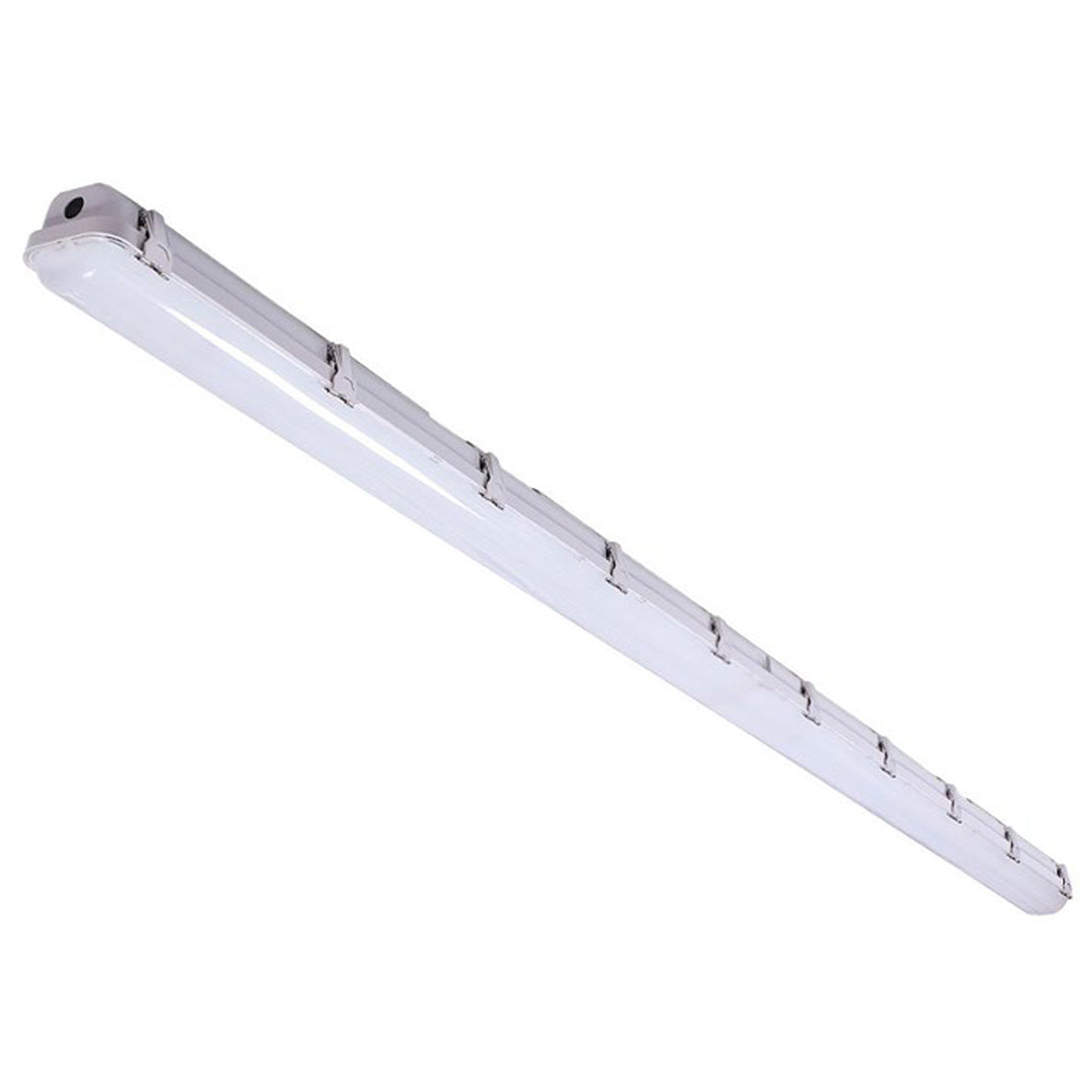

8V01-090 Selectable 8ft LED Vapor Tight Light - Up to 13,500 Lumens

8V01-090 Selectable 8ft LED Vapor Tight Light - Up to 13,500 Lumens

CCT and power-selectable 8ft long LED vapor tight light with IP66 and IK10 rated housing.
  • Up to 13,500 lumens
  • 90W/75W/65W/55W
  • 3500K, 4000K & 5000K CCT
  • 110° Beam Angle
  • 120-277VAC

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Lens
Sensor
Driver

SKU:

Return to main product:
V01 Series LED Vapor Tight Lights View full details
DLC Listed ETL Listed Wattage Selectable CCT Selectable CRI 80 120-277V 0-10V Dimming IP-66 Rated Enclosure IK-10 Impact Rating

DOWNLOADS

Download Spec Sheet V01 Series Vapor Tight Luminaires Datasheet

DLC SPECIFICATIONS

LLTV8V01-090WCS-C DLC Specifications

Configuration
Anti-glare clear
No Sensor
Standard Driver
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-CE DLC Specifications

Configuration
Anti-glare clear
No Sensor
With Emergency Backup
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-C-MM DLC Specifications

Configuration
Anti-glare clear
Motion Sensor
Standard Driver
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-C-MME DLC Specifications

Configuration
Anti-glare clear
Motion Sensor
With Emergency Backup
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-F DLC Specifications

Configuration
Frosted
No Sensor
Standard Driver
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-FE DLC Specifications

Configuration
Frosted
No Sensor
With Emergency Backup
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-F-MM DLC Specifications

Configuration
Frosted
Motion Sensor
Standard Driver
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires

LLTV8V01-090WCS-F-MME DLC Specifications

Configuration
Frosted
Motion Sensor
With Emergency Backup
DLC Lumens
13500 lm
DLC Wattage
90.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
Direct Linear Ambient Luminaires
