CP01 Series Canopy Light for Parking Garages

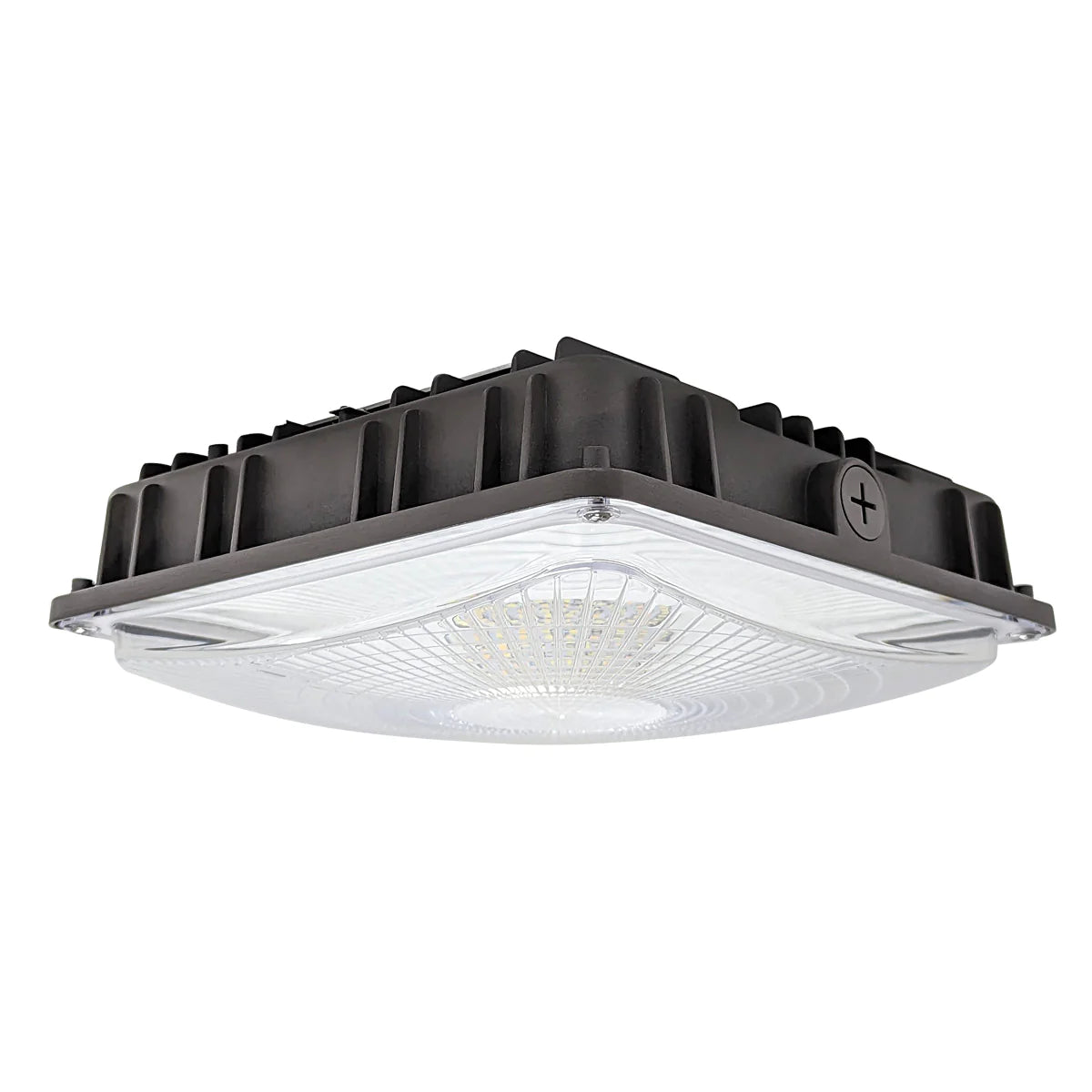

CP01-030D LED Canopy Light

CP01-030D LED Canopy Light

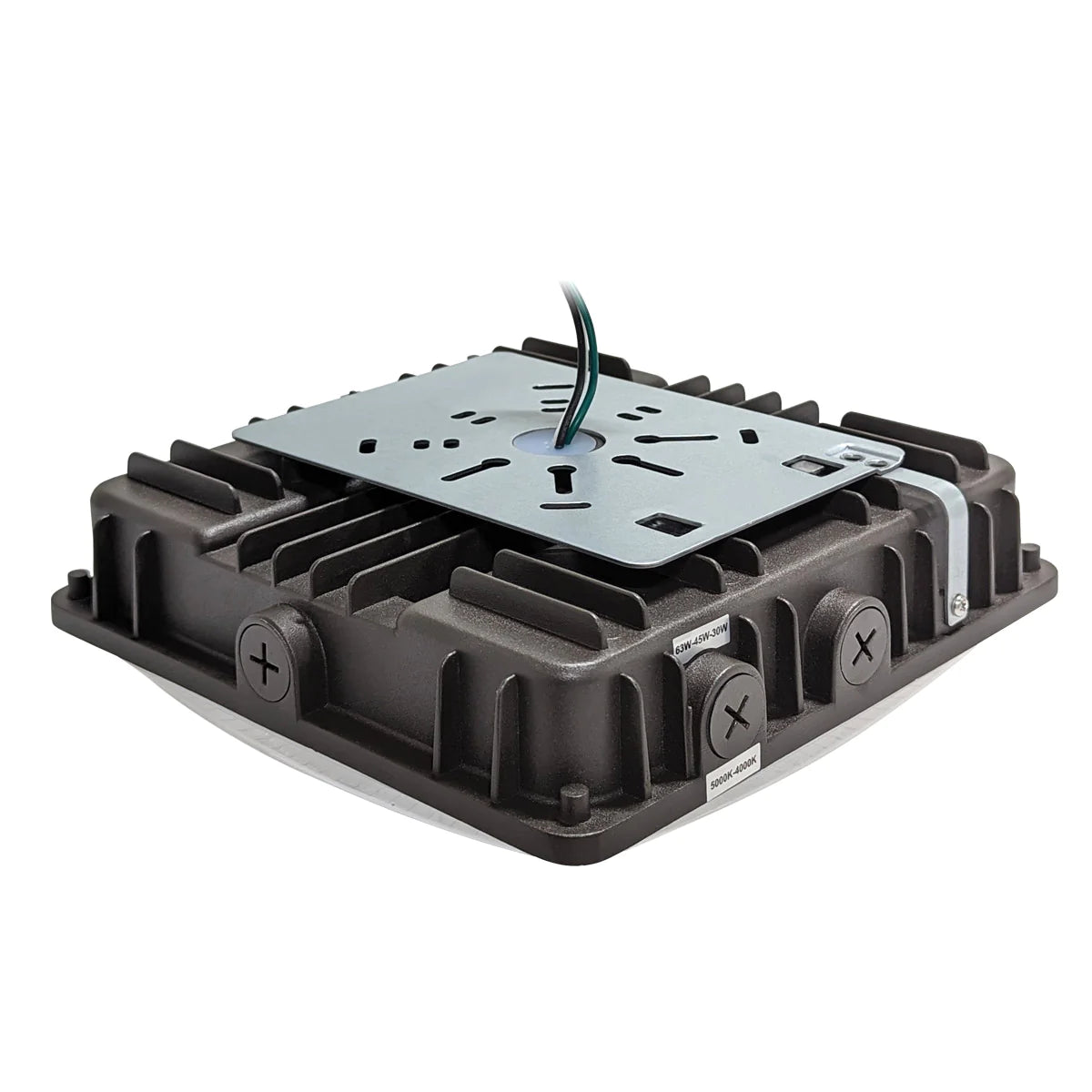

LED parking garage canopy light with quick-mount plate for easy surface-mount install. Can also be pendant mounted with a junction box and 3/4" conduit.
  • 4,050 lumens
  • 30W
  • 4000K or 5000K
  • 150° beam angle

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Color Temperature
Sensor
Input Voltage

SKU:

Return to main product:
CP01 Series Canopy Light for Parking Garages View full details
DLC Listed UL Listed Wattage Selectable CCT Selectable 120-277V 0-10V Dimming IP-65 Rated Enclosure IK-08 Impact Rating

DOWNLOADS

Download Spec Sheet LLTVCP01 Spec Sheet

DLC SPECIFICATIONS

LLTVCP01-030D-40 DLC Specifications

Configuration
4000K CCT
No Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-347 DLC Specifications

Configuration
4000K CCT
No Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-PC DLC Specifications

Configuration
4000K CCT
Photocell Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-PC-347 DLC Specifications

Configuration
4000K CCT
Photocell Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-MM DLC Specifications

Configuration
4000K CCT
Motion Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-MM-347 DLC Specifications

Configuration
4000K CCT
Motion Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-PCMM DLC Specifications

Configuration
4000K CCT
Photocell & Motion Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-40-PCMM-347 DLC Specifications

Configuration
4000K CCT
Photocell & Motion Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50 DLC Specifications

Configuration
5000K CCT
No Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-347 DLC Specifications

Configuration
5000K CCT
No Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-PC DLC Specifications

Configuration
5000K CCT
Photocell Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-PC-347 DLC Specifications

Configuration
5000K CCT
Photocell Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-MM DLC Specifications

Configuration
5000K CCT
Motion Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-MM-347 DLC Specifications

Configuration
5000K CCT
Motion Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-PCMM DLC Specifications

Configuration
5000K CCT
Photocell & Motion Sensor
120-277VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires

LLTVCP01-030D-50-PCMM-347 DLC Specifications

Configuration
5000K CCT
Photocell & Motion Sensor
120-347VAC
DLC Lumens
4500 lm
DLC Wattage
30.0 Watts
Luminous Efficacy
150 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
Parking Garage Luminaires
