Select Your LED Canopy Light
Our CP01 LED Canopy Lights with 150° beam angles are perfect for parking garages, public transportation shelters, pavilions, and more. Choose between fixed wattage/CCT or selectable wattage & CCT models.
-
CP01-63W Selectable LED Canopy Light
- 30W/45W/63W Selectable
- 4,050 to 8,505 lumens
- 4000K, 5000K or CCT-selectable
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC30W/45W/63W SelectableCP01-63W Selectable LED Canopy Light
- 4,050 to 8,505 lumens
- 4000K, 5000K or CCT-selectable
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC -
CP01-063D LED Canopy Light
- 63W
- 8,505 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC63WCP01-063D LED Canopy Light
- 8,505 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC -
CP01-045D LED Canopy Light
- 45W
- 6,120 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC45WCP01-045D LED Canopy Light
- 6,120 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC -
CP01-030D LED Canopy Light
- 30W
- 4,050 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC30WCP01-030D LED Canopy Light
- 4,050 lumens
- 4000K or 5000K
- 150° beam angle
Additional Options:
Photocell and/or microwave sensor
120-277VAC or 120-347VAC
*IES file links on this page may not contain an IES file for every available configuration of the model.
DETAILS
Cost Effective, Energy-Saving & Built to Last

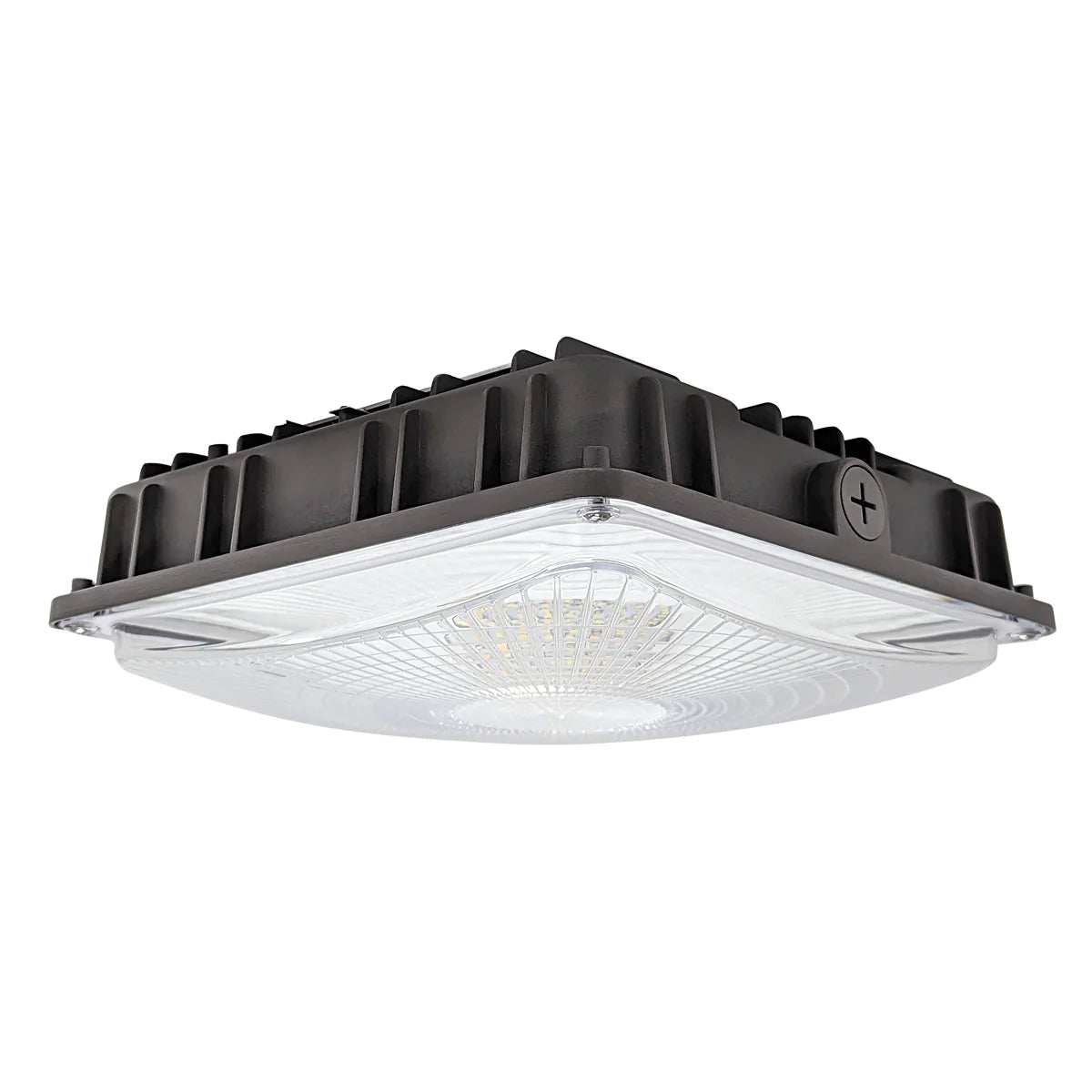

Our CP01 Series LED Canopy Light offers a highly cost-effective lighting solution for parking facilities and other commercial canopy lighting needs, with a wide range of configurations to choose from. These LED canopy lights are also built to withstand both the elements and impacts, with an IP65 and IK08 rated housing. Plus:
- Photocell and/or microwave sensor available for enhanced control over illumination and energy costs
- 150° beam angle produces widespread and uniform illumination that's perfect for parking garage lighting and other applications

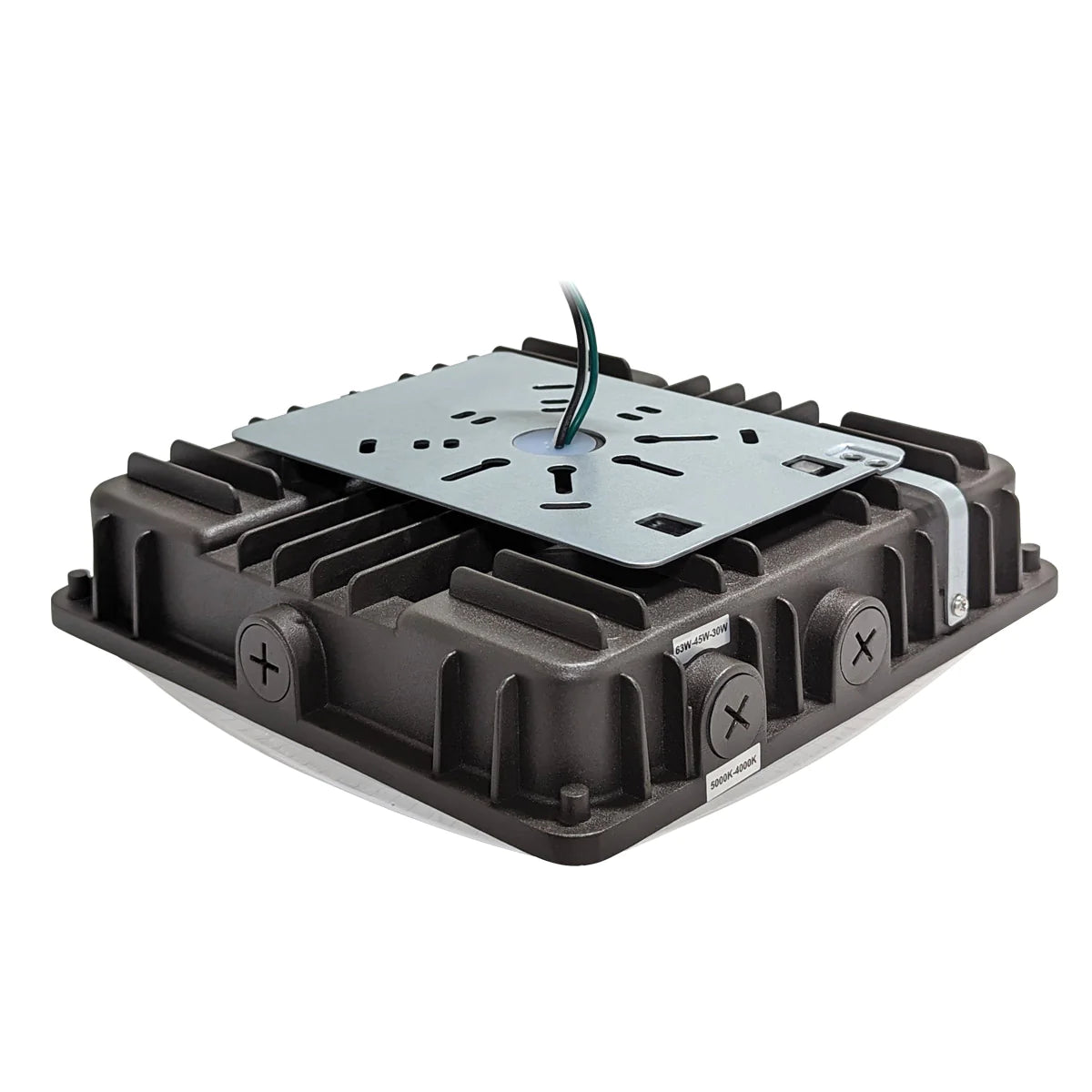

- Quick-mount plate makes this an easy-to-install surface mount LED parking garage light; alternately, you can pendant mount it using a junction box and 3/4" conduit.
- Durable aluminum housing with four 1/2" NPT side conduit entries for convenient wiring
- Canopy light's compact size (under 10") ensures easy handling
Applications
The 150° beam angle makes these canopy lights ideal for a wide range of applications:- Parking Garages: Ensure safety and visibility with our dedicated parking garage lighting solution.
- Storage Areas: Improve productivity and security with well-lit storage spaces.
- Shopping Area Walkways: Enhance customer experience with clear, bright walkways.
- Entryways, Overhangs & Eaves: Improve visibility and aesthetic appeal with our commercial canopy lights.
- Drive-thru lanes, Pavilions, Toll stations: Ensure smooth operation, safety, and customer satisfaction.
- Underpasses and Tunnels: Enhance safety and visibility in these typically dark areas.
- Public Transit Shelters: Improve comfort and safety for public transport users.
- Indoor Applications: For areas where you would typically use low bay lights but prefer surface- or junction-box mounted options, our canopy light is perfect. This includes sports facilities, warehouses, assembly lines, retail stores, and more.
Choose the LED Living CP01 LED parking garage lights for optimal illumination whatever your application.
DOWNLOADS
KEY SPECIFICATIONS
Lumens Package | 30W Model: 4,050 lumens 45W Model: 6,120 lumens 63W Model: 8,505 lumens Selectable Model: 4,050 to 8,505 lumens |
System Efficacy | 135 lm/W |
CRI | > 70 |
Dimming Capability | 0 to 10V |
CCT |
Fixed Models: 4000K or 5000K Selectable Model: 4000K/5000K |
Beam Angle | 150° |
Average Lifetime | L90: 44,000 hours L70: 54,000 hours |
Enclosure Rating | IP65, IK08 |
Operating Temperature | -40°F to 113°F |
System Watts | Fixed models: 30W, 45W or 63W Selectable model: 30W/45W/63W |
Input Voltage | 120-277VAC or 120-347VAC, 50/60Hz |
Surge Protection | 4kV line-line, 6kV line-earth |
Warranty | 5 Years |
Certifications | DLC Premium, UL |
DLC Listing Primary Use Category | Parking Garage Luminaires |
