FL03 Series LED Flood Light - Field Selectable

FL03 Series LED Flood Light - Field Selectable

The flood light that has everything. When you need a versatile yet affordable lighting solution for outdoor areas, building facades, and parking lots, the FL03 Series of LED Flood Lights have you covered:

  • Light output from 2,625 to 52,500 Lumens
  • 3000K, 4000K, and 5000K CCT
  • IP66 & IK08 Enclosure Rating
  • Built-in Photocell Can Be Turned On or Off
  • 5-Year Warranty
DLC Premium ETL Listed Wattage Selectable CCT Selectable 277-480V 0-10V Dimming IP-66 Rated Enclosure IK-07 Impact Rating
View full details

Featured FL03 Series Models

All LLTVFL03 models are wattage and color selectable, with up to 175 lm/W luminous efficacy and a number of customizations available, including yoke, knuckle, or pole mounting brackets. The models below are in our Quick Ship program. For additional configurations, refer to the FL03 Series Flood Light datasheet.

*IES file links on this page may not contain an IES file for every available configuration of the model.


Light Up Your World, Your Way:

The all-new FL03 Series delivers unmatched versatility and performance for any outdoor lighting project.

Unleash Customization Power:

  • Color Temperature Tailored to Your Needs: Choose from 3 CCT options (3000K warm white, 4000K neutral white, or 5000K cool white) during installation to create the perfect ambiance, whether it's an inviting entryway or a bright and secure security zone.
  • Wattage Control for Optimized Efficiency: Select from three wattages to perfectly match your specific lighting requirements. Need a powerful flood to illuminate a large area? Crank up the wattage. Want to prioritize energy savings for smaller spaces? Opt for a lower wattage setting.

Exceptional Performance & Durability:

  • Brilliant Efficiency: Boasting a luminous efficacy of up to 175 lm/W, these flood lights deliver exceptional brightness while minimizing energy consumption, translating to significant cost savings on your electricity bills.
  • Dusk-to-Dawn Convenience: The integrated photocell, when turned on during installation, provides automatic operation as night falls and dawn arrives, for convenient and energy-efficient lighting. The photocell can also be turned off if your application doesn't require it.
  • Dimming Control at Your Fingertips: Enjoy seamless integration with 1-10V dimming systems, allowing you to create the desired atmosphere and further optimize energy use.
  • Built to Endure: These IP66 and IK07 rated flood lights are weatherproof, dust-resistant, and impact-resistant, making them ideal for any outdoor environment.

FL03 Series LED Flood Lights – The Perfect Choice for:

  • Building perimeters and facades
  • Parking lots and walkways
  • Billboards and signage
  • Loading docks and security areas
  • And much more!

With superior flexibility, exceptional performance, and rugged construction, the FL03 Series is the ultimate solution your outdoor lighting needs. Browse the available models and find the perfect fit for your project today.



Wattage & Lumens Quick-Ship program:
60W: 60/50/40W, Up to 10,500 lumens
150W: 150/120/90W, Up to 26,250 lumens
300W: 300/240/180W, Up to 52,500 lumens
Also available:
30W: 30/20/15W, Up to 5,250 lumens
100W: 100/80/60W, Up to 17,550 lumens
200W: 200/160/120W, Up to 35,000 lumens
System Efficacy Up to 175 lm/W
CRI 80
CCT 3000K, 4000K, & 5000K selectable during installation
Beam Angle 114° (7x7)
Enclosure Rating IP66, IK07

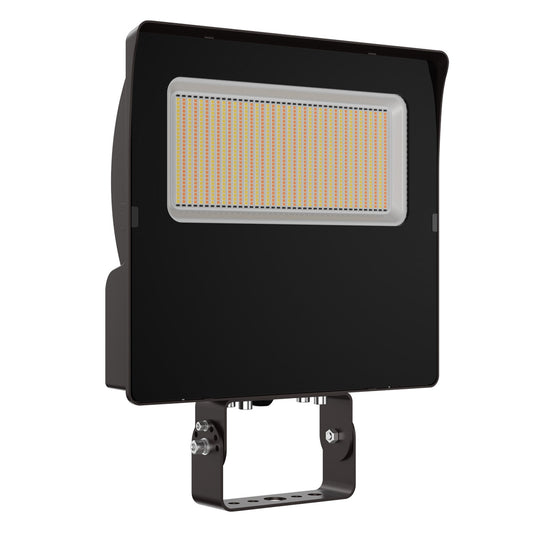

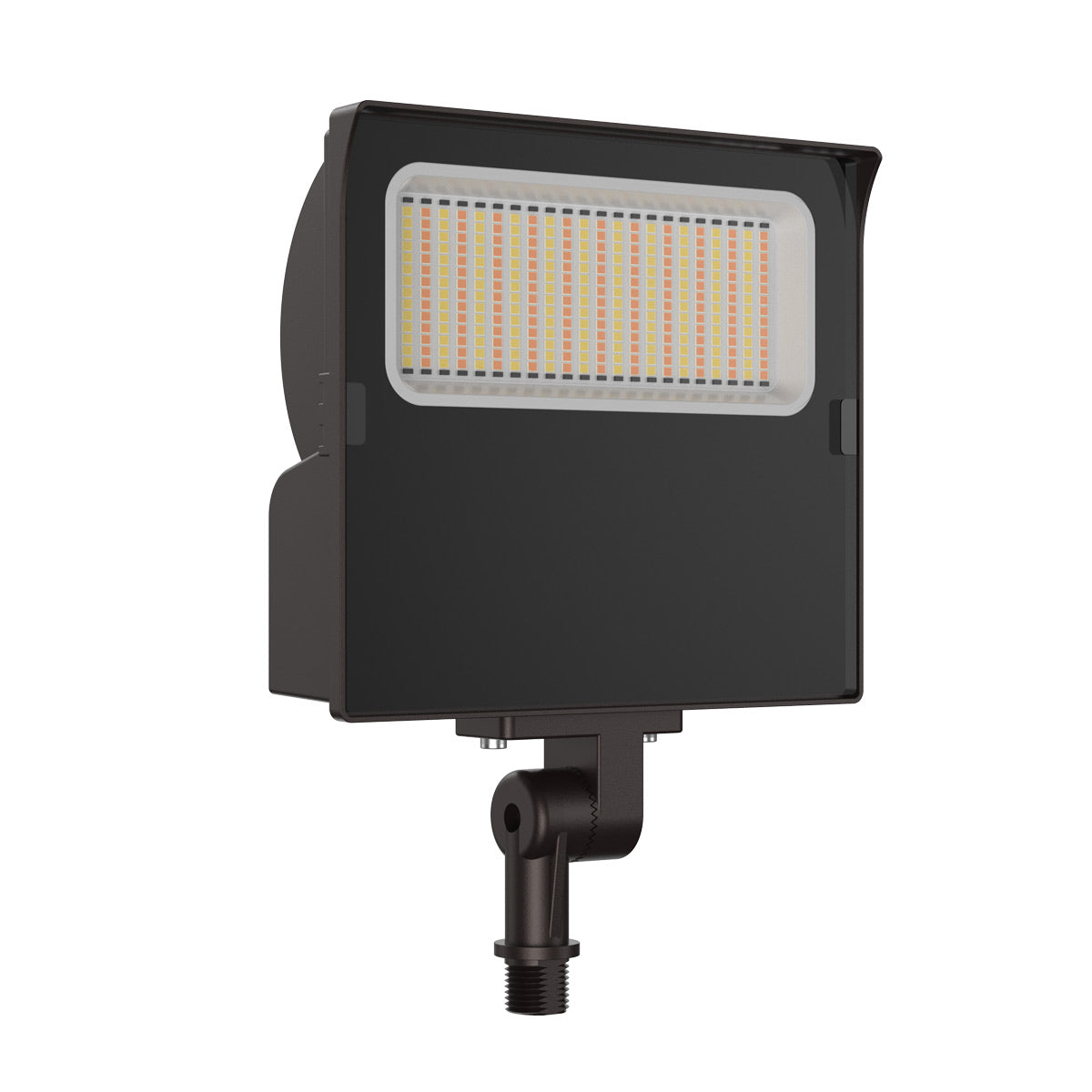

Mounting Yoke-mount bracket included with all models. Knuckle mount is included with 30W and 60W models. Slipfitter with 60 mm or 76 mm sleeve is available for the 100W, 150W, 200W, and 300W models.
Input Voltage 120-277 VAC. 120-347VAC, or 277-480 VAC
Housing Aluminum alloy with powder-coat finish and tempered glass lens
Finish Black or Bronze
Warranty 5 Years
Certifications DLC Premium, ETL
DLC Listing Primary Use Category Outdoor Pole/Arm-Mounted Area and Roadway Luminaires


Adjustable angle slipfitter mounting brackets are available with 60mm or 76 mm sleeve for the 100W, 150W, 200W, and 300W models.
