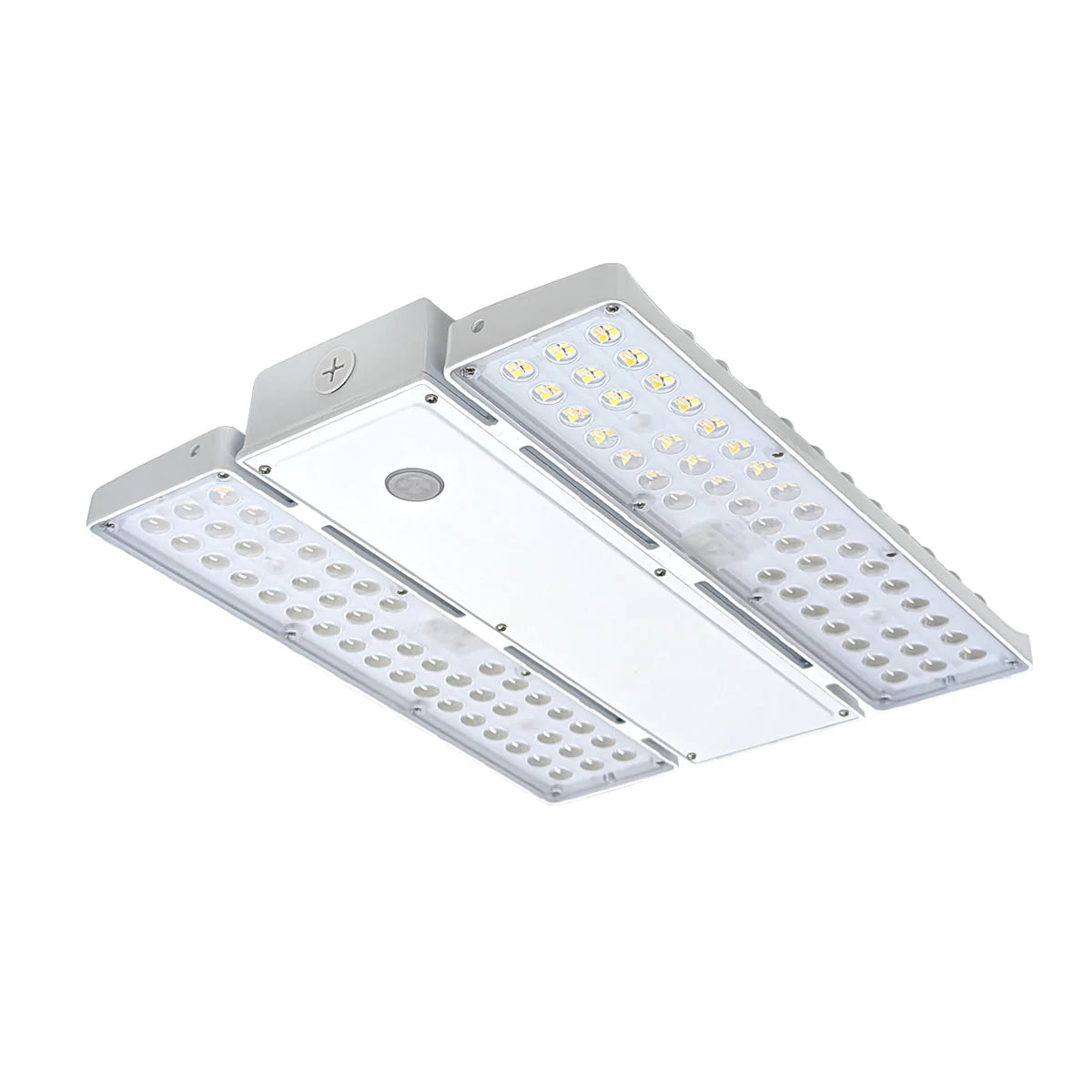

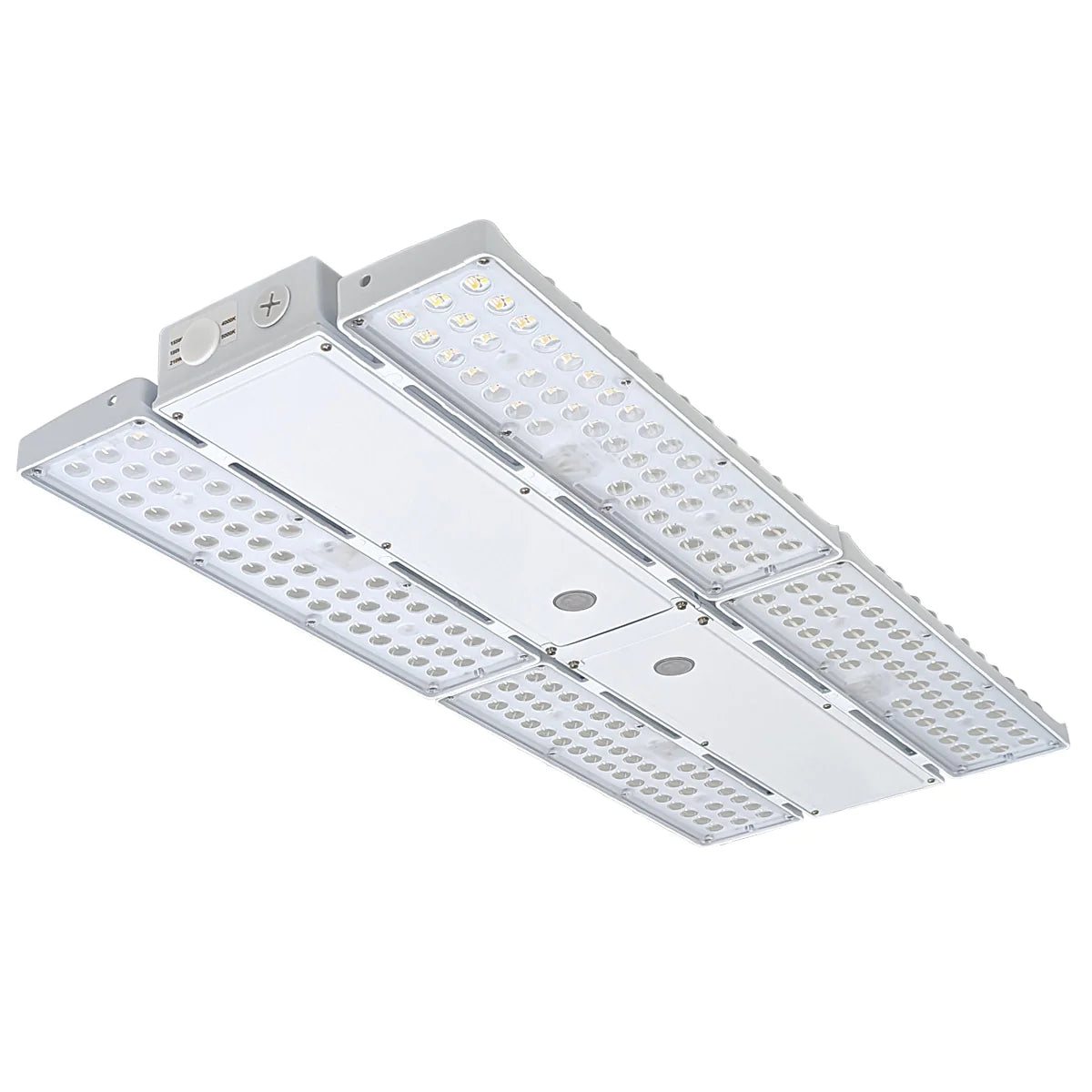

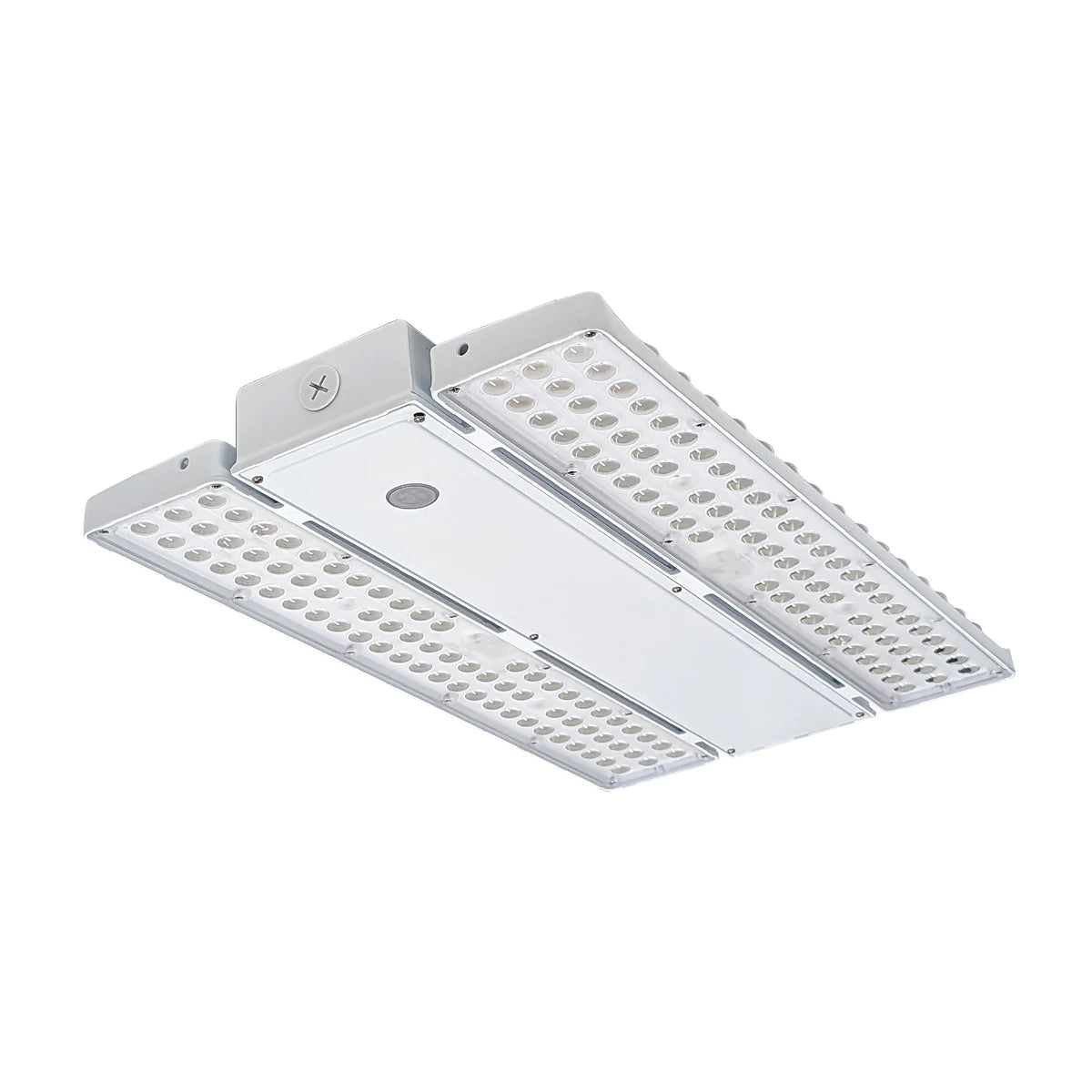

LHB02 Series Linear LED High Bay

LHB02 Series Linear LED High Bay

What makes our LHB02 Series Linear High Bay stand out is the flexibility it offers.

  • Fixed or Selectable Wattage & CCT
  • Optics for Aisles & Open Areas
  • 120-277V or 277-480V (120-347V by special order)
  • 5-Year Warranty
LHB02 LED linear high bays ensure the perfect amount and coverage of light for any space with ceilings from 15 feet to over 40 feet in height. And with the 0-10V dimmable driver included as standard, you have complete control over the brightness of your lighting with a dimming range of “off” through 100%.
    DLC Listed UL Listed Wattage Selectable CCT Selectable CRI 80 0-10V Dimming 120-277V 277-480V IK-08 Impact Rating
    View full details

    Six Configurations & an Abundance of Lumen Outputs to Meet All Your High Ceiling Lighting Needs

    We offer the LHB02 lights in fixed wattage or selectable wattage, open area beam angle (105°) or aisle beam angle (60° x 100°), and standard lumen (150 lm/W) or high lumen (170 lm/W). Each of these configurations are further broken into a selection of lumens packages to accommodate a wide range of ceiling heights and applications. Voltage input options include standard 120-277 VAC and high voltage 277-480 VAC. For Canadian users, 120-347 VAC is available by special order. Emergency backup drivers are available for all 120-277 VAC lights. Browse available lights below:

    LHB02-W Linear LED High Bay Models for Open Areas

    Selectable Wattage• Optional Selectable CCT • 105˚ Beam Angle • 150 lm/W Efficacy • 80 CRI

    These models feature an open area beam angle, standard lumen output, and superior coloring rendering. Choose between 5 wattage sets, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    LHB02-W-LM Linear LED High Bay Models for Aisle Lighting

    Selectable Wattage• Optional Selectable CCT • 60˚ x 100˚ Beam Angle • 150 lm/W Efficacy • 80 CRI

    These models feature a medium aisle beam angle, standard lumen output, and superior coloring rendering. Choose between 5 wattage sets, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    LHB02-7H-W High Efficacy Linear LED High Bay Models for Open Areas

    Selectable Wattage • Optional Selectable CCT • 105˚ Beam Angle • 170 lm/W Efficacy • 80 CRI

    These models feature an open area beam angle, high lumen output, and superior coloring rendering. Choose between 4 wattage sets, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    LHB02-W-7H-LM Linear LED High Bay Models for Aisle Lighting

    Selectable Wattage• Optional Selectable CCT • 60˚ x 100˚ Beam Angle • 170 lm/W Efficacy • 80 CRI

    These models feature a medium aisle beam angle, high lumen output, and superior coloring rendering. Choose between 4 wattage sets, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    LHB02-D Linear LED High Bay Models for Open Areas

    Fixed Wattage & CCT • 105˚ Beam Angle • 150 lm/W Efficacy • 80 CRI

    These models feature an open area beam angle, standard lumen output, and superior coloring rendering. Choose between 6 wattages, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    LHB02-D-LM Linear LED High Bay Models for Aisle Lighting

    Fixed Wattage & CCT • 60˚ x 100˚ Beam Angle • 150 lm/W Efficacy • 80 CRI

    These models feature a medium aisle beam angle, standard lumen output, and superior coloring rendering. Choose between 6 wattages, 2 color temperatures, and 2 input voltages. Also available with an emergency back-up driver for power outages.

    *IES file links on this page may not contain an IES file for every available configuration of the model.

    DETAILS

    The LHB02 Series Linear High Bay LED lights offers the perfect blend of flexibility, efficiency, and durability for your lighting needs. These LED linear high bay lights provide outstanding illumination for large spaces with high ceilings ranging from 15 to over 40 feet in height.

    These LED fixtures are available with either fixed or selectable wattage and fixed or selectable correlated color temperature (CCT). For the selectable models, you can choose between a luminous efficacy of 150 lm/W or 170 lm/W to achieve the perfect balance of light intensity and energy efficiency. Plus, with a Unified Glare Rating (UGR) of less than 28, you'll have lighting that's comfortable to the eye.

    These linear high bay lights are available with optics designed for either aisles and open areas, ensuring uniform and optimal lighting coverage. The 0-10V dimming function, paired with plug-and-play sensors, gives you complete control over your lighting environment.

    The fixtures are also designed with resilience in mind. They feature die-cast aluminum housing with a white powder coat finish for robust durability, and a high transmittance polycarbonate lens to ensure optimal light output. Able to withstand an operating temperature range from -40°C to +50°C (-40°F to +122°F), they can handle challenging environments—from freezer warehouses to airplane hangars—with ease. They also come with an IK08 rating and 6kV line-line, 10kV line-earth surge protection for enhanced safety.

    Emergency situations? No worries. These linear high bay lights are available with an emergency driver with Li-ion battery backup that can provide up to 90 minutes of operation during power outages.

    Installation is flexible with options for suspension mount, surface mount, or pendant mount. They are compatible with both 120-277V or 277-480V. Need 120-347V? Contact us for pricing and lead time.

    The LHB02 series LED linear high bays are UL listed, ensuring quality and safety standards are met, and on the DLC Premium Qualified Products List for rebate eligibility. For added peace of mind, they come with a 5-Year Warranty.

    Illuminate your high-ceiling spaces with the LHB02 Series Linear High Bay LED lights and experience lighting designed with you in mind.

    DOWNLOADS

    Download Spec Sheet LHB02 Series Data Sheet

    KEY SPECIFICATIONS

    Lumens Package Fixed Wattage Models - 150 lm/W
    90W - 13,500 lumens
    115W - 17,250 lumens
    180W - 27,000 lumens
    240W - 36,000 lumens
    270W - 40,500 lumens
    360W - 54,000 lumens
    Selectable Wattage Models - 150 lm/W
    130W/105W/90W - Up to 20,020 lumens
    155W/130W/115W - Up to 23,250 lumens
    210W/180W/155W - Up to 31,500 lumens
    310W/270W/240W - Up to 46,500 lumens
    420W/360W/310W - Up to 63,840 lumens
    Selectable Wattage Models - 170 lm/W
    155W/130W/115W - Up to 26,800 lumens
    210W/180W/155W - Up to 36,270 lumens
    310W/270W/240W - Up to 53,500 lumens
    420W/360W/310W - Up to 71,920 lumens
    System Efficacy 150 lm/W (Standard), 170 lm/W (High Lumen)
    CRI >80 (Standard), 70 (High Lumen)
    CCT 4000K, 5000K, or 4000K/5000K Selectable
    Beam Angle 105° (Standard) or 60°x100° for Aisle Application
    Projected Lifetime L90: 44,000 hours, L70: 54,000 hours
    Impact Rating IK08
    System Watts Fixed wattage models available in 90W, 115W, 180W, 240W, 270W, and 360W
    Selectable wattage models available in 130W/105W/90W, 155W/130W/115W, 210W/180W/155W, 310W/270W/240W, and 420W/360W/310W
    Input Voltage 120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz
    Surge Protection 6kV line-line, 10kV line-earth
    Warranty 5 Years
    Certifications DLC Premium, UL
    DLC Listing Primary Use Category High-Bay Luminaires for Commercial and Industrial Buildings

    Accessories

    Mounting options: Use a safety line for hanging installation, or install an optional fixed ceiling bracket or a ±60° adjustable bracket for ceiling mounting.

    Sensors: Dimming capability is included. Add more controls with a microwave or PIR motion sensor and/or a daylight sensor with daylight harvesting function. Motion sensors are IP65 rated, daylight sensor is IP20 rated. A remote controller is available for programming.
