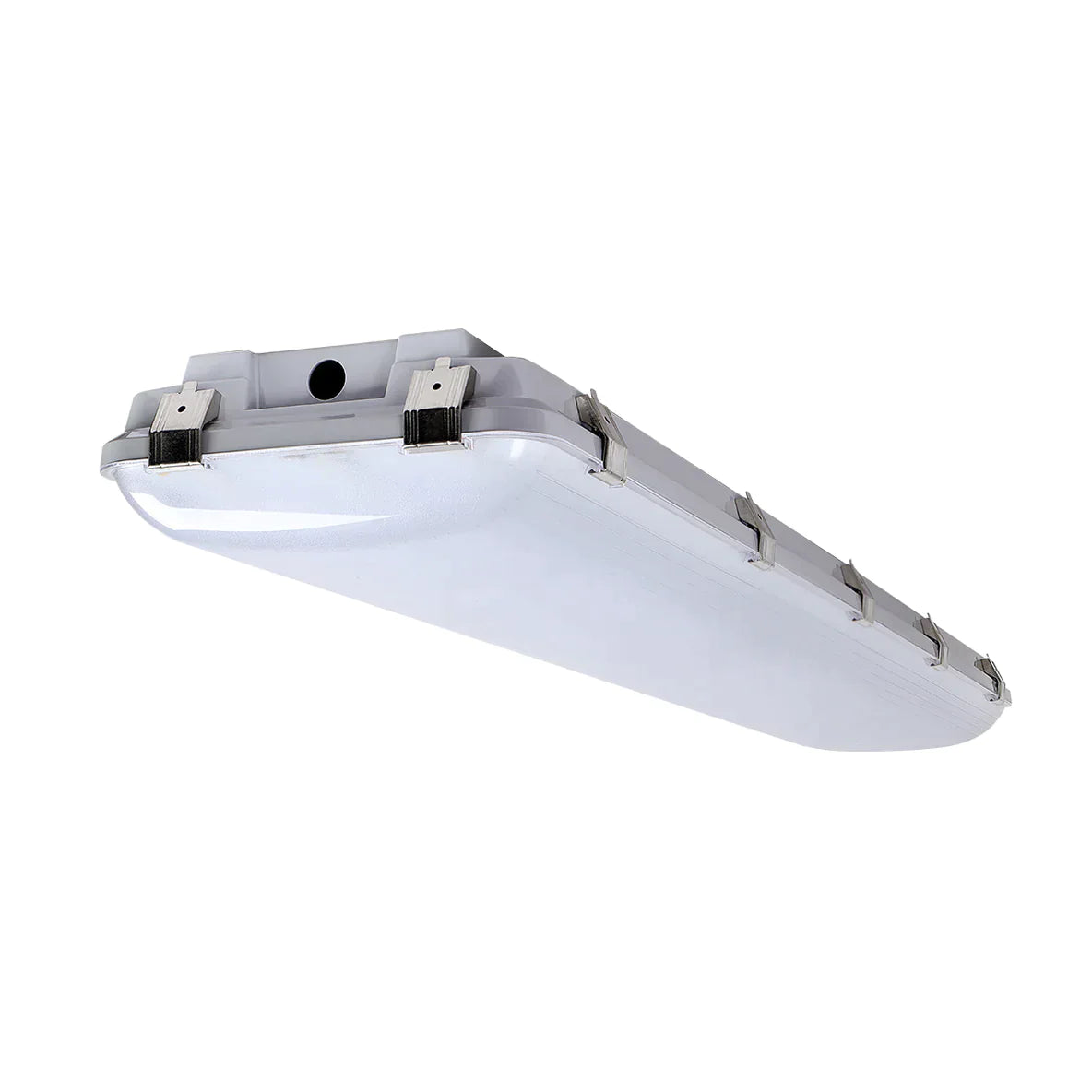

4ft LED Vapor Tight High Bay Luminaire

4V02-180WMM Selectable 4ft LED Linear Vapor Tight High Bay with Motion Sensor

4V02-180WMM Selectable 4ft LED Linear Vapor Tight High Bay with Motion Sensor

Wattage & CCT selectable vapor-tight LED high bay luminaire with motion sensor. Features IP67, IK10, and NEMA 4X rated housing plus NSF certification.
  • 15,750 to 27,000 lumens
  • 180/155/135/105W Selectable
  • 3500K/4000K/5000K CCT Selectable
  • 110° Beam Angle
  • 120-277VAC

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Lens
Emergency Battery

SKU:

Return to main product:
4ft LED Vapor Tight High Bay Luminaire View full details

DETAILS

120-347VAC available by special order. White gray is default housing color; gray is available by special order. Contact us for special order lead time. DLC information coming soon—contact us if you need it sooner.

DLC Listed ETL Listed NSF Certified Wattage Selectable CCT Selectable CRI 80 100-277V 0-10V Dimming IP-67 Rated Enclosure IK-10 Impact Rating

DOWNLOADS

Download Spec Sheet 4V02 Series LED Vapor Tight Luminaires Datasheet

DLC SPECIFICATIONS

LLTV4V02-180WCSMM DLC Specifications

Configuration
Anti-glare clear
No emergency battery
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSMME15 DLC Specifications

Configuration
Anti-glare clear
15W emergency driver
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSMME20 DLC Specifications

Configuration
Anti-glare clear
20W emergency driver
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSFMM DLC Specifications

Configuration
Frosted
No emergency battery
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSFMME15 DLC Specifications

Configuration
Frosted
15W emergency driver
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSFMME20 DLC Specifications

Configuration
Frosted
20W emergency driver
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3400K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
