Value LED High Bays

High ceilings require a lot of lumens. That could result in high energy bills. However, unlike metal halide or fluorescent alternatives, our LED High Bay Lighting reduces energy overhead and minimizes maintenance requirements. These LED Living Technology products are designed for locations with ceilings 20 feet and up, are made to last, and are value-driven. Our lighting experts are ready to help you find the perfect lights for your next high-ceiling application.

Great for facilities like medium-to-large warehouses, factories, processing plants, airplane hangars, gymnasiums, arenas, and more.

Interested in partnering with us?

Round and Linear Options for High-Ceiling Lighting

At LED Living Technology, we have both round and linear high bay options. High bays are higher wattage than other ceiling light types, in order to output more lumens. Their high brightness ensures a safe, secure workplace with high visibility. The higher they are installed, the narrower the beam should be in order to compensate for the vertical distance between the fixture and the work area. Our experts are available to review or design the perfect layout, styles, and beam angles to fit your project.

Round High Bays

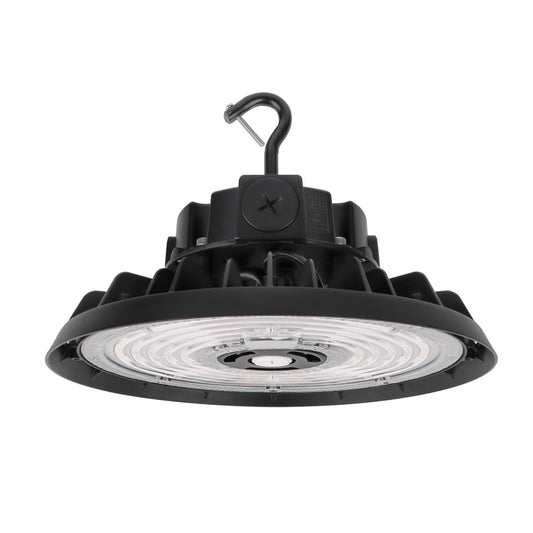

HIGH-EFFICIENCY ROUND HIGH BAY

For spaces with high ceilings and high brightness needs, get all the lumens required without the super high energy bill. With these efficient LED high bay lights, you will get up to 36,000 lumens to brighten your warehouse, supermarket, factory, gymnasium, or other large indoor area. By choosing LED lighting over fluorescent, HID, or comparable options, your company will save on energy costs and have virtually zero maintenance requirements. Easily install this high bay by using the attached hook to hang it from your ceiling.

Featured: High-Efficiency Round High Bay - Available in 150W or 200W

  • Replaces 750W
  • Available in 5000K
  • IP65 Enclosure Rating
  • 5-Year Warranty

Full Specifications: PDF Datasheet


FIELD-SELECTABLE ROUND HIGH BAY

Have one high bay that meets a whole range of lighting needs; choose between 4 wattages and 2 CCT options in the field. This fixture provides an output of 15,000 to 28,000 lumens, a luminous efficacy of 140 to 150 lm/W, and either a 4000K or 5000K color temperature. The combinations make it easy for suppliers to stock and easy for end-users to get customized lighting. Customize the project even further with available smart controls such as dimming, motion sensing, and daylight detecting.

Featured: Field-Selectable Round High Bay - Customizable Options

  • Wattage & Color Selectable
  • 4000K/5000K
  • IP65 & IK08 Rated
  • 5-Year Warranty

Full Specifications: PDF Datasheet


Linear High Bays

AISLE-LIGHTING LINEAR HIGH BAY

Available in wattages from 150W to 400W, you will get all the brightness you need and get luminous efficacy of up to 140 lm/W. Two wide-angle (80° x 100°) lenses illuminate open, rectangular areas, or you can instead have a narrow (60° x 100°) or very narrow (25° x 85°) beam angle to accommodate aisle or rack lighting applications. This high bay has IP66 & IK10 rated housing, protecting it against dust, bugs, powerful jets of water, and being dropped from a high place. Suspension wires are included for a typical install, or you can choose a ±60° rotatable ceiling mount for directed lighting. Hang this fixture in traditional commercial space, dusty or damp work areas, industrial locations, or more unique places like: grain processing plants, indoor swimming pools, professional kitchens, hockey rinks, gymnasiums, basketball or tennis courts, and more.

Featured: Aisle-Lighting Linear High Bay - Available in 150W to 400W

  • IP66 Enclosure Rating
  • 5000K
  • 3 Beam Angle Options
  • 5-Year Warranty

Full Specifications: PDF Datasheet


FIELD-SELECTABLE LINEAR HIGH BAY

Choose between 210W or 225W, depending on your preference for efficiency (the 210W has an efficacy of 158 lm/W) or brightness (the 225W goes up to 31,000 lumens when used at full power). With field-selectable power output, these luminaires can be set to replace 400W, 300W, 250W, or 175W metal halide lamps, or 10-lamp, 8-lamp, 6-lamp, 4-lamp T8 HO fixtures, making them a versatile lighting solution for a wide range of spaces. And with color-tunable options of 4000K and 5000K, you can create the perfect ambiance for each space. Plus, with the option for motion sensors, 1-10V dimming, and emergency battery, this LED Linear High Bay is designed to meet all your lighting needs. Plus it is DLC qualified & eligible for energy efficiency rebates.

Featured: Field-Selectable LED Linear High Bay - Available in 210W or 225W

  • Four Power Settings
  • Two Color Temperatures
  • Optional Controls
  • 5-Year Warranty

Full Specifications: PDF Datasheet


HIGH BAY EMERGENCY DRIVERS

LED battery backup drivers allow ordinary LED fixtures to operate as emergency lighting during power outages. For more information about emergency drivers for your high bays, contact Keith at 215-429-7689 or email keith@ledlivingtechnology.com.

Applications

Arenas  •  Factories  •  Gymnasiums  •  Industrial  •  Larger Hangars  •  Manufacturing Facilities  •  Processing Plants  •  Storage Facilities  •  Warehouses
