DN01 Series Under Cabinet Lights

DN01 Series Under Cabinet Lights

Brighten workspaces, display cases, counter tops, and cabinets with sleek, high-performance lighting. The DN01 Series provides adjustable color temperature and multiple size options, delivering crisp, glare-free illumination for commercial and industrial applications.

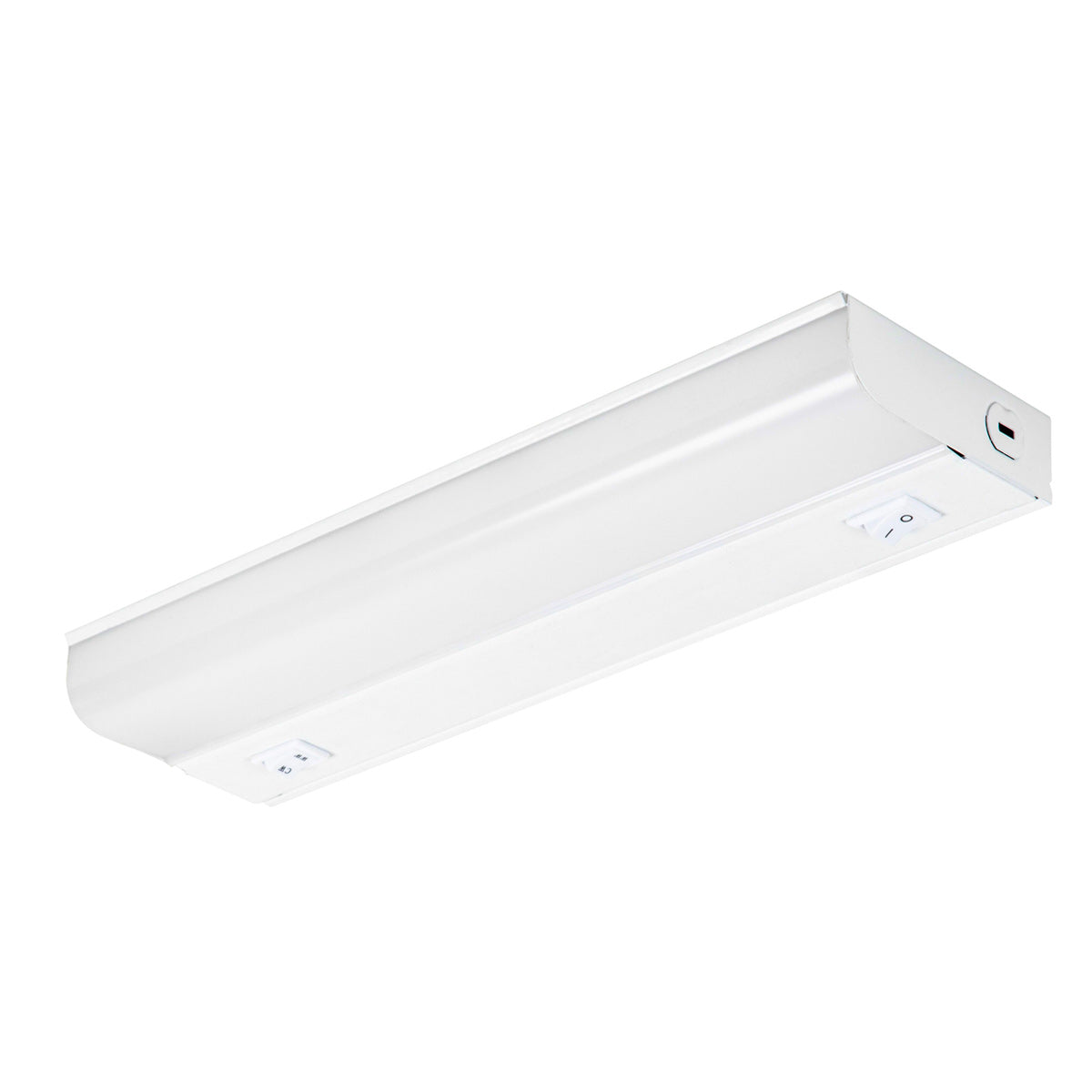

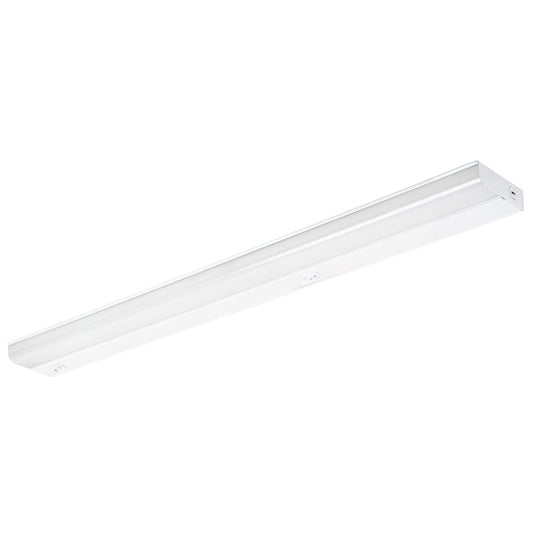

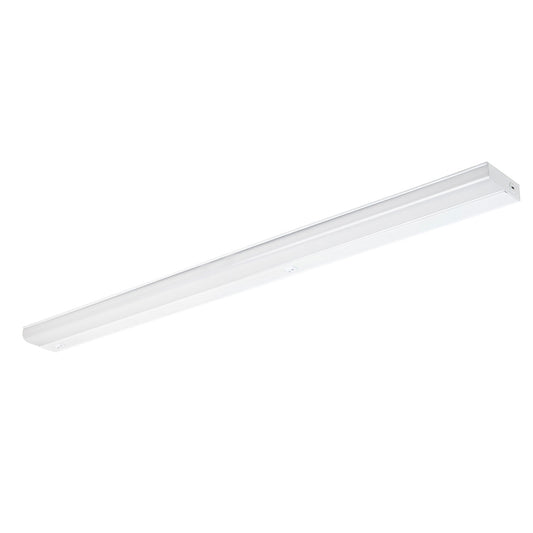

  • Available in 12”, 24”, 33”, and 42” Lengths
  • 3000K/4000K
  • High Color Rendering Index
  • Surface-Mounted Design
  • TRIAC Dimming  for Flexible Control
  • 5-Year Warranty
UL Listed CCT Selectable TRIAC Dimming CRI 90
View full details

DETAILS

Lighting You Experience But Don’t Have to See

Engineered to be surface mounting above a workspace or display to enhance visibility with smooth, flicker-free illumination – improving spaces while remaining hidden away.

Bright and Color Accurate

With a 90 CRI rating, these lights render colors accurately, making them ideal for task lighting, offices, and display cases.

Low-Profile Easy Installation

Designed for surface mounting, the slim housing seamlessly integrates into workspaces, kitchens, and commercial setups.

Efficient Performance

The DN01 provides long-lasting performance and efficiency, reducing energy costs over time.

Applications

Ideal for under cabinets, display cases, office workstations, retail shelving, and utility areas, delivering precision lighting where needed.

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship DN01 Commercial Under Cabinet Lights

DOWNLOADS

Download Spec Sheet Spec Sheet - DN01 Series Under Cabinet Light

KEY SPECIFICATIONS

Wattage & Lumens 5W, 368 lumens
9W, 676 lumens
14W, 1,062 lumens
18W, 1,284 lumens
System Efficacy 74 to 81 lm/W
CRI 90
CCT 3000K/4000K Selectable
Beam Angle 117°
Dimming TRIAC
Input Voltage 120VAC
Mounting Surface Mount
Warranty 5 Years
Certifications UL 1598 Suitable for Damp Locations
