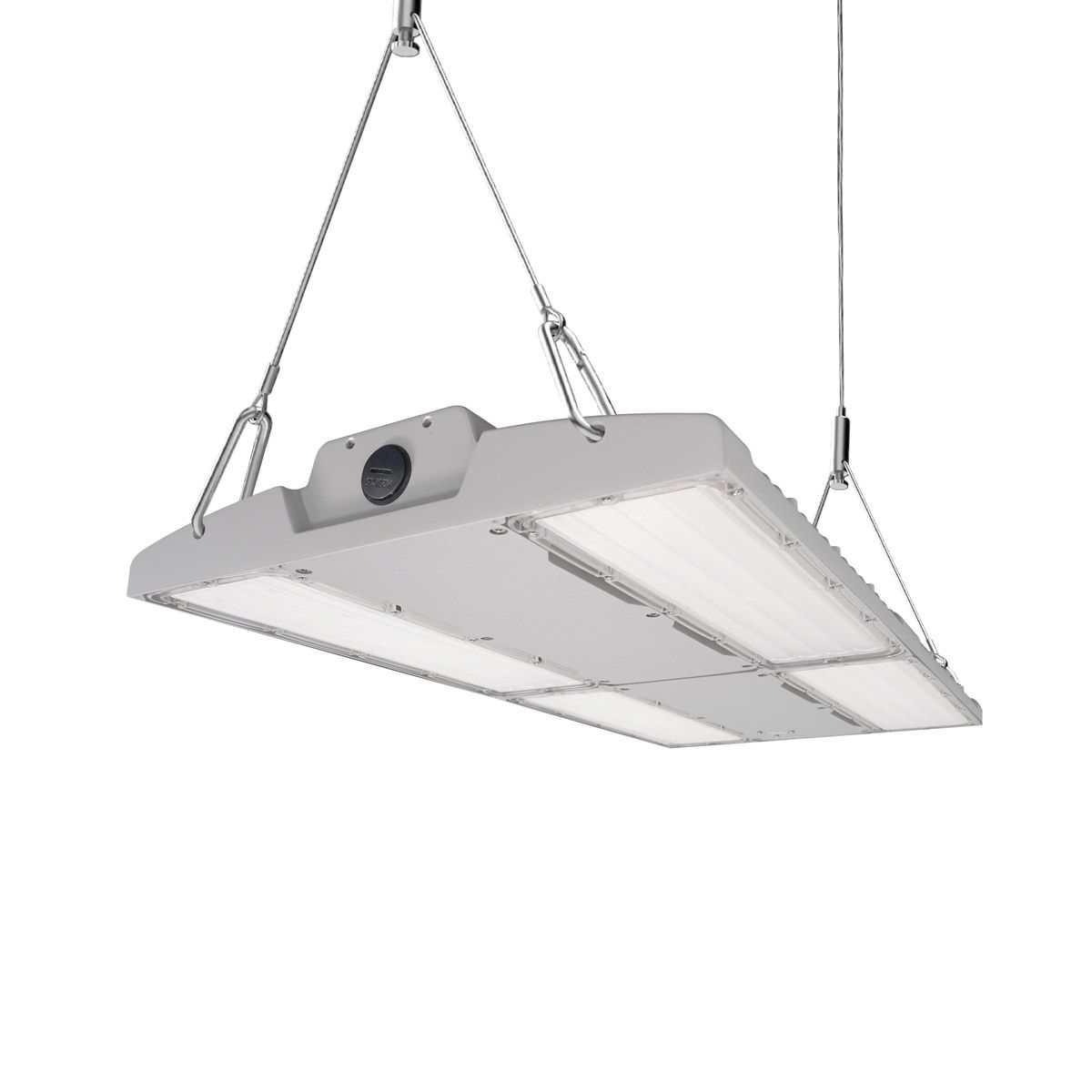

LHB Series Heavy Duty Linear LED High Bay

LHB Series Heavy Duty Linear LED High Bay

The ultimate fusion of toughness and efficiency in commercial-grade lighting, tailored to suit a vast range of applications, including industrial, retail, athletic, and warehousing.

  • IP66 & IK10 Enclosure Rating
  • Aisle, Open-Area, and Low-UGR Optics Available
  • 5000K Standard, 4000K by Special Order
  • 150W and 200W Typically Stocked
  • 100W, 300W, and 400W by Special Order
  • 5-Year Warranty

With a selection of beam angles, the LHB Series of Linear High Bay LED Lights adeptly illuminate open spaces or aisles. Tough, fully sealed housing provides maximum resistance against dust, bug intrusion, water jets, and impacts. Easily install using suspension wires or ceiling mount brackets. With five lumen packages offering a luminous efficacy of up to 155 lm/W and a 5-year warranty, the LHB Series is the ultimate reliable and efficient lighting solution for your high-ceiling environments.



    DLC Premium ETL Listed 277-480V IP-66 Rated Enclosure IK-10 Impact Rating
    View full details

    Select Your LHB Linear LED High Bay

    With five lumen packages and five beam angles to choose from, you're sure to find the right light for your needs.

    *IES file links on this page may not contain an IES file for every available configuration of the model.

    DETAILS

    A Configuration for Every Application

    Elevate your lighting standards with our tough and efficient series of Linear High Bay LED Lights.

    These commercial-grade luminaires are the ideal choice for industrial, retail, athletic, or warehouse high bay lighting, with robust performance in any setting, from indoor sports arenas to supermarket aisles. Optimize for your space with seven beam angle options that make these high bay lights suitable for both open areas and more narrowly confined spaces such as aisles, racks, or assembly lines.

    Built Tough and Bright

    With an impressive IP66 & IK10 enclosure rating, these LED industrial light fixtures resist dust, bug intrusion, water jets, and impacts, ensuring longevity even in challenging conditions. Offering five lumen packages, these high-ceiling luminaires deliver outstanding brightness and efficiency, with a luminous efficacy of up to 155 lm/W.

    Three Installation Options

    Installation flexibility is key with our LHB Series LED Linear High Bay lights. They come ready for suspension mounting, while optional ±60° rotatable or fixed mounting brackets allow for ceiling mounting the fixtures with precise light direction. These LED lighting fixtures excel in a wide range of environments, from traditional commercial spaces to more demanding locations such as modern logistics centers, grain processing plants, indoor swimming pools, professional kitchens, and various sports facilities.

    You're Protected

    Backed by a 5-year warranty and equipped with 6kV line-line and 10kV line-earth surge protection, the LHB Series of Linear High Bay LED Lights provide reliable, efficient lighting solutions that truly go the distance.

    DOWNLOADS

    Download Spec Sheet Data Sheet - LHB Series Heavy Duty Linear LED High Bay

    Download Spec Sheet Installation Guide - LHB Series Heavy Duty Linear LED High Bay

    Download Spec Sheet IES Files (.zip) - LHB Series Heavy Duty Linear LED High Bay

    KEY SPECIFICATIONS

    Wattage & Lumens 100W, 13,840 to 15,500 lumens
    150W, 20,760 to 23,250 lumens
    200W, 27,680 to 31,000 lumens
    300W, 41,520 to 46,500 lumens
    400W, 55,360 to 62,000 lumens
    Efficacy 138 to 155 lm/W
    CRI >80
    CCT 5000K (4000K by special order)
    Beam Angle 80° x 100° wide aisle

    Available by special order:
    60° x 100° medium aisle
    25° x 85° narrow aisle
    55° open area (low UGR)
    60° open area
    85° open area (low UGR)
    90° open area
    Projected Lifetime L90: 40,000 hours
    L80: 82,000 hours
    L70: 131,000 hours
    Enclosure Rating IP66, IK10
    Input Voltage 100-277 VAC (277-480 VAC available for 100W, 150W, 200W, and 300W by special order).
    Surge Protection 6kV line-line, 10kV line-earth
    Warranty 5 Years
    Certifications DLC Premium, ETL
    DLC Listing Primary Use Category High-Bay Luminaires for Commercial and Industrial Buildings

    Accessories

    Mounting options: Use a safety line for hanging installation, or install an optional fixed ceiling bracket or a ±60° adjustable bracket for ceiling mounting.

    Sensors: Dimming capability is included. Add more controls with a microwave or PIR motion sensor and/or a daylight sensor with daylight harvesting function. Motion sensors are IP65 rated, daylight sensor is IP20 rated. A remote controller is available for programming.

    PHOTOMETRIC LAYOUT TOOL

    Generate recommended luminaire quantity and spacing based on room geometry and mounting conditions.

    1. Click the cube icon to enter room dimensions (length, width, ceiling height).
    2. Workplane Height defines the calculation plane (e.g., 2.5 ft for typical desk height).
    3. Suspension Length is the vertical distance from the ceiling to the luminaire.
      • o Flush or recessed installation: Enter 0 ft.

    The layout updates dynamically as parameters are adjusted, displaying recommended fixture quantity and spacing.

    Tip: Use the printer icon or arrow icon in the top bar to generate a printable/shareable layout report.
