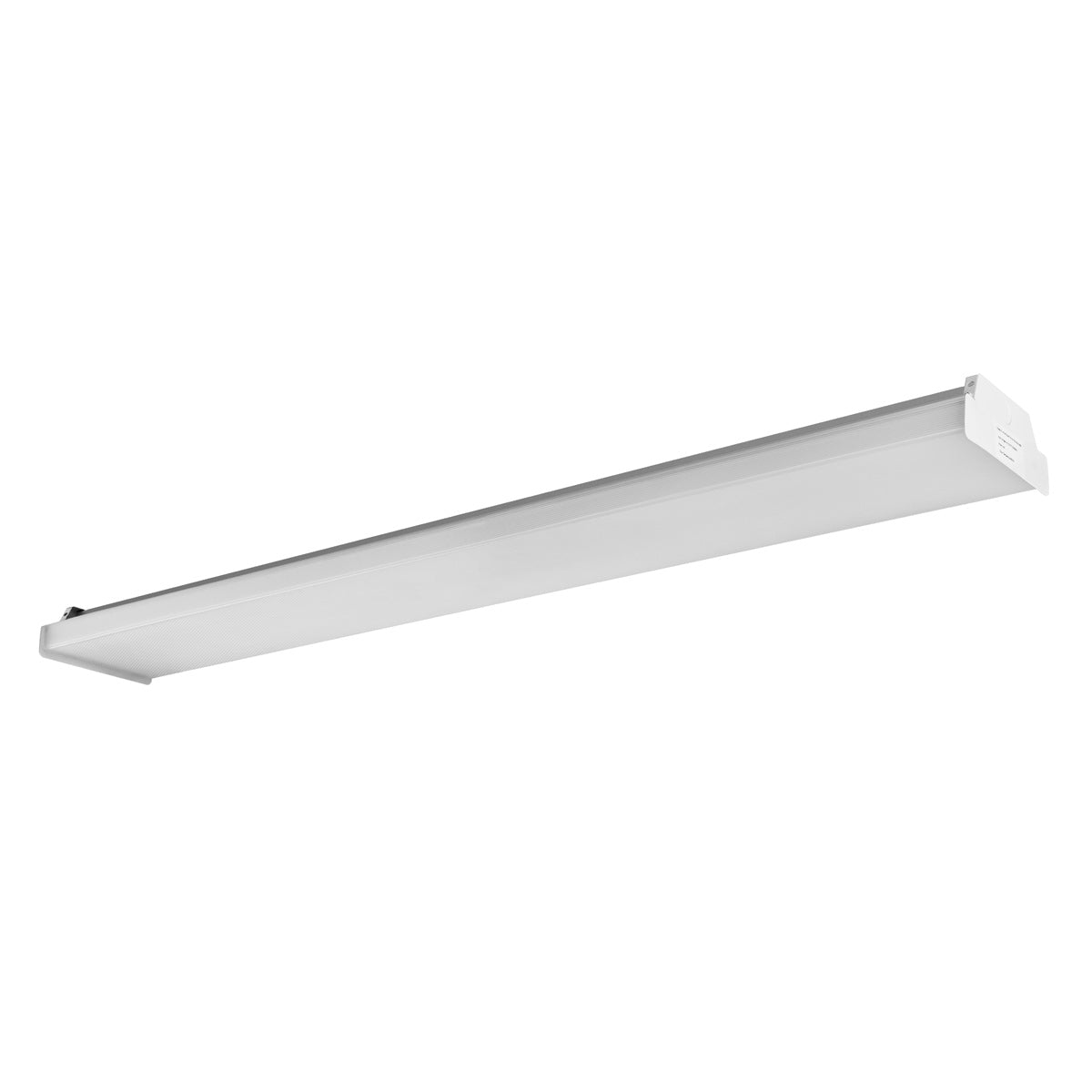

LW01 Series Wraparound Light

LW01 Series Wraparound Light

Upgrade commercial, industrial, and institutional spaces with high efficiency wrap light fixtures. The LW01 Series delivers adjustable wattage and color temperatures with exceptional lumen output, making it a versatile solution for offices, hallways, and utility areas.

  • Selectable Wattage: 30W/35W/40W
  • Selectable CCT: 3500K/4000K/5000K
  • Surface Mount Design
  • 0-10V Dimming Capability
  • 5-Year Warranty
DLC Listed UL Listed Wattage Selectable CCT Selectable CRI 80 0-10V Dimming
View full details

DETAILS

Reliable, High-Output Wraparound Lighting

Designed to meet the needs of many environments, the LW01 Series provides consistent, energy-efficient illumination while maintaining a clean, modern aesthetic.

Customizable Performance

Selectable wattages and CCT options allow for tailored brightness and color temperature, ensuring optimal light levels for each application.

Easy Surface Mount Installation

The lightweight, compact design enables fast, hassle-free surface mounting, making it ideal for both retrofit projects and new construction installations.

Long-Lasting Efficiency

With a lifetime exceeding 75,000 hours and high lumen efficacy, the LW01 Series offers lasting performance and energy savings for many years to come.

Applications

Perfect for offices, hallways, storage areas, retail spaces, and utility rooms that require bright, uniform lighting.

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick Ship LW01 Series LED Wraparound Lights

DOWNLOADS

Download Spec Sheet Spec Sheet - LW01 LED Wraparound Light

KEY SPECIFICATIONS

Wattage & Lumens 40W Selectable (30/35/40W), 4,110/4,690/5,240 lumens
System Efficacy 131 to 137 lm/W
CRI 80
CCT 3500K/4000K/5000K Selectable
Beam Angle 113°
Dimming 0-10V
Input Voltage 120-277VAC
Mounting Surface Mount
Warranty 5 Years
Certifications DLC, UL
