Easy-Install LED Retrofit Kits Transform Fluorescent Fixtures into Brilliant Energy Savers
Our MSK Series provides more than 19 configurations to meet the majority of fluorescent-to-LED conversion needs. If you need a configuration not shown here, contact LED Living today about custom linear retrofit kits.
LED Linear Retrofit Kits
Cost-effective kits for linear fluorescent-to-LED retrofits are easy to install and built to last.
-

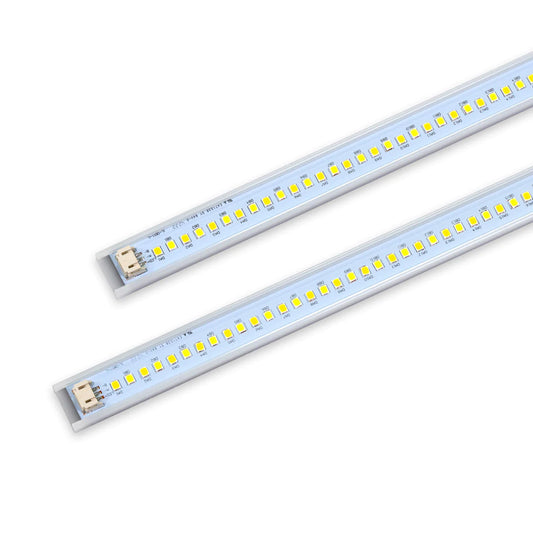

MSK Linear Retrofit Kit for 1x4 or 2x2 Fixtures
- 20W
- Up to 2,500 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order20WMSK Linear Retrofit Kit for 1x4 or 2x2 Fixtures
- Up to 2,500 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -

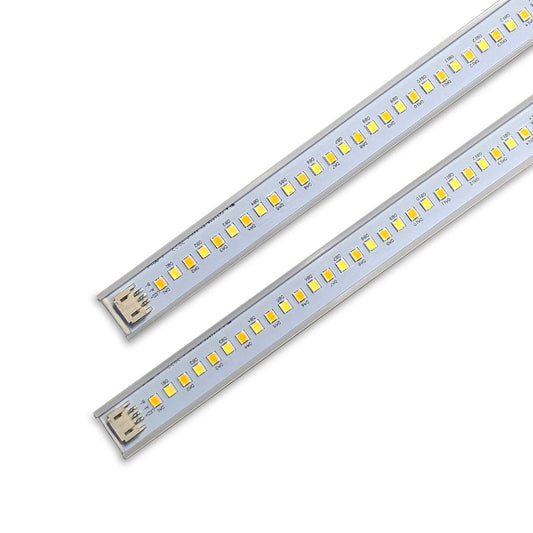

MSK Linear Retrofit Kit for 2x4 Fixtures
- 32W or 46W
- Up to 4,680 or 7,400 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order32W or 46WMSK Linear Retrofit Kit for 2x4 Fixtures
- Up to 4,680 or 7,400 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
MSK Linear Retrofit Kit for 2x8 Fixtures
- 46W
- 7,400 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order46WMSK Linear Retrofit Kit for 2x8 Fixtures
- 7,400 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order

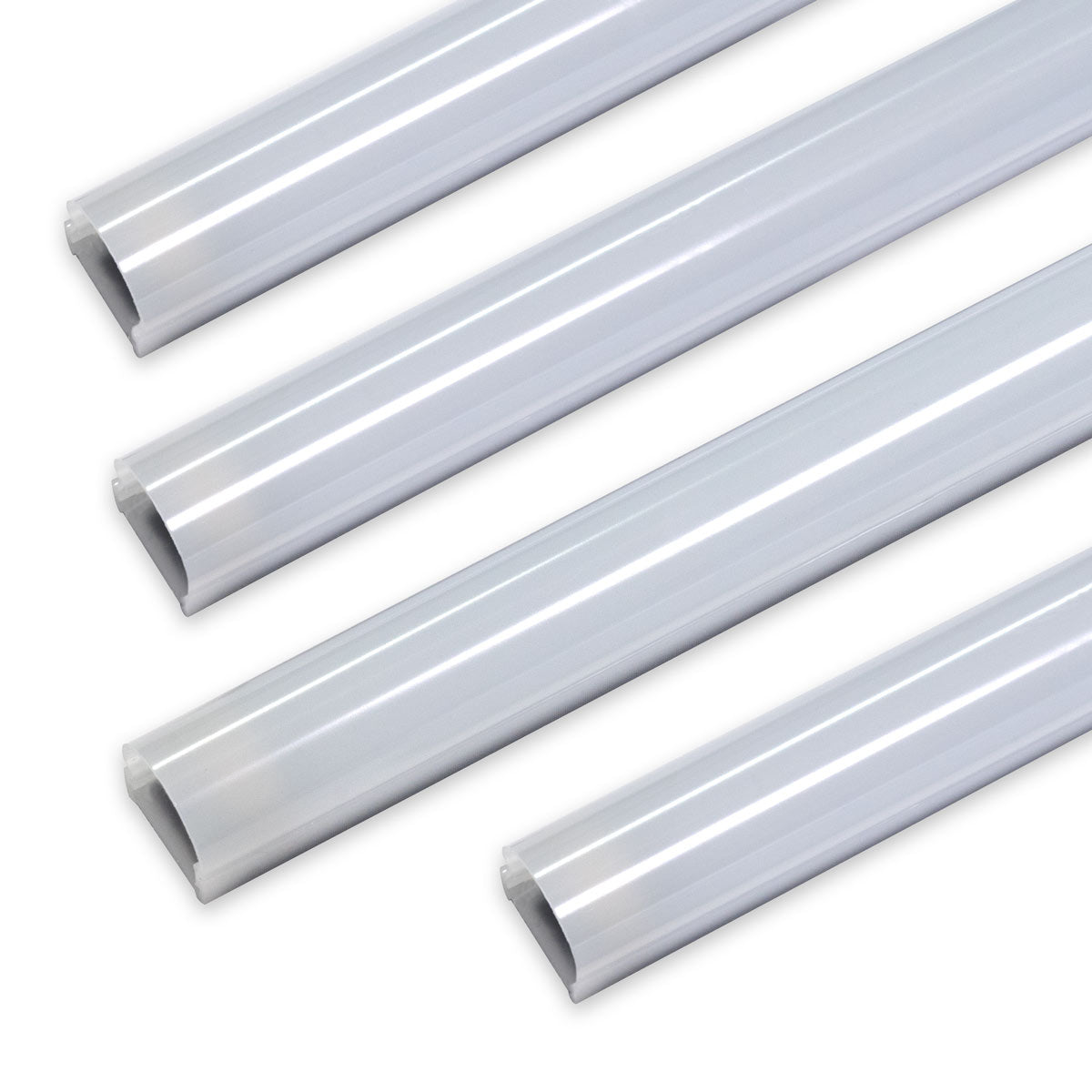

LED Linear Retrofit Kits with Frosted Lens Covers

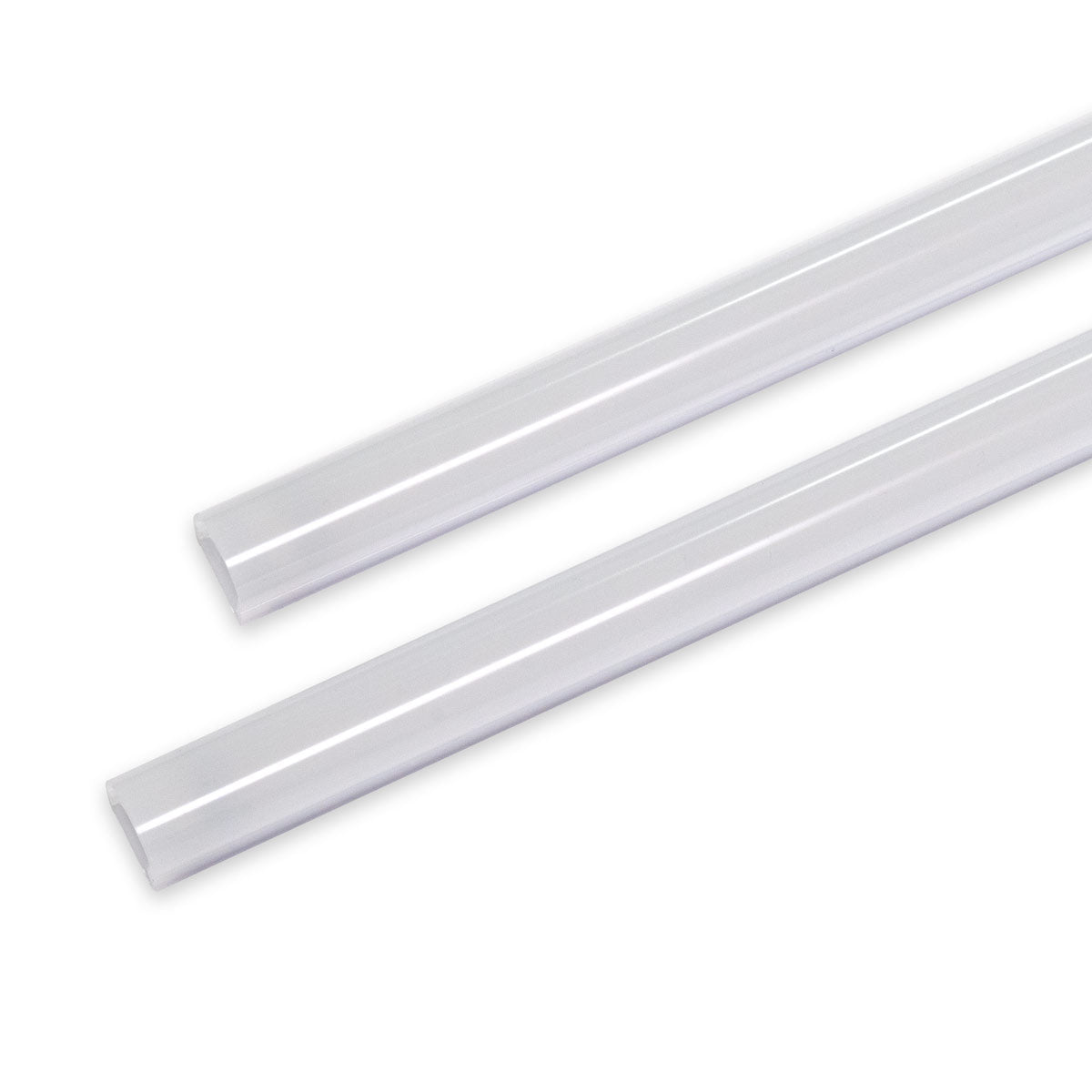

A great option when you're looking to mimic the appearance of a traditional T8 lamp and/or provide softer light, but with a faster install.
-
MSK Linear Retrofit Kit with Frosted Lens Cover for 1x4 or 2x2 Fixtures
- 25W
- Up to 3,550 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order25WMSK Linear Retrofit Kit with Frosted Lens Cover for 1x4 or 2x2 Fixtures
- Up to 3,550 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
MSK Linear Retrofit Kit with Frosted Lens Cover for 2x4 Fixtures
- 32W, 36W, 40W, or 49W
- Up to 6,680 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order32W, 36W, 40W, or 49WMSK Linear Retrofit Kit with Frosted Lens Cover for 2x4 Fixtures
- Up to 6,680 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
MSK Linear Retrofit Kit with Frosted Lens Cover for 2x8 Fixtures
- 49W or 65W
- Up to 9,280 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order49W or 65WMSK Linear Retrofit Kit with Frosted Lens Cover for 2x8 Fixtures
- Up to 9,280 lumens
- 3500K, 4000K, or 5000K CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order

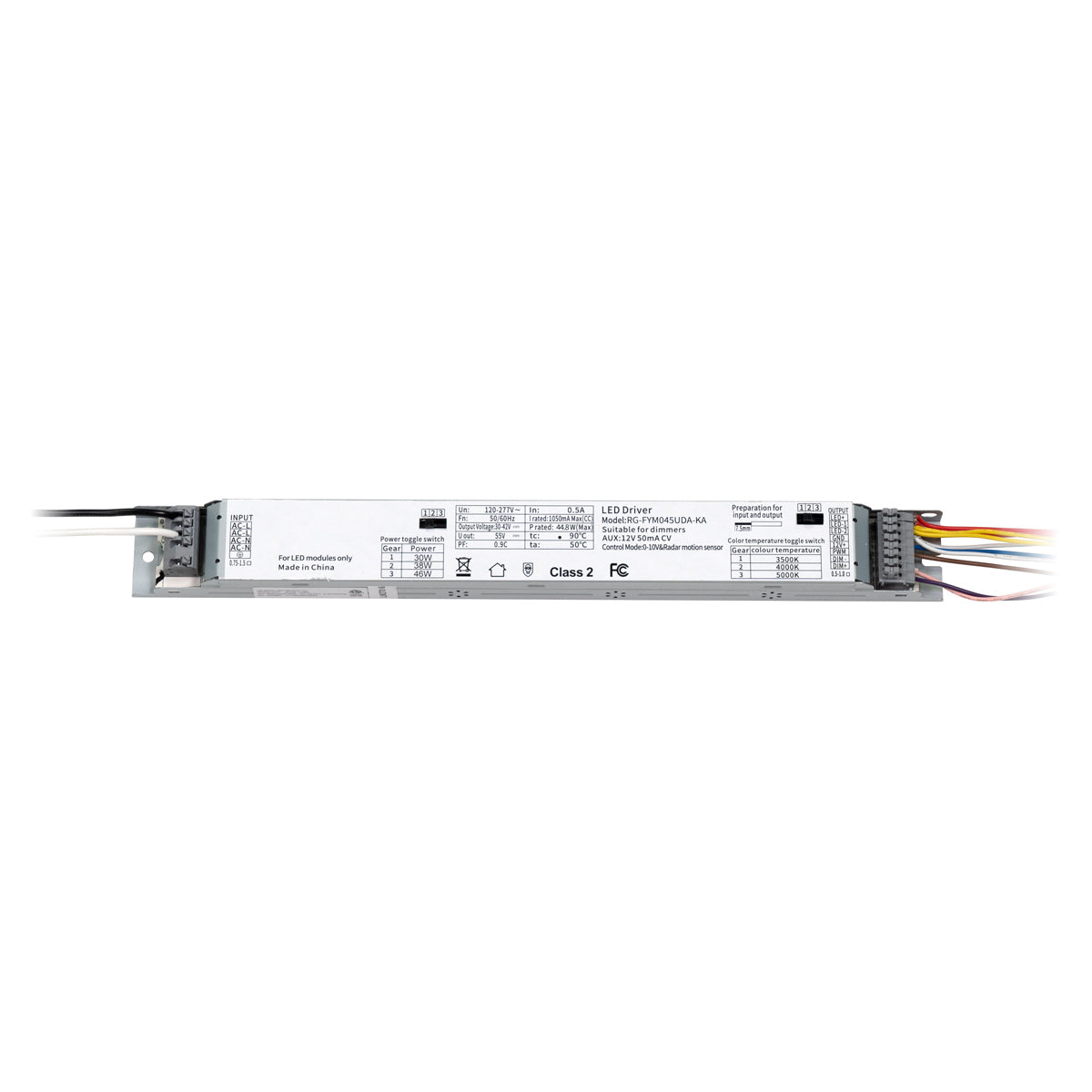

LED Linear Retrofit Kits with Selectable Wattage & CCT
These models feature three wattage settings and three or five selectable color temperatures, making them a flexible choice for lighting upgrades across a number of spaces, and a space-saving option for stocking distributors and resellers.
-
Selectable MSK Linear Retrofit Kit for 1x4 or 2x2 Fixtures
- 25W/20W/15W Selectable
- Up to 3,625 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order25W/20W/15W SelectableSelectable MSK Linear Retrofit Kit for 1x4 or 2x2 Fixtures
- Up to 3,625 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
Selectable MSK Linear Retrofit Kit for 2x4 Fixtures
- 35W/28W/20W Selectable
- Up to 5,075 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order35W/28W/20W SelectableSelectable MSK Linear Retrofit Kit for 2x4 Fixtures
- Up to 5,075 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
Selectable MSK Linear Retrofit Kit for 2x8 Fixtures
- 46W/38W/30W Selectable
- Up to 6,670 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
Plastic or aluminum strip base
120-347VAC available by special order46W/38W/30W SelectableSelectable MSK Linear Retrofit Kit for 2x8 Fixtures
- Up to 6,670 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
Plastic or aluminum strip base
120-347VAC available by special order
LED Linear Retrofit Kits with Selectable Wattage & CCT and Frosted Lens Covers
Our popular field-customizable magnetic LED retrofit kits, featuring frosted lens covers for softer, diffused lighting.
-
Selectable MSK Linear Retrofit Kit with Frosted Lens Covers for 1x4 or 2x2 Fixtures
- 25W/20W/15W Selectable
- Up to 3,625 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order25W/20W/15W SelectableSelectable MSK Linear Retrofit Kit with Frosted Lens Covers for 1x4 or 2x2 Fixtures
- Up to 3,625 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
Selectable MSK Linear Retrofit Kit with Frosted Lens Covers for 2x4 Fixtures
- 35W/28W/20W Selectable
- Up to 5,075 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order35W/28W/20W SelectableSelectable MSK Linear Retrofit Kit with Frosted Lens Covers for 2x4 Fixtures
- Up to 5,075 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
120-347VAC available by special order -
Selectable MSK Linear Retrofit Kit with Frosted Lens Covers for 2x8 Fixtures
- 46W/38W/30W Selectable
- Up to 6,670 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
Plastic or aluminum strip base
120-347VAC available by special order46W/38W/30W SelectableSelectable MSK Linear Retrofit Kit with Frosted Lens Covers for 2x8 Fixtures
- Up to 6,670 lumens
- 3- or 5-Setting Selectable CCT
- 110°
- 120-277VAC
Additional Options:
Plastic or aluminum strip base
120-347VAC available by special order
*IES file links on this page may not contain an IES file for every available configuration of the model.
DETAILS
Flexible Solution for Fluorescent to LED Upgrades
Ideal for residential or commercial use, these LED retrofit kits are a great way to upgrade the lighting in offices, schools, hospitals, workshops, garages, and more. This flexible LED retrofit kit provides the perfect combination of energy savings and high-quality lighting.
With 19 kit sizes/wattages to choose from, you're sure to find the perfect retrofit solution for your linear lighting conversion. Fixed-wattage & CCT kits are ideal for end users who know exactly what they need for light output. Selectable-wattage and CCT kits are a great solution for distributors and resellers for whom stocking space and inventory budget are at a premium. All kits include 0-10V dimming capability for control over light output & energy costs.
Choose Your Kits
Nineteen kits are available:
- Fixed Wattage & CCT Kits without Frosted Lens — The 2x2 and 1x4 kits output up to 2,500 lumens. The 2x4 kits are available with either 4,600 or 6,800 max lumens. For the 2x8 kit, you get up to 7,400 lumens. All of these kits are available in 3500K, 4000K, or 5000K color temperature.

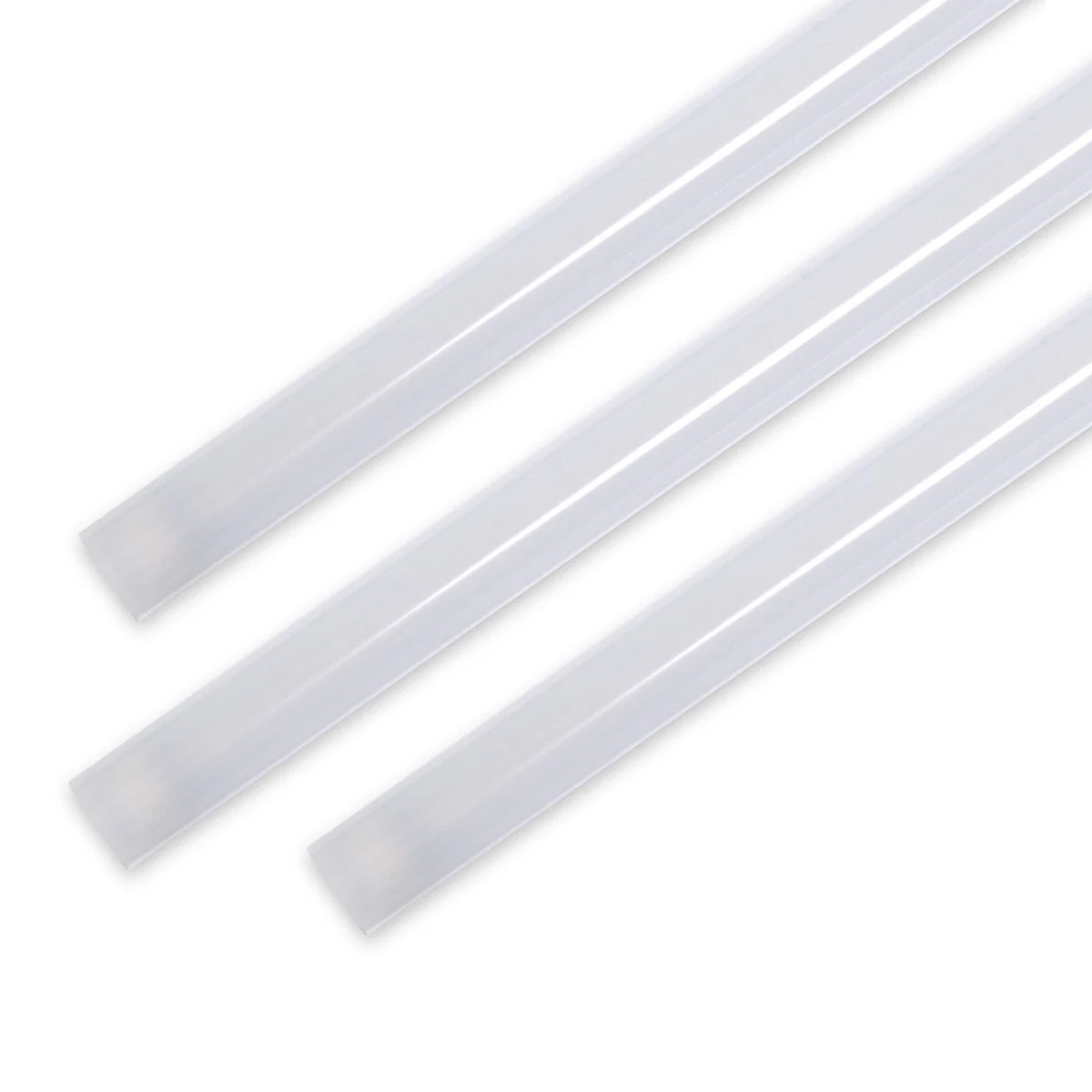

- Fixed Wattage & CCT Kits with Frosted Lens — The 2x2 and 1x4 kits output up to 3,550 lumens. 2x4 kits are available with two or three strips, providing max lumen outputs of 4,680, 4,950, 5,580, or 6,680 lumens, depending on the kit's wattage. 2x8 kits come with four 4ft strips and either 6,680 or 9,280 max lumen output. All kits with frosted lenses are available in 3500K, 4000K, or 5000K color temperature.

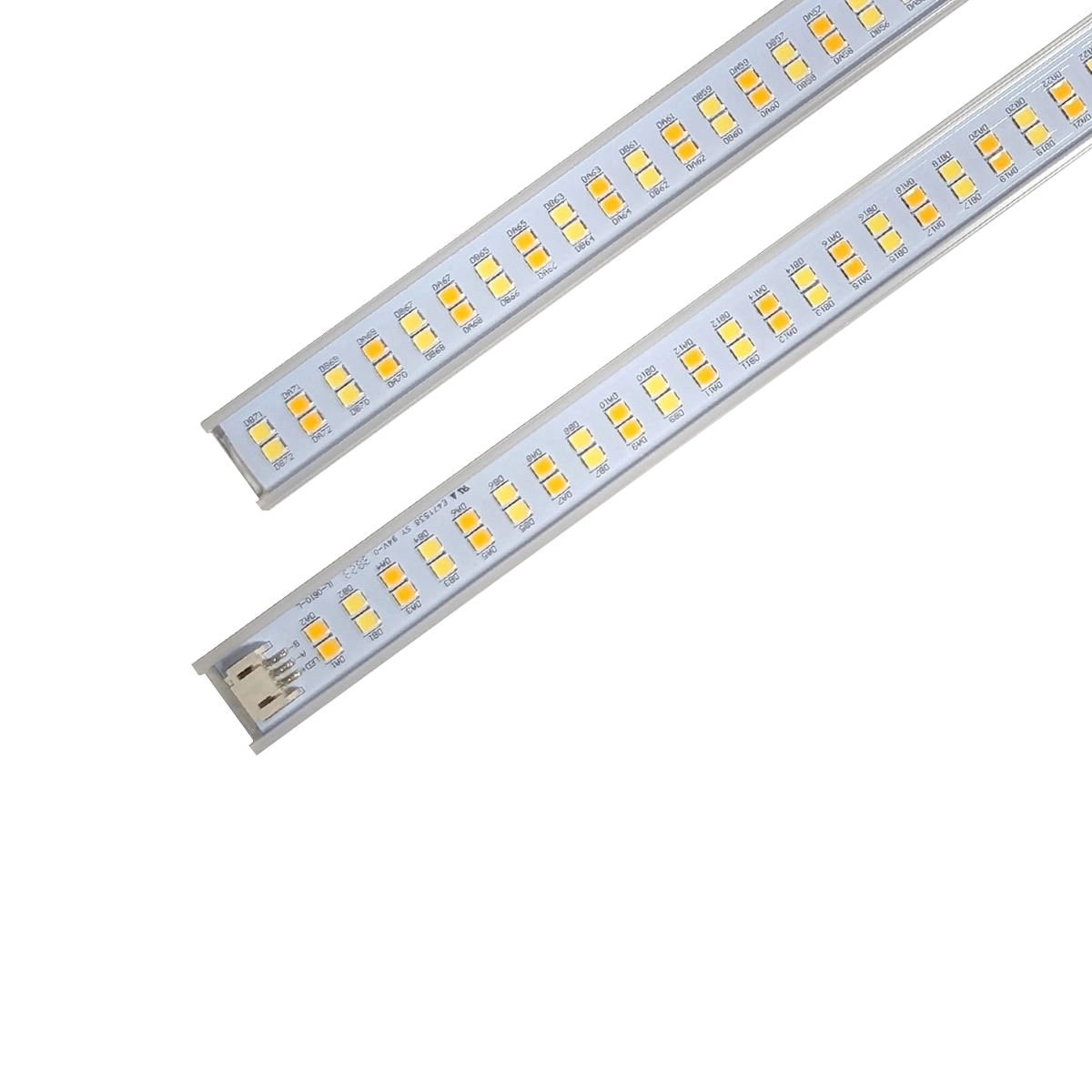

- Wattage & CTT Selectable — The 2x2 and 1x4 kits are wattage selectable with 25W, 20W, and 15W settings and lumen output up to 3,625. The 2x4 kits are available with either 35W, 28W, and 20W settings and lumen output up to 5,075, or 46W, 38W, and 30W settings with up to 6,670 lumens. The 2x4 kit is features four 4ft strips and 46W, 38W, and 30W settings, with up to 6,670 lumens. For color temperature, all selectable kits are available with either 3500K/4000K/5000K selectable or 2700K/3000K/3500K/4000K/5000K. Again, this is great for stocking because you can fulfill customer needs for everything from a 2700K 1x4 fixture to a 5000K 2x8 fixture with just 3 or 4 SKUs in your inventory.
With a solid system efficacy of up to 155 lumens per Watt, end users will enjoy bright, energy-efficient lighting that lasts for years to come, without the need to replace and dispose of their already-existing fixture housings. Get a quote from one of our reps today—simply pick the model you're interested in, select a configuration, and click the Add to Quote button. You can add as many different models and configurations as you like before submitting the quote request.
DOWNLOADS
KEY SPECIFICATIONS
Length | Strips come in 2' or 4', which allows for kits that cover 1x4, 2x2, 2x4, and 2x8 troffers, as well as 4' and 8' linear fixtures |
Lumens Package | 20W Kit: Up to 2,500 lumens 25W Kit: Up to 3,550 lumens 32W Kit: Up to 4,680 lumens 36W Kit: Up to 4,950 lumens 40W Kit: Up to 5,580 lumens 46W Kit: Up to 7,400 lumens 49W Kit: Up to 6,680 lumens 65W Kit: Up to 9,280 lumens 25W Selectable (25/20/15W) Kit: Up to 3,625 lumens 35W Selectable (35/28/20W) Kit: Up to 5,075 lumens 46W Selectable (46/38/30W) Kit: Up to 6,670 lumens |
System Efficacy | Up to 156 lm/W |
CCT | 3500K, 4000K, or 5000K 3500K/4000K/5000K Selectable 2700K/3000K/3500K/4000K/5000K Selectable |
CRI | 80 |
Projected Lifetime | 54,000 hours |
Controls | 0-10V Dimming CCT & Power Selectable (some models) |
Cover | Frosted – Optional |
Input Voltage | 120-277V (120-347V available by special order) |
Warranty | 5 Years |
Certifications | DLC, ETL, RoHS, FCC |
DLC Listing Primary Use Category | Linear Retrofit Kits for 2x4 Luminaires Linear Retrofit Kits for 1 x4 Luminaires |
