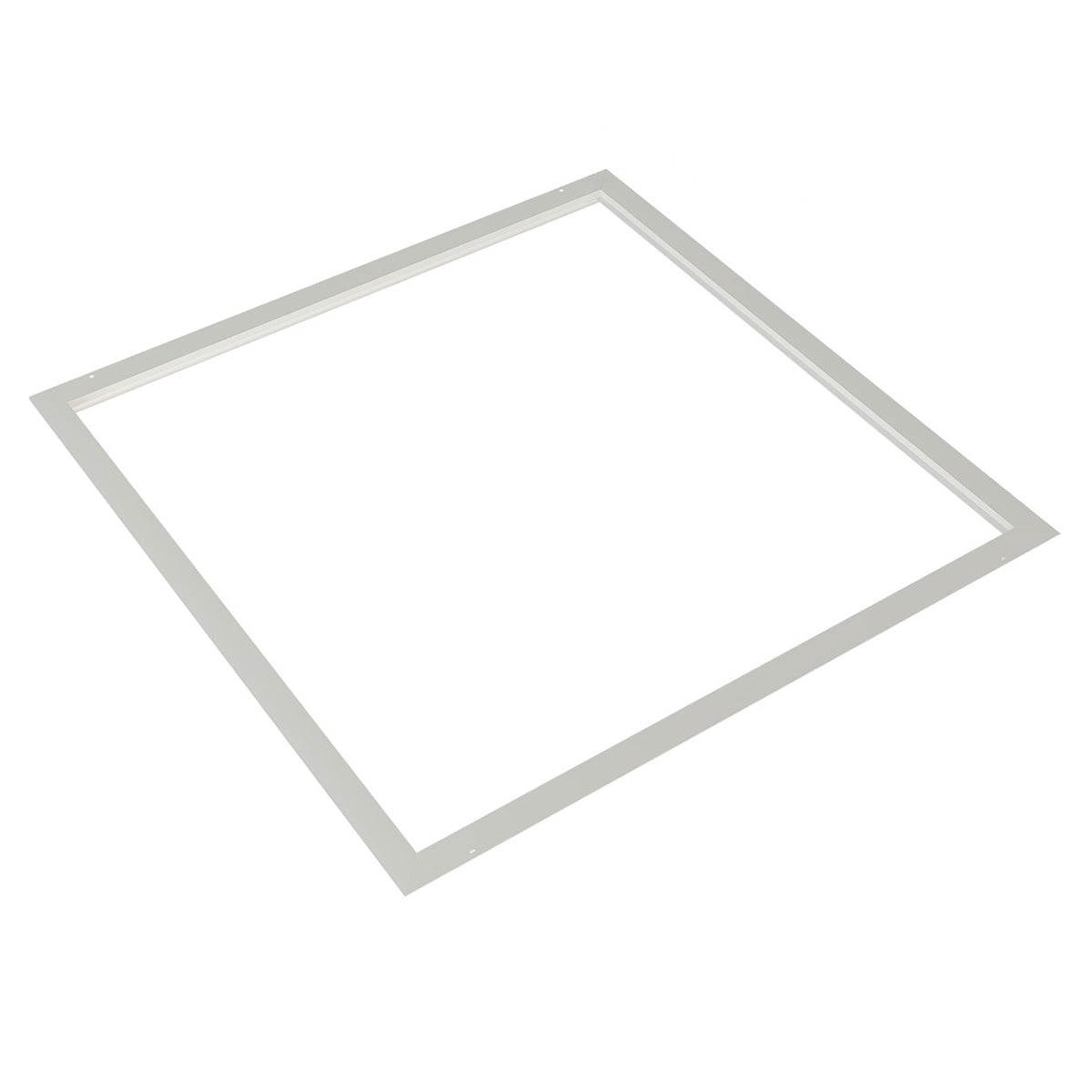

PF01 Series LED Panel Frame Light

Elevate commercial interiors with high-efficiency, modern LED frame lighting. The PF01 Series offers versatile wattage and color temperature options, ensuring optimal illumination for any application.

2X2 and 2X4 Frame Sizes
Selectable Wattage from 20W to 55W
Selectable CCT: 3500K/4000K/5000K/5700K/6500K
0-10V Dimming for Seamless Control
5-Year Warranty

View full details

DETAILS

Adaptable Panel Lighting with a Modern Edge

Designed for offices, retail spaces, healthcare facilities, and other commercial environments, the PF01 Series delivers uniform, energy-efficient illumination while enhancing aesthetics.

Customizable Light Output

Selectable wattage and CCT options allow users to fine-tune brightness and color temperature to match the needs of any space.

Sleek, Low-Profile Design

With an ultra-slim profile, the PF01 Series integrates seamlessly into grid ceilings, adding a modern touch to commercial interiors.

Easy Installation & Durability

A perfect fit for recessed grid applications, these ETL-certified frame lights offer long-lasting performance and hassle-free installation.

Applications

Ideal for modern offices, retail stores, hospitals, schools, and other commercial settings where sleek, stylish lighting is preferred.

Quick-Ship PF01 Panel Frame Lights

PF01 Panel Frame

2'x2' or 2'x4'

2,200 to 6,050 lumens

3500K/4000K/5000K/5700K/6500K
2'x2' or 2'x4'
PF01 Panel Frame

2,200 to 6,050 lumens

3500K/4000K/5000K/5700K/6500K
Details

DOWNLOADS

PF01 Panel Frame Light Datasheet

KEY SPECIFICATIONS

Lumens Packages	40W 2'x2' Selectable (20/25/30/35/40W), 2,200/2,750/3,300/3,850/4,400 lumens 55W 2'x4' Selectable (20/30/40/50/55W), 2,200/3,300/4,400/5,500/6,050 lumens
System Efficacy	110 lm/W
CRI	80
Dimming Capability	0 to 10V
CCT	3500K/4000K/5000K/5700K/6500K Selectable
Beam Angle	120°
Input Voltage	120-277VAC
Warranty	5 Years
Certifications	ETL

*IES file links on this page may not contain an IES file for every available configuration of the model.
