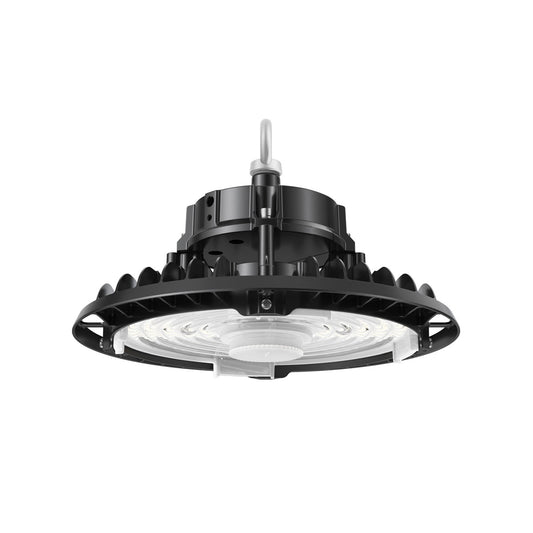

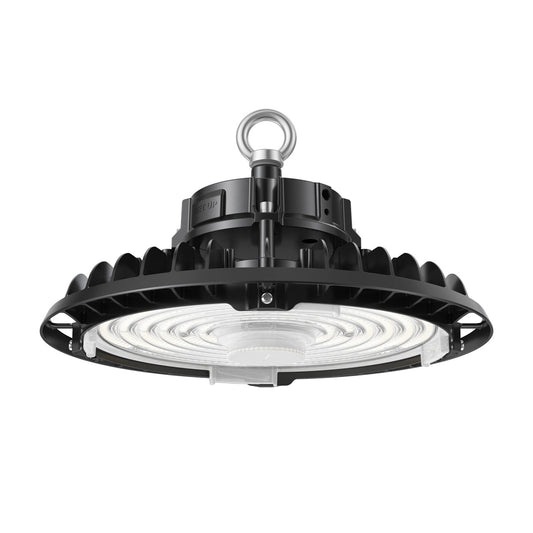

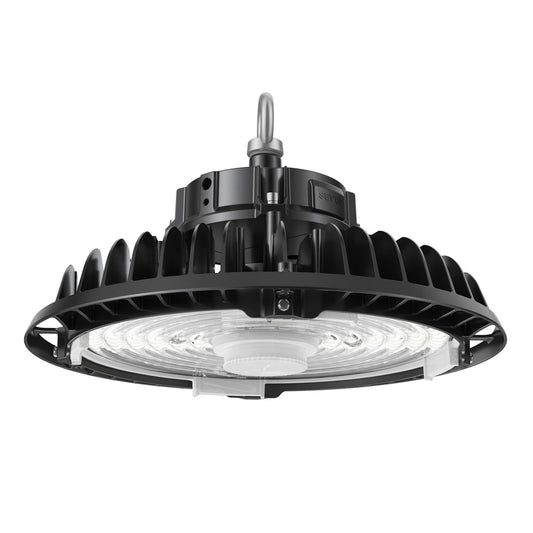

RHB05 Series Round LED High Bay

RHB05 Series Round LED High Bay

This unique high bay features a selectable beam angle in addition to wattage & CCT selectability, allowing for true on-site customization during install. These fixtures also offer high luminous efficacy, excellent build quality, CRI of 80, and corrosion resistance.

  • Beam angle selectable (60°/85°/105°)
  • Wattage selectable
  • Models available with up to 38,400 lumens
  • 4000K/5000K CCT selectable
  • IP65 & IK08 enclosure rating
  • 5-year warranty
DLC Premium ETL Listed Wattage Selectable CCT Selectable CRI 80 120-277V 0-10V Dimming IP-65 Rated Enclosure IK-08 Impact Rating
View full details

Featured RHB05 Round LED High Bays

*IES file links on this page may not contain an IES file for every available configuration of the model.

DETAILS

Get full on-site customizability with this fixture's selectable beam angle, wattage (light output), and color temperature. The beam angle selection, unique to this series, allows you to configure the light with a wider or narrower beam angle to suit each fixture's location and application. With a single SKU, you can light both aisles and open areas. Should the configuration of your space change, the lights' beam angles, light output, and color temperature can be switched accordingly to accommodate the new paths and work areas.

In addition to the light's on-site customizability, this series offers:

  • High efficacy of up to 160 lm/W
  • 80 CRI to improve visibility for picking, packing, assembly, and other tasks
  • 0-10V dimming and an integrated sensor receptacle that can be paired with a PIR or microwave sensor for control over the light's operation
  • Stainless steel loop included for hanging, or ceiling mount with available bracket
  • Built-in surge protection
  • IP65 and IK08 ratings to withstand water jets, dust, and impact
  • Corrosion-resistant powder coating
  • Rebate eligible

DOWNLOADS

Download Spec Sheet Quick Sheet - Series RHB05 Round LED High Bays

Download Spec Sheet Spec Sheet - Series RHB05 Round LED High Bays

KEY SPECIFICATIONS

Wattage & Lumens 100W Selectable (100/80/60W): Up to 16,000 lumens
120W Selectable (120/96/72W): Up to 19,200 lumens
150W Selectable (150/120/90W): Up to 24,000 lumens
200W Selectable (200/160/120W): Up to 32,000 lumens
240W Selectable (240/192/144W): Up to 38,400 lumens
System Efficacy Up to 160 lm/W
CRI >80
CCT 4000K & 5000K, selectable at install
Beam Angle 60°/85°/105° selectable at install
Controls 0-10V Dimming
Integral Sensor Receptacle
Enclosure Rating IP65, IK08
Input Voltage 120-277VAC
Surge Protection 6kV line-line, 6kV line-earth
Warranty 5 Years
Certifications DLC Premium, ETL
DLC Listing Primary Use Category High-Bay Luminaires for Commercial and Industrial Buildings

Accessories

Mounting: A heavy duty hanging loop comes installed for suspending the light from a chain. The 150W, 200W, and 240W models can be mounted to the ceiling with an available bracket.

Controls: The light comes with a plug-and-play sensor port. You can add either a PIR or microwave sensor to this port. A remote is available for either sensor as well.

Reflectors: For 150W, 200W, and 240W models, PC reflectors with or without drop lens and aluminum reflectors that provide 65°, 90° or 110° beam angles are available.
