DETAILS
Sleek, High-Performance Troffer Lighting
Designed for offices, schools, healthcare facilities, and other commercial spaces, the TR01 Series provides uniform, ambient illumination with easy-to-configure wattage and CCT options.
Customizable
With wattage and CCT adjustability, users can fine-tune the brightness and color temperature to suit any interior space.
Reliable & Energy Efficient Performance
Offering up to 130 lm/W, the TR01 Series balances high-lumen output with reduced energy consumption for long-term savings.
Easy Installation & Durability
The recessed mounting design fits seamlessly into T-bar grid ceilings, and the included earthquake clips provide added stability for demanding environments.
Applications
Ideal for offices, schools, hospitals, retail spaces, and other commercial interiors requiring uniform ambient lighting.
Quick-Ship TR01 Troffers
-

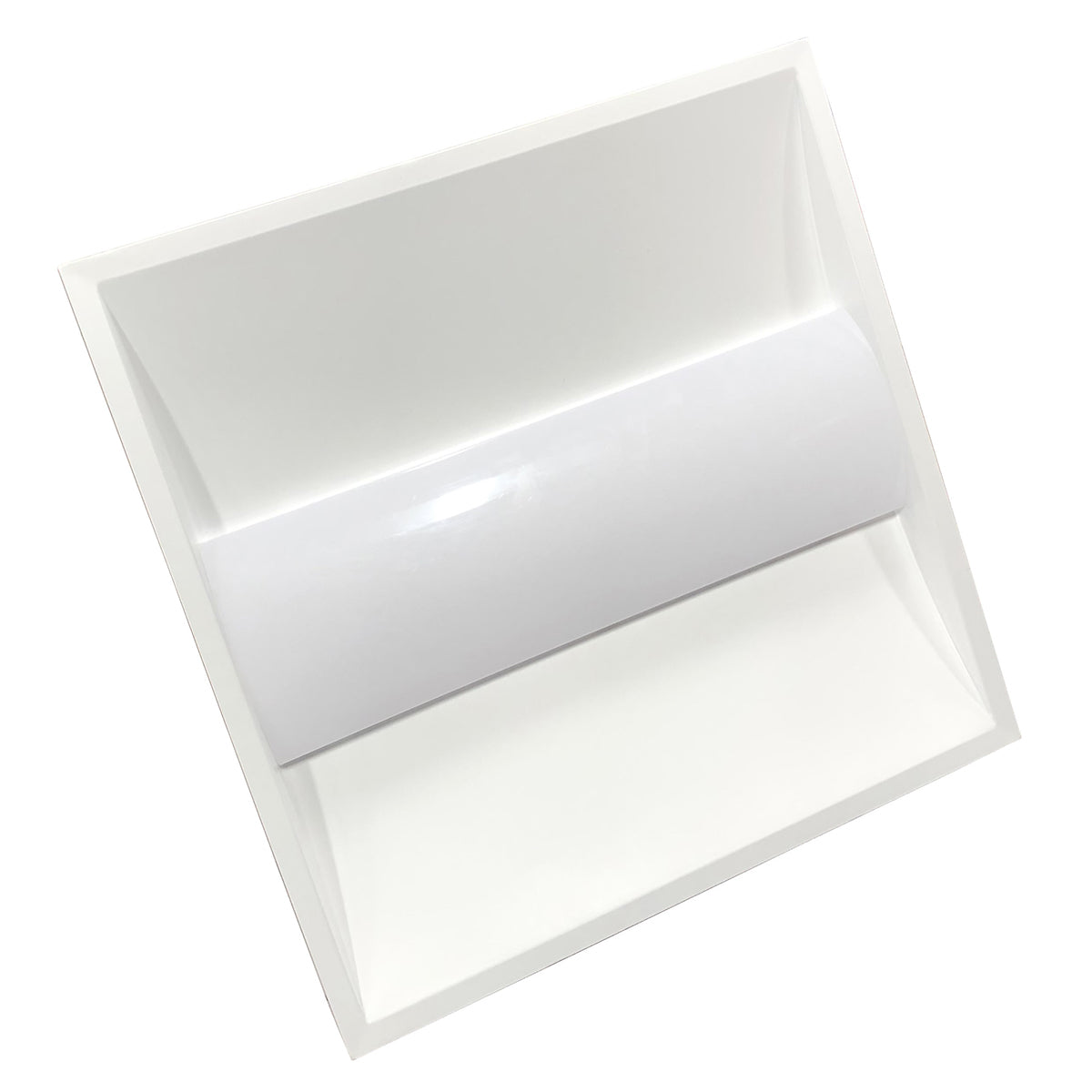

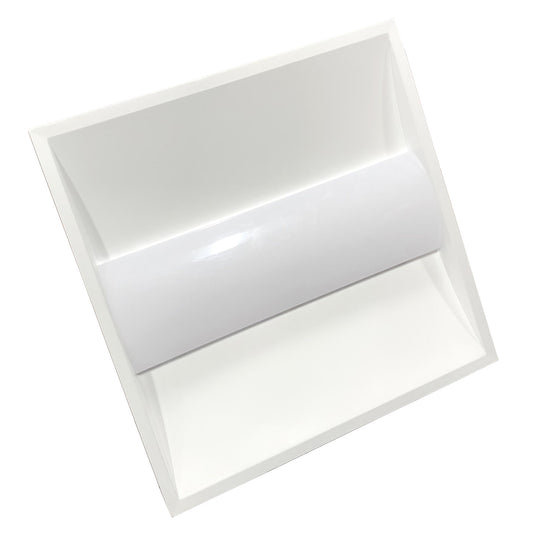

TR01 2'x2' LED Troffer
- 20/25/30/35/40W
- 2,500 to 5,200 lumens
- 3000K/3500K/4000K/5000K/6500K
20/25/30/35/40WTR01 2'x2' LED Troffer
- 2,500 to 5,200 lumens
- 3000K/3500K/4000K/5000K/6500K
-

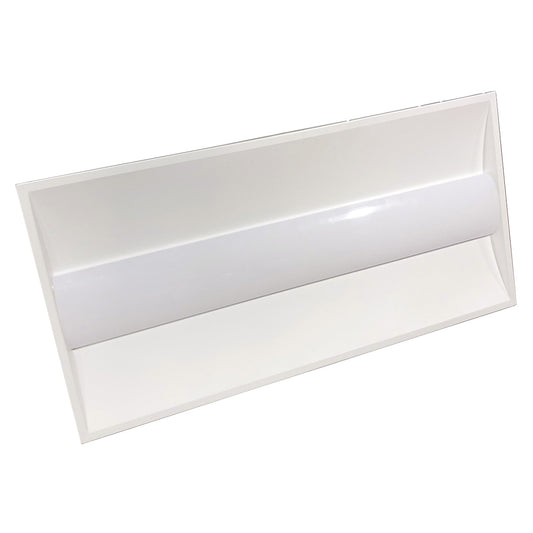

TR01 2'x4' LED Troffer
- 30/40/50/60/72W
- 3,750 to 9,360 lumens
- 3000K/3500K/4000K/5000K/6500K
30/40/50/60/72WTR01 2'x4' LED Troffer
- 3,750 to 9,360 lumens
- 3000K/3500K/4000K/5000K/6500K
DOWNLOADS
KEY SPECIFICATIONS
Lumens Packages | 40W Selectable (20/25/30/35/40W), 2,500 to 5,200 lumens 72W Selectable (30/40/50/60/72W), 3,750 to 9,360 lumens |
System Efficacy | Up to 130 lm/W |
CRI | 80 |
CCT | 3000K/3500K/4000K/5000K/6500K Selectable |
Dimming | 0-10V |
Input Voltage | 120-277VAC |
Mounting | Recessed Mounting in T-bar grid ceilings Earthquake clips included |
Warranty | 5 Years |
Certifications | DLC Premium, ETL |
*IES file links on this page may not contain an IES file for every available configuration of the model.
