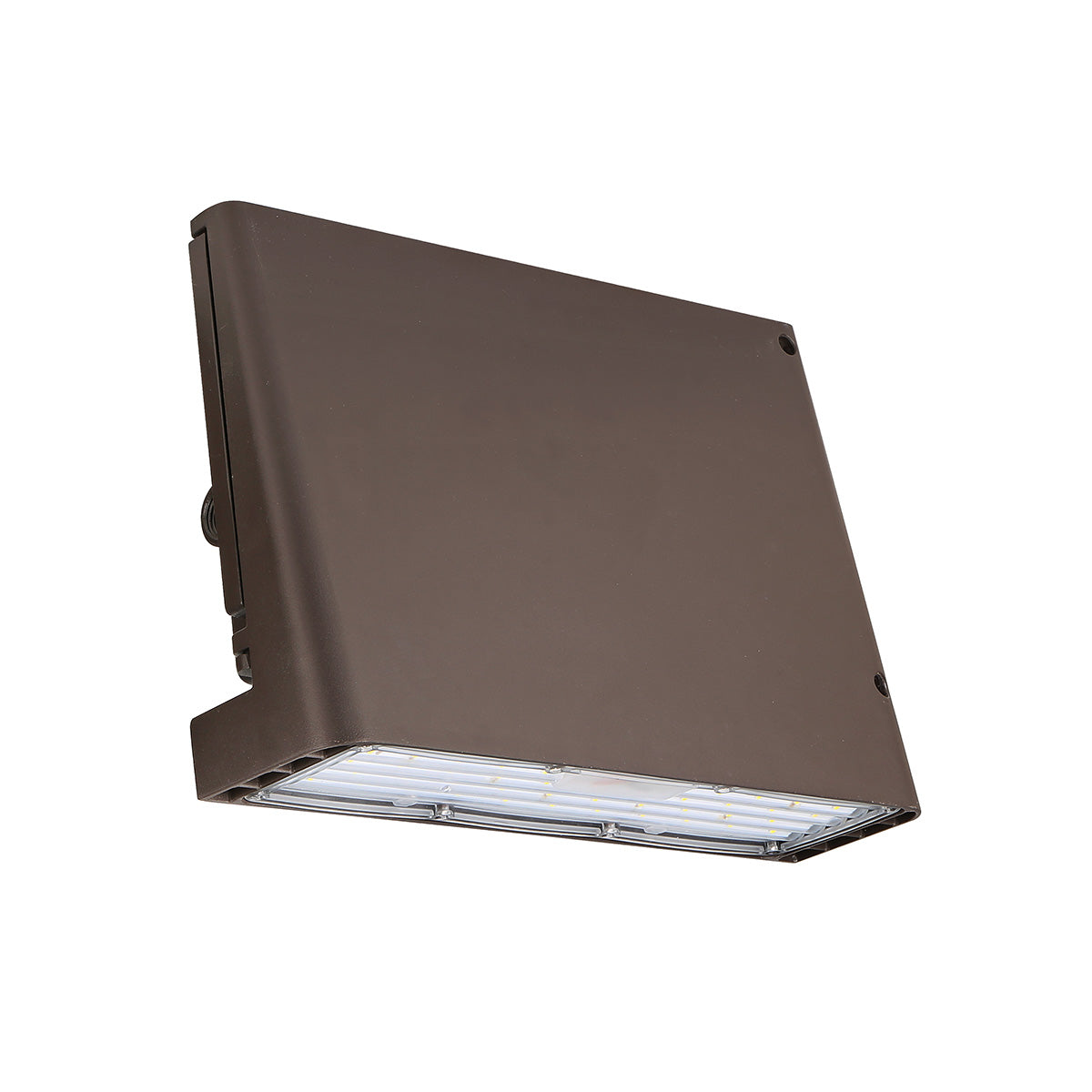

WPF Series Full-Cutoff LED Wall Pack

WPF Series Full-Cutoff LED Wall Pack

Our WPF Series LED Full Cutoff Wall Packs are available in small and large sizes, with wattages ranging from 26W to 135W. With uniform light distribution and impressive LED lumen maintenance rate, these LED luminaires provide high energy efficiency at a low cost.

  • Fixed or selectable power & CCT
  • Lumen output up to 20,000 lm
  • Dark sky compliant
  • Dusk-to-dawn operation available
  • Emergency back-up models available
    DLC Listed UL Listed Wattage Selectable CCT Selectable 120-277V 1-10V Dimming
    View full details

    Select Your Full-Cutoff Wall Pack

    Our dark sky compliant WPF series of wall pack luminaires come in fixed, selectable, and emergency backup configurations. Find the best model for you or your customer's application below.

    WPF-D Models—Fixed Power & CCT

    Covering a range of 3,800 to 20,000 lumens and available with 3,000K, 4000K or 5000K color temperature, there is a fixed power & CCT model to meet just about every need. All luminaires are available with or without a photocell and in dark bronze (standard), black, or white.

    WPF-W Models—Selectable Power and CCT

    All the best features of the fixed models with the extra flexibility offered by field-selectable power and color temperature settings. The 26W selectable goes as low as 1,882 lumens while the 100W goes as high as 15,500 lumens.

    WPF-E Models—Dual Operation Lights

    Count on these wall packs to provide reliable lighting not just under normal conditions but also during an emergency. In the event of a power outage, these luminaires switch to emergency-back up mode to provide an extra 90 minutes of safety lighting.

    *IES file links on this page may not contain an IES file for every available configuration of the model.

    DETAILS

    Our WPF Series of full cutoff LED wall pack luminaires are designed to provide optimal illumination while eliminating unnecessary light spill and skyglow. The full cutoff design not only contributes to dark-sky compliance by preventing light pollution but also ensures efficient use of energy by focusing light where it's most needed. Perfect for building perimeters, entryways, and security lighting, these luminaires combine sustainability with functionality, offering an eco-friendly lighting solution that also enhances safety and visibility.

    • Uniform, zero-uplight light distribution
    • Anti-UV lens wIth glare reduction
    • Adjustable light output when used with dimmer controller
    • Optional photosensor adds automatic dusk-on/dawn-off operation
    • UL cUL Wet Location listed
    • Durable die cast housing
    • Easily mounts over standard 4" and 5" junction boxes
    • Surface conduit wiring possible with three 1/2 inch conduit holes in housing
    • Built in leveling bubble speeds up installation
    • Our line of emergency back-up models provides 90 minutes of continued operation during power outages
    • Eligible for lighting rebates

    DOWNLOADS

    Download Spec Sheet WPF Series Full-Cutoff LED Wall Packs PDF Datasheet

    KEY SPECIFICATIONS

    Lumens Package 26W, Up to 3,900 lumens
    38W, Up to 5,700 lumens
    65W, Up to 9,700 lumens
    100W, Up to 15,000 lumens
    135W, Up to 20,000 lumens
    26W Selectable (26/22/15/11W), Up to 4,000 lumens
    38W Selectable (38/31/23/17W), Up to 6,000 lumens
    65W Selectable (65/50/34/24W), Up to 10,000 lumens
    100W Selectable (100/84/62/43W), Up to 15,500 lumens
    System Efficacy Up to 158 lm/W
    CRI 70
    CCT 3000K, 4000K, 5000K, or 3000K/4000K/5000K Selectable
    Enclosure Rating cUL Wet Location
    Mounting Wall Mount, Junction Box Mount, 1/2” NPS Conduit Mount
    Input Voltage 120-277VAC (347-480VAC available by special order)
    Housing Die Cast Aluminum Housing, Anti-UV Optical Lens
    Finish Dark Bronze (Standard), Black, White
    Warranty 5 Years
    Certifications DLC, UL
    DLC Listing Primary Use Category Outdoor Full-Cutoff Wall-Mounted Area Luminaires
