DETAILS

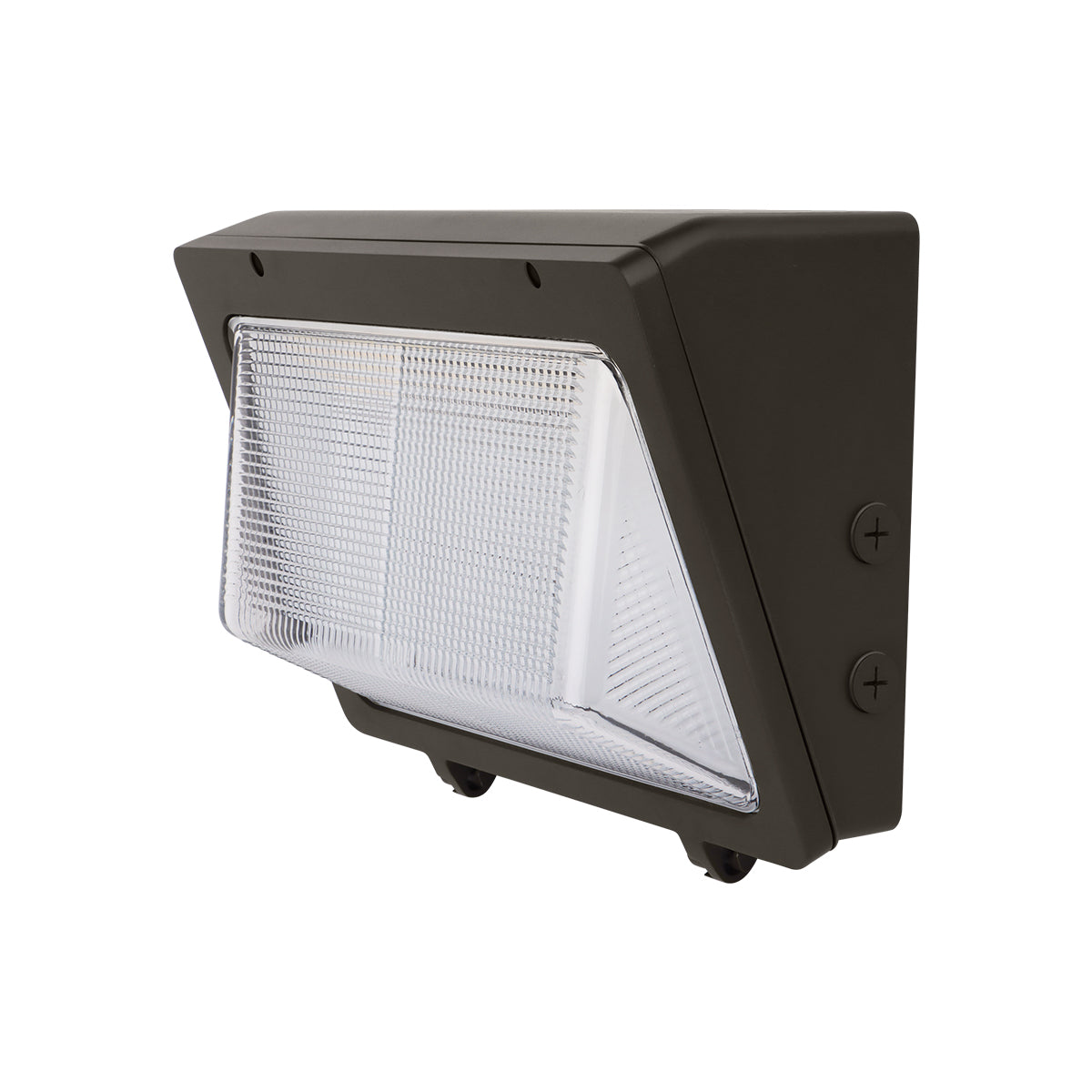

A Better Looking, More Efficient Security Light
The WPS02 Series delivers energy-efficient, cost-effective illumination with an upgraded aesthetic, making it an ideal solution for HID wall pack replacements and new construction applications.
Customizable Light Output
Selectable wattage and CCT options allow users to optimize brightness and color temperature for various applications, ensuring the perfect lighting environment. Plus, a built-in photocell for dusk-to-dawn operation enhances energy management opportunities.
Rugged and Weather-Resistant Design
Built with a die-cast aluminum housing and a tempered glass diffuser, these fixtures offer durable, weatherproof performance, sealed to prevent ingress of dust and moisture.
Easy, Clean Installation
The WPS02 Series provides a seamless upgrade; it fully covers the footprint of the medium HID wall packs that they replace, providing a neat installation and a nicer appearance.
Applications
Quick-Ship WPS02 Models
-
WPS02-63W Wall Pack
- 33/53/63W
- 4,650 to 8,550 lumens
- 3000K/4000K/5000K CCT
33/53/63WWPS02-63W Wall Pack
- 4,650 to 8,550 lumens
- 3000K/4000K/5000K CCT
-
WPS02-90W Wall Pack
- 45/76/90W
- 6,450 to 12,900 lumens
- 3000K/4000K/5000K CCT
45/76/90WWPS02-90W Wall Pack
- 6,450 to 12,900 lumens
- 3000K/4000K/5000K CCT
-
WPS02-125W Wall Pack
- 76/105/125W
- 10,900 to 17,450 lumens
- 3000K/4000K/5000K CCT
76/105/125WWPS02-125W Wall Pack
- 10,900 to 17,450 lumens
- 3000K/4000K/5000K CCT
DOWNLOADS
KEY SPECIFICATIONS
Lumens Packages | 63W Selectable (33/53/63W) 4,650/7,100/8,190 lumens @ 3000K 5,050/7,700/8,850 lumens @ 4000K 4,700/7,150/8,250 lumens @ 5000K 90W Selectable (45/76/90W) 6,450/10,200/11,700 lumens @ 3000K 7,100/11,200/12,900 lumens @ 4000K 6,600/10,400/11,950 lumens @ 5000K 125W Selectable (76/105/125W) 10,900/14,200/16,250 lumens @ 3000K 11,700/15,250/17,450 lumens @ 4000K 11,000/14,350/16,400 lumens @ 5000K |
System Efficacy | 130 to 158 lm/W |
CRI | 70 |
Dimming Capability | 0 to 10V |
CCT | 3000K/4000K/5000K Selectable |
Input Voltage | 120-277VAC |
Warranty | 5 Years |
Certifications | DLC, UL Wet Location |
*IES file links on this page may not contain an IES file for every available configuration of the model.
