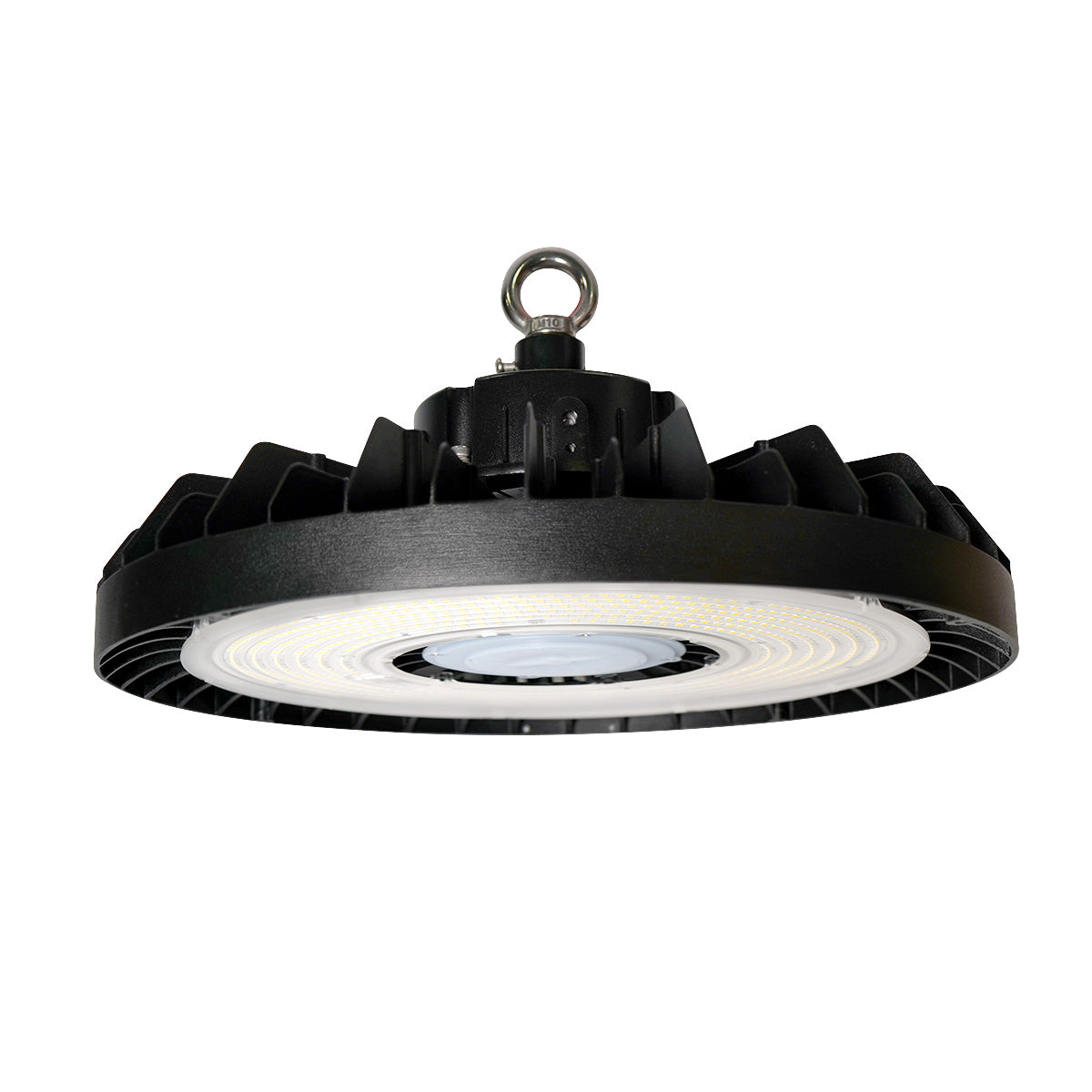

RHB02 Series High Efficacy UFO LED High Bay

RHB02-200 UFO LED High Bay - Up to 40,000 Lumens

RHB02-200 UFO LED High Bay - Up to 40,000 Lumens

High lumen, wattage-selectable round UFO high bay with IP65 & IK08 enclosure rating. Features 200 lm/W luminous efficacy for maximum brightness at the lowest possible energy cost.

  • 20,000 - 40,000 lumens
  • 200W, 150W, 120W & 100W
  • 4000K or 5000K CCT

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Color Temperature
Optics

SKU:

Return to main product:
RHB02 Series High Efficacy UFO LED High Bay View full details

DETAILS

This model includes 200W, 150W, 120W, and 100W selectable wattage plus 0-10V dimming, an integrated sensor port, and IP65/IK08 rated housing. The 40° beam angle configuration is DLC pending. Contact us if you need more details.

DOWNLOADS

Download Spec Sheet Spec Sheet - RHB02 High Efficiency Round High Bay

DLC SPECIFICATIONS

LLTVRHB02-200W-507H120 DLC Specifications

Configuration
5000K CCT
120° open area beam angle
DLC Classification
Standard
DLC Lumens
38880 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
194 lm/W
DLC CCT
5000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB02-200W-507H90 DLC Specifications

Configuration
5000K CCT
90° wide aisle beam angle
DLC Classification
Standard
DLC Lumens
39660 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
198 lm/W
DLC CCT
5000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB02-200W-507H60 DLC Specifications

Configuration
5000K CCT
60° medium aisle beam angle
DLC Classification
Standard
DLC Lumens
38960 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
195 lm/W
DLC CCT
5000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB02-200W-407H120 DLC Specifications

Configuration
4000K CCT
120° open area beam angle
DLC Classification
Standard
DLC Lumens
37260 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
186 lm/W
DLC CCT
4000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB02-200W-407H90 DLC Specifications

Configuration
4000K CCT
90° wide aisle beam angle
DLC Classification
Standard
DLC Lumens
38000 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
190 lm/W
DLC CCT
4000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB02-200W-407H60 DLC Specifications

Configuration
4000K CCT
60° medium aisle beam angle
DLC Classification
Standard
DLC Lumens
37320 lm
DLC Wattage
200.0 Watts
Luminous Efficacy
187 lm/W
DLC CCT
4000K
DLC CRI
70
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

ACCESSORIES

Reflectors: Aluminum reflector with a 90° or 100° beam angle and a polycarbonate reflector with a 90° beam angle.

Mounting options: Fixed bracket, ±60° adjustable bracket, and pipe mount bracket.

Sensors: Plug-and-play bi-level microwave motion sensor and sensor remote controller.

Return to main product: RHB02 Series High Efficacy UFO LED High Bay
