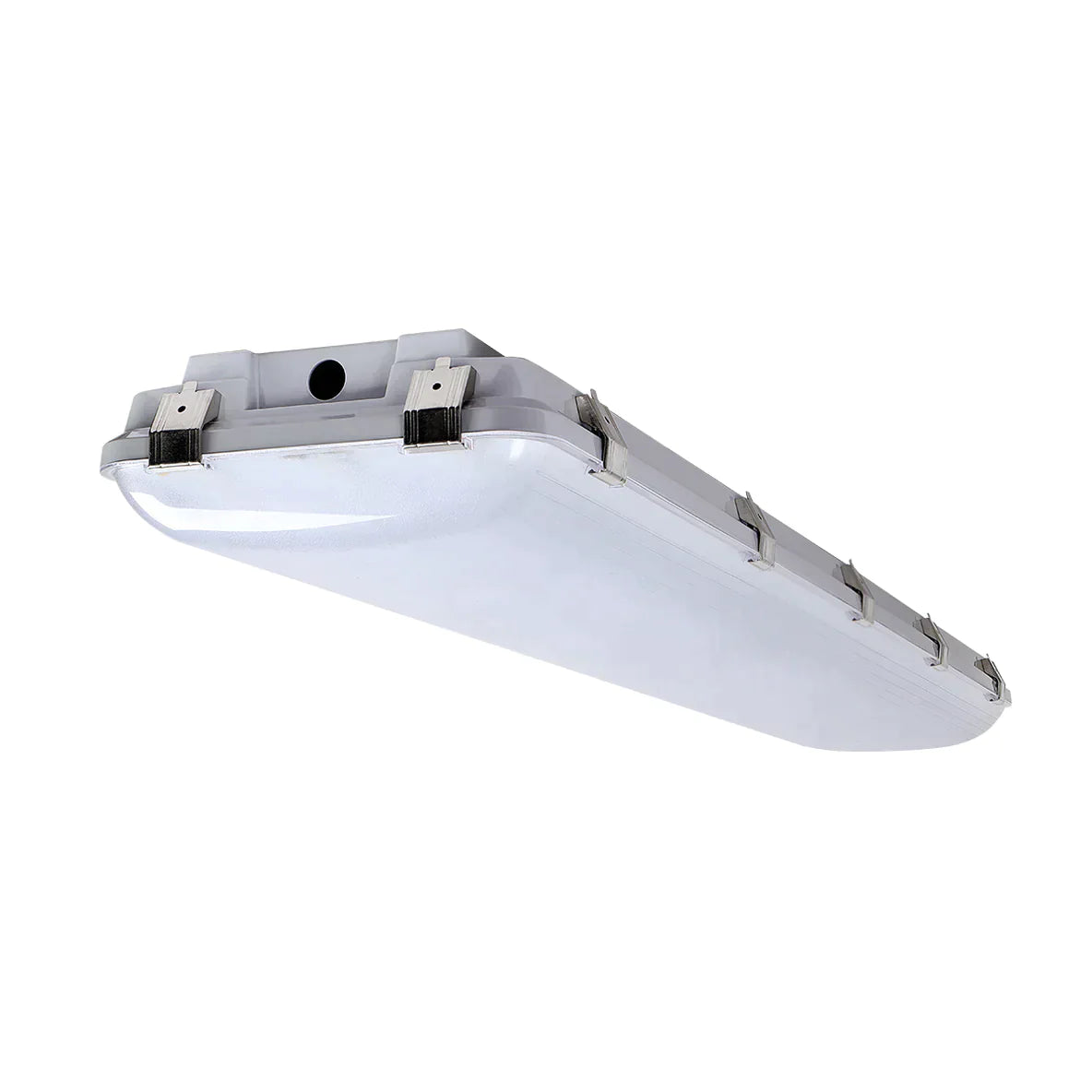

4ft LED Vapor Tight High Bay Luminaire

4V02-155W Selectable 4ft LED Linear Vapor Tight High Bay

4V02-155W Selectable 4ft LED Linear Vapor Tight High Bay

Wattage & CCT selectable vapor-tight LED high bay luminaire with IP67, IK10, and NEMA 4X rated housing plus NSF certification.
  • 15,000 to 21,700 lumens
  • 155/135/125/100W Selectable
  • 3500K/4000K/5000K CCT Selectable
  • 110° Beam Angle
  • 120-277VAC

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Lens
Emergency Battery

SKU:

Return to main product:
4ft LED Vapor Tight High Bay Luminaire View full details

DETAILS

120-347VAC available by special order. White gray is default housing color; gray is available by special order. Contact us for special order lead time. DLC information coming soon—contact us if you need it sooner.

DLC Listed ETL Listed NSF Certified Wattage Selectable CCT Selectable CRI 80 100-277V 0-10V Dimming IP-67 Rated Enclosure IK-10 Impact Rating

DOWNLOADS

Download Spec Sheet 4V02 Series LED Vapor Tight Luminaires Datasheet

DLC SPECIFICATIONS

LLTV4V02-155WCS DLC Specifications

Configuration
Anti-glare clear
No emergency battery
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-155WCSE15 DLC Specifications

Configuration
Anti-glare clear
15W emergency driver
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-155WCSE20 DLC Specifications

Configuration
Anti-glare clear
20W emergency driver
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-155WCSF DLC Specifications

Configuration
Frosted
No emergency battery
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-155WCSFE15 DLC Specifications

Configuration
Frosted
15W emergency driver
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-155WCSFE20 DLC Specifications

Configuration
Frosted
20W emergency driver
DLC Lumens
20925 lm
DLC Wattage
155.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT (Ra)
3500K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
