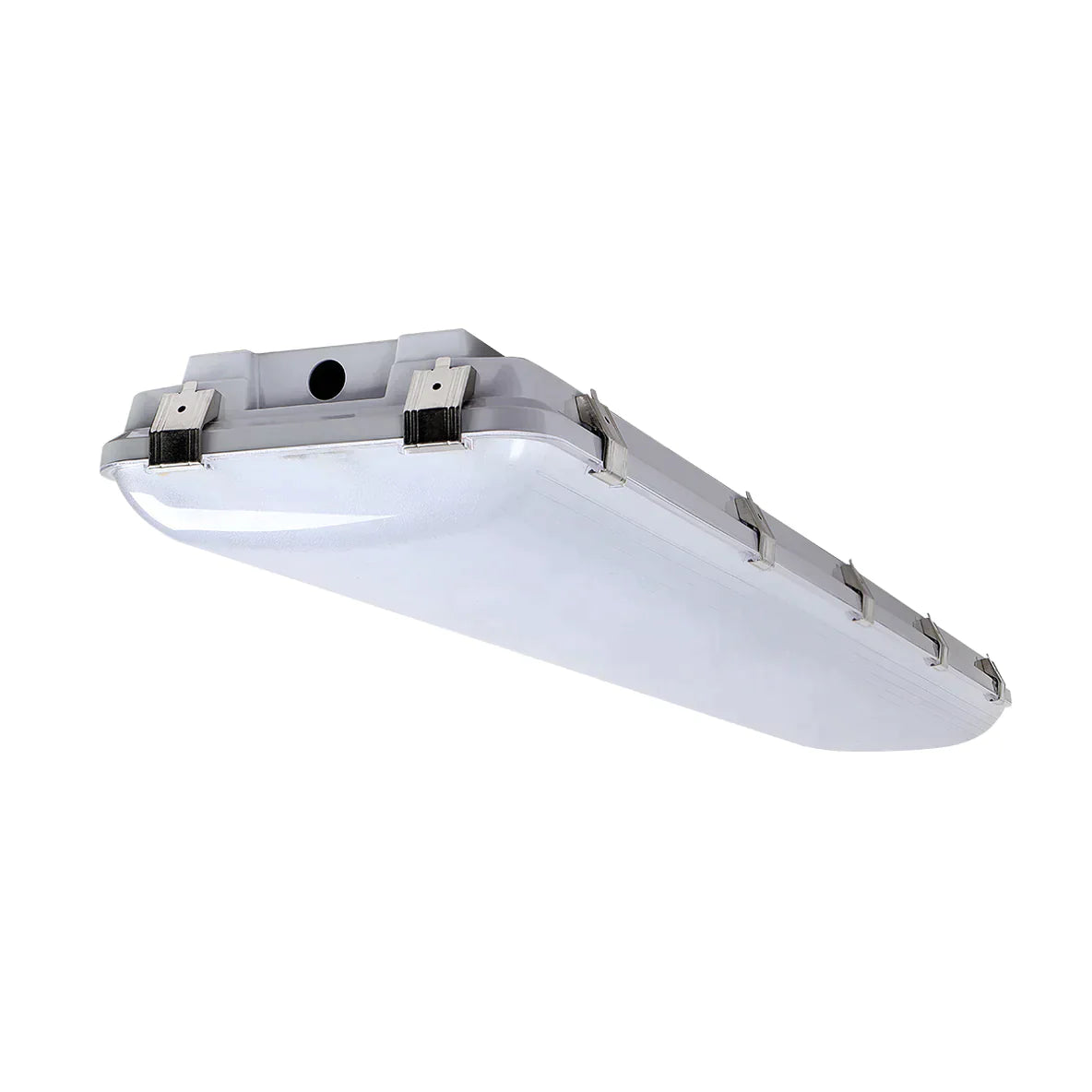

4V02 Series 4ft LED Vapor Tight High Bay Luminaire

4V02-180W Selectable 4ft LED Linear Vapor Tight High Bay

4V02-180W Selectable 4ft LED Linear Vapor Tight High Bay

Wattage & CCT selectable vapor-tight LED high bay luminaire with IP67, IK10, and NEMA 4X rated housing plus NSF certification.
  • 15,750 to 27,000 lumens
  • 180/155/135/105W Selectable
  • 3500K/4000K/5000K CCT Selectable
  • 110° Beam Angle
  • 120-277VAC

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Lens
Emergency Battery

Quick Ship | SKU:

Return to main product:
4V02 Series 4ft LED Vapor Tight High Bay Luminaire View full details

DETAILS

120-347VAC available by special order. White gray is default housing color; gray is available by special order. Contact us for special order lead time.

DOWNLOADS

Download Spec Sheet 4V02 Series LED Vapor Tight Luminaires Datasheet

DLC SPECIFICATIONS

LLTV4V02-180WCS DLC Specifications

Configuration
Anti-glare clear
No emergency battery
DLC Classification
Premium
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT
3500
DLC CRI
84
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSE15 DLC Specifications

Configuration
Anti-glare clear
15W emergency driver
DLC Classification
Premium
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT
3500
DLC CRI
84
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTV4V02-180WCSE20 DLC Specifications

Configuration
Anti-glare clear
20W emergency driver
DLC Classification
Premium
DLC Lumens
24300 lm
DLC Wattage
180.0 Watts
Luminous Efficacy
135 lm/W
DLC CCT
3500
DLC CRI
84
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Return to main product: 4V02 Series 4ft LED Vapor Tight High Bay Luminaire
