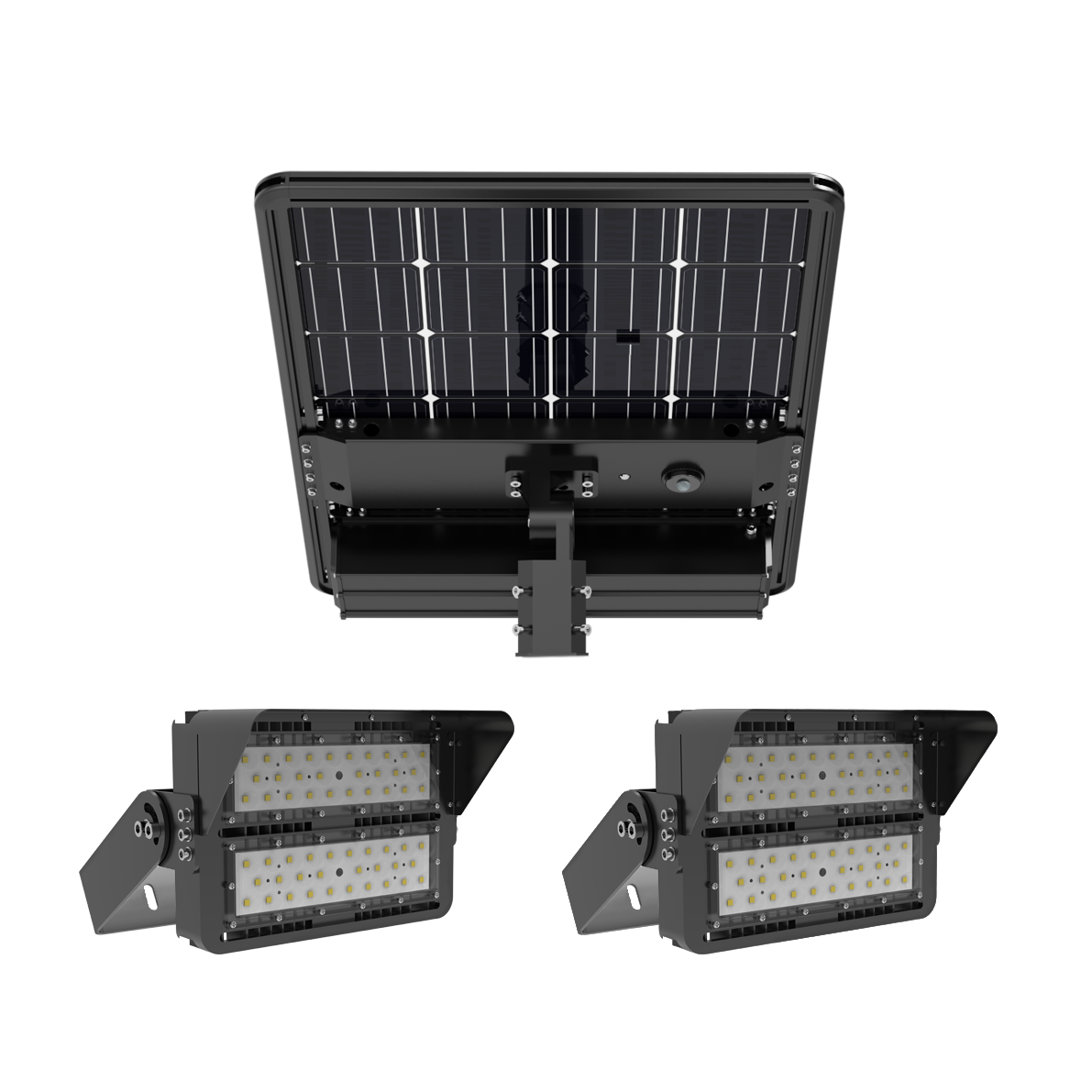

SLD01 Solar Sports Light
SLD01 Solar Sports Light
The SLD01 Sports Light delivers powerful, off-grid illumination engineered specifically for sports courts and outdoor athletic facilities.
Key Features:
- High-output illumination
- Efficiency-boosting bifacial solar panel
- ASW 3.0 extends runtime in low sun conditions
- Replaceable battery and controller
- Built for harsh outdoor environments
Availability: Call for Lead Time
DETAILS
Producing 10,000 to 50,000 lumens at 200 lm/W, this solar-powered lighting system uses high-efficiency bifacial mono-crystalline panels and a robust 12V/135Ah lithium battery.
The ASW 3.0 system monitors battery capacity and automatically reduces light output when extended cloudy conditions or seasonal variations in solar availability result in low battery charge. By scaling output once predefined thresholds are reached, the system helps ensure continued nightly operation and protects battery health.*
SLD01 is a reliable solar sports-lighting platform with true professional-grade output, ideal for exposed outdoor environments—especially ones requiring wide, even light distribution.
*Operating parameters may be customized to meet specific project requirements.
DOWNLOADS
*IES file links on this page may not contain an IES file for every available configuration of the model.
KEY SPECIFICATIONS
| Lumens Package | 50W, 10,000 lumens 75W, 15,000 lumens 100W, 20,000 lumens 150W, 30,000 lumens 200W, 40,000 lumens 250W, 50,000 lumens |
| System Efficacy | 200 lm/W |
| CRI | >70 |
| CCT | 3000K, 4000K, 5000K, 6000K, 6500K |
| Beam Angle | Type III/ Type II |
| Controls | Motion Sensor (Optional) |
| Charging Time | 6 to 18 hours* |
| Operating Time | Normal 100% Brightness - 3 days, 4 hours each day* Dimming Mode - 5-7 days |
| Battery | Lithium Ion 12V/135.2AH |
| Solar Panel | Mono-Crystalline Bifacial 18V/175W |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Warranty | 5 Years |
*Performance based on ideal conditions - solar lights are heavily affected by sunlight levels temperatures, snow, dirt, and other conditions.
