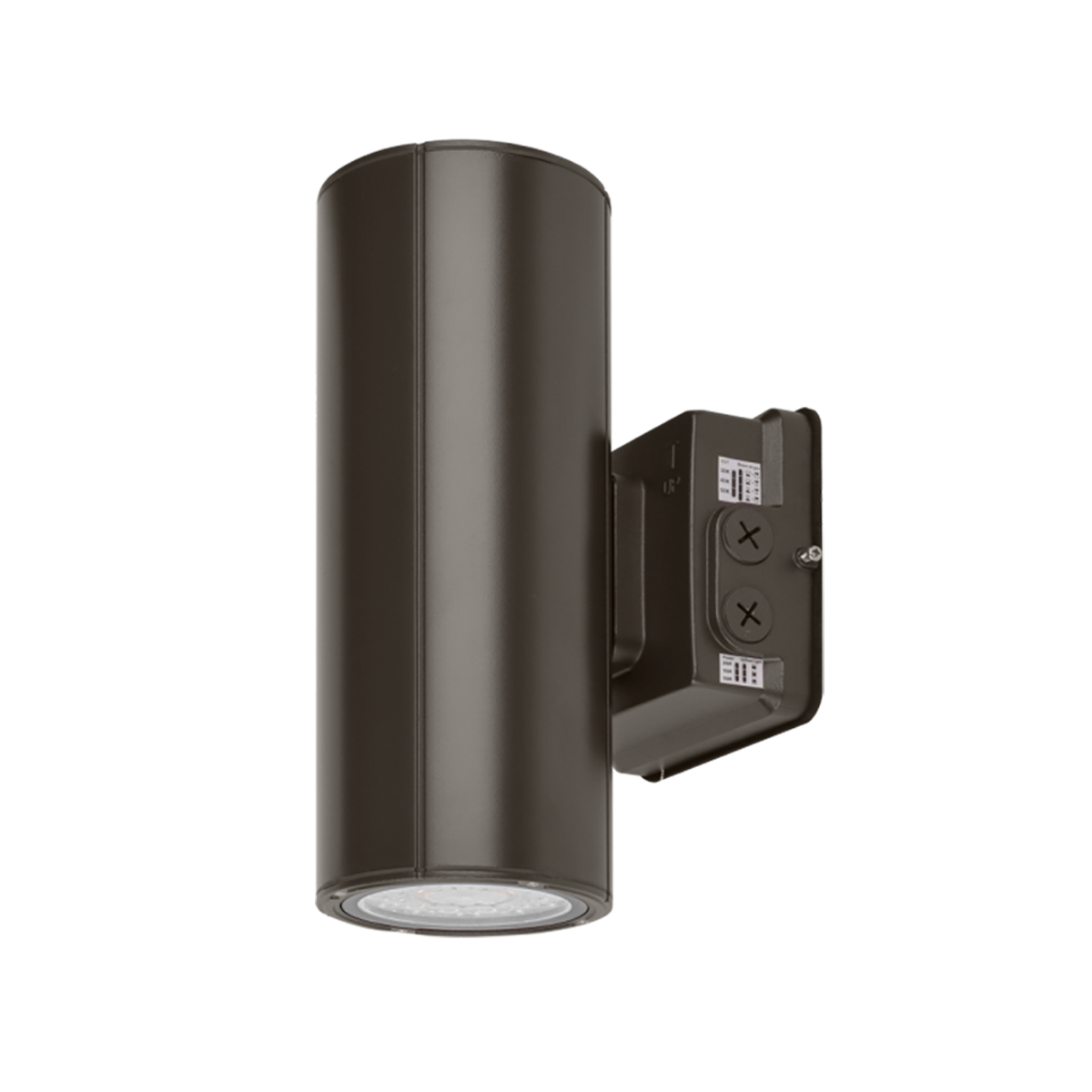

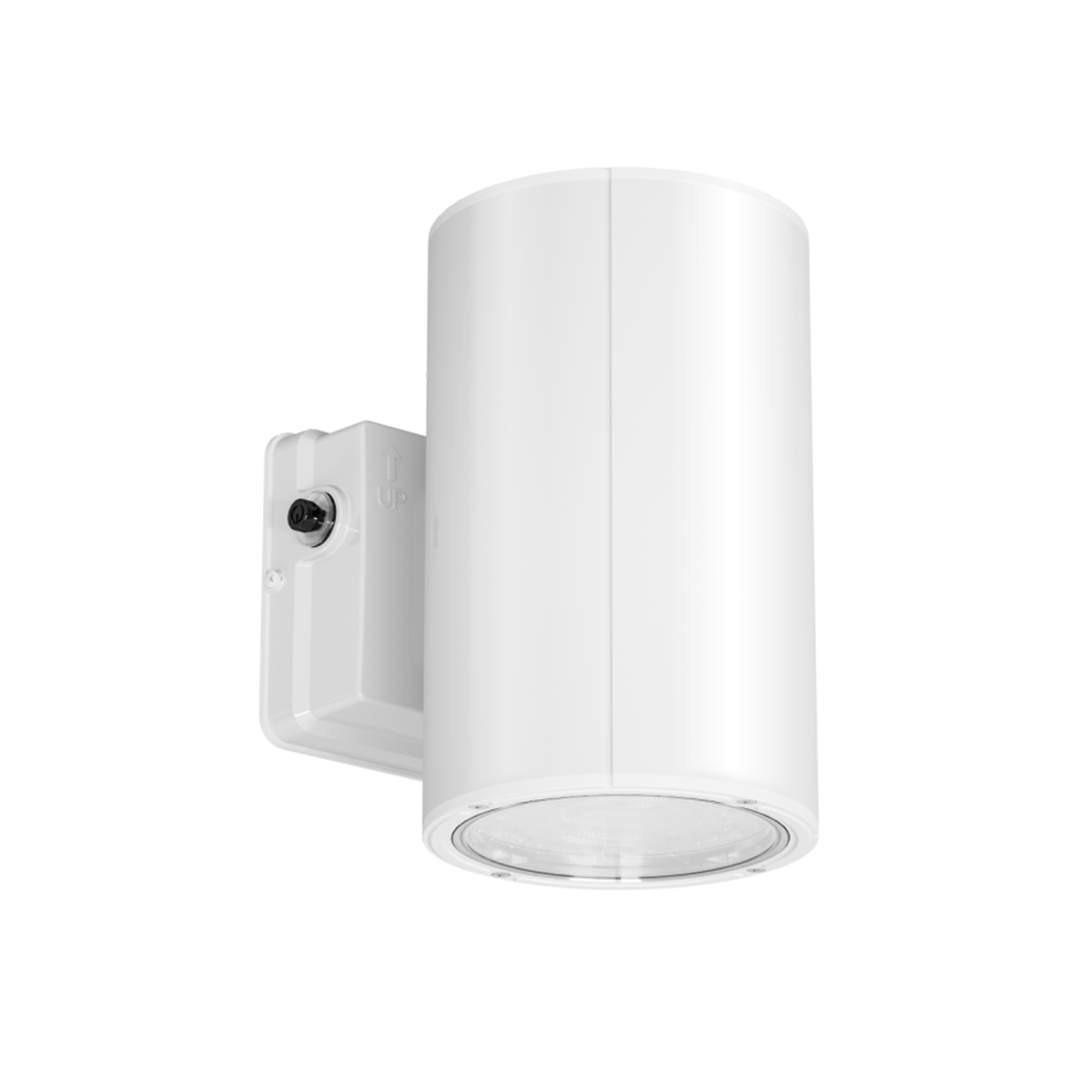

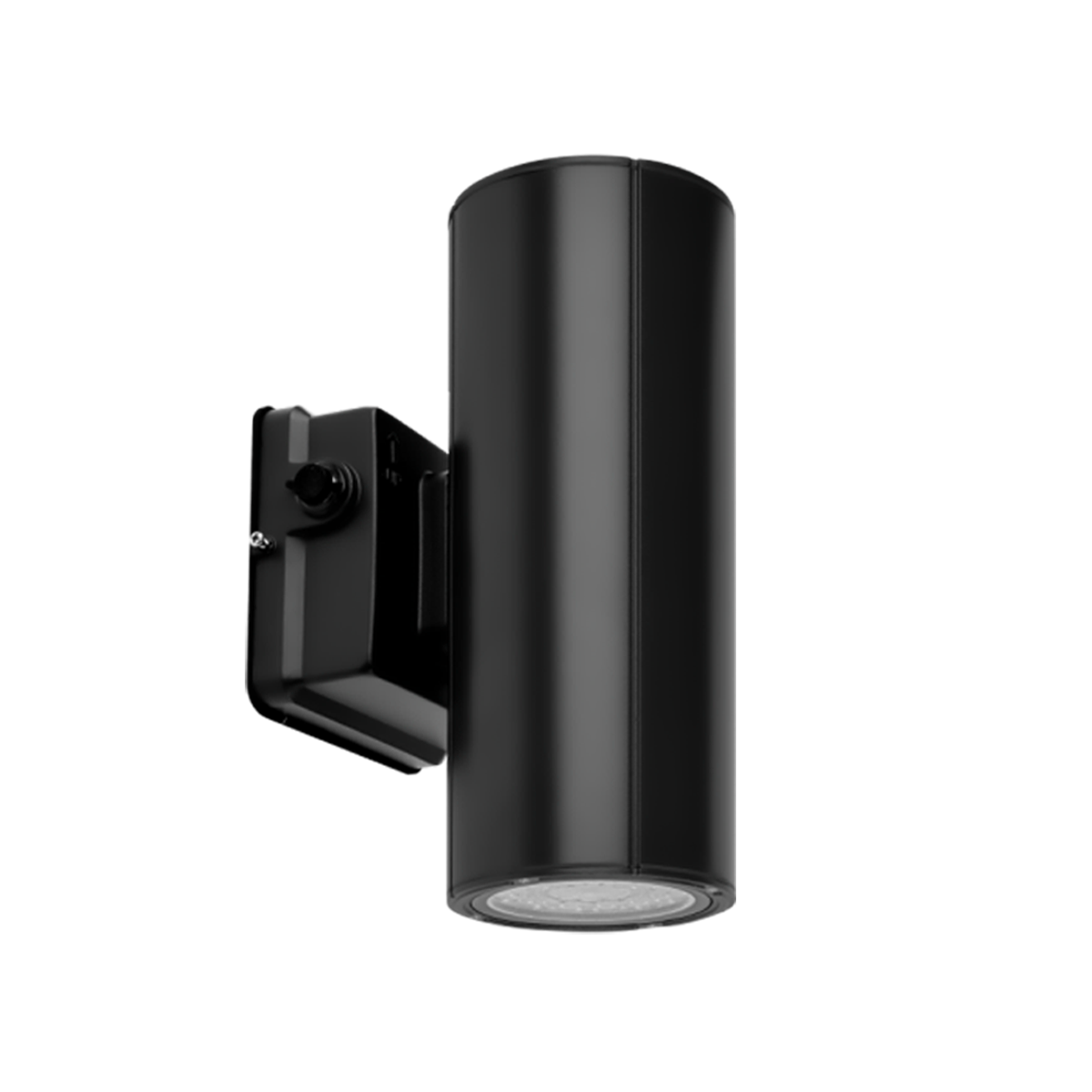

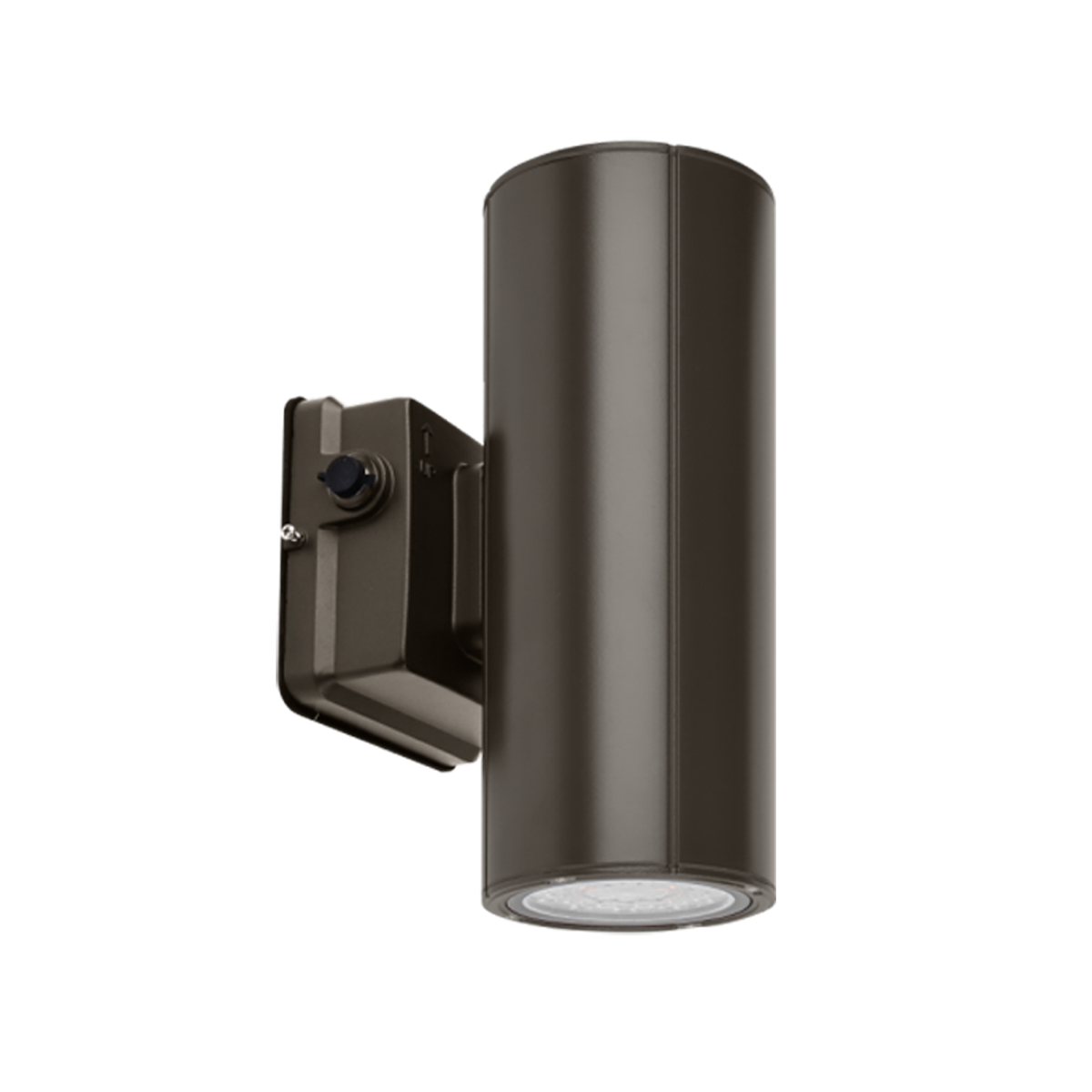

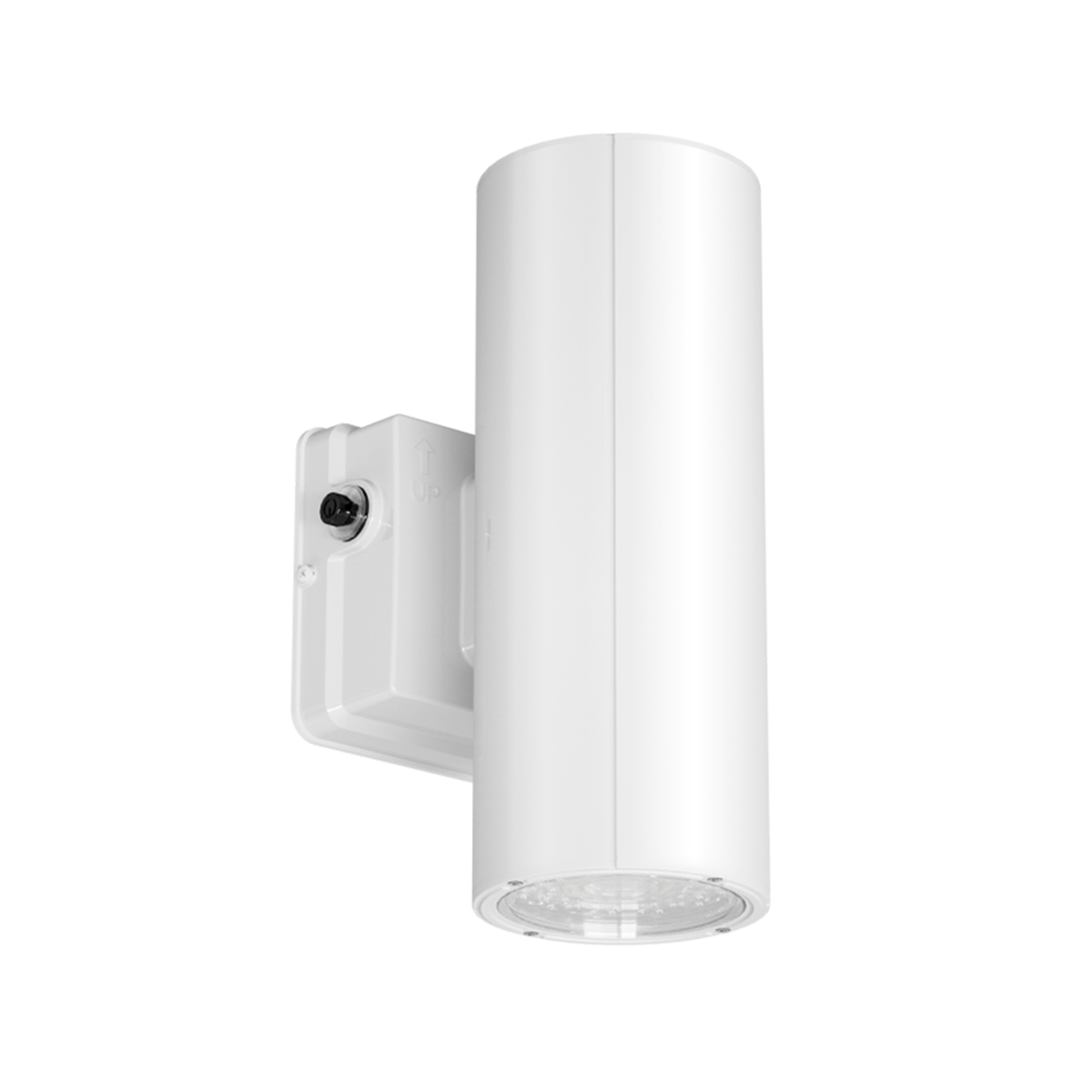

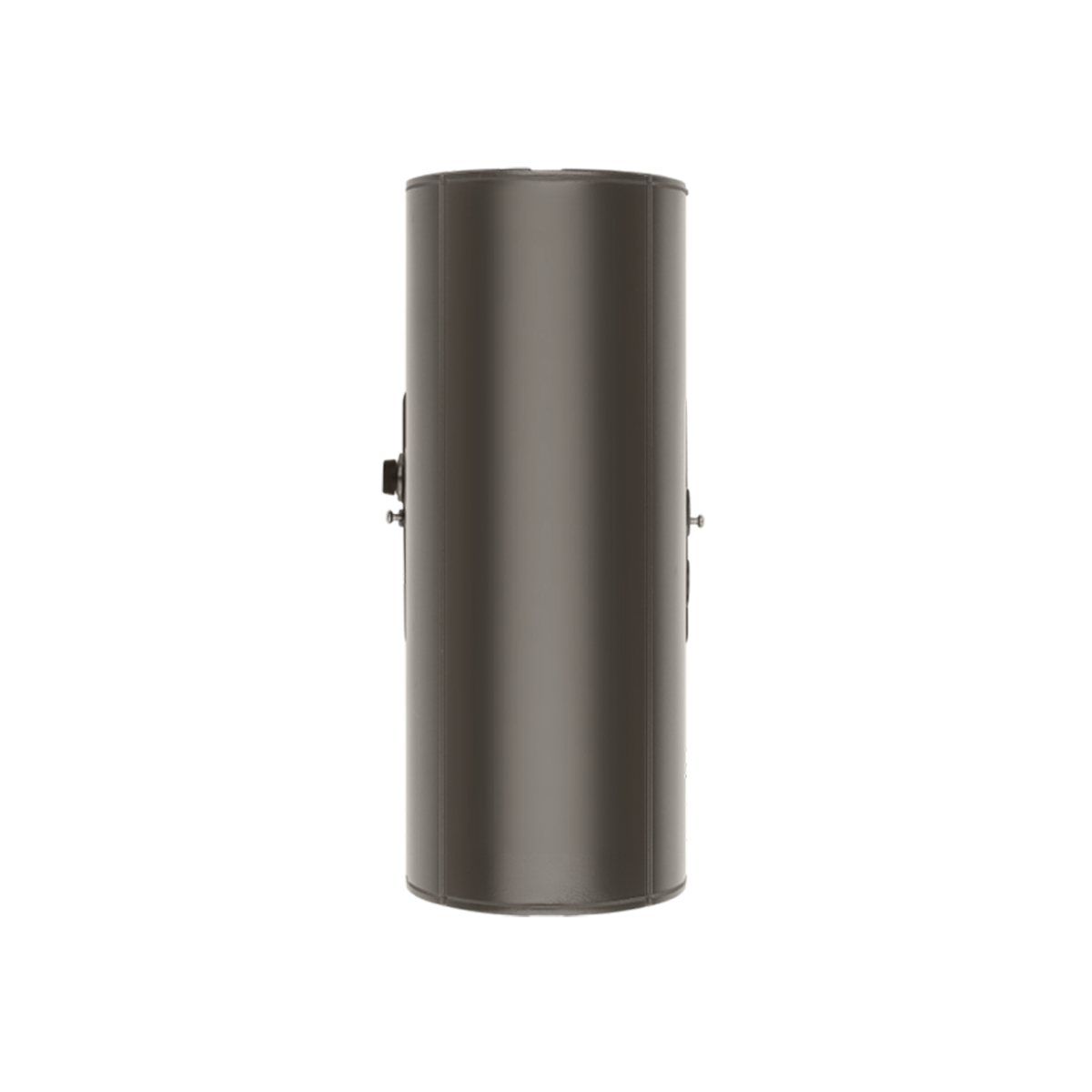

WSC02 Series LED Wall Sconce

WSC02 Series LED Wall Sconce

Modern Form with Up/Down Beam Customization

  • Selectable output with packages 625 to 2,740 lumens and 1,220 to 5,475 lumens
  • 3000K/ 4000K / 5000K selectable CCT
  • Independent selection of beam direction (up, down, up / down) and angle (25° or 75° each direction)
  • Integrated photocell for automated dusk-to-dawn operation
UL ListedWattage Selectable CCT SelectableDirect/Indirect Lighting-FinalBeam Angle SelectableIP-65 Rated EnclosureIK-10 Impact Rating0-10V Dimming
View full details

DETAILS

Sleek Design with Maximum Configurability

The WSC02 Series LED Cylinder Light is a sleek wall sconce set apart by its high versatility and suitability for both interior and exterior applications. With independent selection of beam direction (up, down, up / down) and beam angles (25° or 75° for each direction), the WSC02 provides eight beam combinations whose light can be further field-tuned by CCT (3000K / 4000K / 5000K) and output (three stages per fixture).

Available in three standard colors and two wattage packages, the WSC02 is an excellent choice for contractors seeking to simplify inventories while retaining high application flexibility. With an integrated photocell and an IP65 / IK10 rated powder-coated aluminum enclosure, the WSC02 is as capable of automated dusk-to-dawn illumination of pathways, perimeters, garages, and facades as switched or dimmable lighting of conference rooms and auditoriums. Custom colors available upon request.

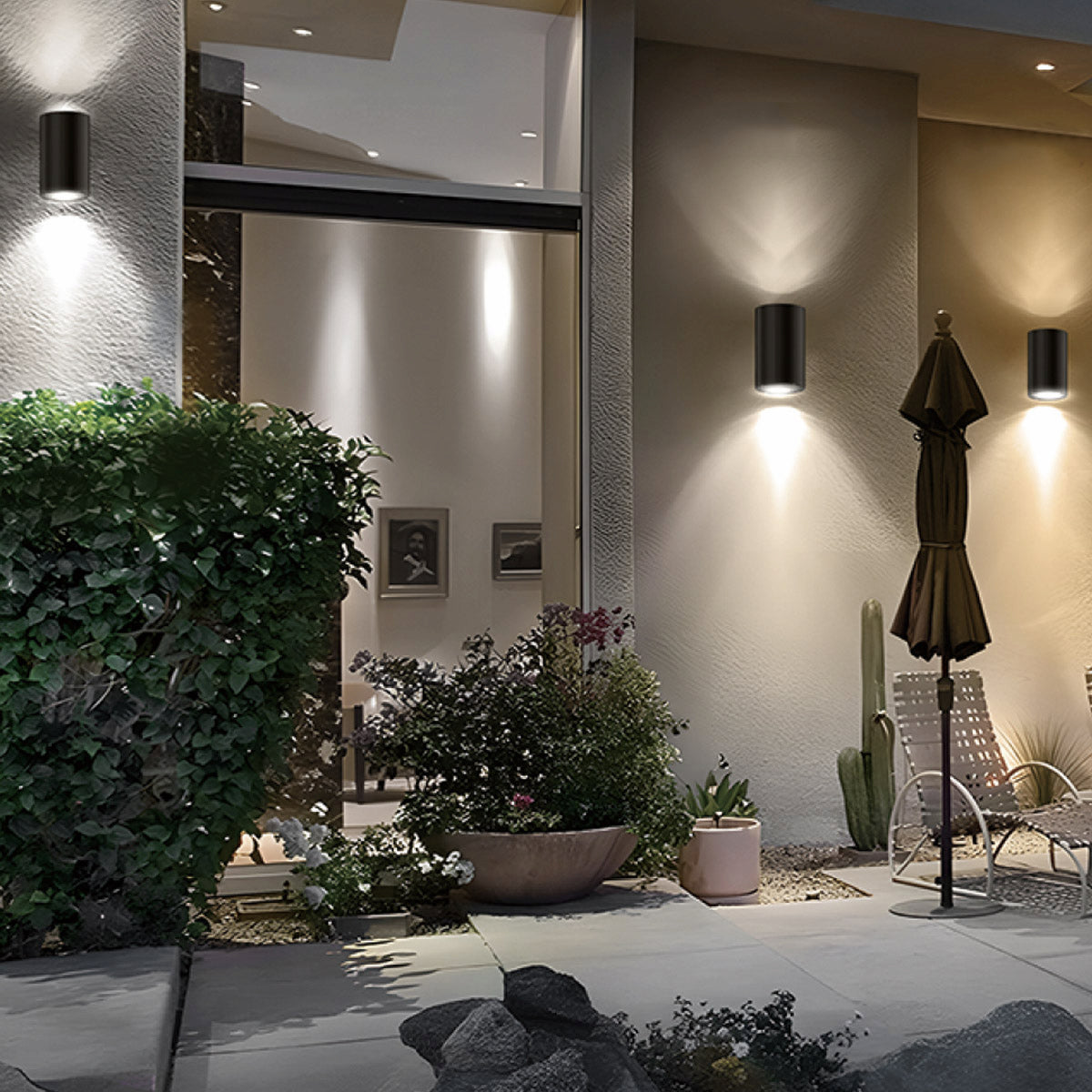

Ideal applications: Pathways, Garages, Facades, Building entrances and perimeters, Balconies, Conference rooms, Auditoriums and theaters.

DOWNLOADS

Quick-Ship WSC02 Series LED Wall Sconces

KEY SPECIFICATIONS

Wattage & Lumens 20W Selectable (10/16/20W), 625 to 2,740 lumens
38W Selectable (19/31/38W), 1,220 to 5,475 lumens
Efficacy 125 to 144 lm/W
CCT 3000K/4000K/5000K Selectable
CRI 80
Dimming 0-10V
Input Voltage 120-277VAC / 120-347VAC, 50/60Hz
Average Lifetime L70: >54,000 hours
Beam Angle 25°/75° Selectable
Mounting Wall Mount
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Warranty 5 Years
