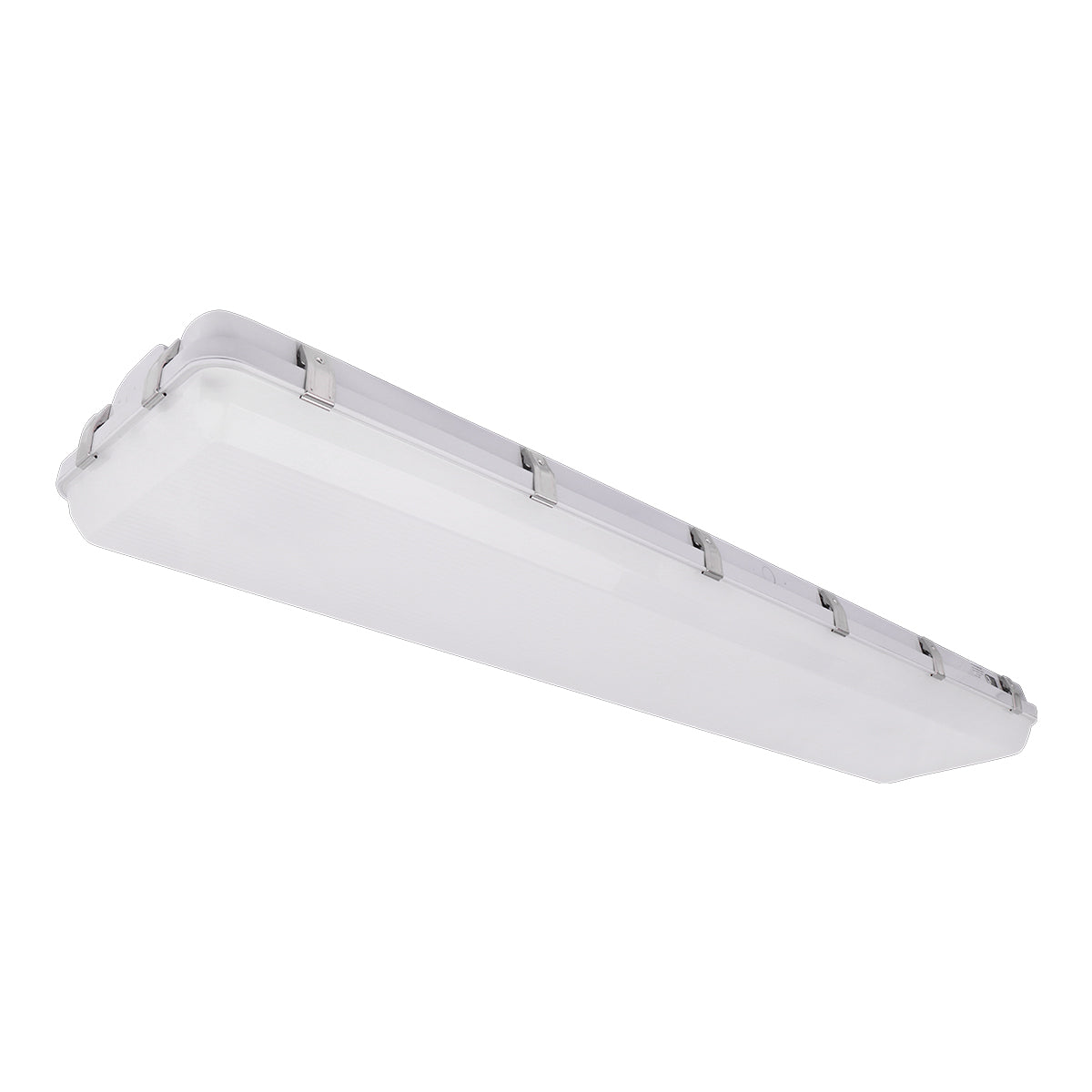

4V02A Series High Bay Vapor Tight Lights

4V02A Series High Bay Vapor Tight Lights

Brighten large commercial and industrial spaces with durable, high-output, vapor-tight lighting. The 4V02A Series offers selectable wattages and color temperatures, ensuring optimal performance in demanding environments.

  • Selectable Wattage from 105W to 165W
  • Selectable CCT: 3500K/4000K/5000K
  • High Lumen Output: Up to 27,400 lumens
  • NSF Certified for Food Safety Applications
  • 5-Year Warranty



DLC Premium UL Listed NSF Certified Wattage Selectable CCT Selectable 0-10V Dimming IP-65 Rated Enclosure IK-10 Impact Rating
View full details

DETAILS

Reliable, High-Performance Vapor Tight Lighting

Designed for warehouses, food processing facilities, parking garages, and other demanding environments, the 4V02A Series ensures consistent, long-lasting illumination with superior durability.

Versatile Lighting Options

Selectable wattage and color temperature settings allow users to balance brightness and energy efficiency across various applications.

NSF-Certified, Dust & Water-Tight Design

Built with a smooth, dust-proof & bug-proof surface and a watertight seal, the 4V02A Series is NSF certified for food safety environments and can withstand high-pressure washdowns.

Easy Installation & Long-Lasting Performance

Surface or wall mounting options ensure quick installations, while the robust build and DLC certification guarantee lasting reliability.

Applications

Ideal for warehouses, food and beverage processing facilities, poultry plants, commercial kitchens, and other environments requiring durable, high-lumen lighting.

Quick-Ship 4V02A Models

DOWNLOADS

Download Spec Sheet Data Sheet - 4V02A Series High Bay Vapor Tight Light

Download Spec Sheet Installation Guide - 4V02A Series High Bay Vapor Tight Light

Download Spec Sheet IES Files (.zip) - 4V02A Series High Bay Vapor Tight Light

KEY SPECIFICATIONS

Lumens Packages 105/135/165W Selectable
15,750/20,250/24,750 lumens @ 3500K
17,425/22,400/27,400 lumens @ 4000K
16,200/20,800/25,350 lumens @ 5000K
System Efficacy 150 to 166 lm/W
CRI > 80
Dimming Capability 0 to 10V
CCT 3500K/4000K/5000K Selectable
Enclosure Rating NSF, IP65, IK10
Input Voltage 120-277VAC
Warranty 5 Years
Certifications DLC Premium, UL, NSF

*IES file links on this page may not contain an IES file for every available configuration of the model.
