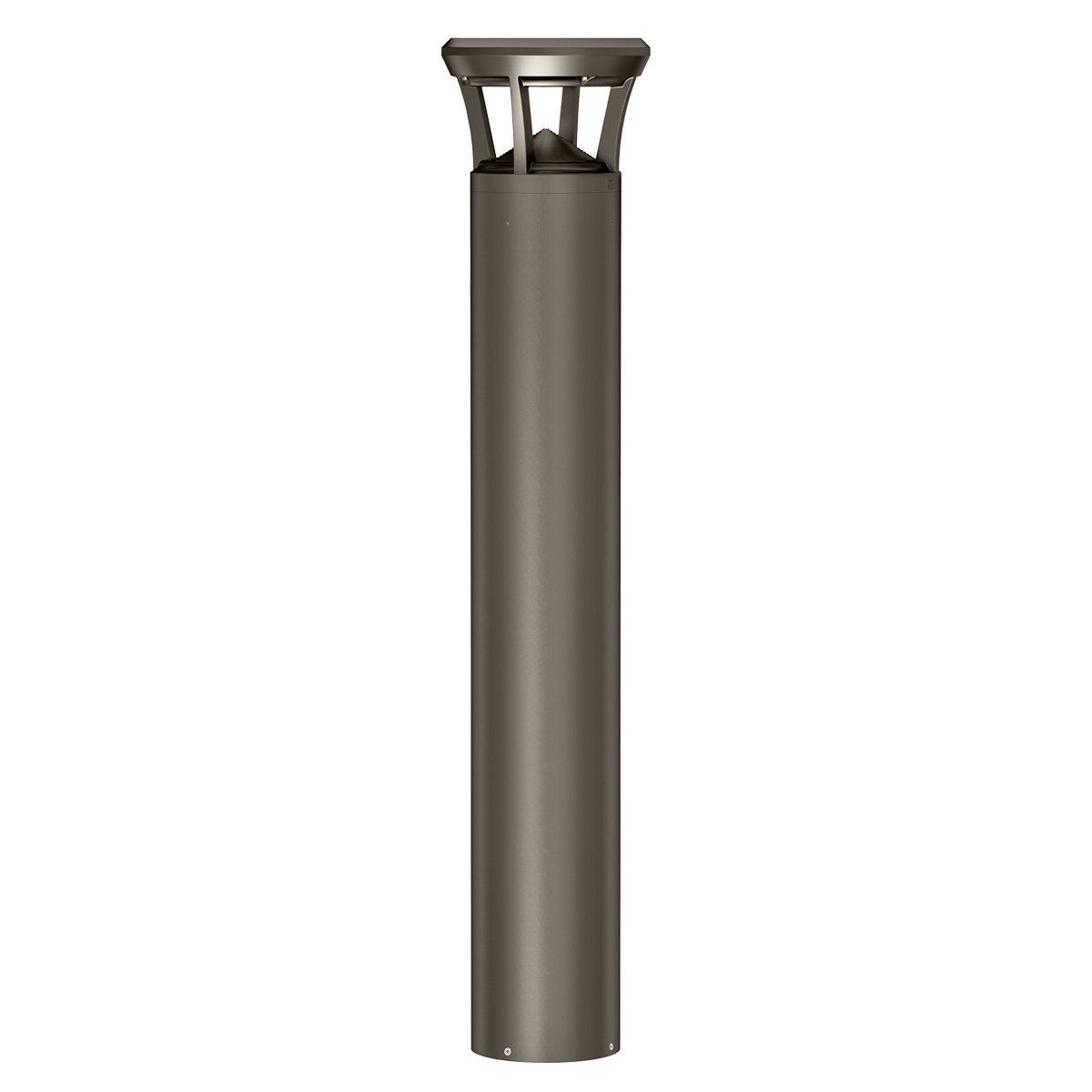

BL02 Series LED Bollard Light

BL02 Series LED Bollard Light

Contemporary Design with Zero Up-Light Optics

  • Selectable lumen output from 1,260–2,980 lumens
  • 3000K / 4000K / 5000K selectable CCT
  • Zero up-light optics to minimize glare and limit skyward light
  • Type III or Type V light distribution
  • Crowned or flat top options
DLC Listed DLC Premium UL Listed Wattage Selectable CCT Selectable IP-65 Rated Enclosure IK-10 Impact Rating 0-10V Dimming
View full details

DETAILS

Clean Architectural Form with Application-Driven Configurability


The BL02 Series LED Bollard Light delivers a clean, contemporary aesthetic paired with highly configurable performance for modern outdoor environments. Designed with zero up-light optics, the BL02 directs illumination precisely where it’s needed—reducing glare, minimizing light trespass, and supporting dark-sky friendly installations.

With field-selectable wattage (12W / 15W / 24W) and CCT (3000K / 4000K / 5000K), the BL02 allows contractors and specifiers to fine-tune output on site, simplifying inventory while maximizing application flexibility. Multiple beam distributions (Type III or Type V), crowned or flat top designs, and optional glare shields, louvers, and diffuser lenses make the BL02 adaptable to a wide range of pathway, landscape, and entrance lighting needs.

Constructed from powder-coated die-cast aluminum and rated IP65 / IK10, the BL02 is built to withstand harsh outdoor conditions while maintaining long-term performance. Available in multiple heights and finishes, it integrates seamlessly into architectural and landscape designs for commercial, municipal, and residential projects.

Ideal Applications: Pathways and walkways, Sidewalks and pedestrian areas, Gardens and landscaped spaces, Building entrances and site perimeters

DOWNLOADS

Download Spec Sheet Data Sheet - BL02 Series LED Bollard Light

Quick-Ship BL02 Series LED Bollard Lights

KEY SPECIFICATIONS

Wattage & Lumens 24W Selectable (12/15/24W), 1,260 to 2,980 lumens
Efficacy 105 to 124 lm/W
CCT 3000K/4000K/5000K Selectable
CRI 70
Dimming 0-10V
Input Voltage 120-277VAC / 120-347VAC*, 50/60Hz
Average Lifetime L90: 54,000 hours
L70: >102,000 hours
Beam Angle Type III and Type V
Mounting Mounting kit with anchor bolts
Operating Temperature -40°C to +50°C (-40°F to +122°F)
Warranty 5 Years
