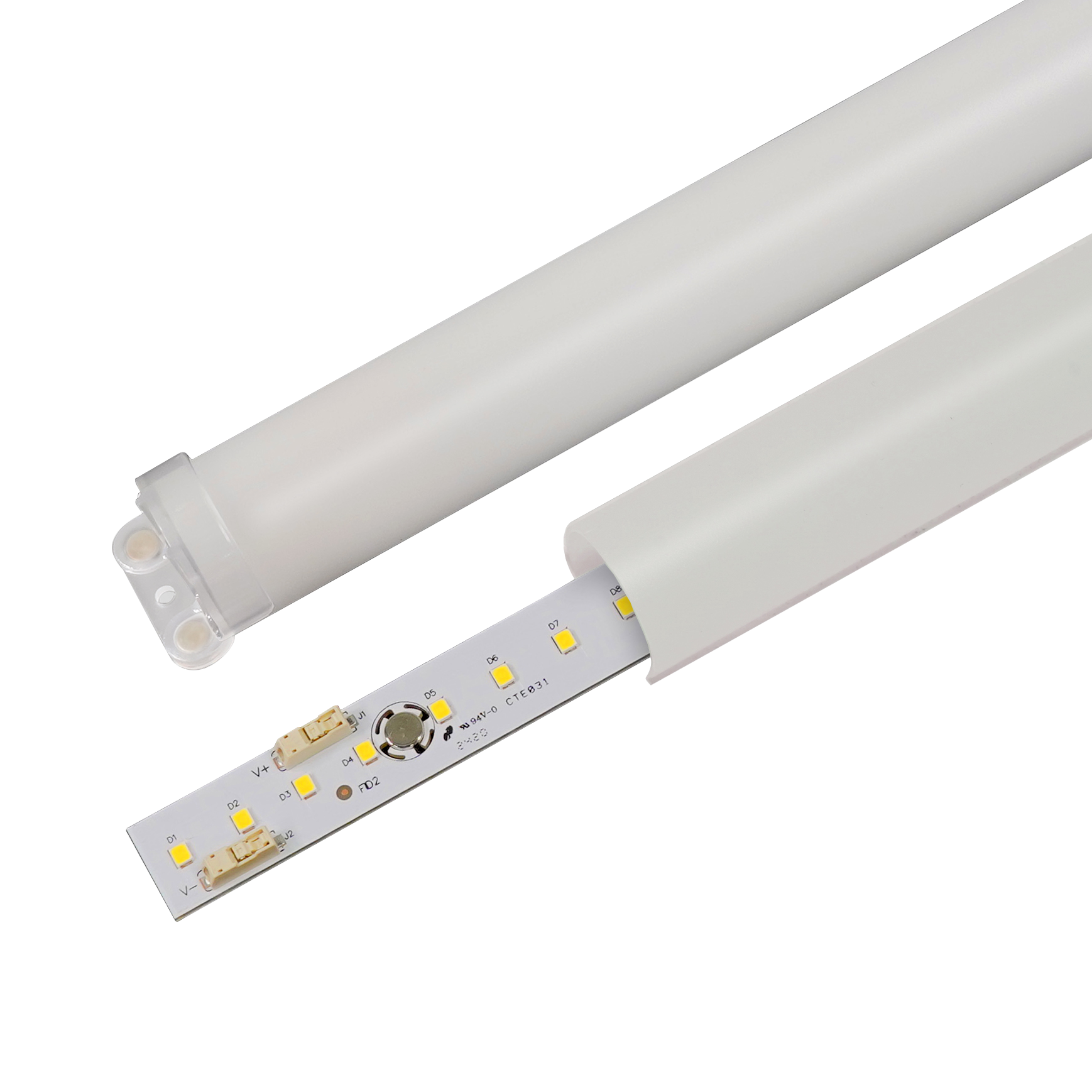

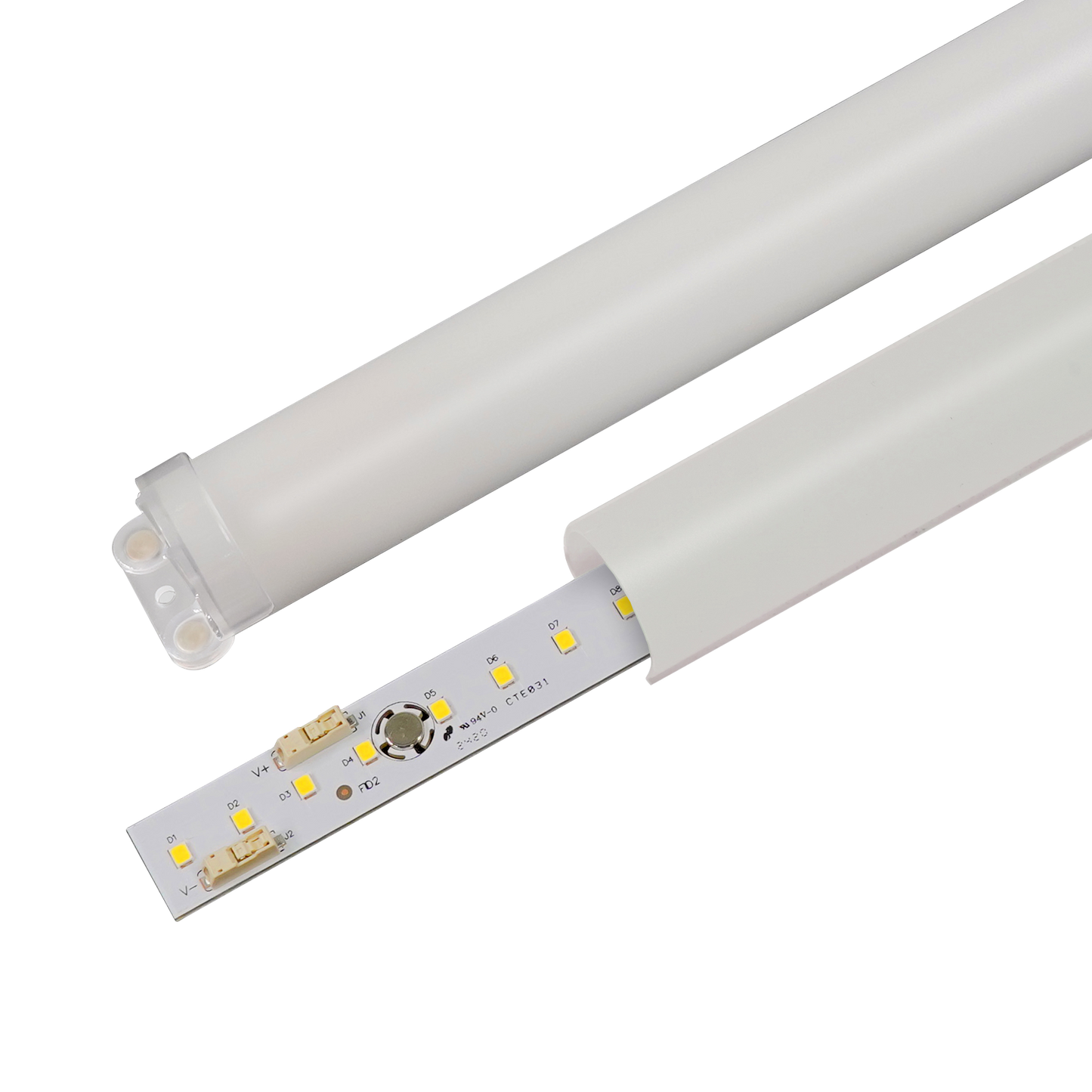

Claris Gen 3 High Efficacy LED Linear Retrofit Kits

Claris Gen 3 High Efficacy LED Linear Retrofit Kits

LED Living's ground-breaking, high-performance fluorescent-to-LED retrofit kit features our patented design with flexibility in mind. This linear retrofit kit is UL-certified for use in recessed, surface-mounted, and suspended fixtures sized 1x4, 2x2, 2x4, and 2x8 troffers as well as 4' and 8' linear fixtures. Plus, they are DLC-qualified products, making them eligible for energy-efficiency utility rebates.
  • Up to 185 lm/W luminous efficacy
  • Buy American Act Compliant
  • Custom configurations available
  • 5-year limited warranty
DLC Listed UL Listed CRI 80 120-277V 0-10V Dimming Buy American Act Compliant
If you need a custom configuration—for cove lighting, non-standard troffer sizes, or other requirements—get in touch.
View full details

Select Your Claris Gen 3 LED Retrofit Kit

Our most popular configurations are shown below. All kits include magnetic LED strips, magnetic LED driver, connection wires, and hardware. The C3 spec sheet includes many more configurations—reach out if you have requirements not met by the kits listed below.

*IES file links on this page may not contain an IES file for every available configuration of the model.


Product Compatibility

The Claris Gen 3 (C3 Series) kit can easily retrofit standard 1x4, 2X2, 2X4, and 2X8 fluorescent troffers as well as 4' and 8' long linear fluorescent fixtures. Plus, our lighting engineers can prepare made-to-order kits for unique applications. Each C3 kit comes with a UL-listed LED driver, the required number of LED strips, wire nuts, connectors, and screws. Optional frosted lens covers are also available.

Market-Leading Efficiency

The C3 family of LED linear retrofit kits can provide an astounding luminous efficacy of up to 185 lumens/Watt. The outputs range from 2,550 lm to 11,840 lm, with your choice of 2700K, 3000K, 3500K, 4000K, or 5000K color temperature. Efficiently illuminate any office, warehouse, retail store, workroom, or other commercial space while utilizing only 14 to 64 watts, depending on your kit choice.

Built with Quality in the USA

You can trust that the Gen 3 Claris LED linear retrofit kit will last for years to come; each light is made with the utmost care, on high-tech assembly equipment, right here in our Pennsylvania headquarters.

  • Flexibility for replacing lamp configurations in recessed, surface-mounted, or suspended fixtures
  • Usable for tandem fixture/cove lighting applications (saving the costs of additional drivers and installation time)
  • 1598 classification is maintained after kit is installed
  • Instant ON/OFF operation, or inquire about dimmable and daylight-detecting models (0-10V)
  • Optional frosted, isotropic, or opalescent film lens
  • See the spec sheet for the full range of available kit configurations
  • RoHS compliant: contains no hazardous materials; radiation-free
  • DesignLights Consortium qualified product
  • UL Listed
If you need a custom configuration—for cove lighting, non-standard troffer sizes, or other requirements—get in touch.



Length Strips come in 2' or 4', which allows for kits that cover 1x4, 2x2, 2x4, and 2x8 troffers, as well as 4' and 8' linear fixtures
Lumens Package 14W Driver: 2,550 lumens
18W Driver: 3,260 lumens
19W Driver: 3,550 lumens
29W Driver: 5,050 lumens
31W Driver: 5,705 lumens
49W Driver: 8,720 lumens
64W Driver: 11,840 lumens
System Efficacy Up to 185 lm/W
CCT 2700K, 3000K, 3500K, 4000K, or 5000K
CRI 80
Projected Lifetime 54,000 hours
Controls 0-10V Dimming
Cover Optional - Frosted, Isotropic Lens, Opalescent Film
Input Voltage 120-277V
Warranty 5 Years
Certifications DLC, UL
DLC Listing Primary Use Category Linear Retrofit Kits for 2x4 Luminaires
Linear Retrofit Kits for 2x2 Luminaires
