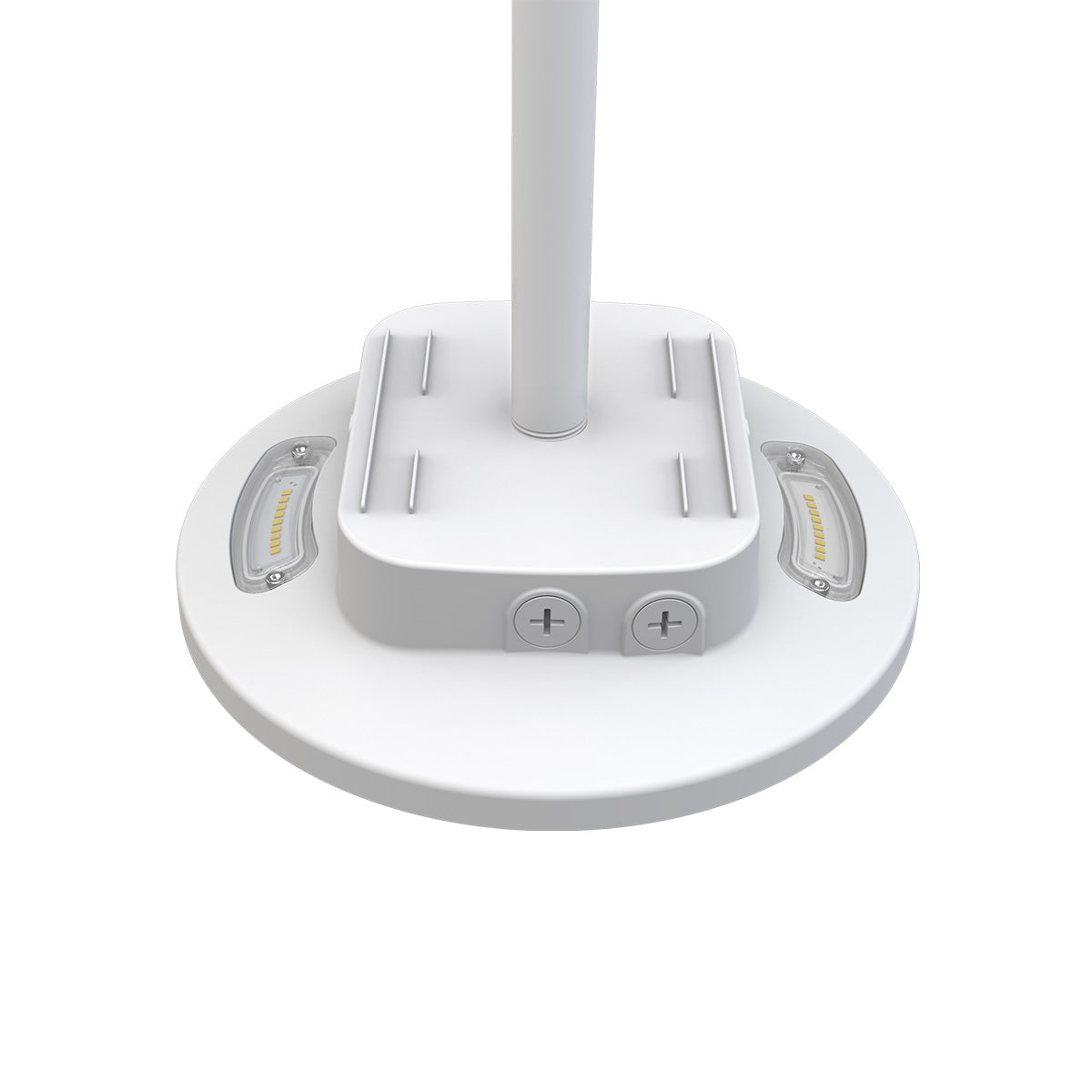

CP03 Series Canopy Light for Parking Garages

CP03 Series Canopy Light for Parking Garages

Customize this light to suit your indoor parking facility, garage, or basement.

  • Lumen output available from 1,050 to 16,000
  • Field-selectable CCT: 3000K/4000K/5000K
  • Uplight to prevent dark-ceiling "cave effect"
  • IP65 & IK08 enclosure rating
  • 5-year warranty

Gain further control over your lighting with 0-10V dimming and plug-and-play motion sensors. Half visors, wire guards, and bird spikes also available.

DLC Premium ETL Listed Wattage Selectable CCT Selectable 120-277V 0-10V Dimming IP-65 Rated Enclosure IK-08 Impact Rating
View full details

Field-Selectable Parking Garage Canopy Light

Below is our featured quick-ship model. All CP03 LED Parking Garage Lights are wattage and color selectable, with up to 160 lm/W luminous efficacy. For the full range of models, refer to the CP03 Series Spec Sheet and contact your lighting rep or LED Living for a quote.

*IES file links on this page may not contain an IES file for every available configuration of the model.

DETAILS

Each CP03 Series canopy light comes with four wattage settings and three color temperature settings, plus the flexibility to be installed by either surface mount or pendant mount. With these features, the CP03 lights are highly flexible and easily adapted to your application's needs.

Another popular feature of the CP03 is its uplight, which eliminates shadowing on the ceiling for brighter, more inviting spaces.

DOWNLOADS

Download Spec Sheet LLTVCP03 Series Spec Sheet

KEY SPECIFICATIONS

Wattage & Lumens Quick Ship:
100W Selectable (100/75/50/30W), Up to 16,000 lumens
Also Available:
25W Selectable (25/19/13/7.5W), Up to 4,000 lumens
40W Selectable (40/30/20/12W), Up to 6,400 lumens
60W Selectable (60/45/30/18W), Up to 9,600 lumens
80W Selectable (80/60/40/24W), Up to 12,800 lumens
System Efficacy Up to 160 lm/W
CRI 70
Dimming Capability 0 to 10V
CCT Field-selectable: 3000K (WW), 4000K (NW), 5000K (CW)
Enclosure Rating IP65, IK08
Operating Temperature -22°F to 122°F (25W-80W)
-22°F to 113°F (100W)
Input Voltage 120-277VAC or 120-347VAC, 50/60Hz
Surge Protection 4kV line-line, 6kV line-earth
Warranty 5 Years
Certifications DLC Premium, ETL
DLC Listing Primary Use Category Parking Garage Luminaires

Accessories

Plug-and-play lighting control (microwave or PIR), half visor to limit light spread, guard wire to protect light fact, and bird spikes to prevent nesting.
