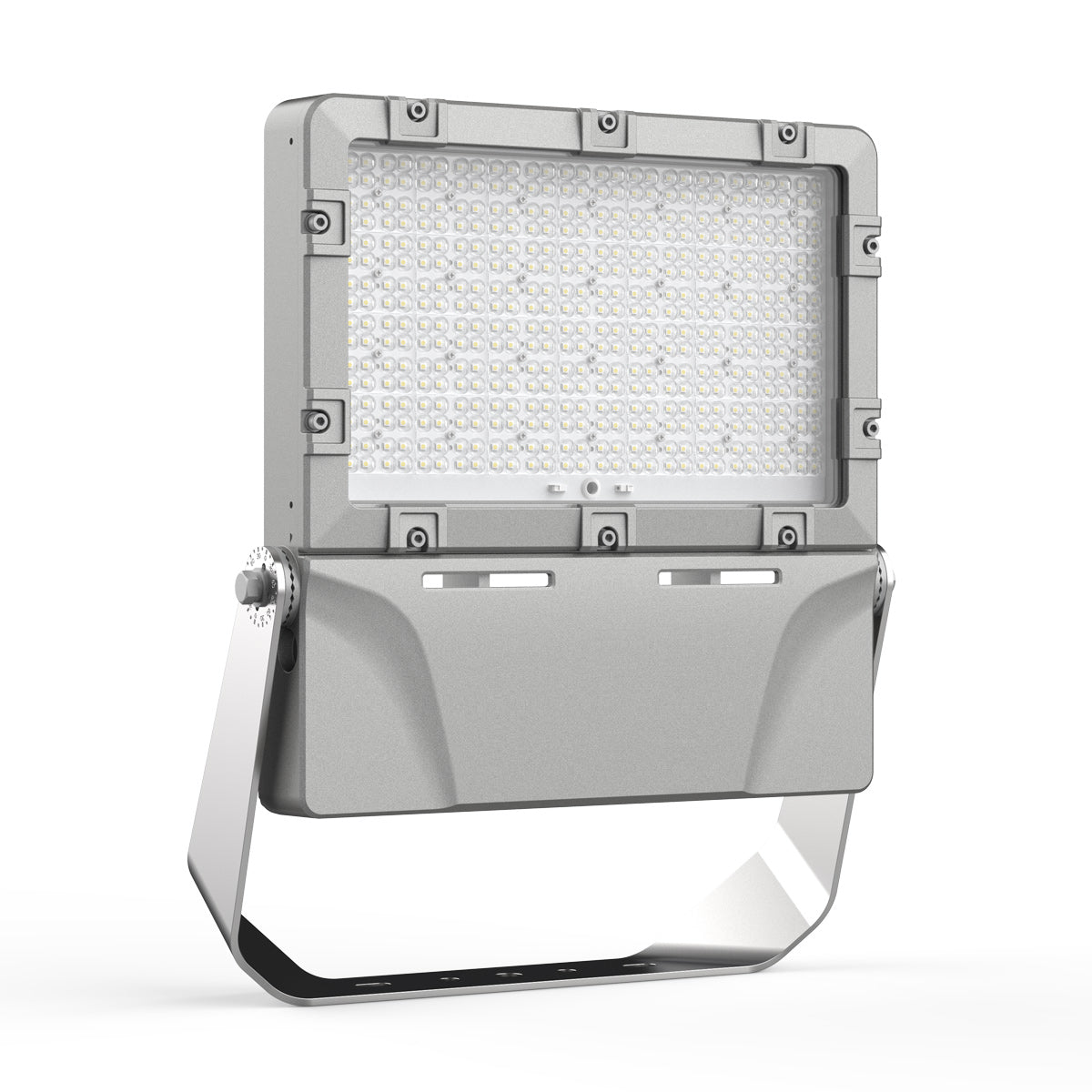

HFL01 Series Hazardous Location LED Flood Lights

HFL01 Series Hazardous Location LED Flood Lights

Globally certified for safety with IECEx, ATEX, UL 1598 Wet Location, UL 1598A Marine Outside, and UL 844 Hazardous Locations.

  • 22,500 to 36,000 lumens
  • 5000K CCT
  • IP66 & IK08 rated
  • Corrosion-resistant marine-grade build
UL Listed 100-277V 277-480V IP-66 Rated Enclosure IK-08 Impact Rating
View full details

DETAILS

High-Performance Illumination for the Toughest Conditions

The HFL01 Series of hazardous location LED flood lights combines unmatched durability, energy efficiency, and safety certifications to deliver powerful illumination in hazardous and marine environments.

Built for Extreme Conditions

With its stainless-steel hardware, low-copper aluminum housing, and multiple anti-corrosion coatings, the HFL01 Series of flood lights are engineered to withstand flammable gas, wet, and marine environments. It has also passed 1,000+ hours of salt spray testing, guaranteeing 10+ years of use in marine environments.

Easy Installation and Low Maintenance

Featuring self-locking spring terminals, an angle-adjustable mounting bracket, and double-cable entry for interconnection between fixtures, this flood light simplifies installation. With a separated light source and power supply and engineered fins for heat dissipation, the HFL01 provides an average lifetime of 378,000 operating hours (L70).

High Performance That Goes Easy on Energy Costs

Operating at 150 lumens per watt, this LED flood light runs at less than half the cost of metal halide or HID lamps. To comply with municipal regulations on light spill, a glare shield is available. And for additional safety, a glare shield can be added. The HFL01 is a smart, energy-efficient choice for industrial and hazardous locations.

Applications

Certified for UL 844 Class I Division 2, Class II Division 1, and IEC 60079 Zone 2, Zone 21, and Zone 22, this flood light is perfect for power plants, heavy industrial storage facilities, paper mills, wastewater treatment, loading docks, shipyards, and chemical or petrochemical processing facilities.

DOWNLOADS

Download Spec Sheet Spec Sheet - HFL01 Hazardous Location Flood Lights

Download Install Guide Installation Manual - HFL01 Hazardous Location Flood Lights

*IES file links on this page may not contain an IES file for every available configuration of the model.

Quick-Ship Models

Contact us for lead time and pricing on non-quick-ship models.

KEY SPECIFICATIONS

Wattage & Lumens 150W, 22,500 lumens
200W, 30,000 lumens
240W, 36,000 lumens
System Efficacy 150 lm/W
CRI 70 (80 and 90 available by special order)
CCT 5000K (2000K – 6500K, Red, Green, Blue, Amber available by special order)
Beam Angle 120° (17°, 30°, 55°, 85°, Type I, Type III, Type V available by special order)
Input Voltage 100-277VAC, 50/60Hz (277-480VAC available by special order)
Surge Protection 10kV line-line, 10kV line-earth)
Warranty 5 Years
Certifications UL
