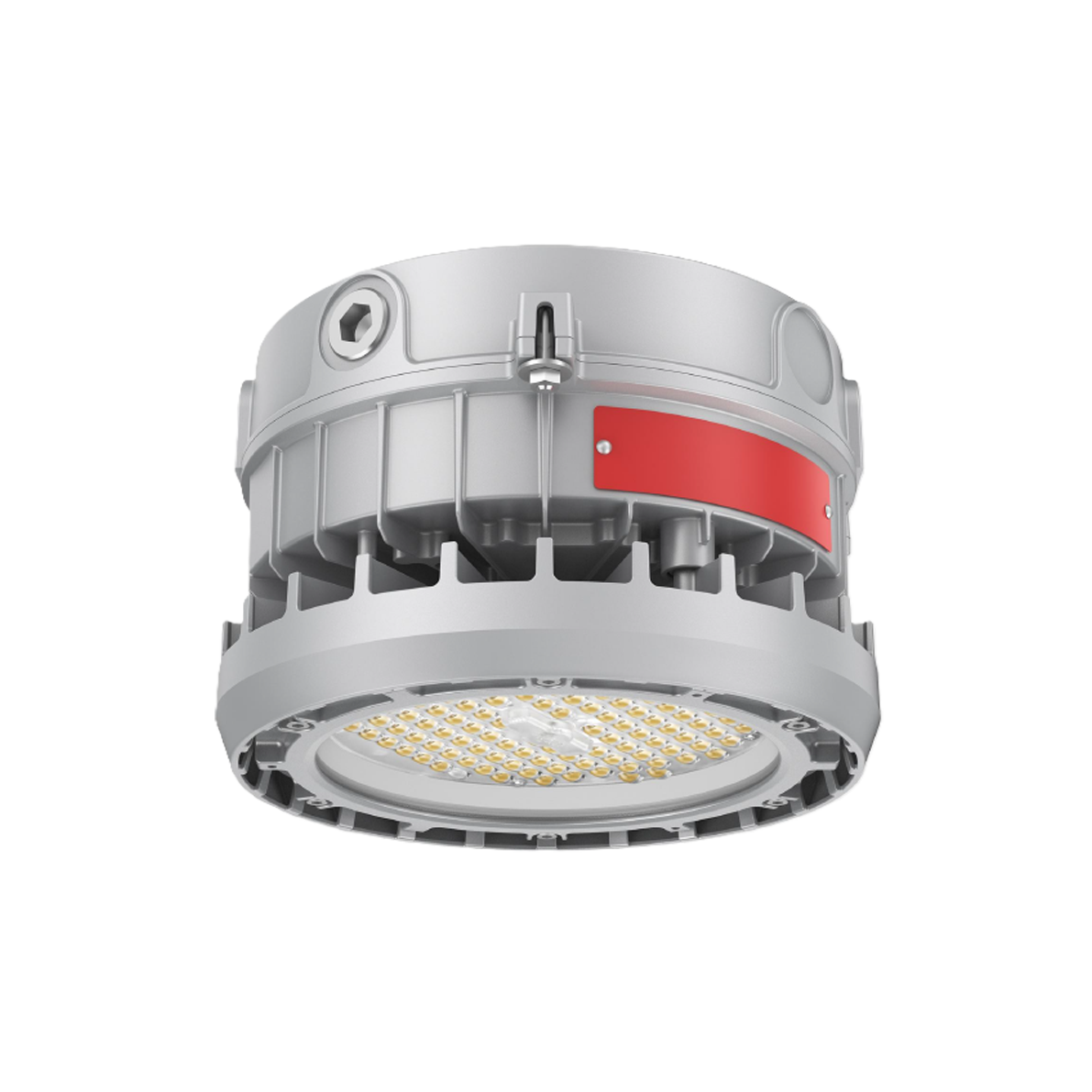

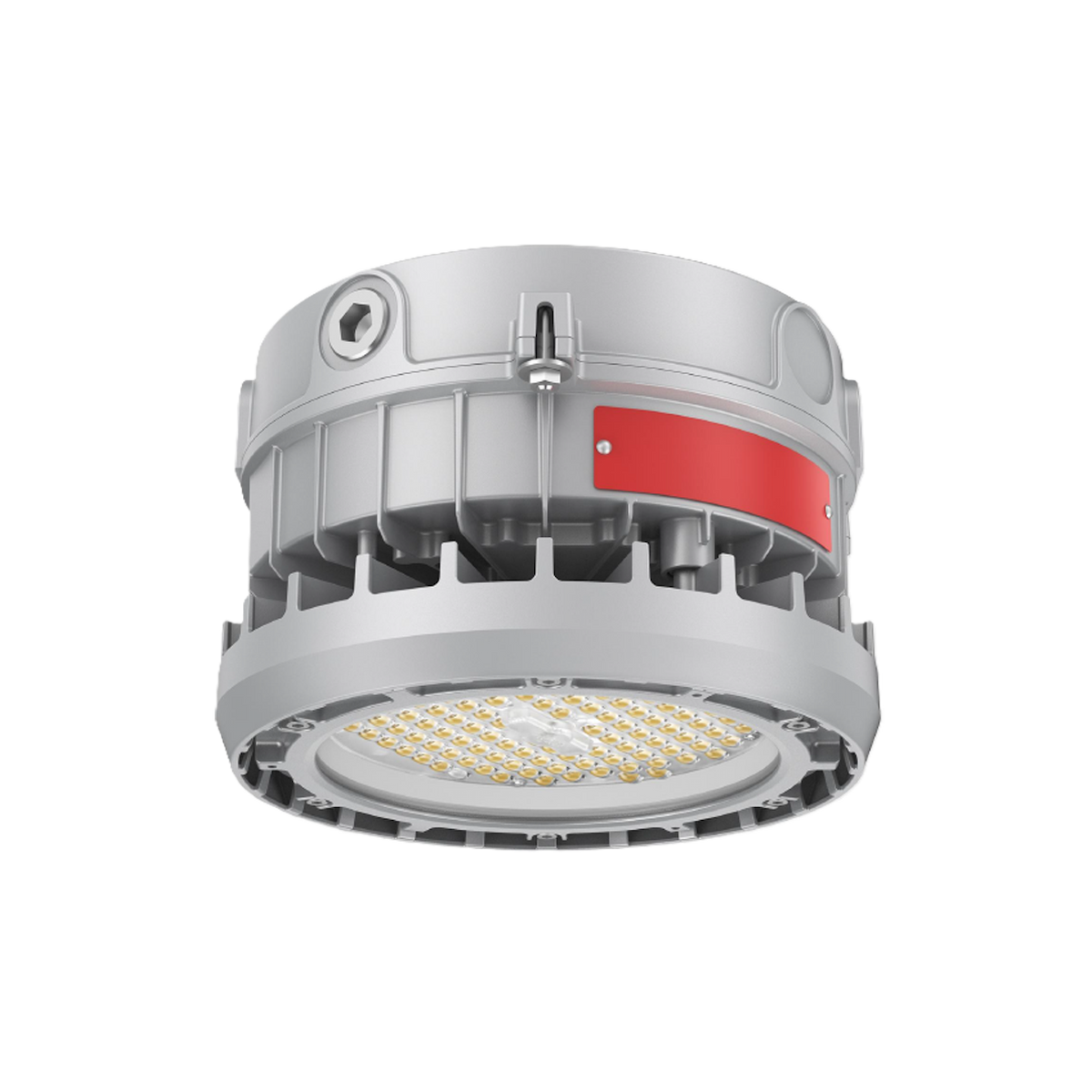

HRHB03 Series Hazardous Location LED Luminaire
HRHB03 Series Hazardous Location LED Luminaire
Flexible Hazardous Location Lighting that Goes Where Other HazLocs Can't
- Lumen packages from 2,200-11,250 lumens
- 4000K or 5000K CCT
- IP66 and IK08 Rated
- Corrosion-resistant marine-grade build
- Stanchion and pendant mounting options available
DETAILS
Customizable, Durable Hazardous Location Lighting with Mounting Options for Difficult Sites
Designed for extreme conditions, this rugged LED luminaire combines LED efficiency with wattage-selectability and a range of mounting options to deliver reliable HazLoc performance even where traditional wall or ceiling mounting is impossible.
HazLoc Lighting with On-Site Flexibility
The HRHB03 line includes 50W and 75W selectable models, allowing easy site-specific adjustments in applications where over-brightness could cause risks. Dimmable drivers, jelly jar glass options, and a range of optics provide additional flexibility to match light to task.
Built to Withstand the Toughest Conditions
Built with a waterproof, dustproof, corrosion-resistant, and vibration-resistant design, this luminaire is made for long-term performance. Its IP66-rated housing blocks dust and water jets, and the IK08 impact rating adds extra toughness. A low-copper aluminum alloy body, durable powder-coated finish, and anti-corrosion-treated stainless-steel brackets make it well-suited for marine environments, delivering a service life of 10+ years.

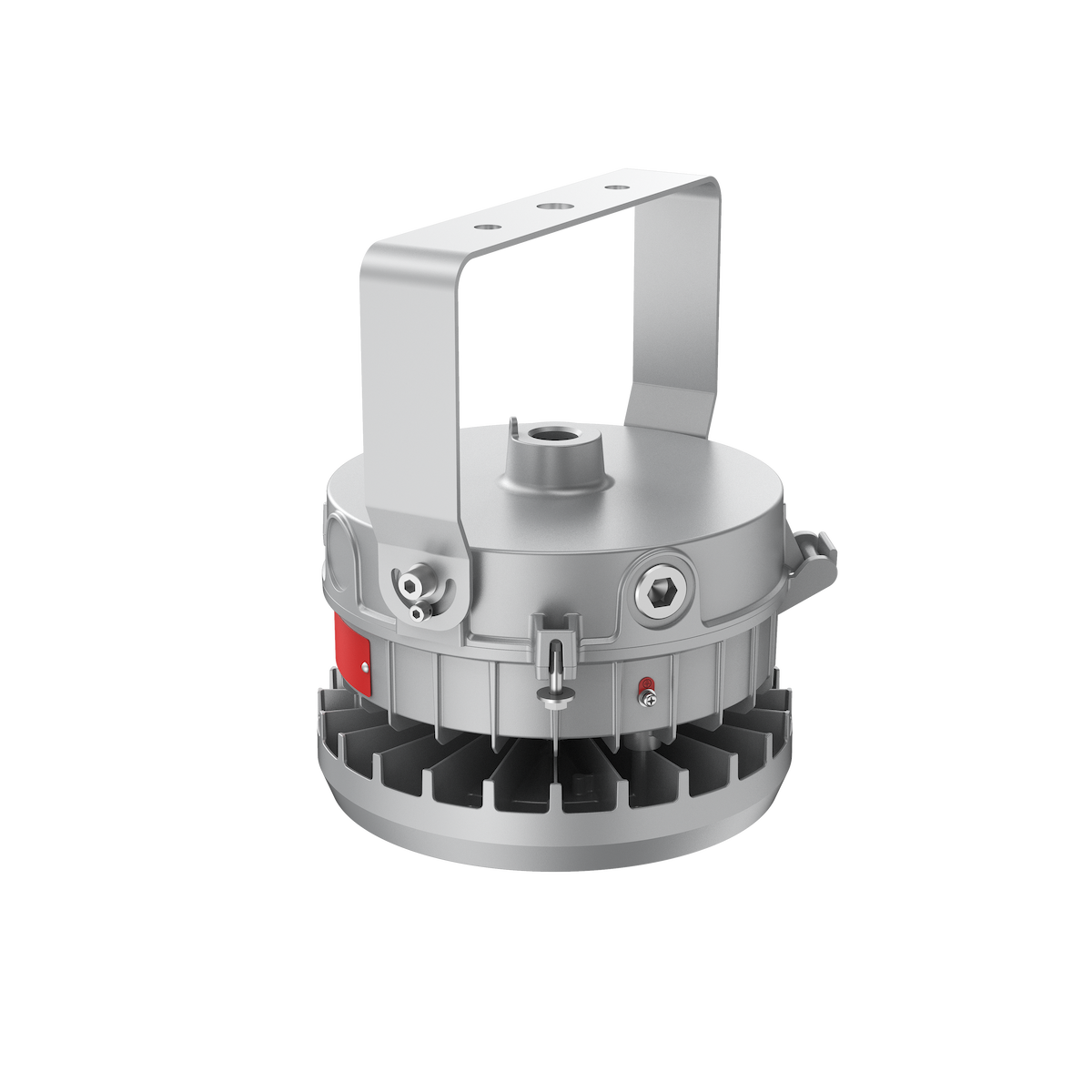

Six Mounting Options

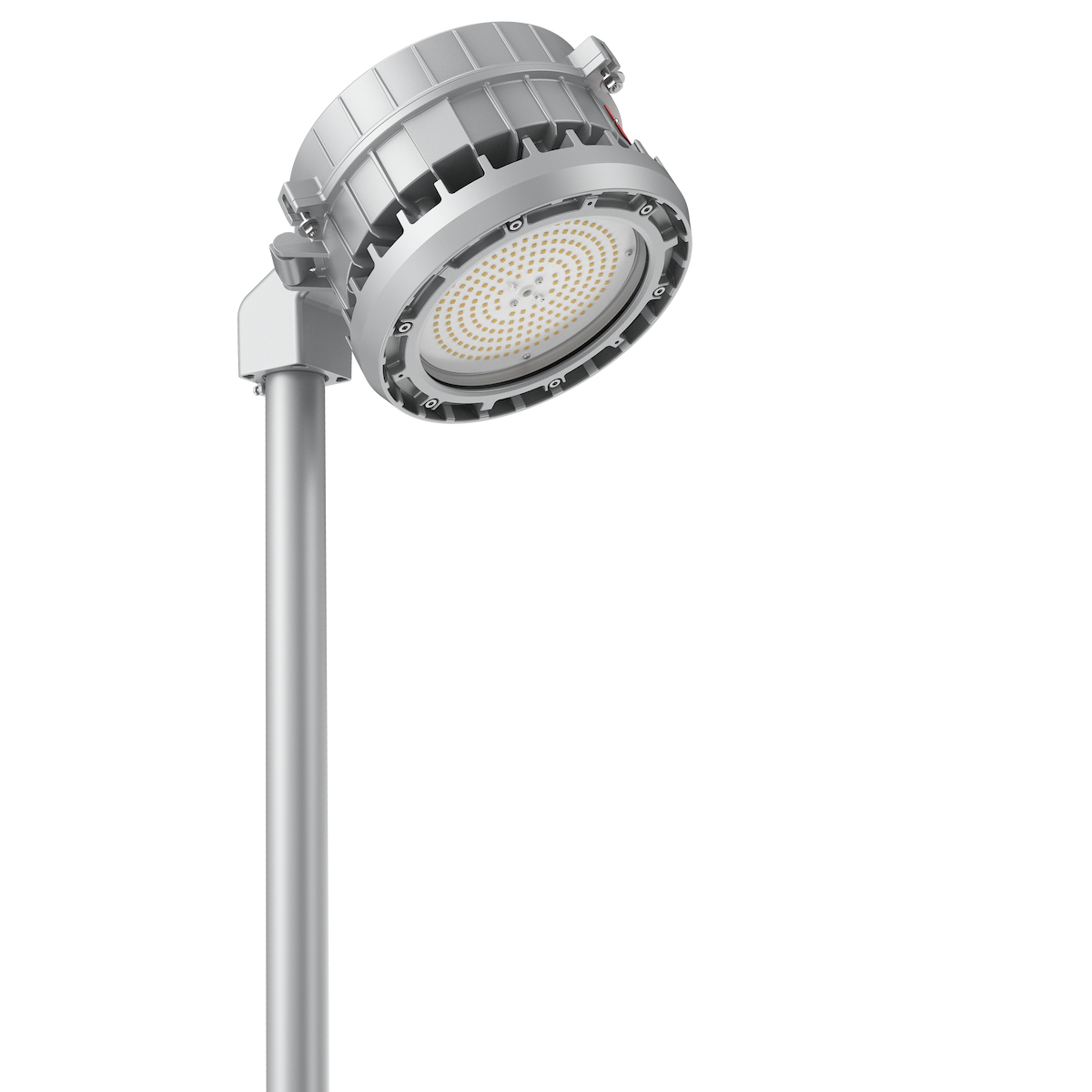

The HRHB03 offers a wide range of mounting options to fit challenging sites. Multiple configurations—including 25° and 90° stanchion mounting—make it easy to place the fixture in hard-to-reach locations like oil rigs, where traditional ceiling or wall mounting may not be possible.
Applications
*IES file links on this page may not contain an IES file for every available configuration of the model.
Quick Ship HRHB03 Hazardous Location Lights
-

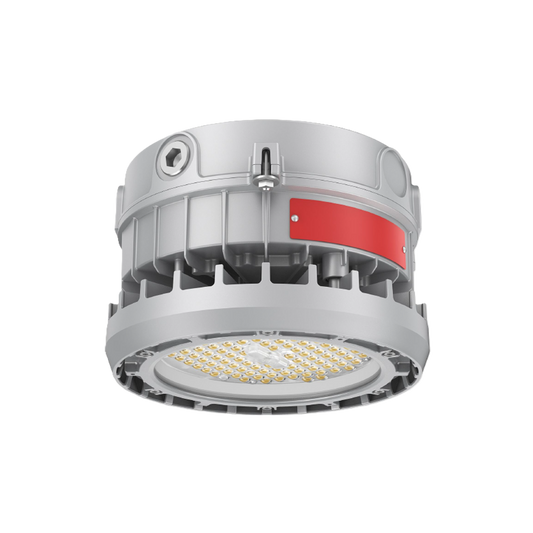

HRHB03 Wattage-Selectable Hazardous Location Light
- 30/53/75W
- 3,300 to 11,250 lumens
- 5000K
- Type V
30/53/75WHRHB03 Wattage-Selectable Hazardous Location Light
- 3,300 to 11,250 lumens
- 5000K
- Type V
KEY SPECIFICATIONS
| Wattage & Lumens | 30W, 3,300 to 4,800 lumens 40W, 4,400 to 6,400 lumens 50W, 5,500 to 7,500 lumens 60W, 6,600 to 9,000 lumens 75W, 7,500 to 11,250 lumens 50W Selectable (20/35/50W), 2,200 to 7,500 lumens 75W Selectable (30/53/75W), 3,300 to 11,250 lumens |
| System Efficacy | 110 to 160 lm/W |
| CRI | 70 |
| CCT | 4000K or 5000K |
| Beam Angle | Type V (Standard) Also Available: Type I, Type III, 60°, 90°, 128° Jelly Jar/Curved Grille Glass |
| Input Voltage | 120-277VAC / 277-480VAC, 50/60Hz |
| Surge Protection | 10kV line-line, 10kV line-earth) |
| Certifications | UL, CSA |
| Warranty | 5 Years |
| Hazardous Location Ratings |
Class I, Division 2, Groups A, B, C, D Class II, Division 2, Groups F, G Class III Class I, Zone 2, Group IIC Zone 21, Group IIIC Zone 22 |
