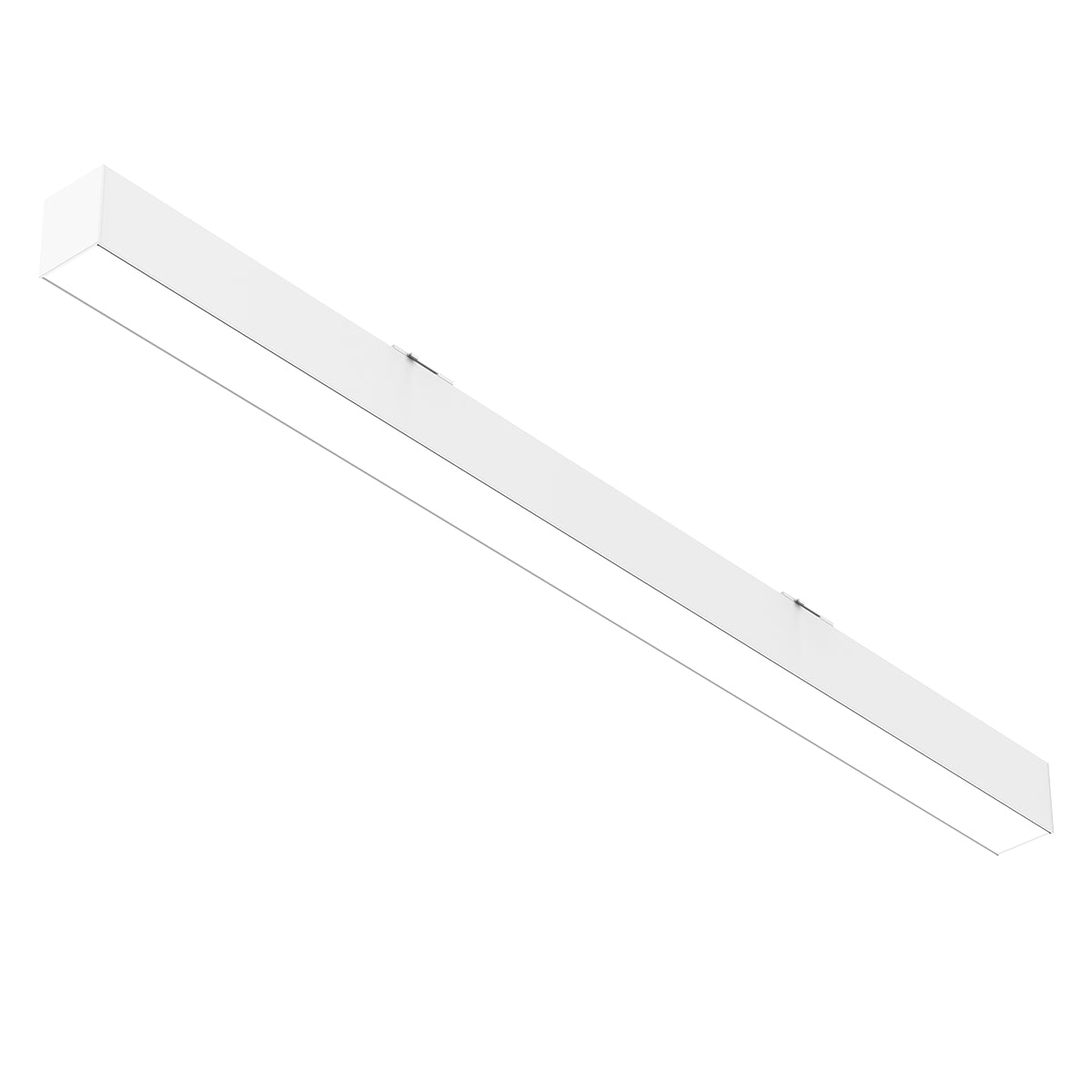

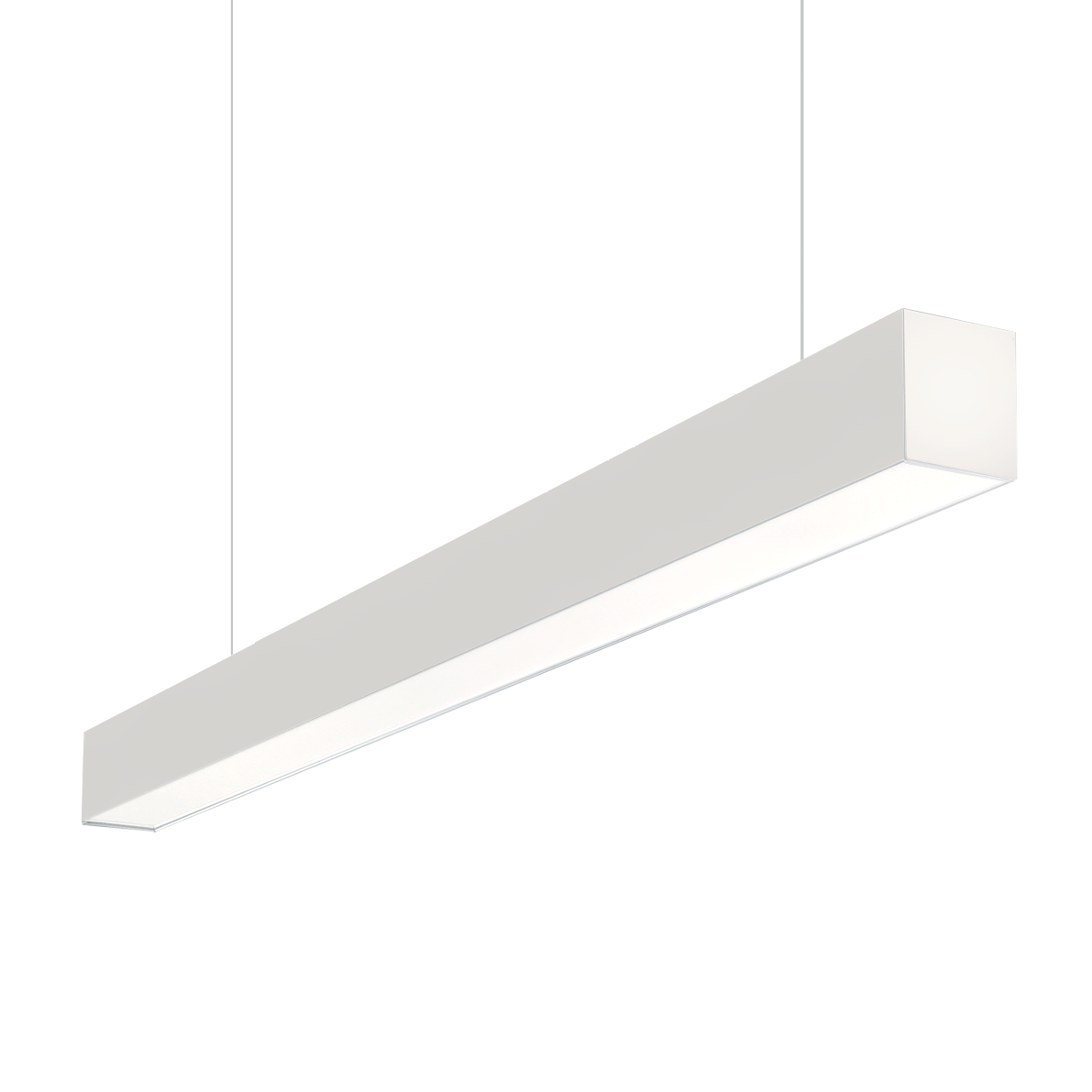

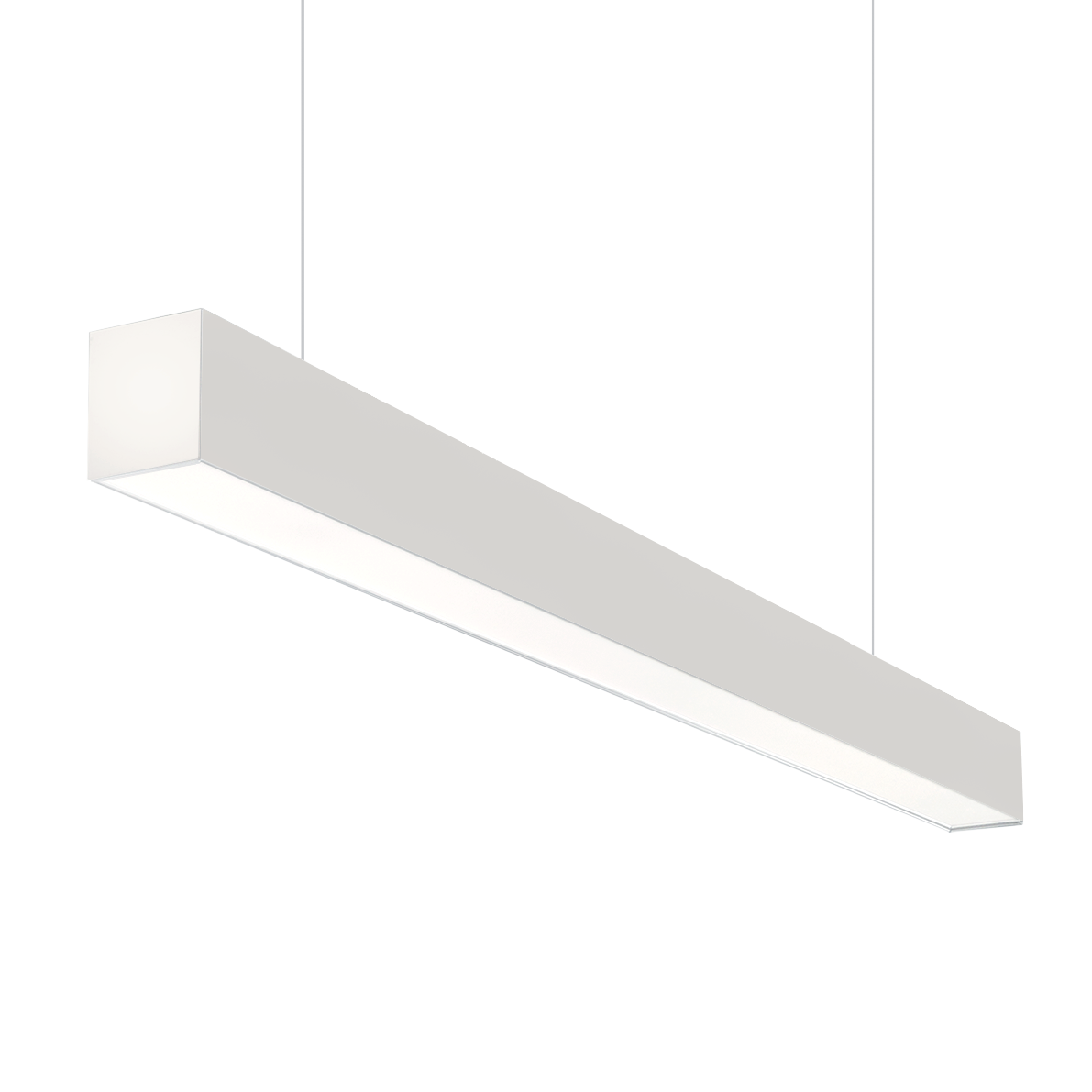

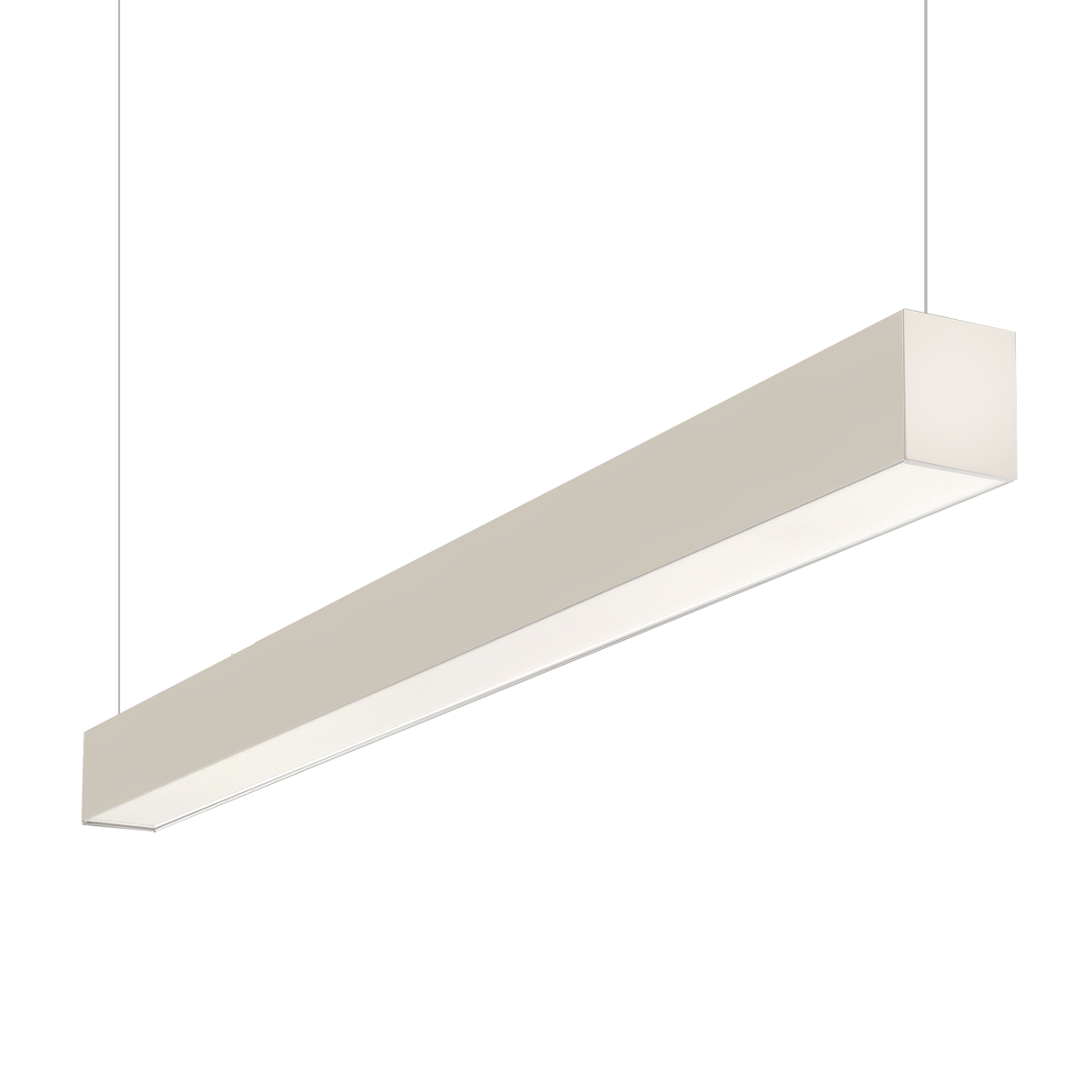

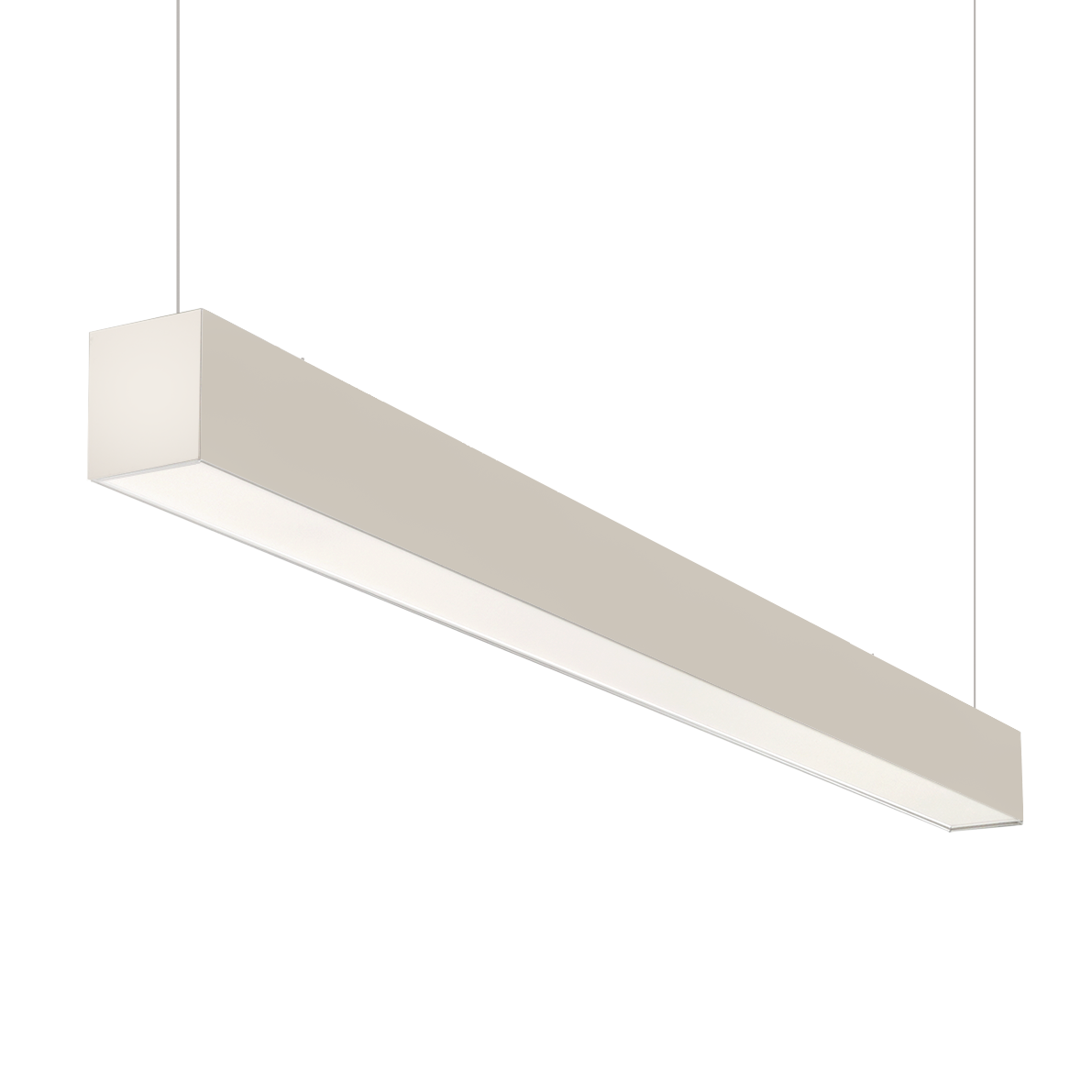

L07 Linear Direct/Indirect LED Light
L07 Linear Direct/Indirect LED Light
Create dynamic and flexible lighting designs with the L07 Series, a sleek LED pendant light offering adjustable direct/indirect illumination, selectable wattage, and CCT. Designed for offices, hospitality spaces, and modern interiors, it delivers seamless, continuous runs with effortless installation.
- Selectable Wattage from 15W to 80W
- Selectable CCT 3500K/4000K/5000K
- Direct & Indirect Lighting with Independent Controls
- Pendant, Surface, and Wall Mounting Options
- Gapless, Linkable Design
- 5-Year Warranty
DETAILS
Customizable Architectural Lighting
The L07 Series provides precision lighting for commercial, hospitality, and multi-unit residential interiors, offering independent control over direct and indirect lighting distribution.
Fully Adjustable Illumination
With selectable wattage, CCT, and direct/indirect lighting intensity, you're able to fine-tune these lights for aesthetics, comfort, and functionality.
Sophisticated Design, Varied Options
The L07 offers pendant, surface, or wall mounting options, multiple brackets for creating L, T, or X-shaped light runs, as well as optional motion sensors and emergency backup batteries.
Applications
Quick-Ship L07 Linear Direct/Indirect Lights
-
L07 Linear Light
- 4ft or 8ft
- 1,950 to 10,000 lumens
- Selectable CCTs from 3500K to 5000K
- Suspension Mount
4ft or 8ftL07 Linear Light
- 1,950 to 10,000 lumens
- Selectable CCTs from 3500K to 5000K
- Suspension Mount
DOWNLOADS
KEY SPECIFICATIONS
| Lumens Packages | 4ft (15/25/35/50W), 1,950/3,250/4,550/6,500 lumens 8ft (30/40/50/60/80W), 3,750/5,000/6,250/7,500/10,000 lumens |
| System Efficacy | 125 lm/W |
| CRI | 80 |
| Dimming Capability | 0-10V Dimming |
| CCT | 3500K/4000K/5000K Selectable |
| Input Voltage | 120-277VAC |
| Warranty | 5 Years |
| Certifications | DLC Premium, UL |
*IES file links on this page may not contain an IES file for every available configuration of the model.
PHOTOMETRIC LAYOUT TOOL
Generate recommended luminaire quantity and spacing based on room geometry and mounting conditions.
- Click the cube icon
to enter room dimensions (length, width, ceiling height). - Workplane Height defines the calculation plane (e.g., 2.5 ft for typical desk height).
- Suspension Length is the vertical distance from the ceiling to the luminaire.
- o Flush or recessed installation: Enter 0 ft.
The layout updates dynamically as parameters are adjusted, displaying recommended fixture quantity and spacing.
Tip: Use the printer icon or arrow icon
in the top bar to generate a printable/shareable layout report.
