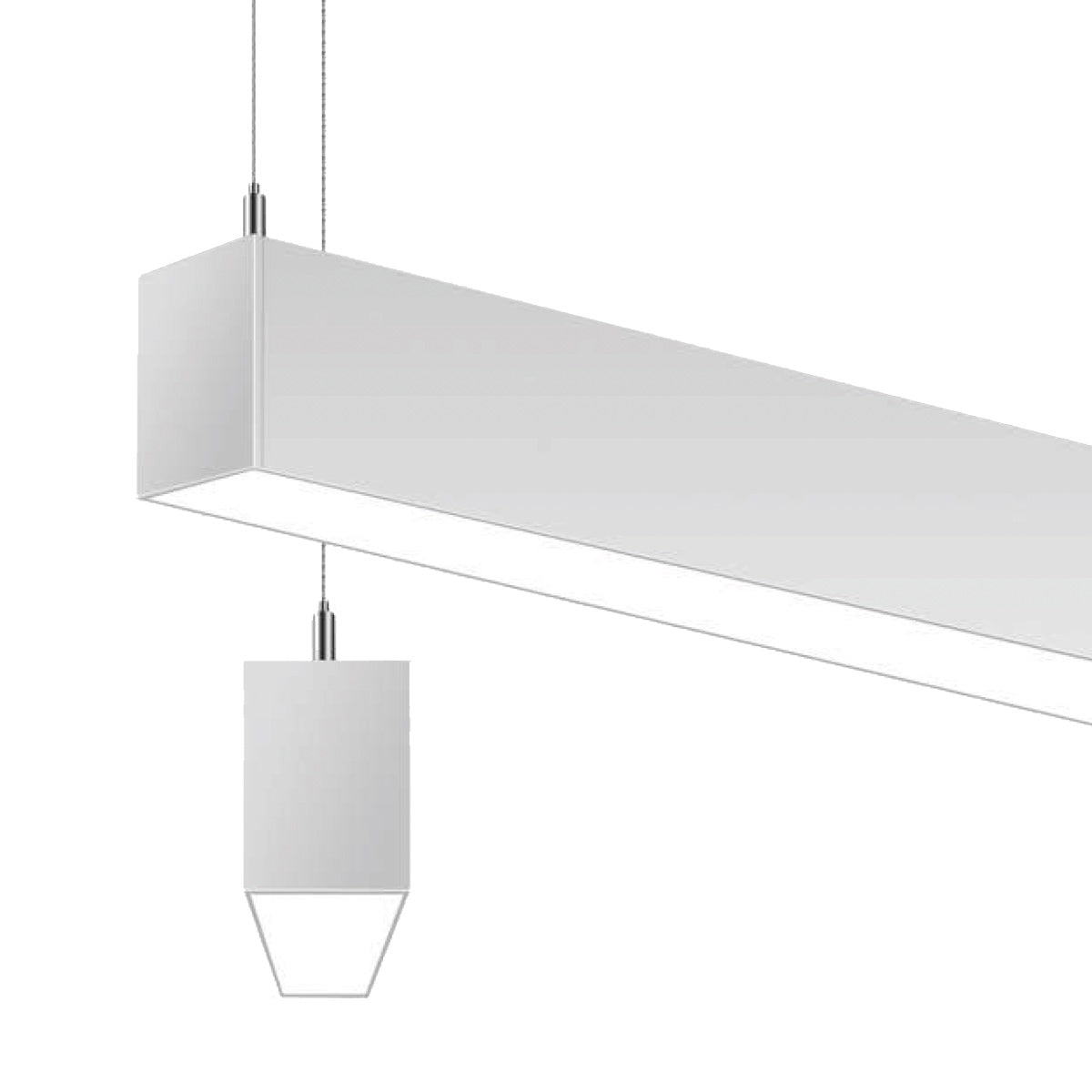

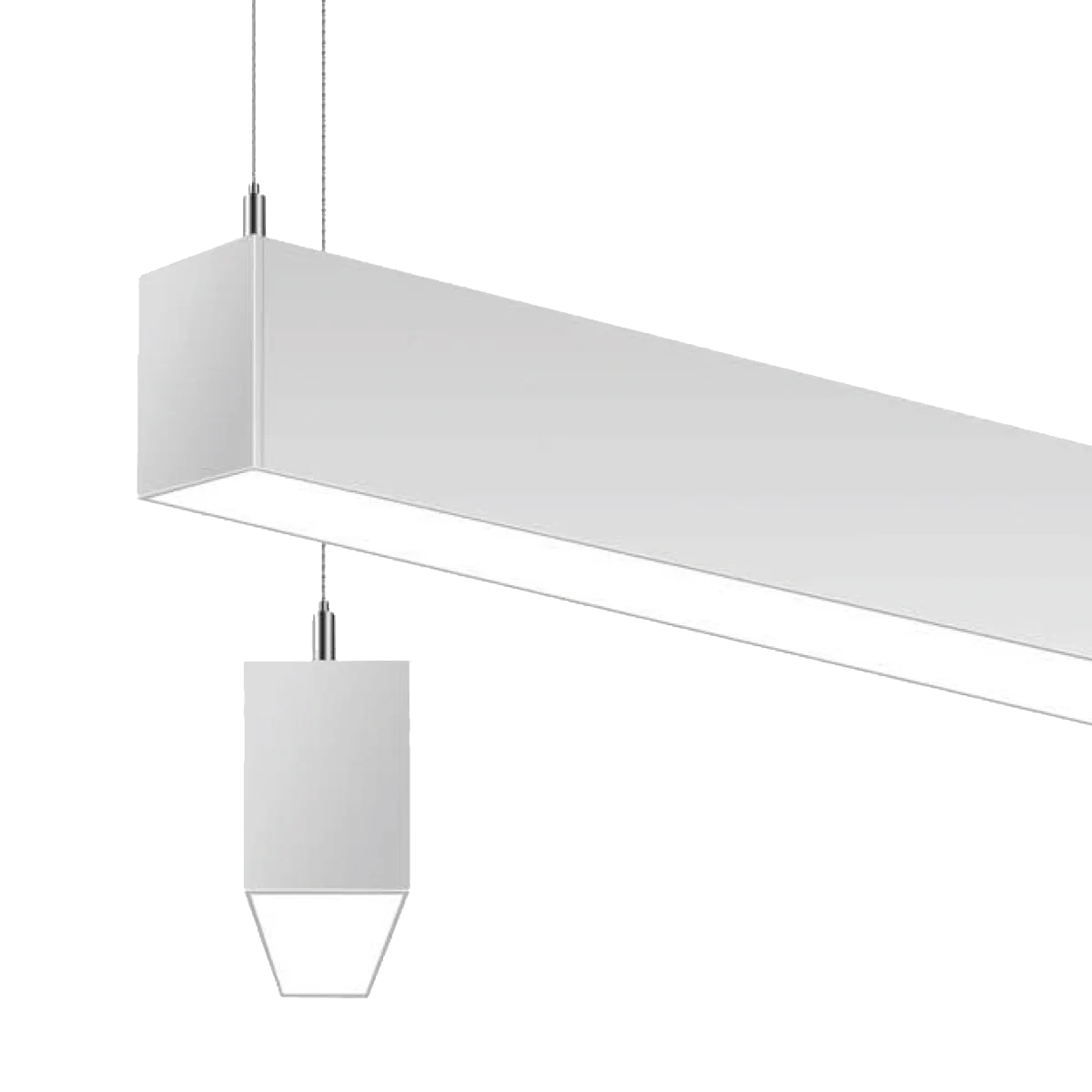

L08 Series Architectural Linear Direct/Indirect LED Light

L08 Series Architectural Linear Direct/Indirect LED Light

Modern design that adapts to your needs.

  • 2, 3, 4 & 8 foot lengths
  • 3000K/3500K/4000K selectable CCT
  • Selectable ratio of direct/indirect light
  • Suspend, surface, or wall mount
UL Listed Wattage Selectable CCT Selectable Direct/Indirect LightingCRI 80 0-10V Dimming
View full details

DETAILS

Architectural Elegance with Unmatched Flexibility

The elegant L08 series of linear lighting solutions offers precise direct/indirect illumination, seven customizable light distributions, and versatile mounting options for both commercial and retail spaces.

7 Lighting Distributions for Perfect Ambiance

Tailor light to your space with embedded dip-switch controls offering seven distributions—from 100% uplight to 100% downlight—and seamless 0-10V dimming. Achieve anything from dramatic accent lighting to balanced ambient glow.

Design Freedom with Our Modular Configurations

Create dynamic layouts with 90° or 120° joiners, continuous runs (up to 100ft at 277V), and patterns (L/T/X/Z-shaped). Choose from diffusers, louvers, micro reflectors (UGR<15), or deep-regressed lenses for visual comfort.

Engineered for Easy Installation & Durability

Simplify projects with tool-free alignment mechanisms, snap-in lenses, and multiple mounts (suspended, surface, wall, or T-grid). Corrosion-resistant finishes and field-replaceable components ensure long-term performance.

Applications

Transform commercial, retail, or hospitality spaces with the L08’s blend of minimalist design and cutting-edge functionality.

L08 Series Lights

DOWNLOADS

Download Spec Sheet Data Sheet - L08 Series Architectural Linear Direct/Indirect LED Light

Download Spec Sheet Installation Guide - L08 Series Architectural Linear Direct/Indirect LED Light

Download Spec Sheet IES Files (.zip) - L08 Series Architectural Linear Direct/Indirect LED Light

KEY SPECIFICATIONS

Lumens Package 2ft (20/15/10W), 900 to 2,300 lumens
3ft (30/23/15W), 1,350 to 3,450 lumens
4ft (40/30/20W), 1,800 to 4,600 lumens
8ft (80/60/40W), 3,600 to 9,200 lumens
Light Distribution Direct / Indirect Adjustable 100% / 0%
90% / 10%
70% / 30%
50% / 50%
30% / 70%
10% / 90%
0% / 100%
System Efficacy 90 to 115 lm/W
CRI 80 (90 by special order)
CCT 3000K/3500K/4000K Selectable
Input Voltage 110-277VAC 50/60Hz
Warranty 5 Years

*IES file links on this page may not contain an IES file for every available configuration of the model.

PHOTOMETRIC LAYOUT TOOL

Generate recommended luminaire quantity and spacing based on room geometry and mounting conditions.

  1. Click the cube icon to enter room dimensions (length, width, ceiling height).
  2. Workplane Height defines the calculation plane (e.g., 2.5 ft for typical desk height).
  3. Suspension Length is the vertical distance from the ceiling to the luminaire.
    • o Flush or recessed installation: Enter 0 ft.

The layout updates dynamically as parameters are adjusted, displaying recommended fixture quantity and spacing.

Tip: Use the printer icon or arrow icon in the top bar to generate a printable/shareable layout report.
