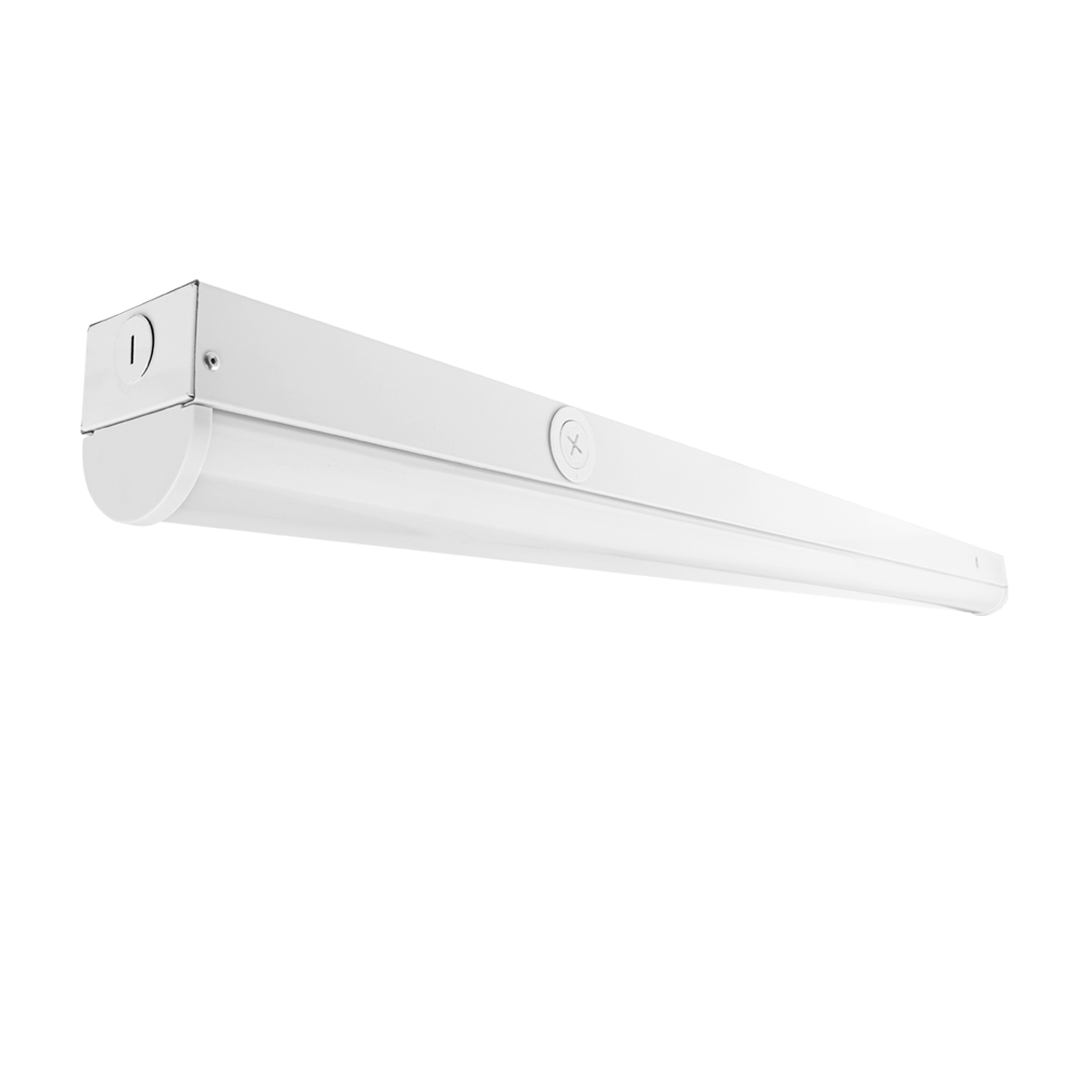

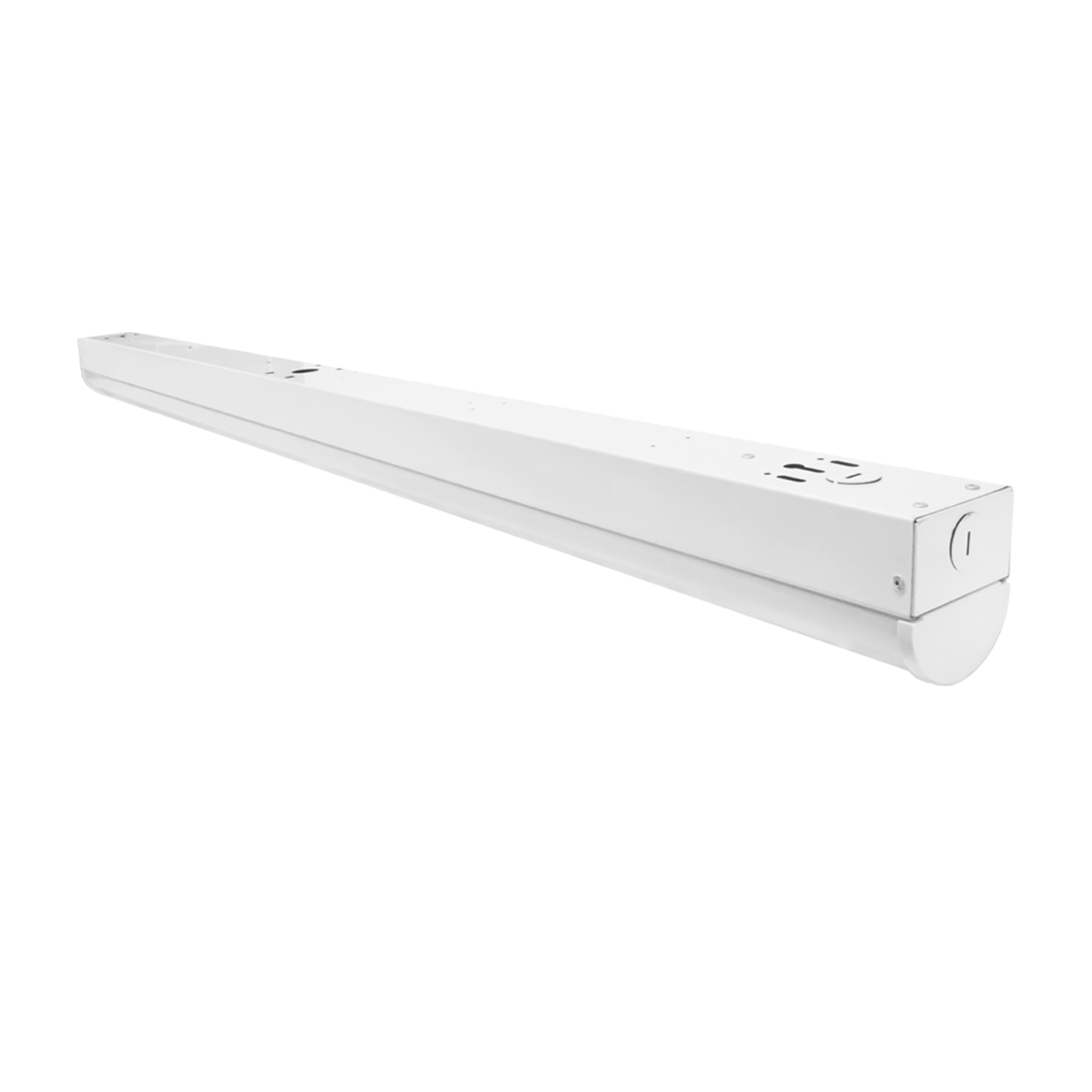

L09 Series LED Linear Strip Light
L09 Series LED Linear Strip Light
High-Quality, Linkable Linear Lighting to Upgrade Commercial & Industrial Spaces
- Selectable lumen output from 1.965 to 11,350
- 3500K / 4000K / 5000K selectable CCT

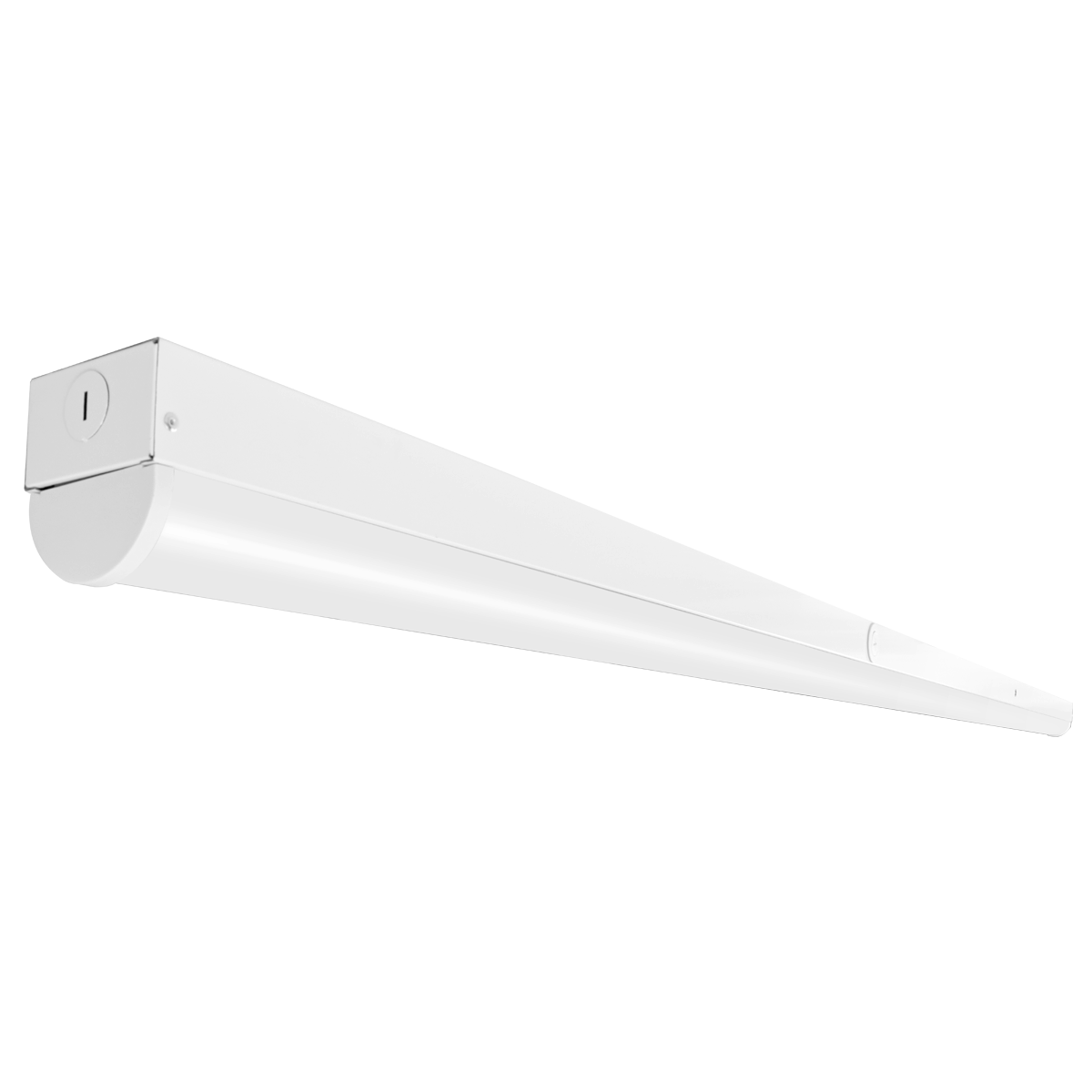

- Available in 2ft, 4ft, and 8ft lengths
- Linkable design for continuous runs
DETAILS
Clean, Field-Selectable Strip Lighting for Short or Long Runs
The L09 Series LED Linear Strip Light provides field-selectable linear lighting in an IK10 rated powder-coated steel housing. Designed with tool-free wiring access and selectable wattage and CCT (3500K / 4000K / 5000K), the L09 offers contractors and specifiers the benefits of quick installations paired with full on-site tunability.

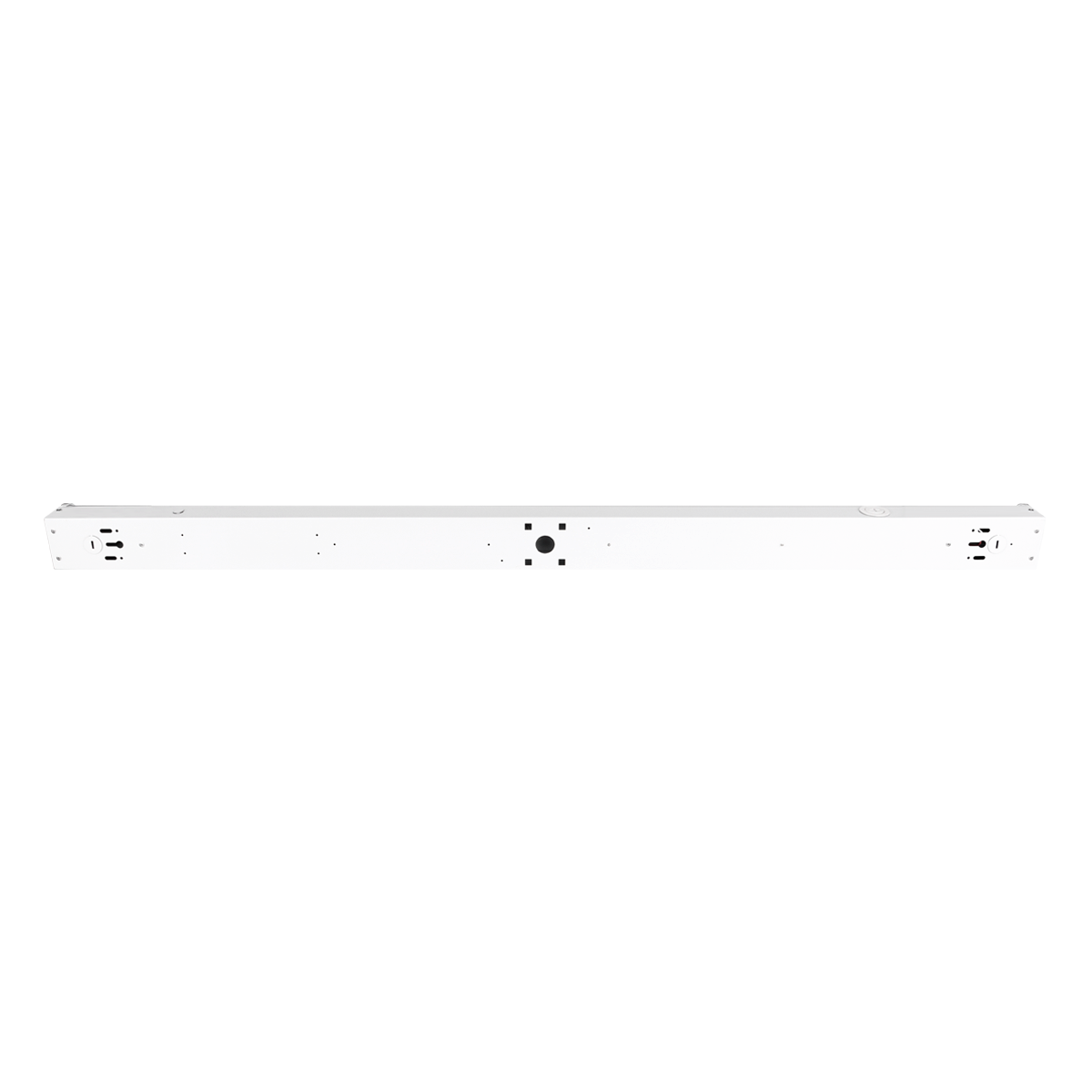

With three lengths, surface or suspension mounting options, and a linkable design that allows continuous row installation, the L09 accommodates rooms of various sizes and applications as wide-ranging as offices, shop lighting, and retail display. 0-10V dimming allows fine-tuning of output for lumen packages up to 11,350 lumens.

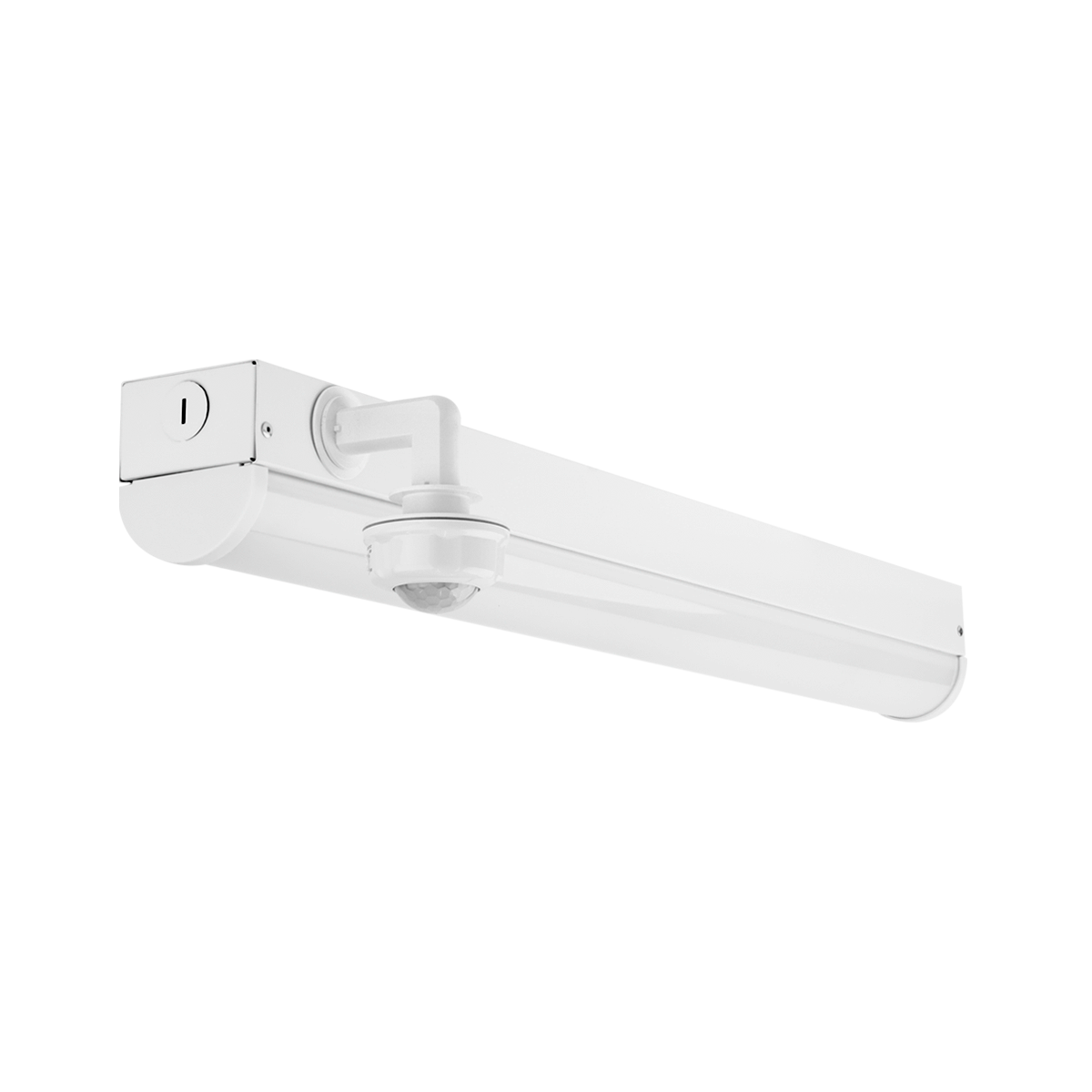

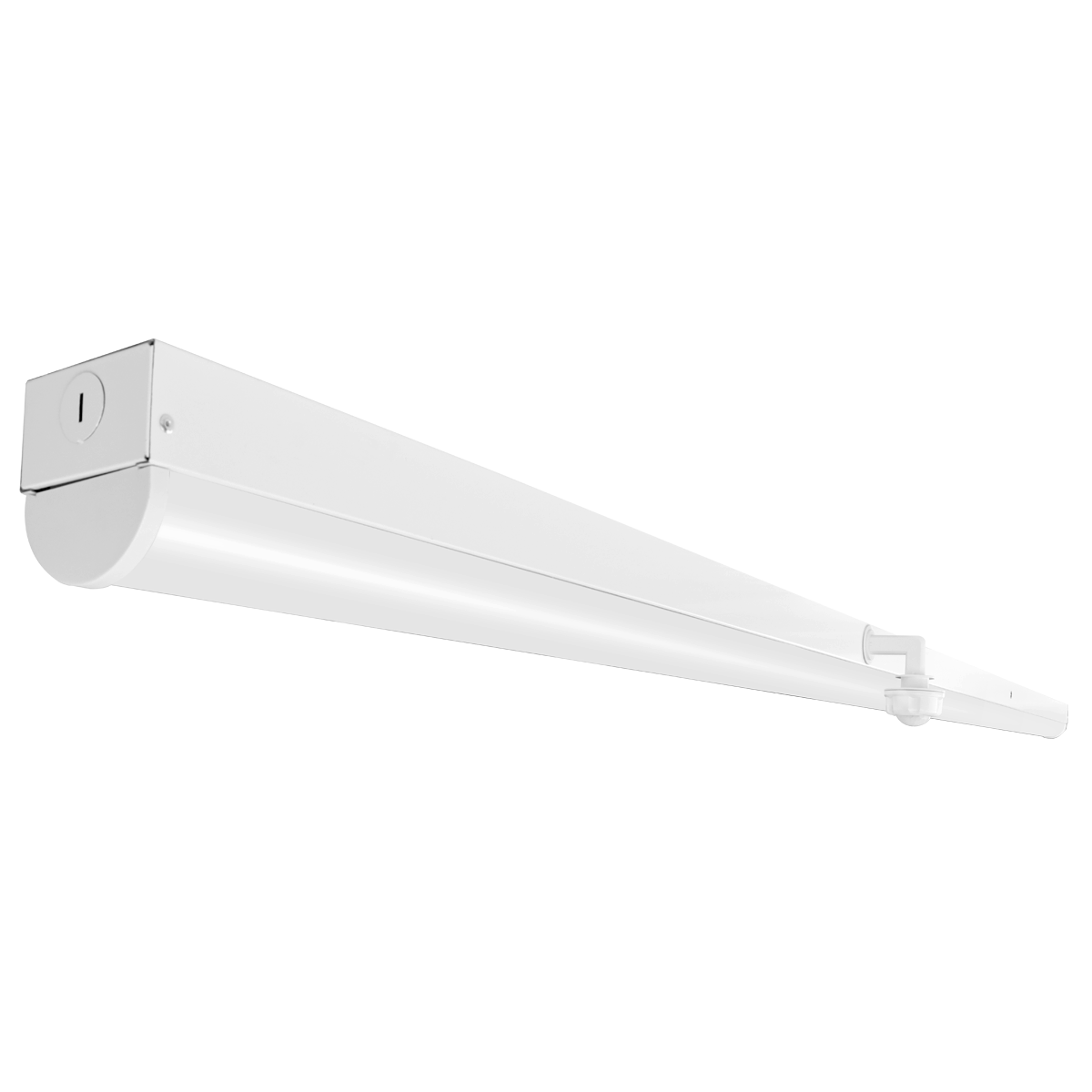

The optional motion sensor adds energy-saving performance, with an optional emergency backup driver to ensure the light stays on in case of a power outage.
Ideal Applications: Offices, Retail stores, Schools, Restaurants, Healthcare facilities, Shop lighting, Warehouses, and Hospitality settings.
DOWNLOADS
Quick-Ship L09 Series Linear Strip Lights
-

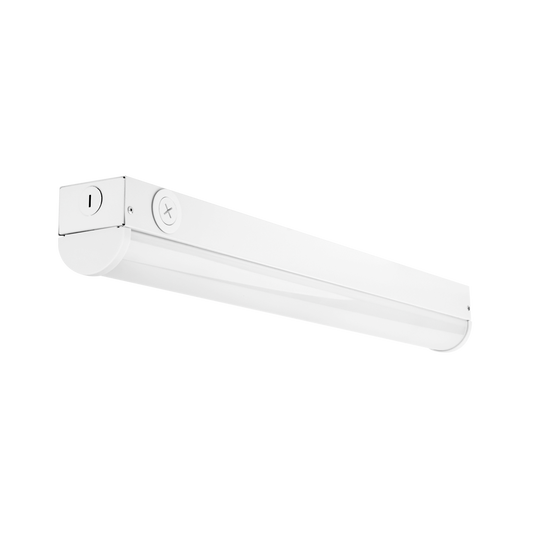

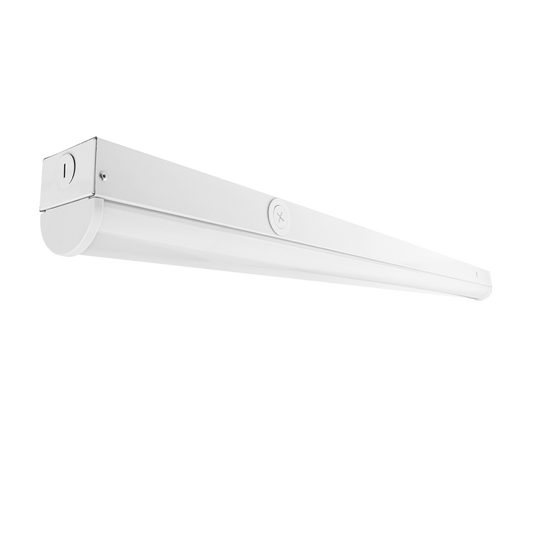

2ft L09 Linear LED Strip Light
- 15W/20W/25W
- 1,965 to 3,540 lumens
- 3500K/4000K/5000K
15W/20W/25W2ft L09 Linear LED Strip Light
- 1,965 to 3,540 lumens
- 3500K/4000K/5000K
-
-
KEY SPECIFICATIONS

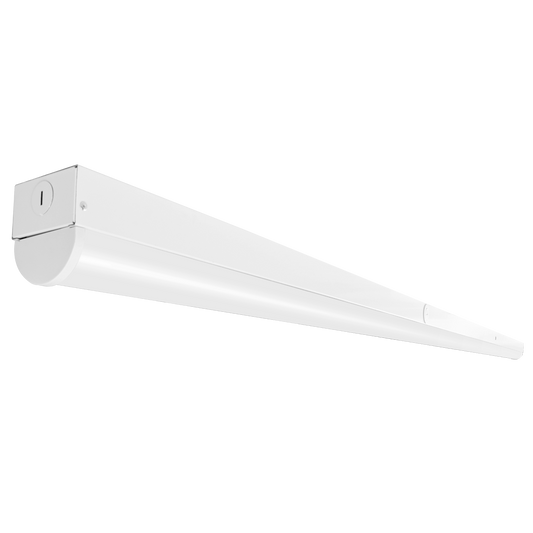

| Lumens Packages | 25W Selectable (15W/20W/25W), 2ft, 1,965 to 3,540 lumens 50W Selectable (30W/40W/50W), 4ft, 3,780 to 6,735 lumens 80W Selectable (60W/70W/80W), 8ft, 7,980 to 11,350 lumens |
| System Efficacy | 126 to 142 lm/W |
| CRI | 80 |
| Dimming Capability | 0-10V Dimming |
| CCT | 3500K/4000K/5000K Selectable |
| Input Voltage | 120-277VAC / 120-347VAC, 50/60Hz |
| IK Rating | IK10 |
| Certifications | DLC, UL |
| Warranty | 5 Years |
