PB02 Series LED Panel Lights (Coming Soon)
PB02 Series LED Panel Lights (Coming Soon)
High-Efficiency, Customizable LED Panels for Commercial Interiors

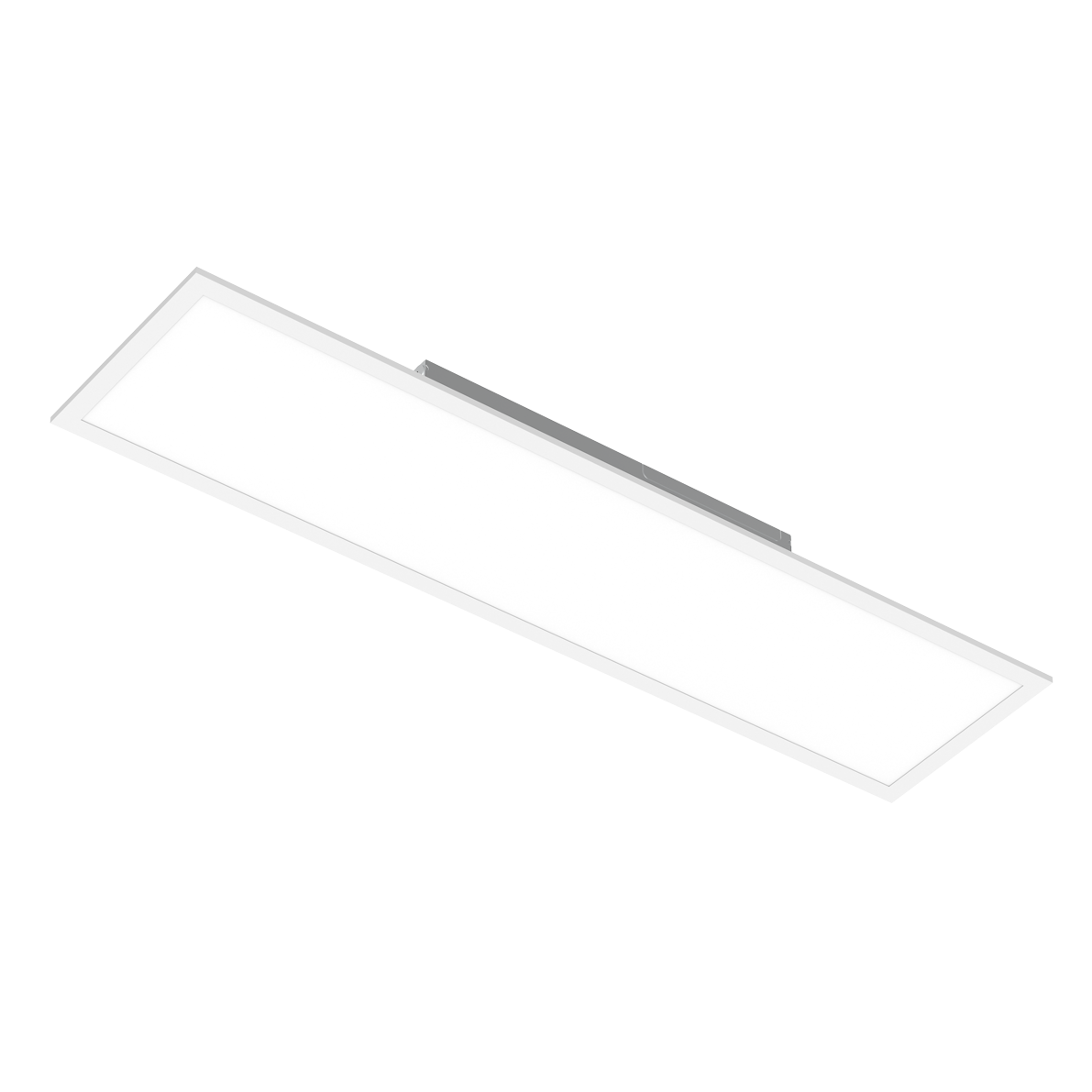

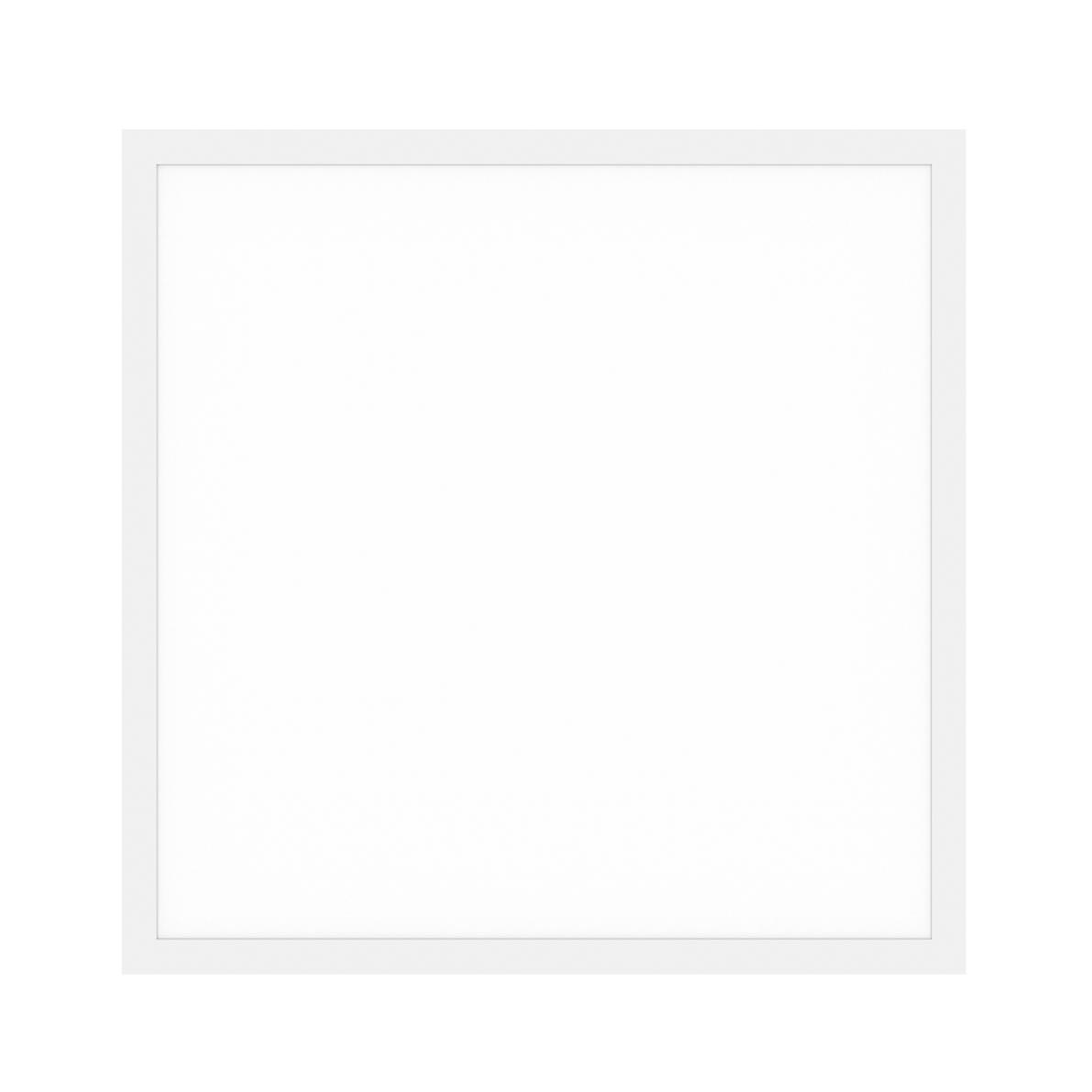

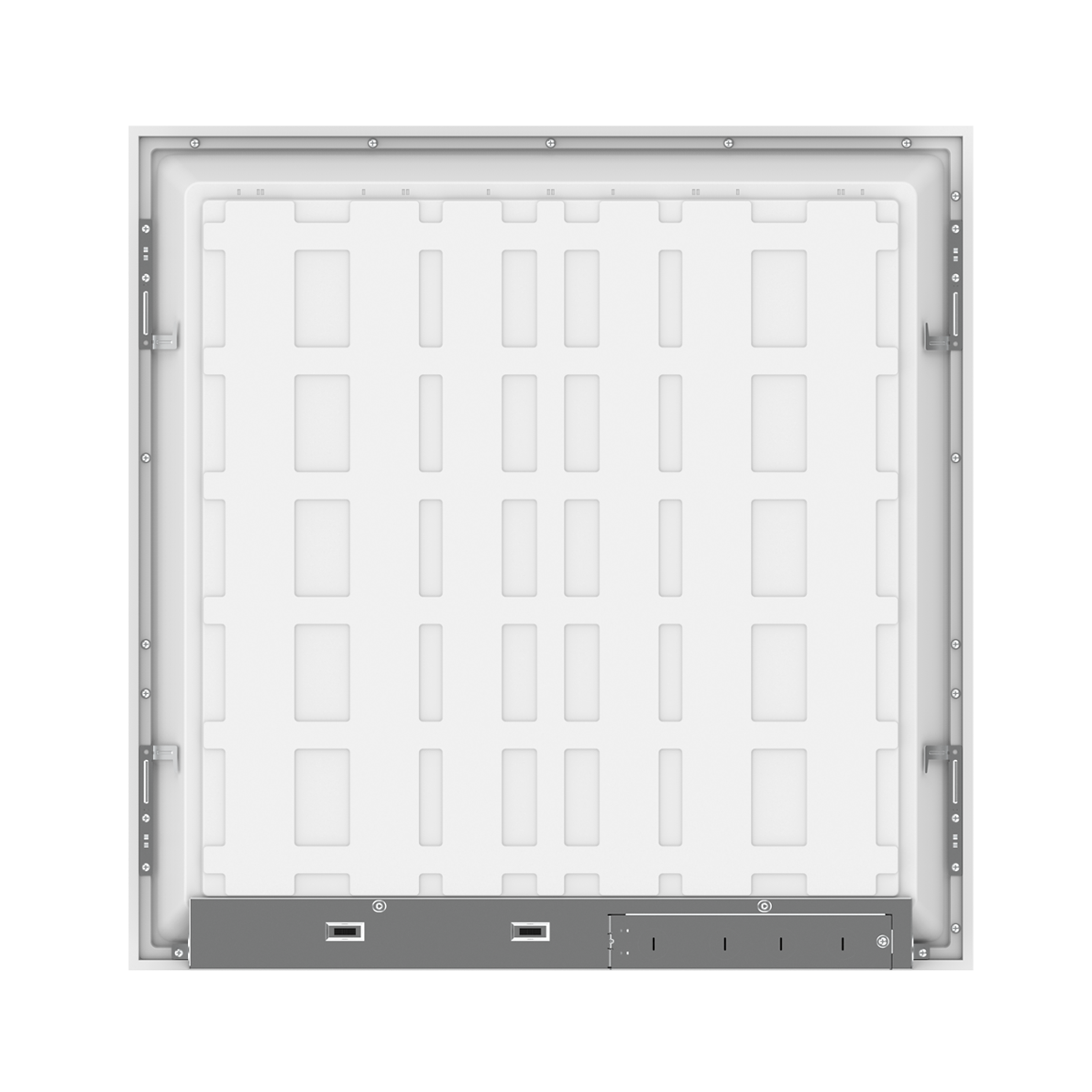

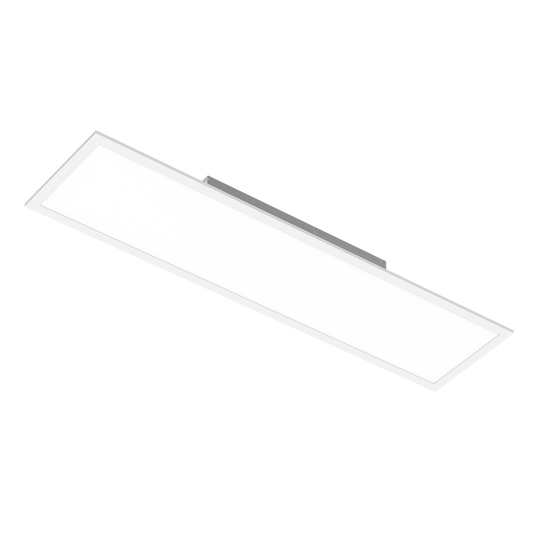

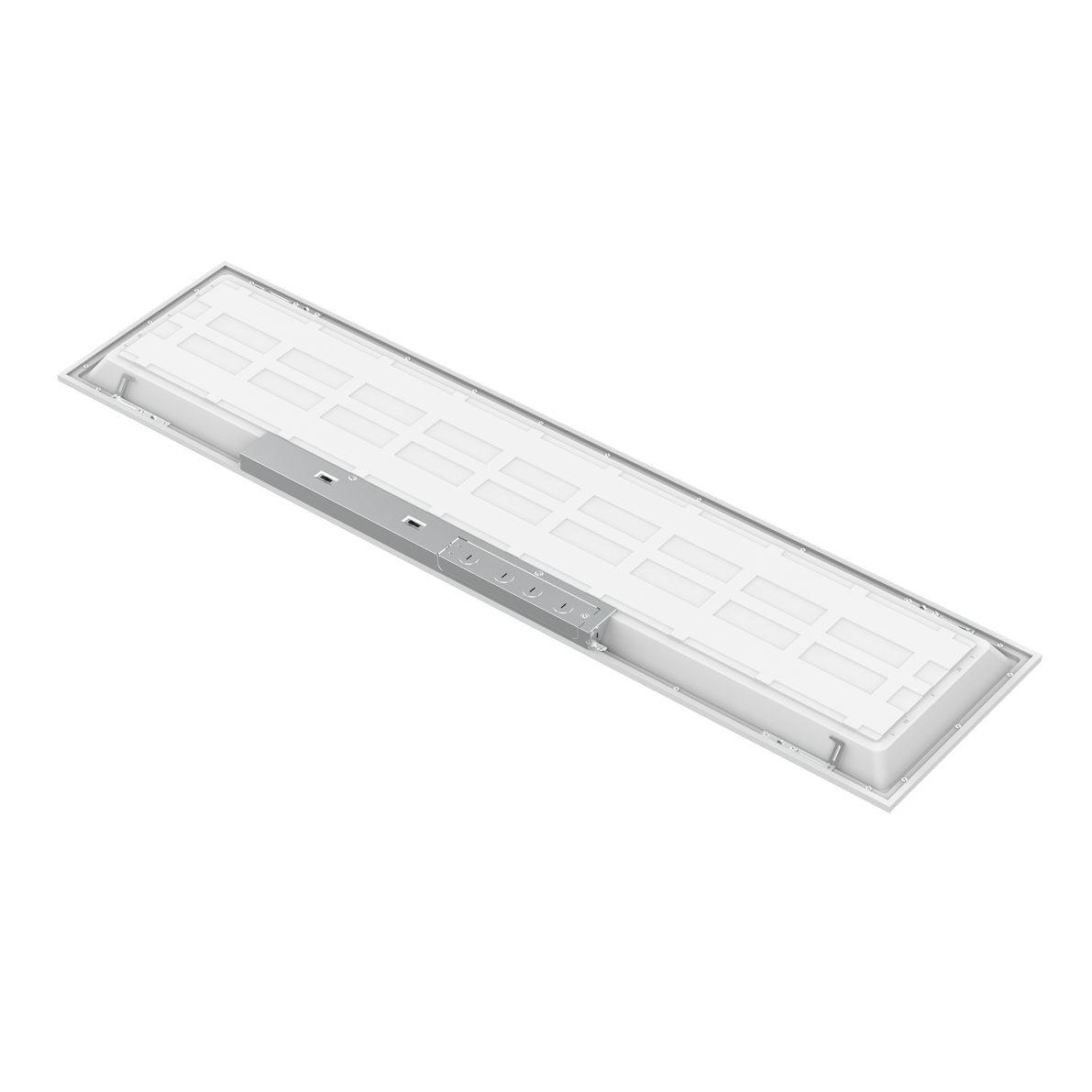

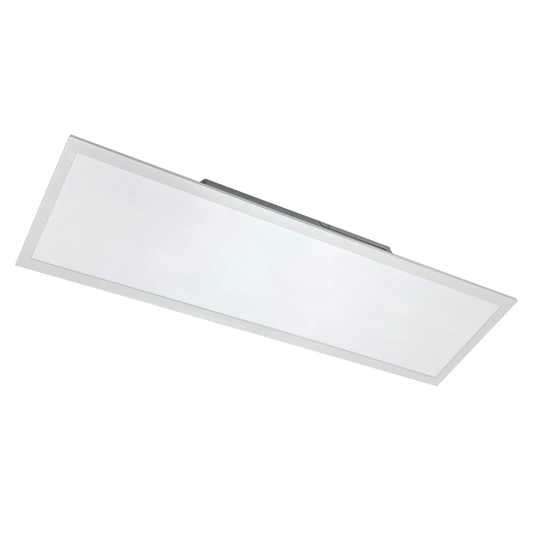

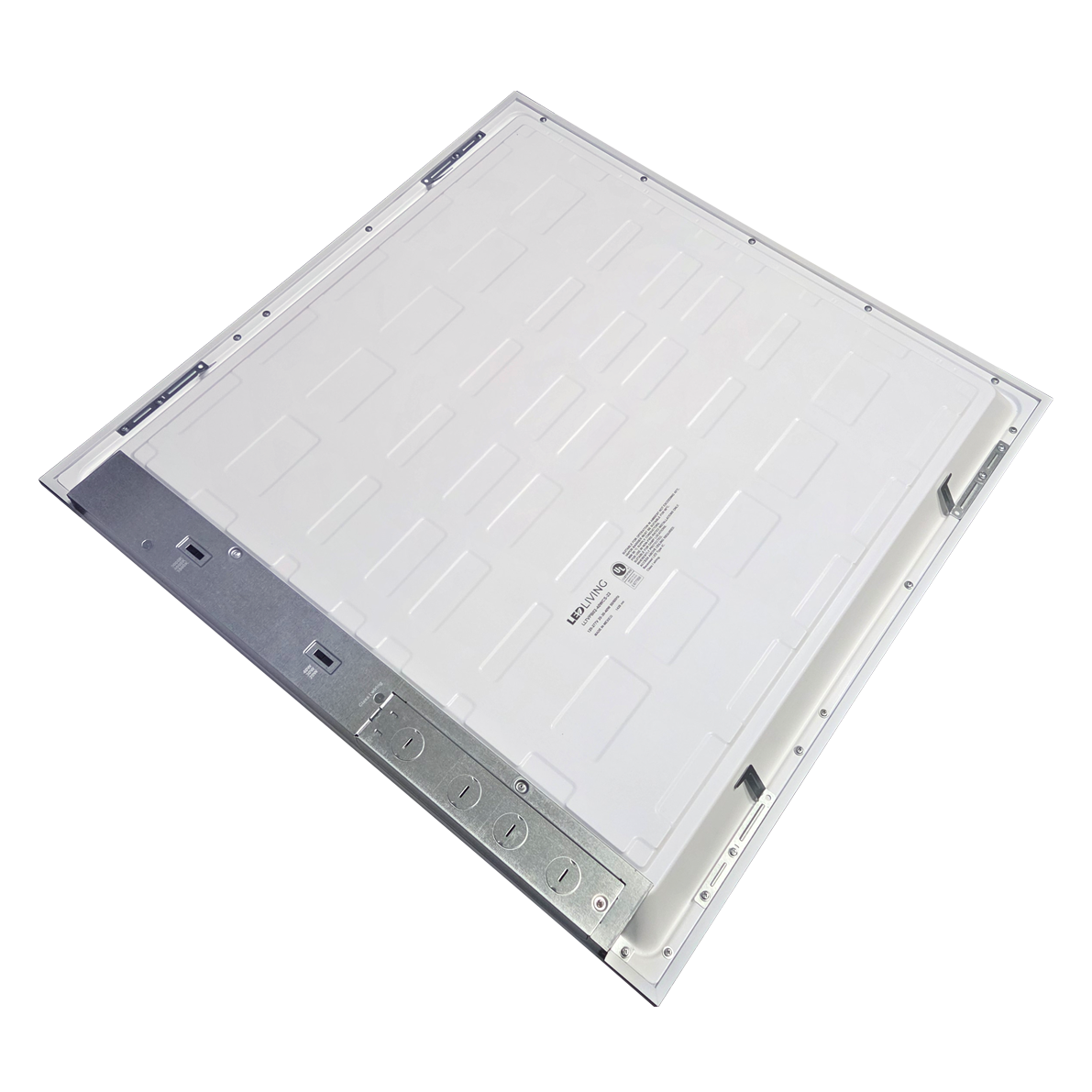

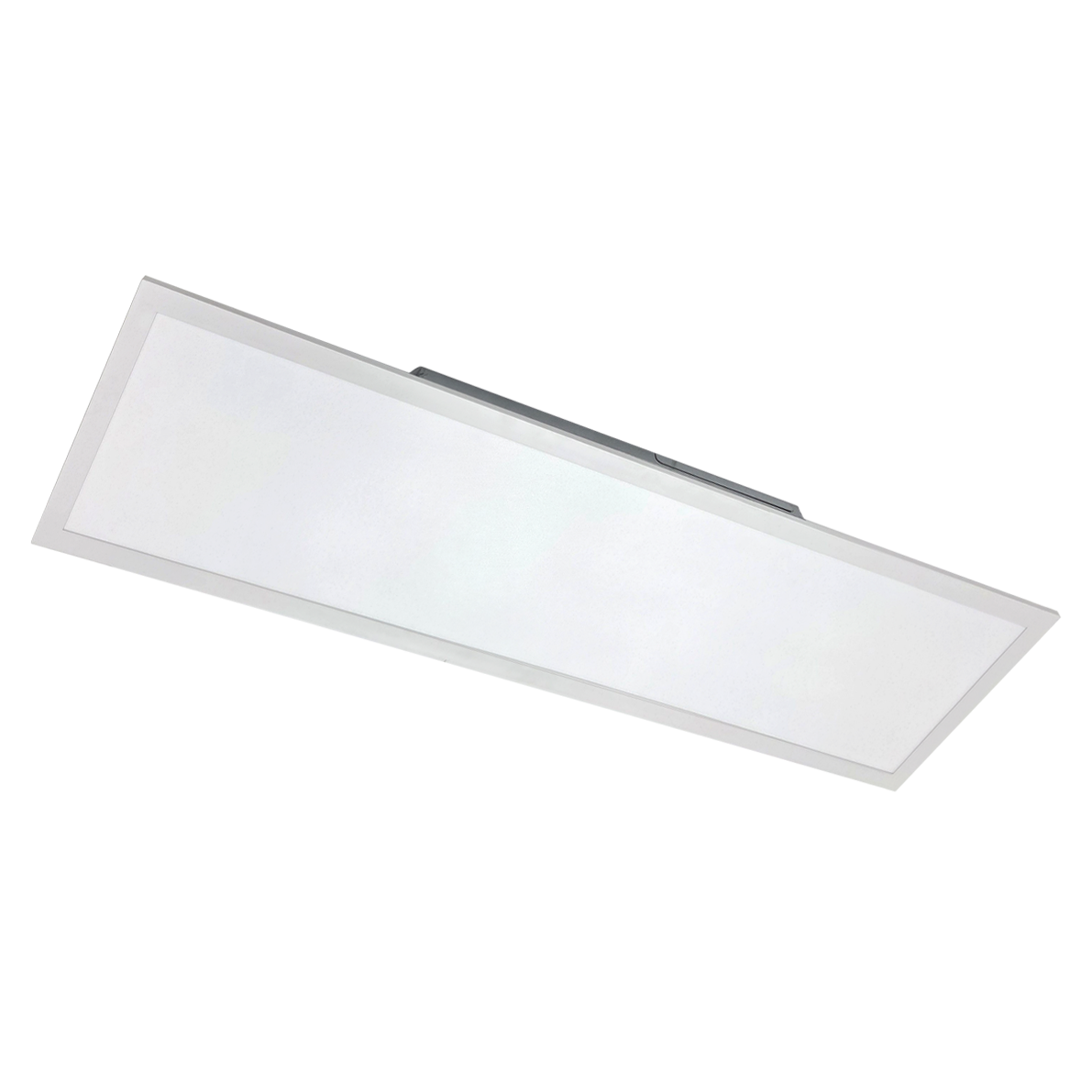

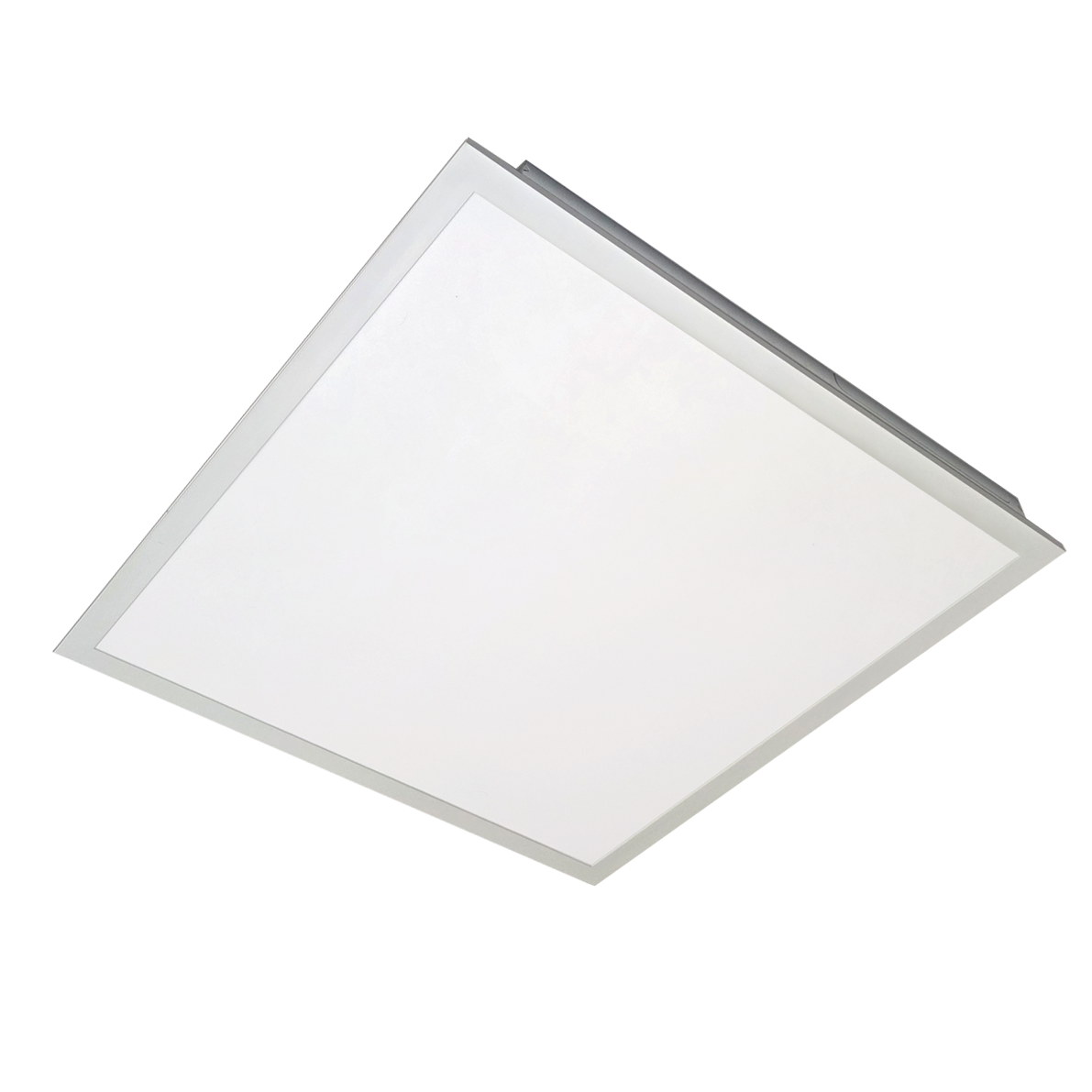

- 2x2, 2x4, and 1x4 panel sizes
- Selectable lumen output from 2,500 to 6,250 lumens
- 3500K / 4000K / 5000K selectable CCT
- 0-10V dimming with true dim-to-off
- Steel housing to resist deformations
The PB02 Series will be available in early April.
DETAILS
High-Performance Panel Lighting Built to Last
The PB02 delivers comfortable, adaptable panel lighting in a durable aluminum and steel package designed for extended service in commercial environments. Engineered for straightforward installation and long-term performance, the PB02 integrates seamlessly into standard T-grid ceiling systems (1'x4', 2'x2', 2'x4') with a slim design that excels in retrofit projects or new construction where plenum space is limited.

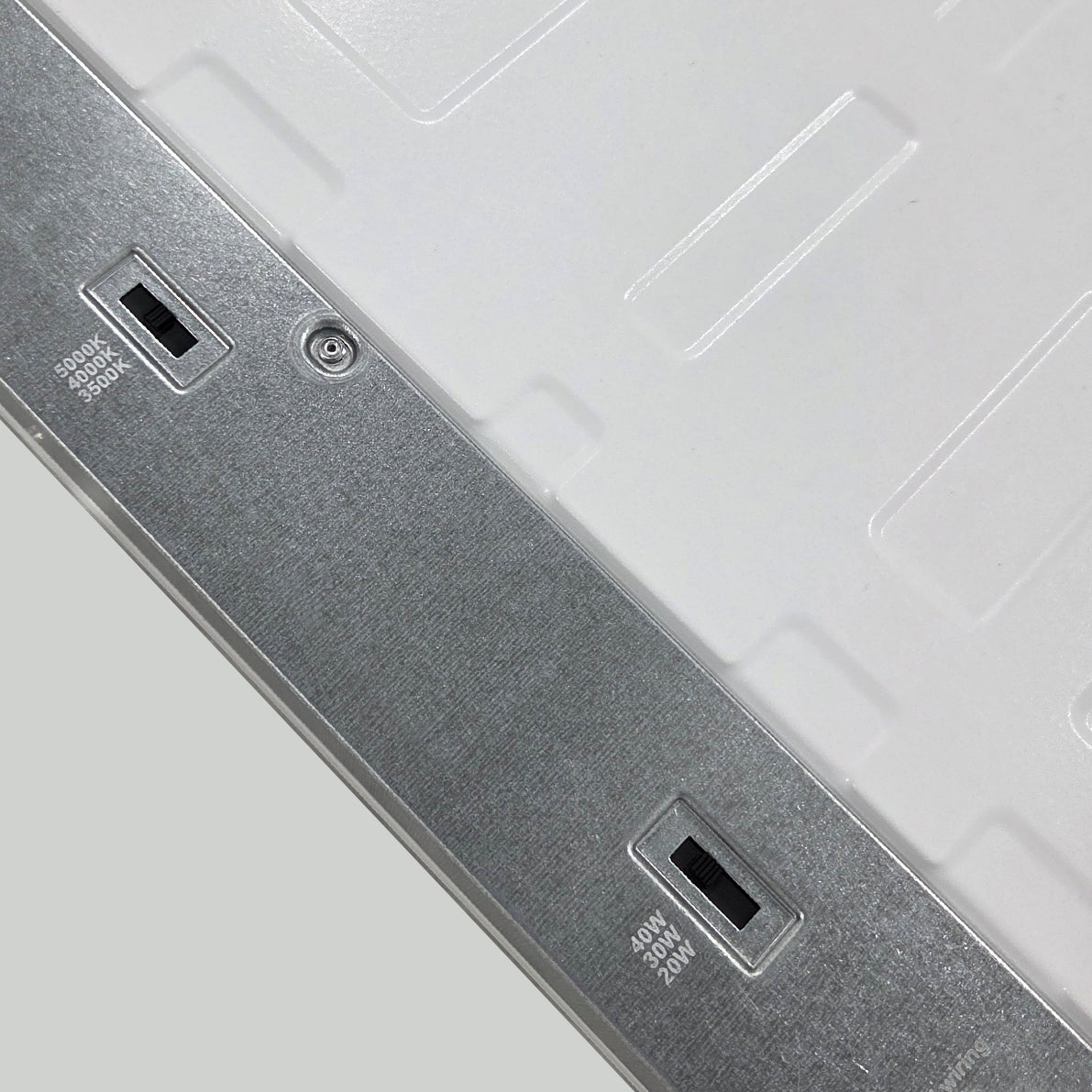

With field-selectable wattage & CCT (3500K / 4000K / 5000K) and 0-10V dim-to-off dimming, it allows contractors and specifiers to simplify inventories while retaining the ability to deliver lighting solutions tailored by zone or application. The PMMA diffuser distributes light evenly to ensure visual comfort in offices, retail spaces, classrooms, clinics, hotels, and more.
Ideal Applications: Open Offices, Classrooms, Retail Spaces, Healthcare Facilities, Hotels and Hospitality
DOWNLOADS
Quick-Ship PB02 Series LED Panel Lights
-
-

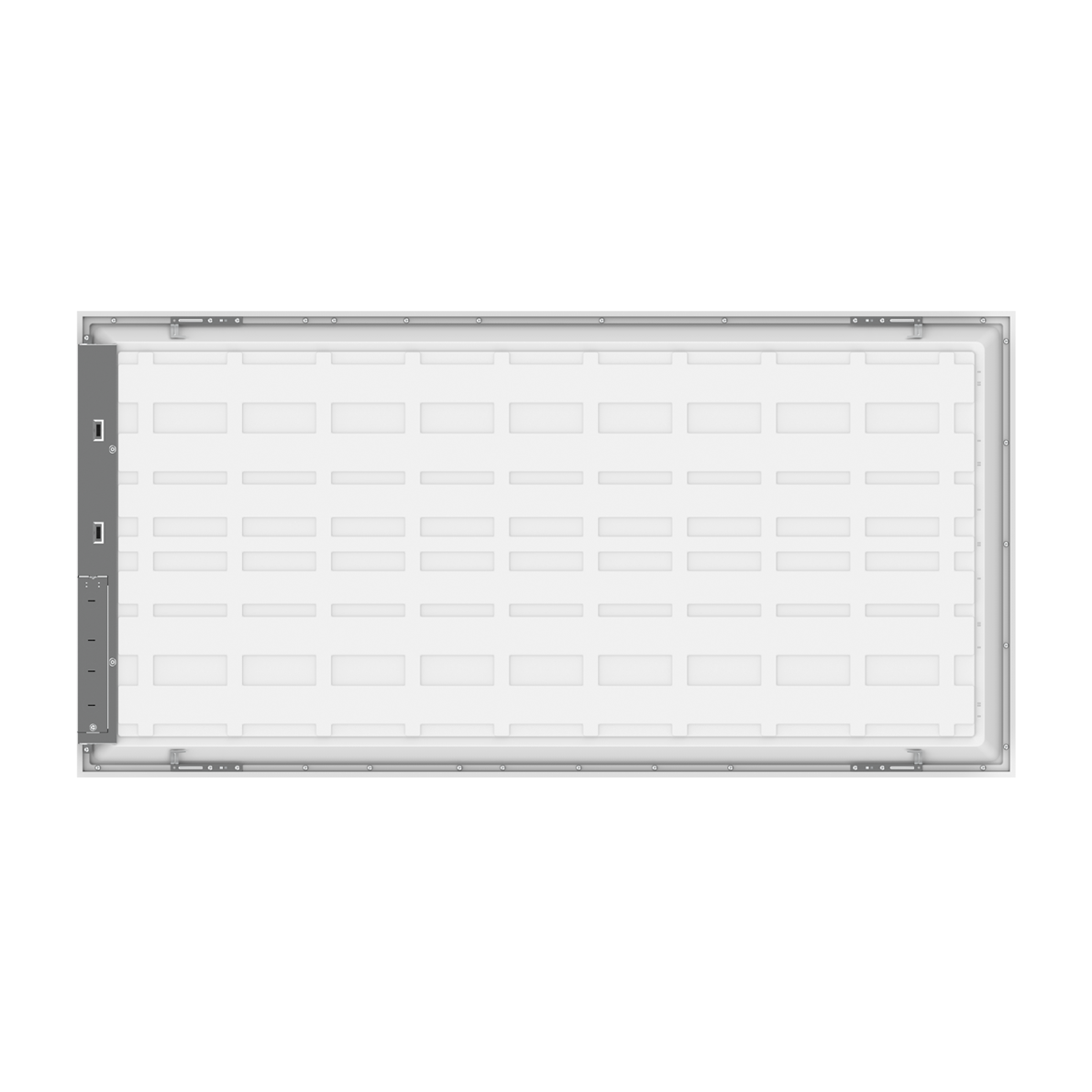

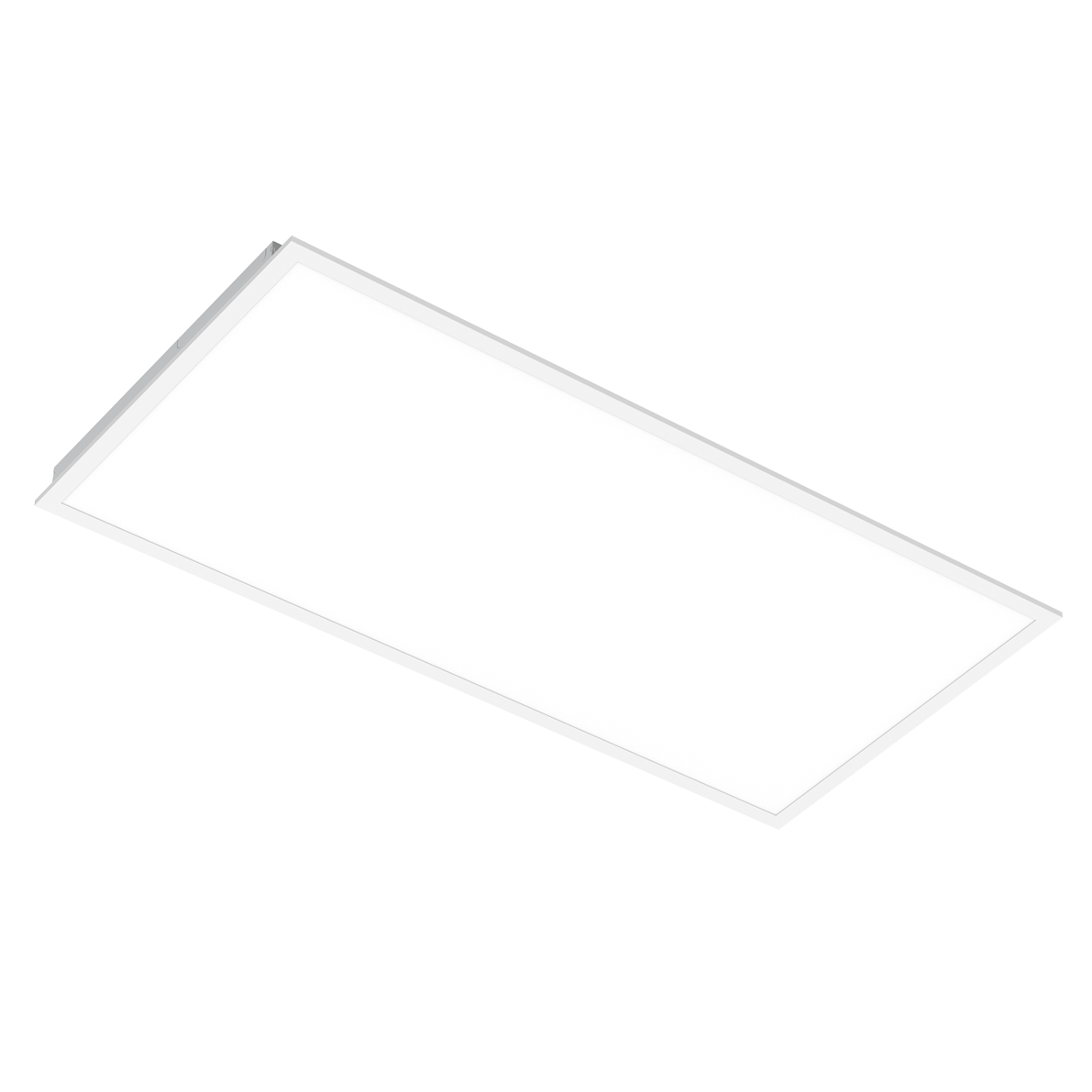

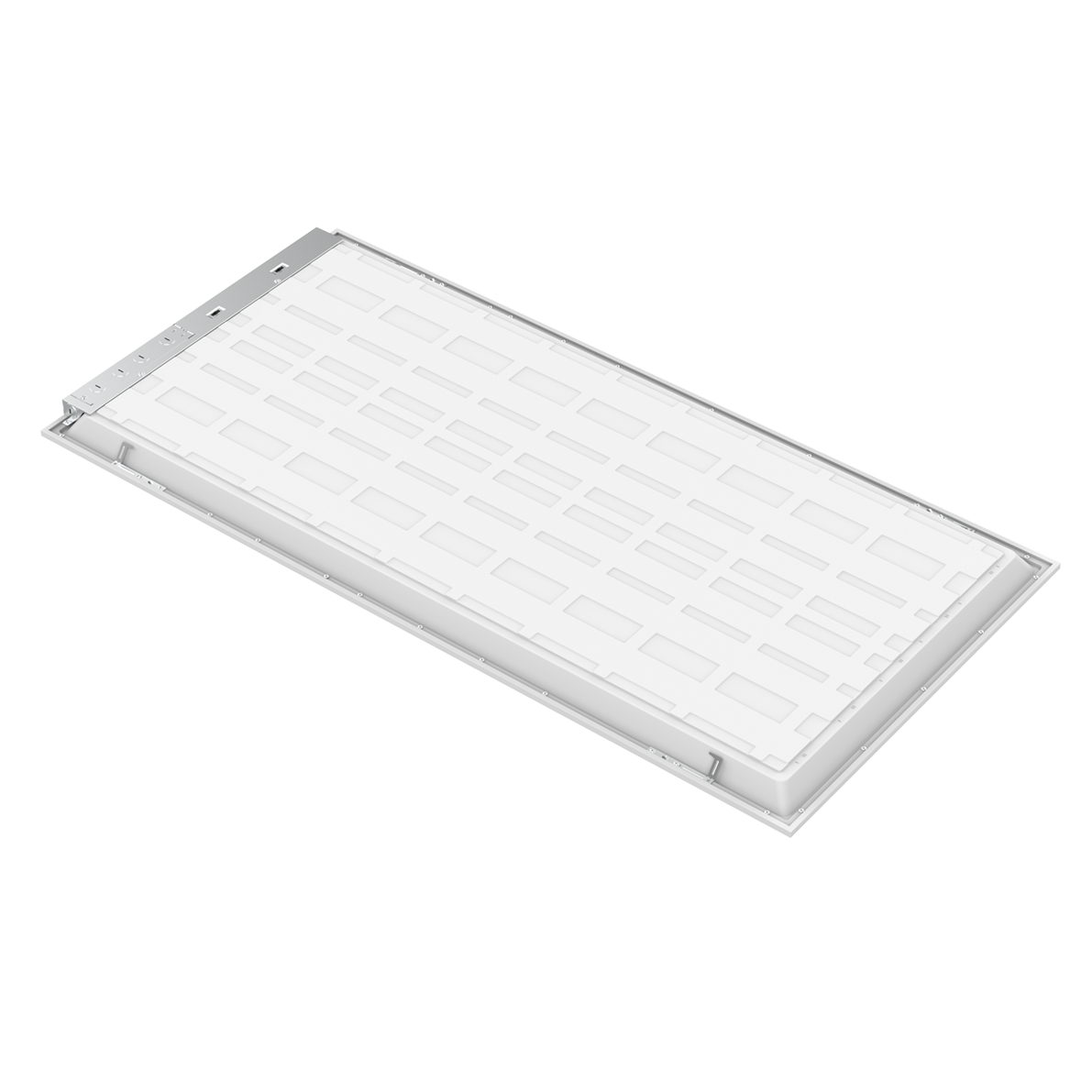

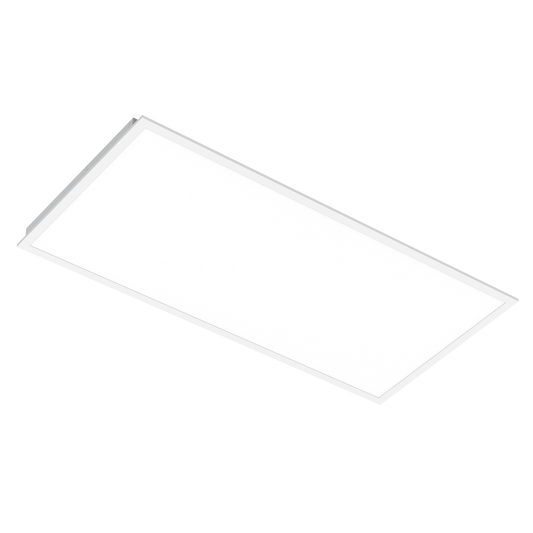

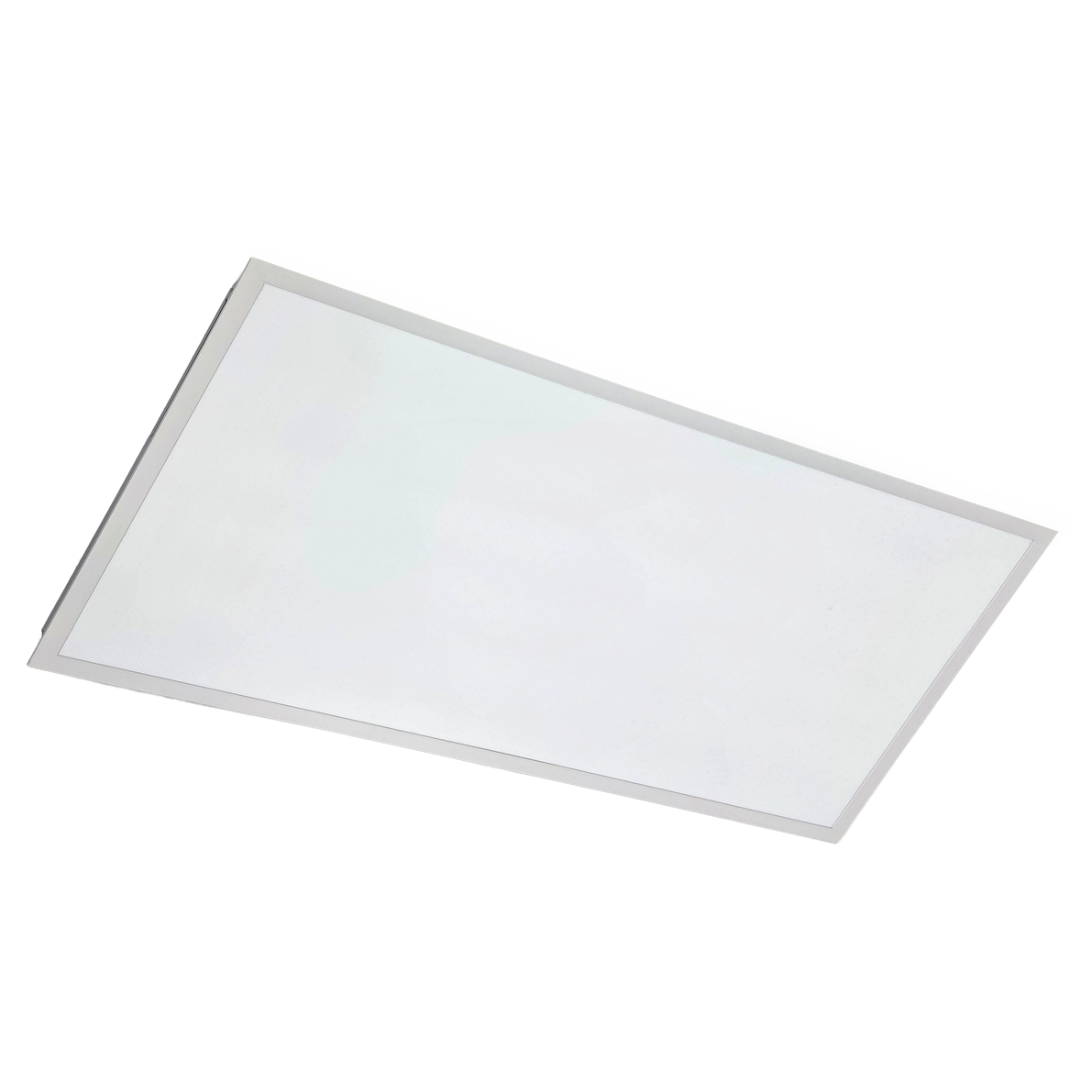

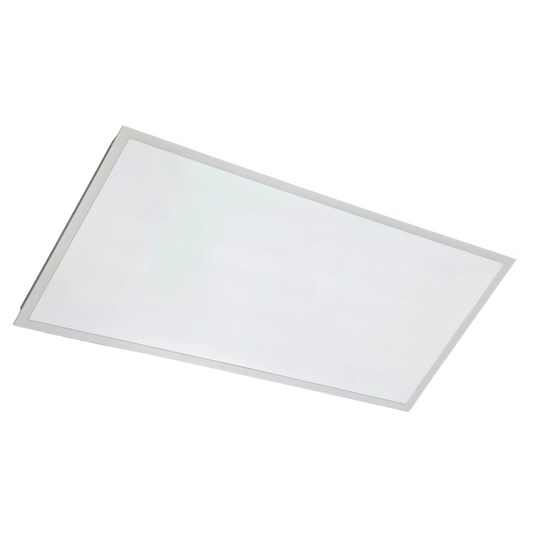

PB02 2'x4' Panel Light
- 30W/40W/50W
- 3,750 to 6,250 lumens
- 3500K/4000K/5000K
30W/40W/50WPB02 2'x4' Panel Light
- 3,750 to 6,250 lumens
- 3500K/4000K/5000K
-
KEY SPECIFICATIONS
| Wattage & Lumens | 40W Selectable (20W/30W/40W), 2,500 to 5,000 lumens 50W Selectable (30W/40W/50W), 3,750 to 6,250 lumens |
| System Efficacy | 125 lm/W |
| CRI | 80 |
| CCT | 3500K/4000K/5000K Selectable |
| Beam Angle | 120° |
| Dimming Capability | 0 to 10V |
| Input Voltage | 120-277VAC |
| Warranty | 5 Years |
| Certifications | DLC Premium, UL |
