TR04 Series LED Troffers
TR04 Series LED Troffers
Slim, Field-Selectable LED Troffers for Commercial Interiors

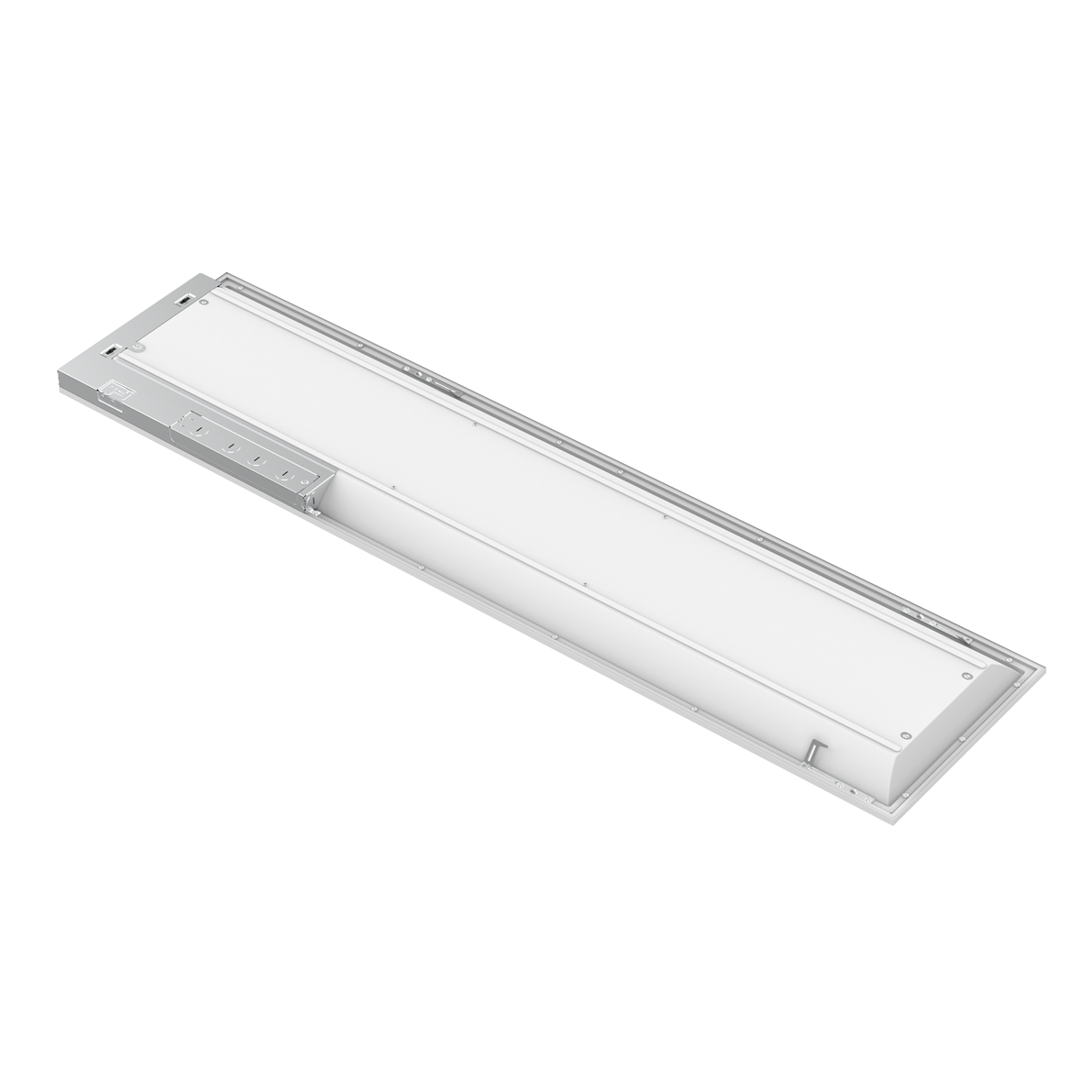

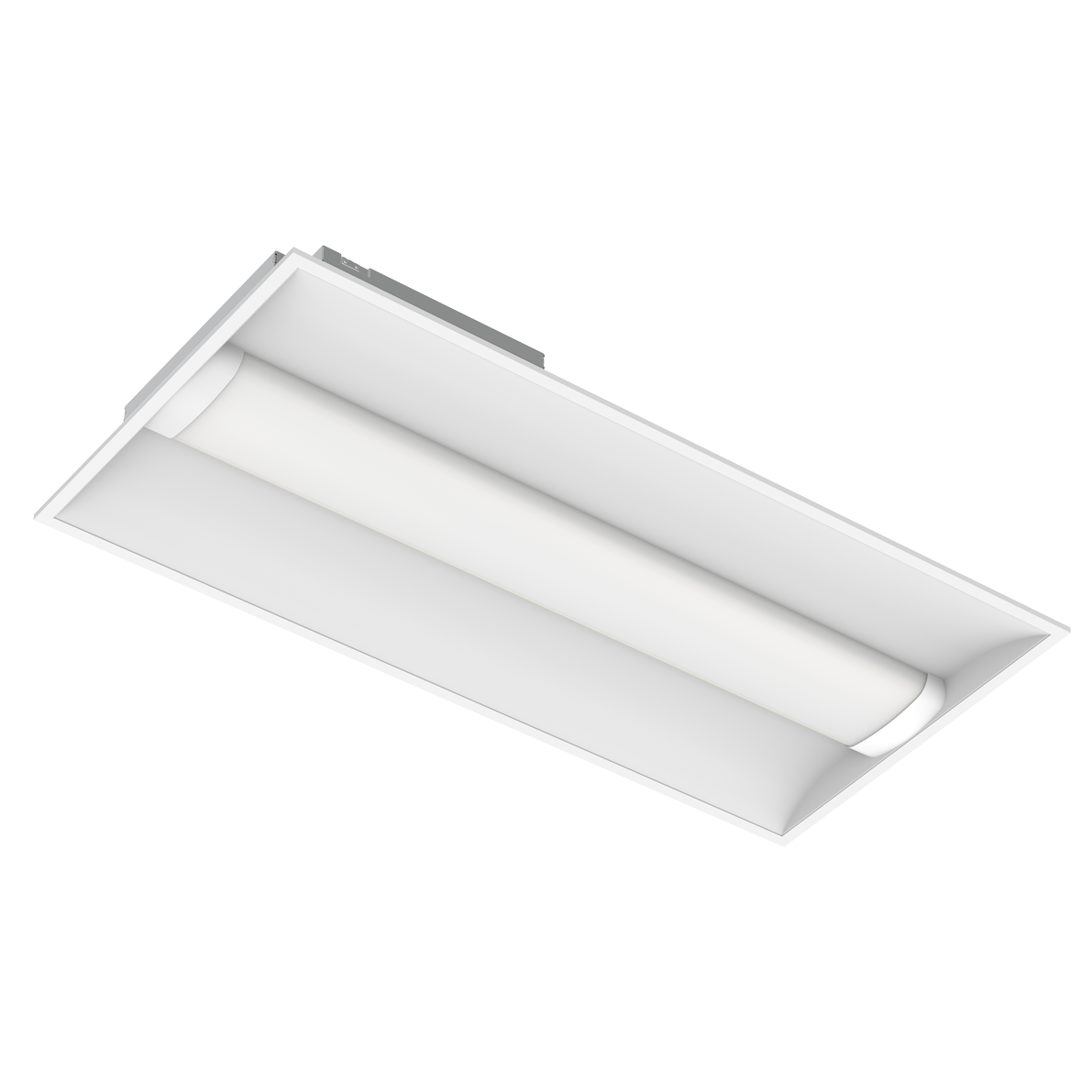

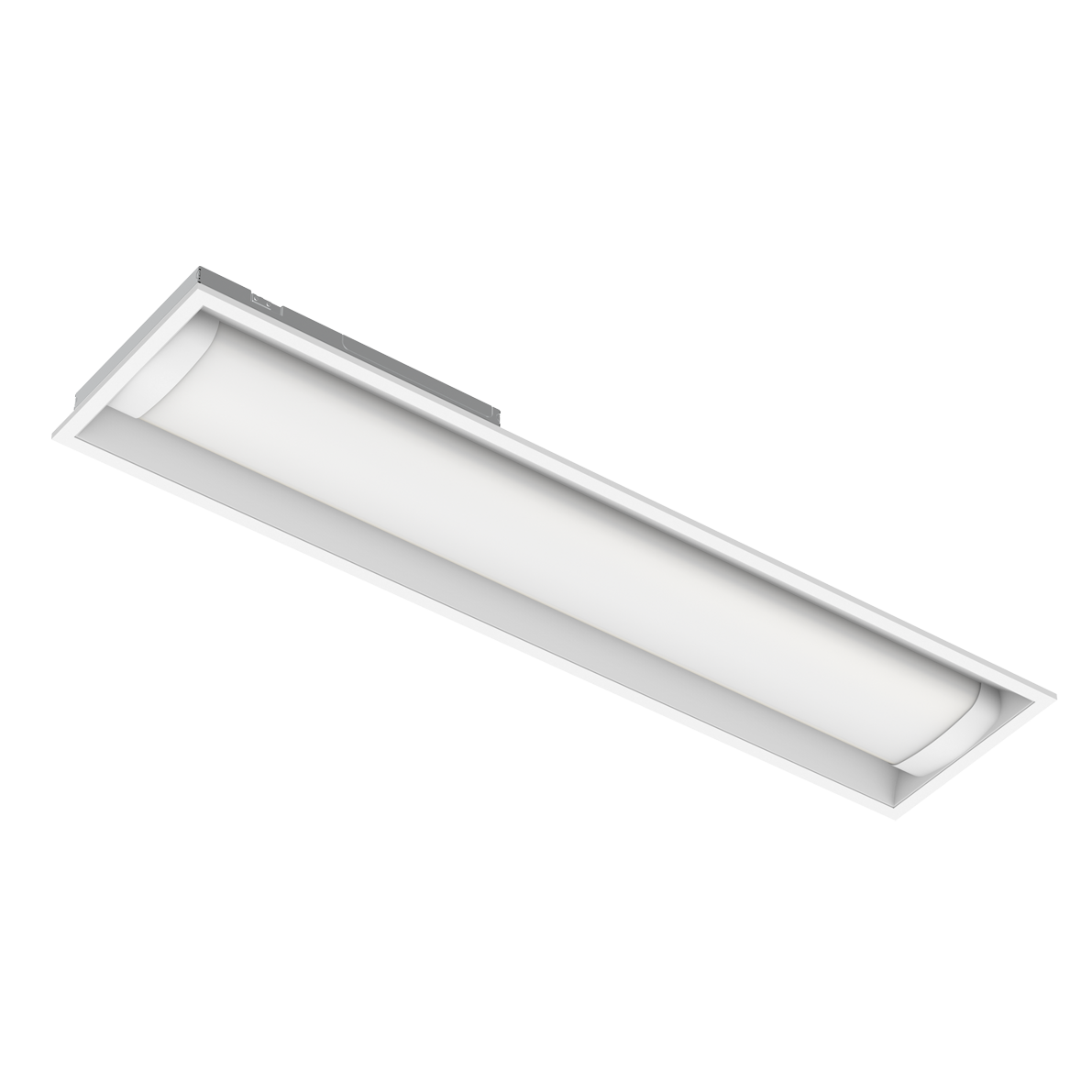

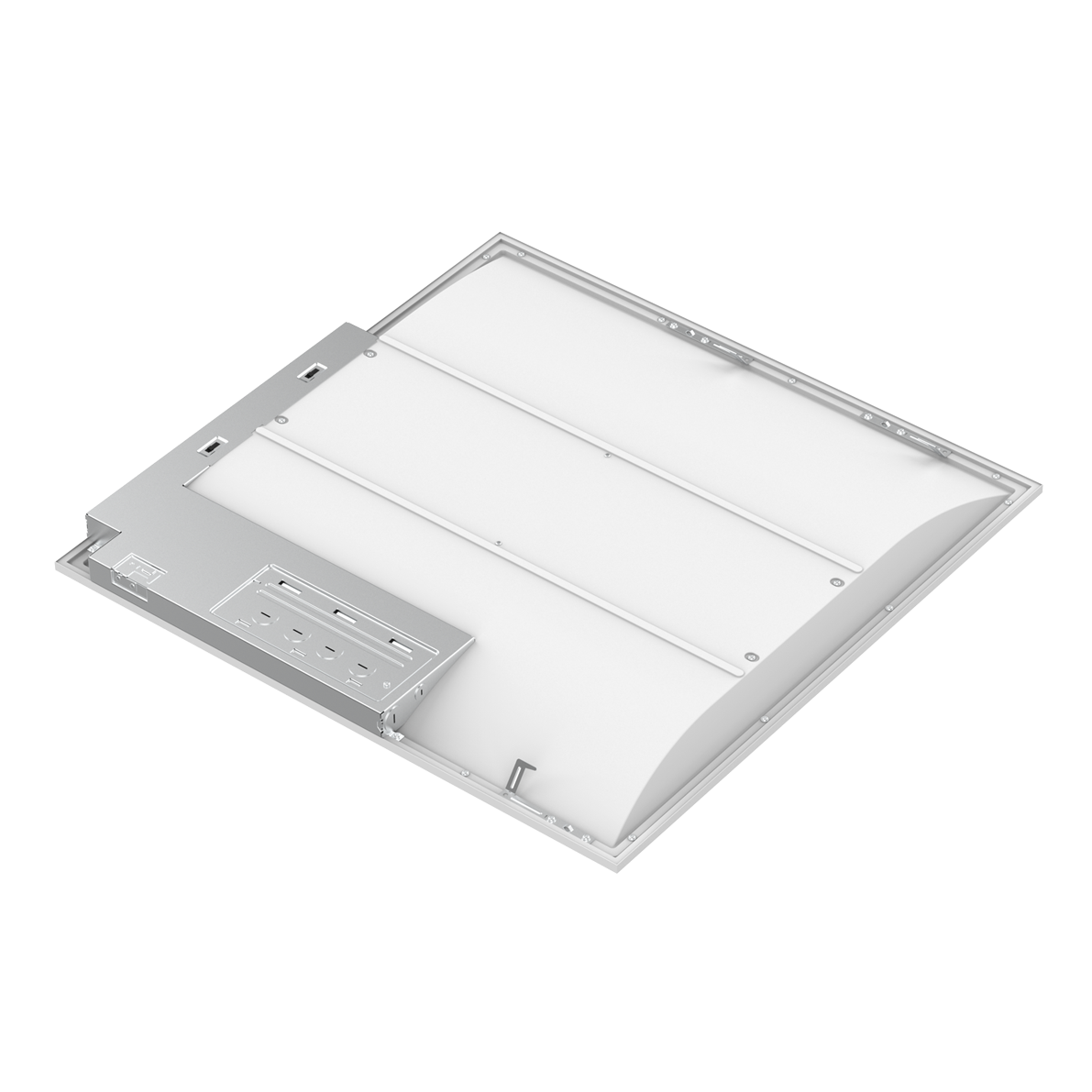

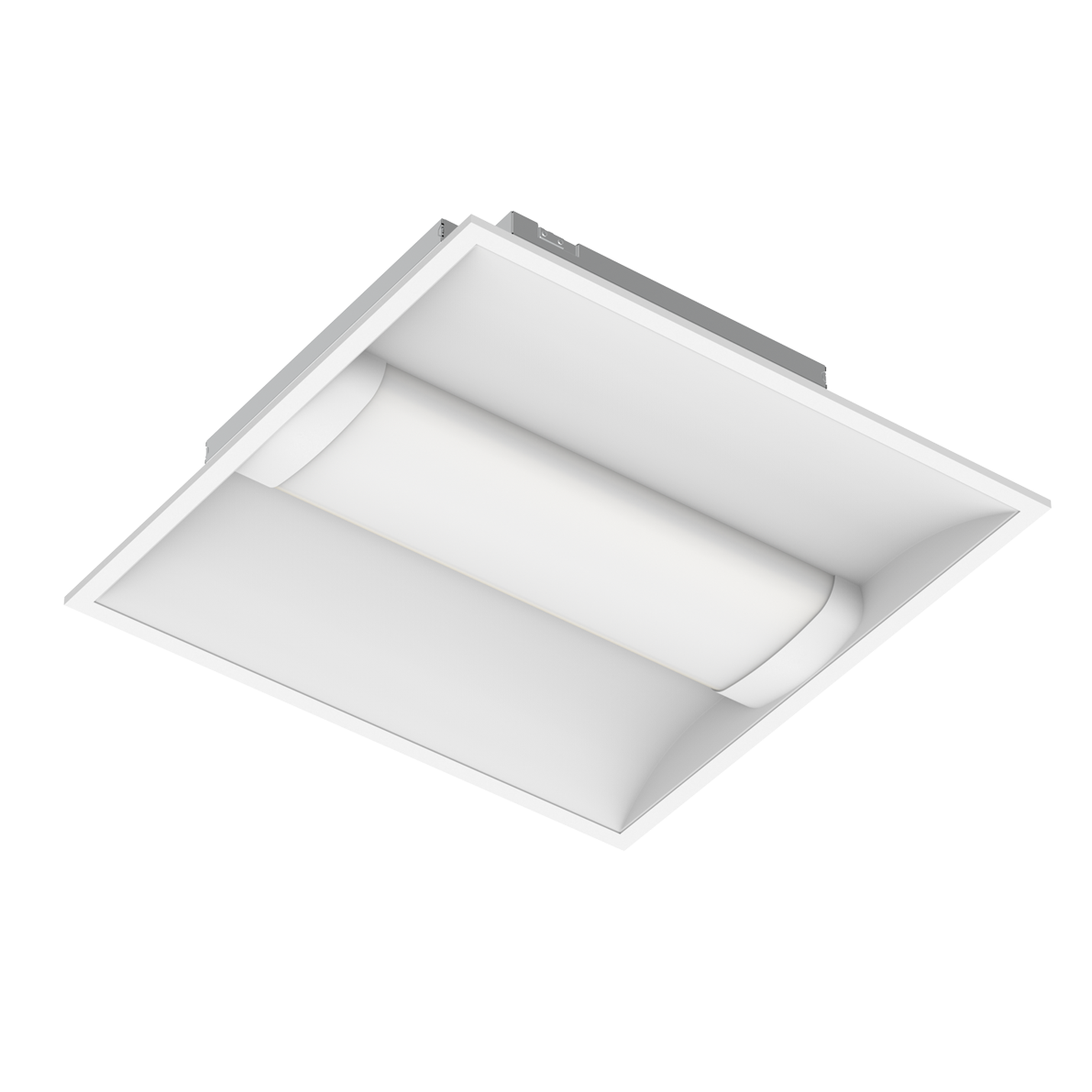

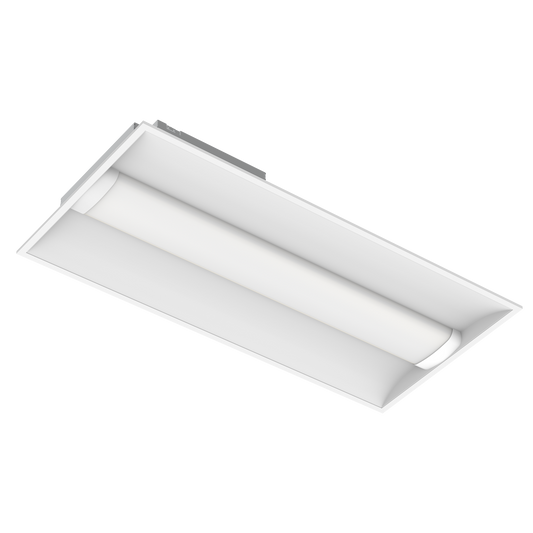

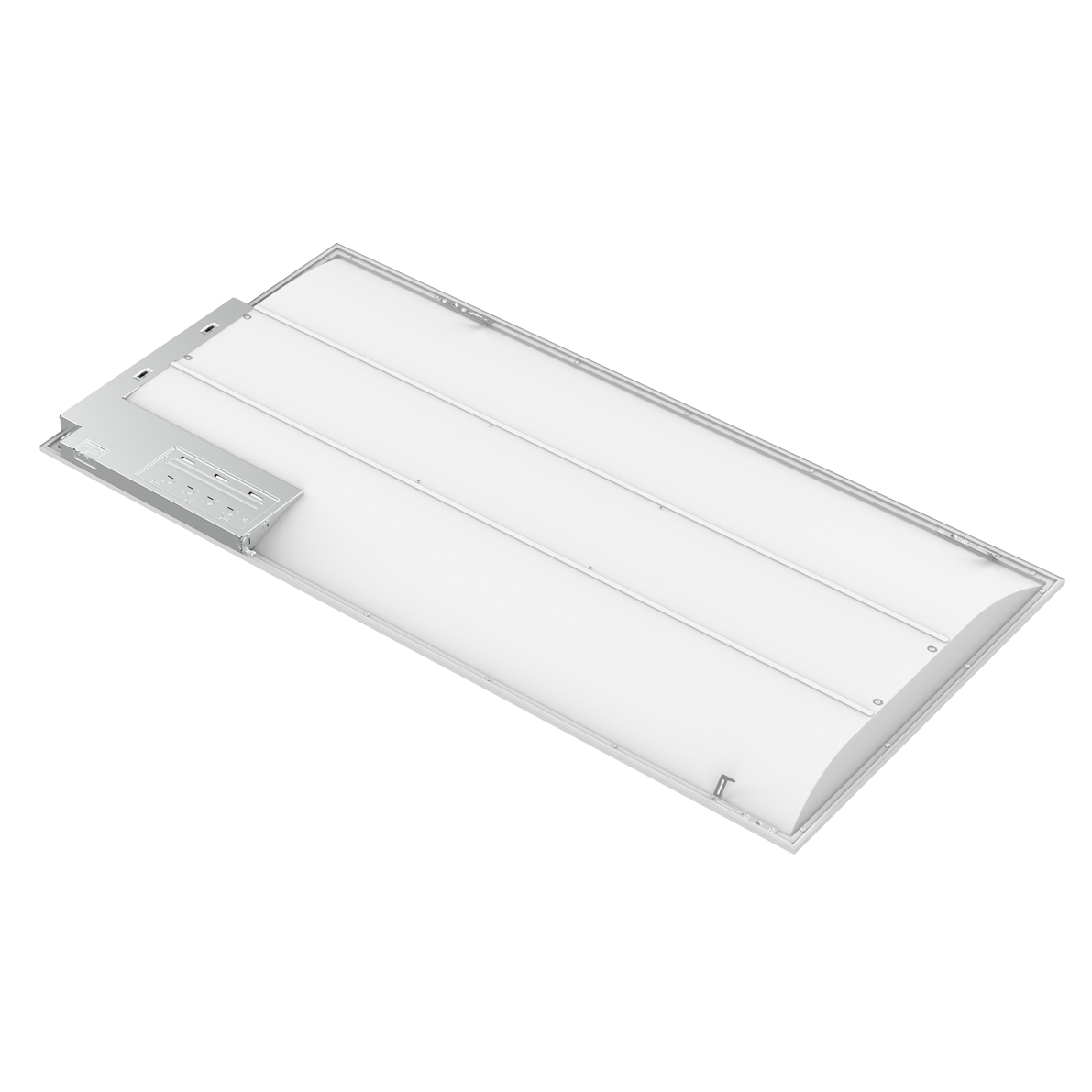

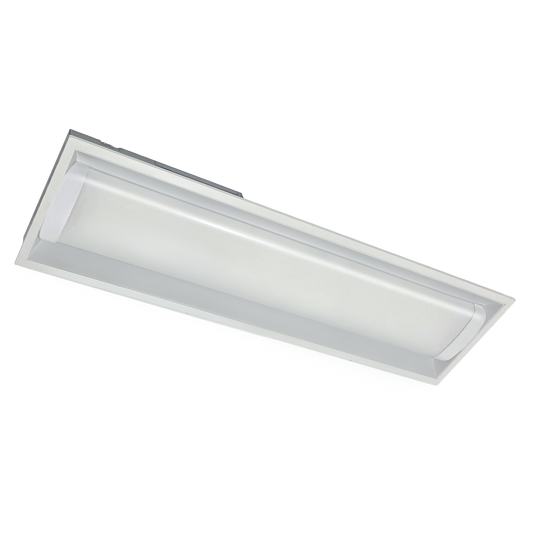

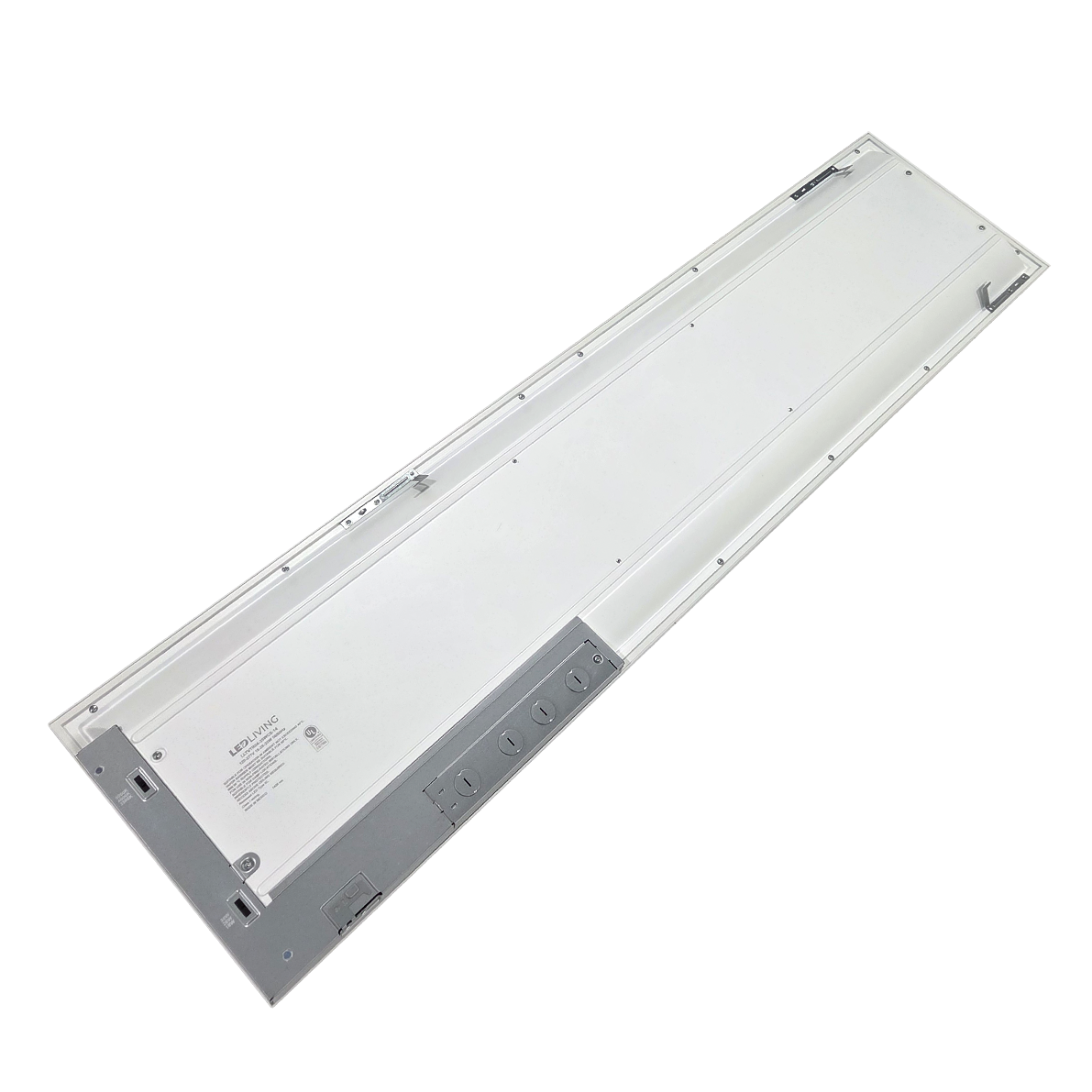

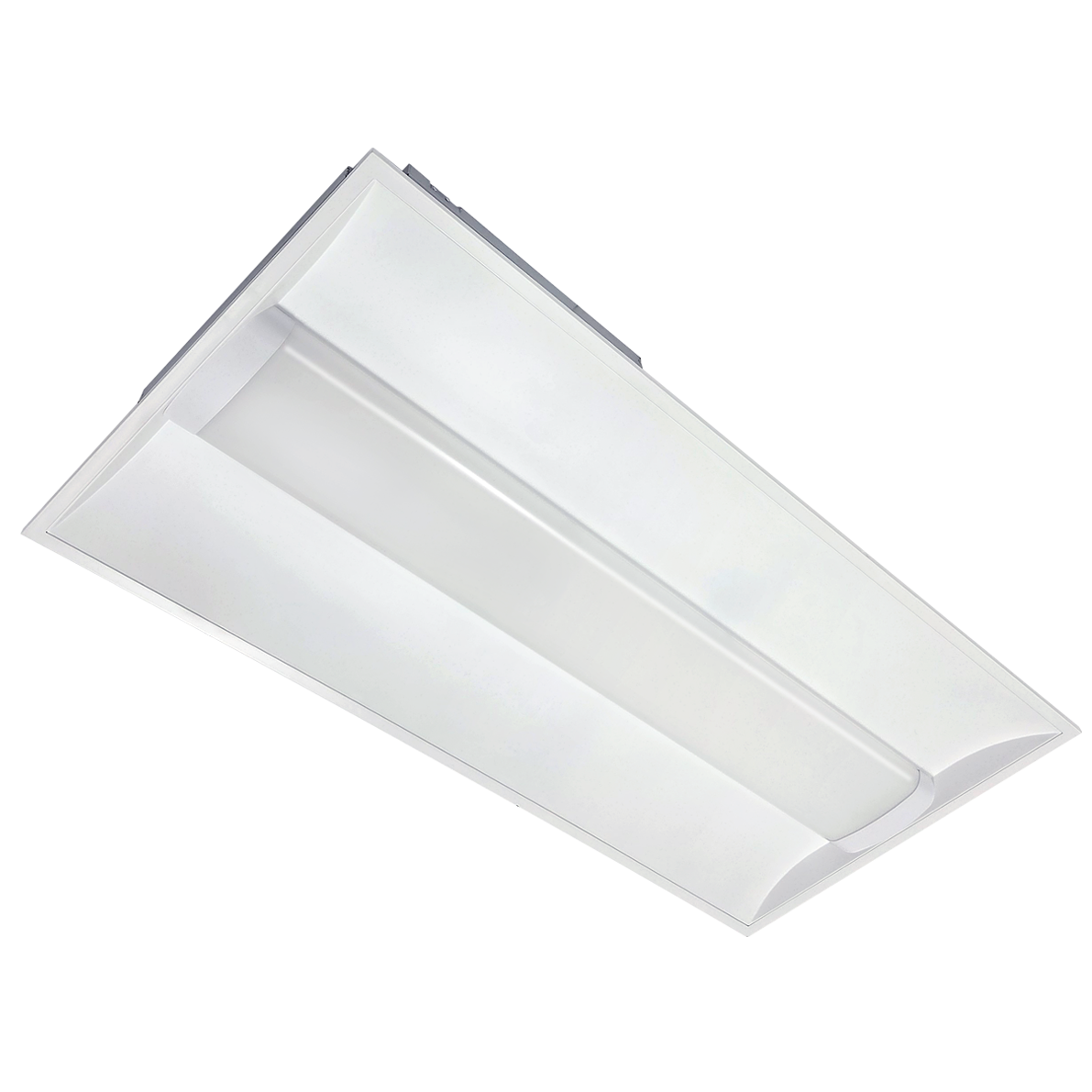

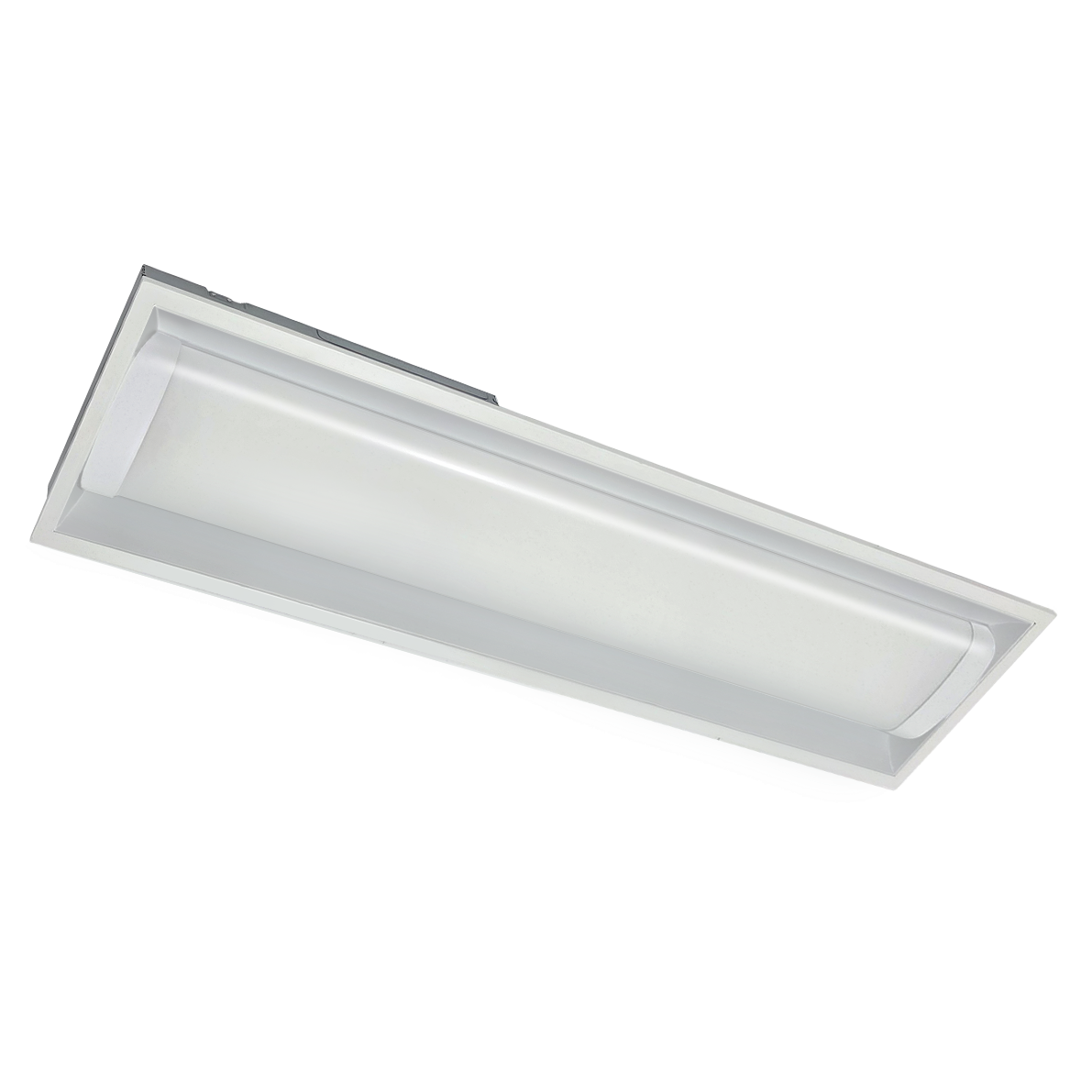

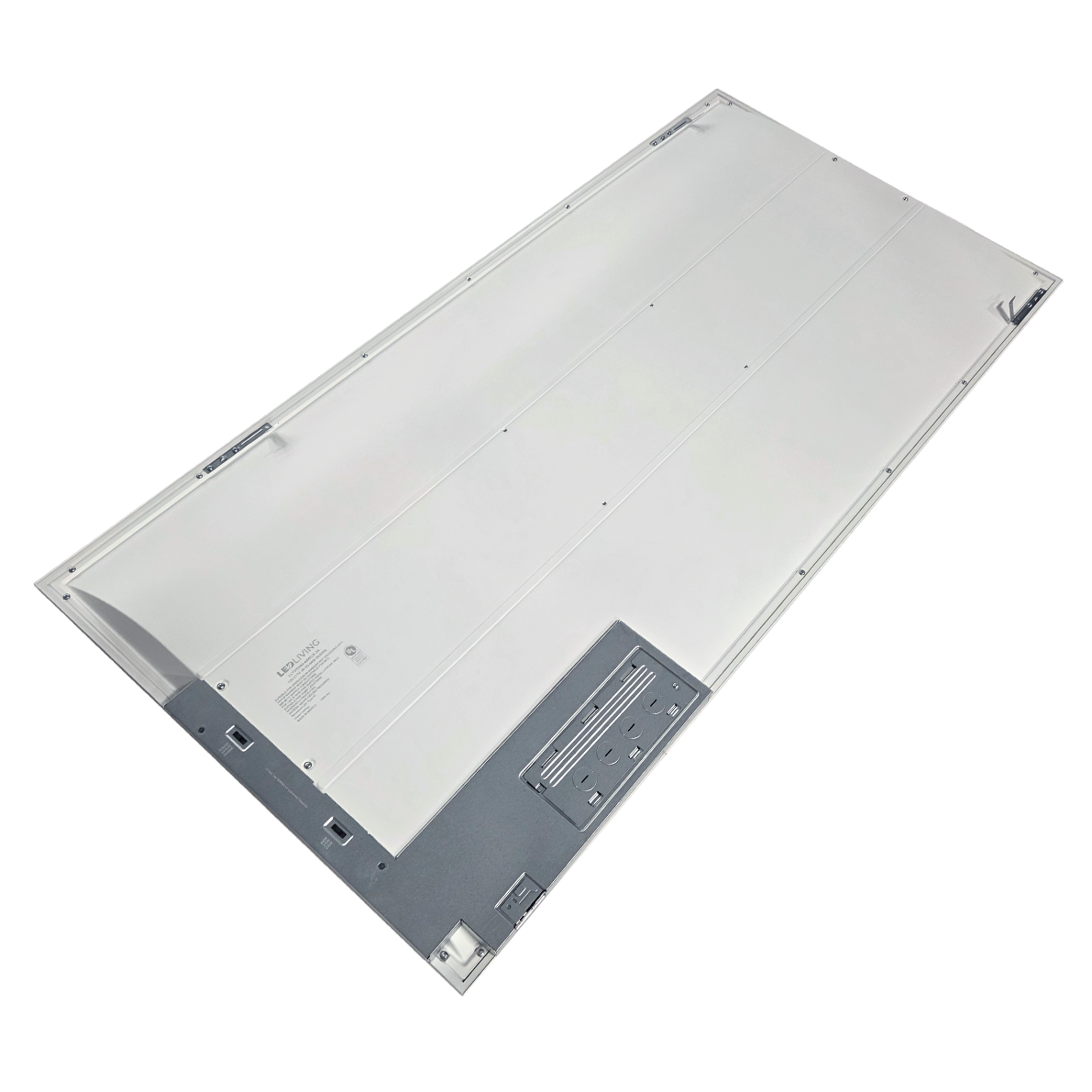

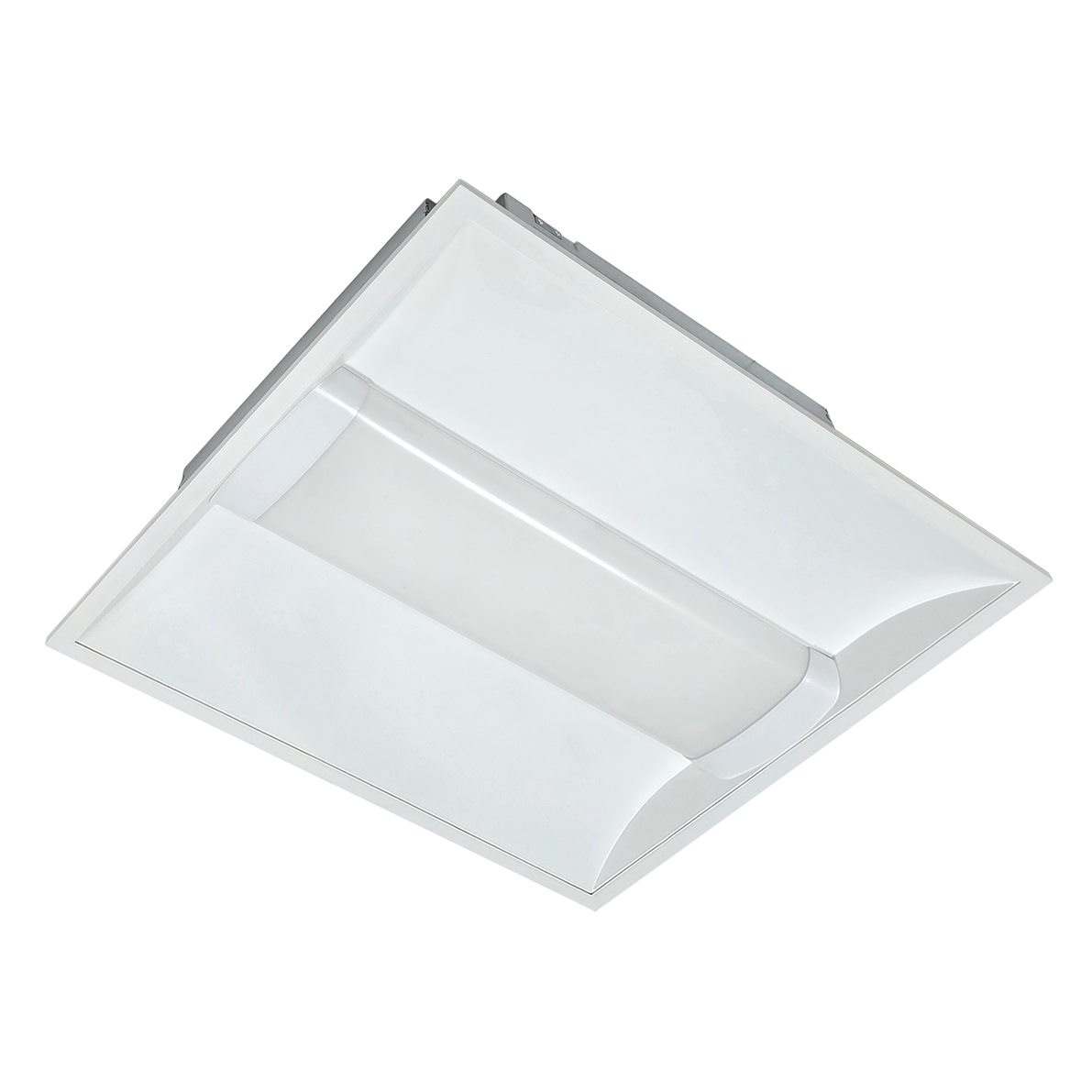

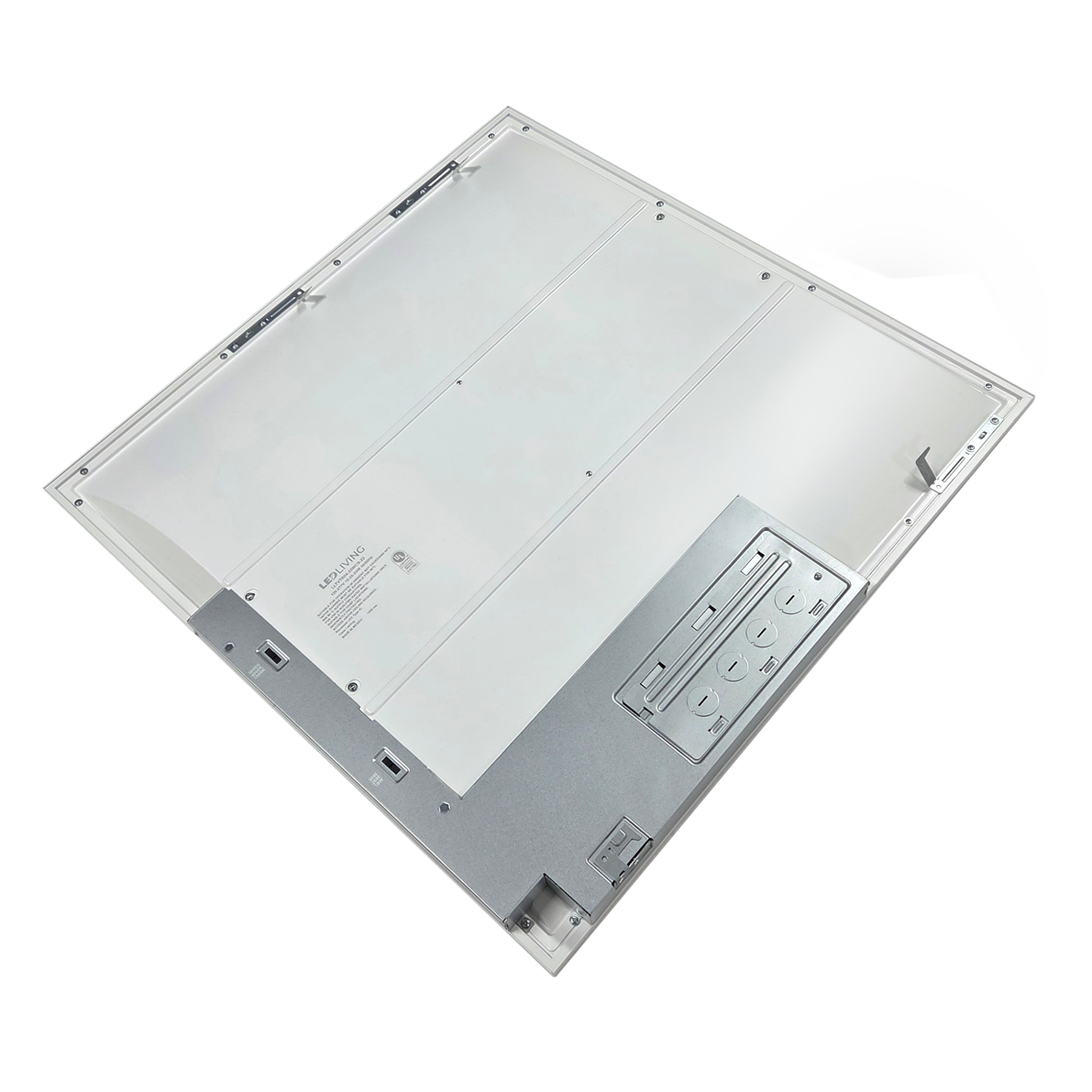

- 2x2, 2x4, and 1x4 troffer sizes
- Selectable lumen output from 2,250 to 5,500 lumens
- 3500K / 4000K / 5000K selectable CCT
- 0-10V dimming with true dim-to-off
-
Made in North America – TAA compliant
DETAILS
High-Performance Troffer Lighting Built to Last
The TR04 is a versatile, durable troffer that offers comfortable, field-tunable illumination for a range of commercial interiors. This slim, IC-rated troffer sets easily into standard T-grid ceilings (1'x4', 2'x2', 2'x4') without taking up too much space, ensuring quick and successful installations or retrofits even where plenum space is limited.

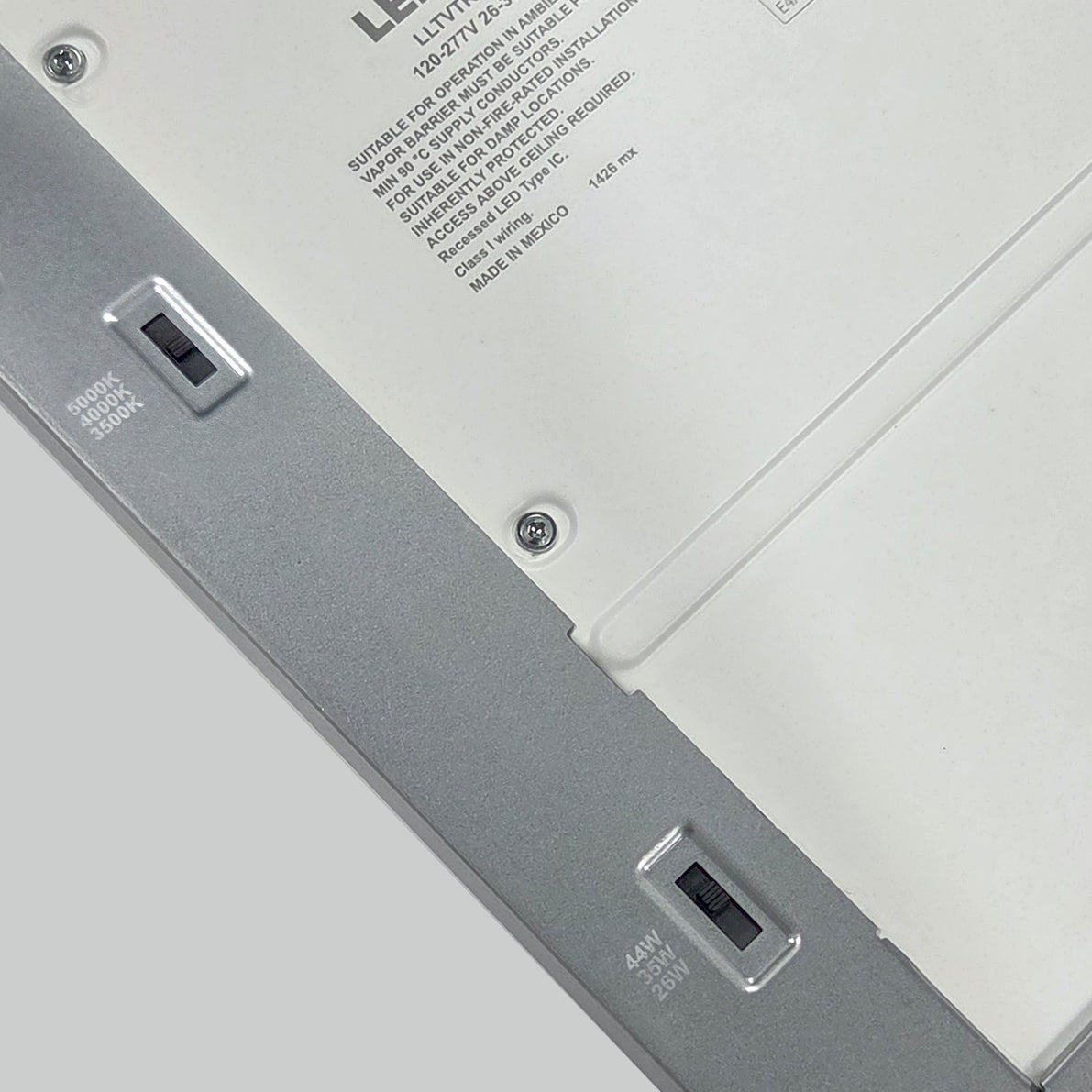

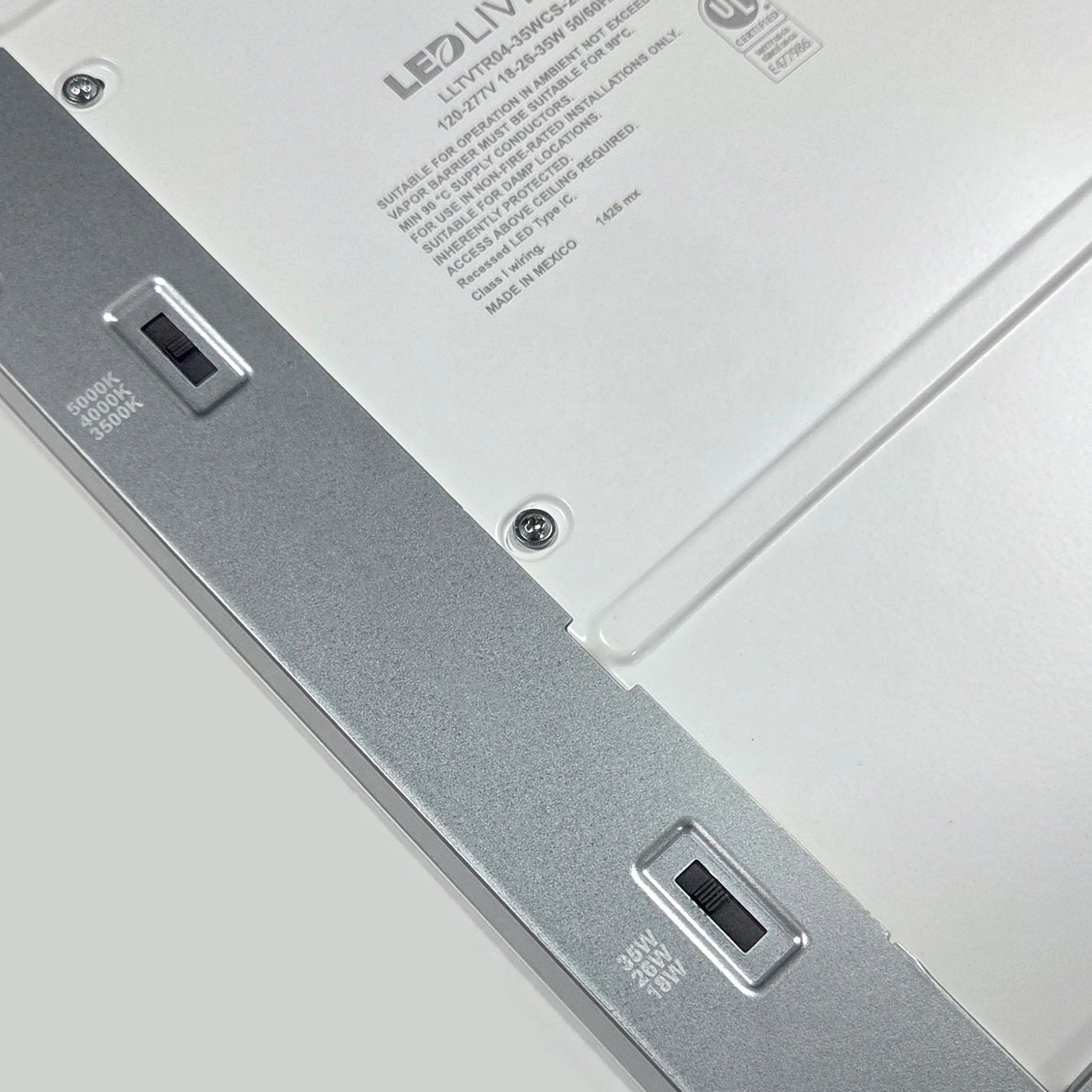

Field-selectable output & CCT (3500K / 4000K / 5000K) and 0-10V dimming simplifies inventory for contractors and specifiers while allowing installers to tune light to zone or application. With its deformation-resistant steel frame and PMMA diffuser, the TR04 is built for an extended service life delivering comfortable lighting in offices, classrooms, retail spaces, and more. Made in North America, it is a strong contender for jobs that require TAA compliance.
Ideal Applications: Open Offices, Classrooms, Retail Spaces, Healthcare Facilities, Hotels and Hospitality
DOWNLOADS
Quick-Ship TR04 Series LED Troffers
KEY SPECIFICATIONS
| Wattage & Lumens | 35W Selectable (18W/26W/35W), 2,250 to 4,375 lumens 44W Selectable (26W/35W/44W), 3,250 to 5,500 lumens |
| System Efficacy | 125 lm/W |
| CRI | 80 |
| CCT | 3500K/4000K/5000K Selectable |
| Beam Angle | 120° |
| Dimming Capability | 0 to 10V |
| Input Voltage | 120-277VAC |
| Warranty | 5 Years |
| Certifications | DLC Premium, UL, RoHS |
