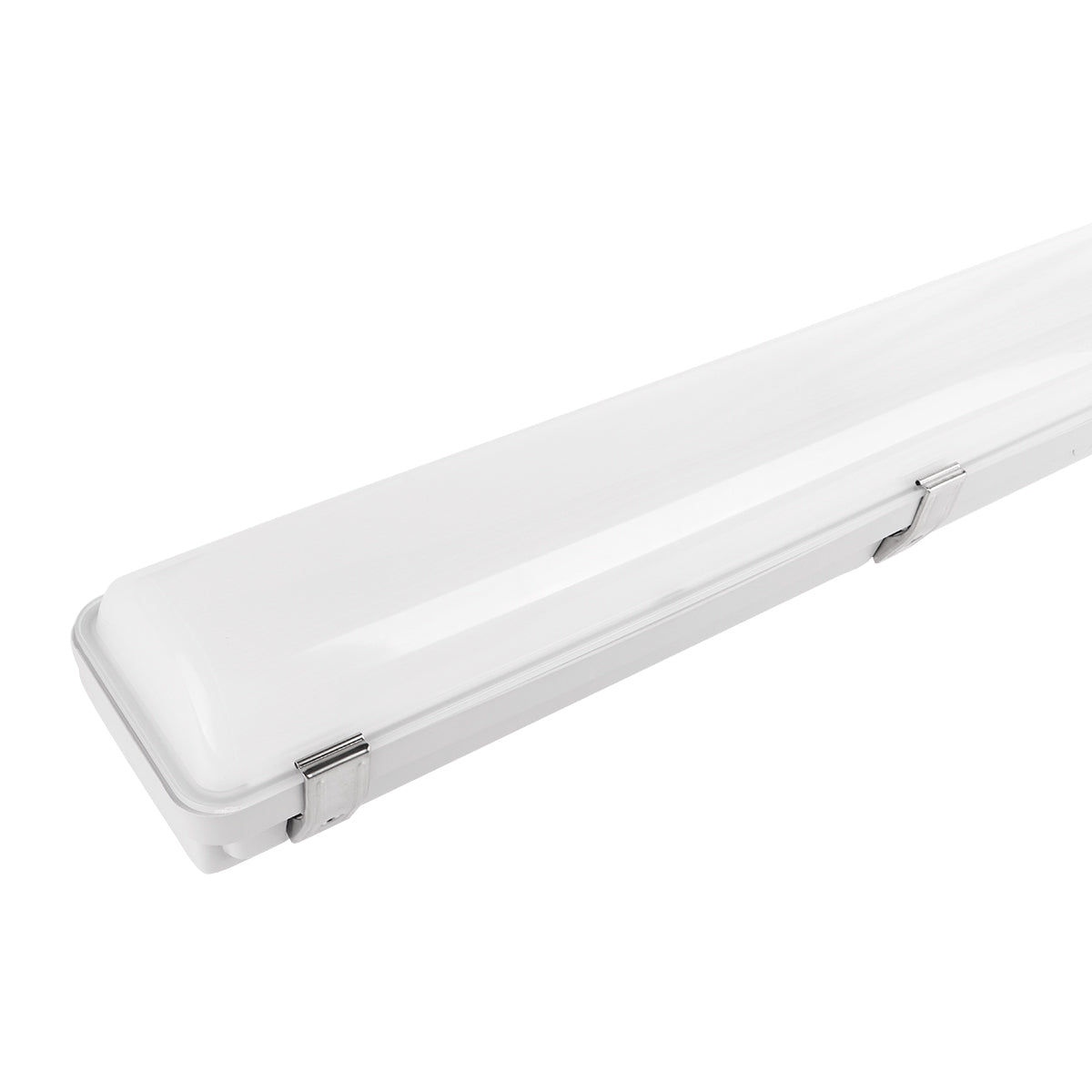

V03 Series Vapor Tight Light
V03 Series Vapor Tight Light
Upgrade industrial and commercial facilities with high-performance, moisture-resistant LED vapor tight lights. The V03 Series offers selectable wattage and color temperature options, delivering reliable illumination in wet and demanding environments.
- Selectable Wattage from 30W to 80W
- Selectable CCT 3000K/4000K/5000K
- IP65 Rated for Moisture & Dust Resistance
- 0-10V Dimming Compatibility
- 5-Year Warranty
DETAILS
Durable, High-Output Lighting for Tough Conditions
Designed for parking garages, warehouses, food processing facilities, and other high-moisture areas, the V03 Series delivers consistent, high-output lighting where durability is critical.
Customizable Lighting Performance
Selectable wattage and CCT options allow users to adjust brightness and color temperature to match application needs.
Rugged, Water-Tight Construction
With an IP65 rating, these fixtures provide superior protection against water and dust, making them ideal for demanding environments.
Easy Installation & Long-Lasting Durability
Surface mount installation ensures quick setup, while the robust design guarantees long-lasting performance.
Applications
Quick-Ship V03 Models
PHOTOMETRIC LAYOUT TOOL
Generate recommended luminaire quantity and spacing based on room geometry and mounting conditions.
- Click the cube icon
to enter room dimensions (length, width, ceiling height). - Workplane Height defines the calculation plane (e.g., 2.5 ft for typical desk height).
- Suspension Length is the vertical distance from the ceiling to the luminaire.
- o Flush or recessed installation: Enter 0 ft.
The layout updates dynamically as parameters are adjusted, displaying recommended fixture quantity and spacing.
Tip: Use the printer icon or arrow icon
in the top bar to generate a printable/shareable layout report.
DOWNLOADS
KEY SPECIFICATIONS
| Lumens Packages | 50W Selectable (30/40/50W) 4,050/5,250/6,500 lumens @ 3000K 4,705/6,150/7,700 lumens @ 4000K 4,450/5,800/7,200 lumens @ 5000K 80W Selectable (60/70/80W) 8,650/9,800/10,400 lumens @ 3000K 8,900/10,100/10,750 lumens @ 4000K 8,750/9,900/10,500 lumens @ 5000K |
| System Efficacy | 130 to 159 lm/W |
| CRI | 80 |
| Dimming Capability | 0 to 10V |
| CCT | 3000K/4000K/5000K Selectable |
| Input Voltage | 120-277VAC |
| Warranty | 5 Years |
| Mounting | Surface Mount |
| Certifications | DLC, UL Wet Location |
*IES file links on this page may not contain an IES file for every available configuration of the model.
