DETAILS

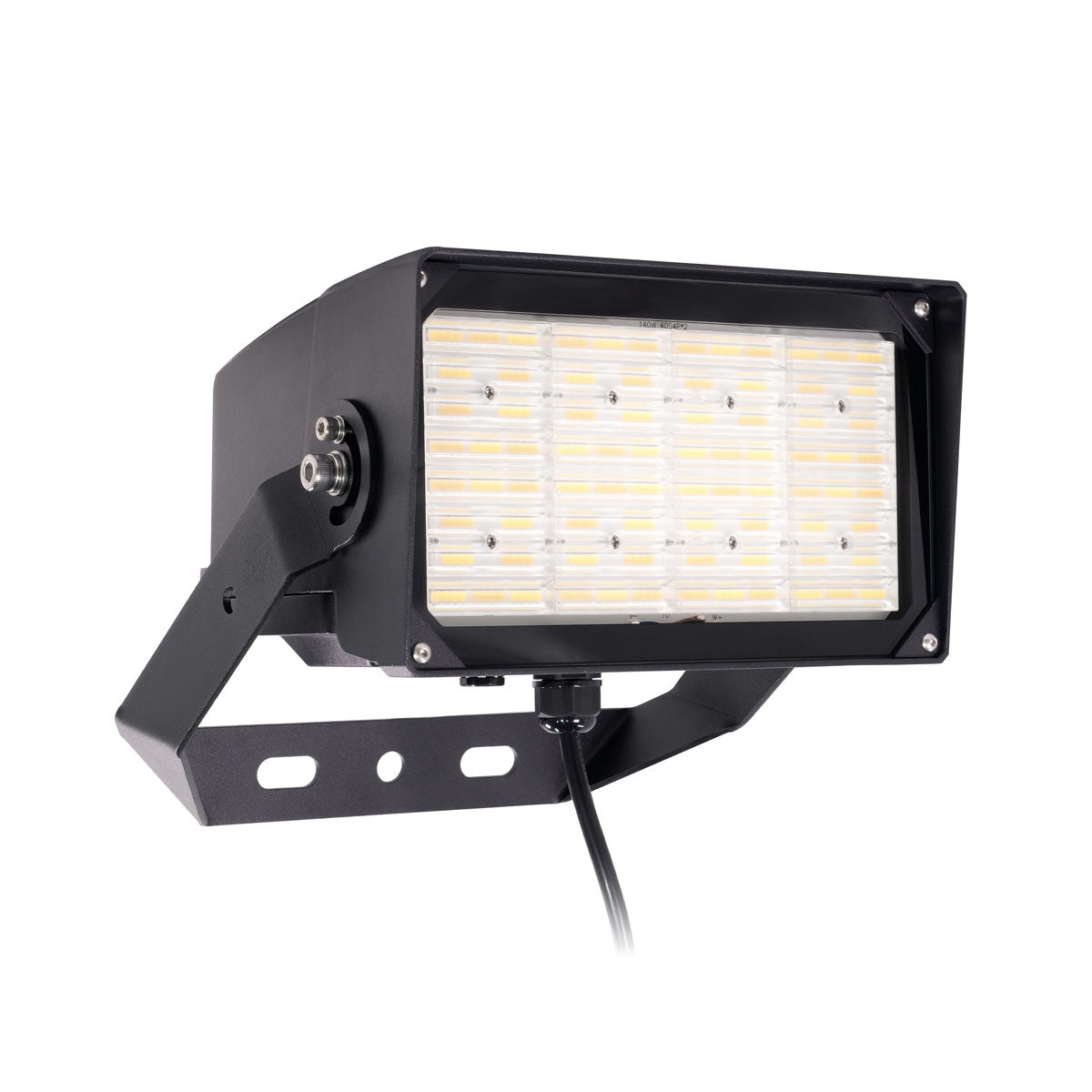

This model features a 150W driver with 100%, 75%, 50%, and 30% power settings, plus 3000K/4000K/5000K CCT selections. Available with 65° x 95° or 35° x 85° beam angle and in black or bronze finish. For DLC information, email sales@ledlivingtechnology.com.
DOWNLOADS
DLC SPECIFICATIONS
LLTVFL-150WCS
DLC Specifications
Configuration
65x95 degrees
100-277V
Black
100-277V
Black
DLC Classification
Premium
DLC Lumens
20100 lm
DLC Wattage
150.0 Watts
Luminous Efficacy
134 lm/W
DLC CCT
3000K
DLC CRI
70
DLC Integral Controls
No
DLC Primary Use
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
LLTVFL-150WCS-BZ
DLC Specifications
Configuration
65x95 degrees
100-277V
Bronze
100-277V
Bronze
DLC Classification
Premium
DLC Lumens
20100 lm
DLC Wattage
150.0 Watts
Luminous Efficacy
134 lm/W
DLC CCT
3000K
DLC CRI
70
DLC Integral Controls
No
DLC Primary Use
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
LLTVFL-150WCS-FN
DLC Specifications
Configuration
35x85 degrees
100-277V
Black
100-277V
Black
DLC Classification
Premium
DLC Lumens
20100 lm
DLC Wattage
150.0 Watts
Luminous Efficacy
134 lm/W
DLC CCT
3000K
DLC CRI
70
DLC Integral Controls
No
DLC Primary Use
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
LLTVFL-150WCS-FN-BZ
DLC Specifications
Configuration
35x85 degrees
100-277V
Bronze
100-277V
Bronze
DLC Classification
Premium
DLC Lumens
20100 lm
DLC Wattage
150.0 Watts
Luminous Efficacy
134 lm/W
DLC CCT
3000K
DLC CRI
70
DLC Integral Controls
No
DLC Primary Use
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
ACCESSORIES
Mounting Options: The light comes with a yoke mount bracket installed. Available as accessories are 60mm or 76mm sleeve adjustable-angle slipfitter mounts for pole mounting and an adjustable wall mount bracket.
NEMA Socket: ANSI C136.41-2013 Dimming Receptacle, 3pin
Photocell: Factory installed: must be specified at time of order. Compatible with yoke mount bracket only.
Return to main product: FL Series LED Flood Light - Field Selectable
