DLC SPECIFICATIONS
LLTVRHB04-240W-40-120 DLC Specifications
Configuration
4000K CCT
120° open area beam angle
120-277VAC
120° open area beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-40-120-480 DLC Specifications
Configuration
4000K CCT
120° open area beam angle
277-480VAC
120° open area beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-40-90 DLC Specifications
Configuration
4000K CCT
90° wide aisle beam angle
120-277VAC
90° wide aisle beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-40-90-480 DLC Specifications
Configuration
4000K CCT
90° wide aisle beam angle
277-480VAC
90° wide aisle beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-40-60 DLC Specifications
Configuration
4000K CCT
60° medium aisle beam angle
120-277VAC
60° medium aisle beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-40-60-480 DLC Specifications
Configuration
4000K CCT
60° medium aisle beam angle
277-480VAC
60° medium aisle beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
4000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-120 DLC Specifications
Configuration
5000K CCT
120° open area beam angle
120-277VAC
120° open area beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-120-480 DLC Specifications
Configuration
5000K CCT
120° open area beam angle
277-480VAC
120° open area beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-90 DLC Specifications
Configuration
5000K CCT
90° wide aisle beam angle
120-277VAC
90° wide aisle beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-90-480 DLC Specifications
Configuration
5000K CCT
90° wide aisle beam angle
277-480VAC
90° wide aisle beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-60 DLC Specifications
Configuration
5000K CCT
60° medium aisle beam angle
120-277VAC
60° medium aisle beam angle
120-277VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240W-50-60-480 DLC Specifications
Configuration
5000K CCT
60° medium aisle beam angle
277-480VAC
60° medium aisle beam angle
277-480VAC
DLC Lumens
36300 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
151 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-120 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
120° open area beam angle
120-277VAC
120° open area beam angle
120-277VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-120-480 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
120° open area beam angle
277-480VAC
120° open area beam angle
277-480VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-90 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
90° wide aisle beam angle
120-277VAC
90° wide aisle beam angle
120-277VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-90-480 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
90° wide aisle beam angle
277-480VAC
90° wide aisle beam angle
277-480VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-60 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
60° medium aisle beam angle
120-277VAC
60° medium aisle beam angle
120-277VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
LLTVRHB04-240WCS-60-480 DLC Specifications
Configuration
CC Selectable (4000K/5000K)
60° medium aisle beam angle
277-480VAC
60° medium aisle beam angle
277-480VAC
DLC Lumens
36500 lm
DLC Wattage
240.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT (Ra)
5000K
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
ACCESSORIES
Controls: Plug-in PIR or microwave motion sensor, remote controller.
Reflectors: Polycarbonate reflectors available with or without drop lens.
Mounting brackets: Angle-adjustable U bracket or pendant mount adapter

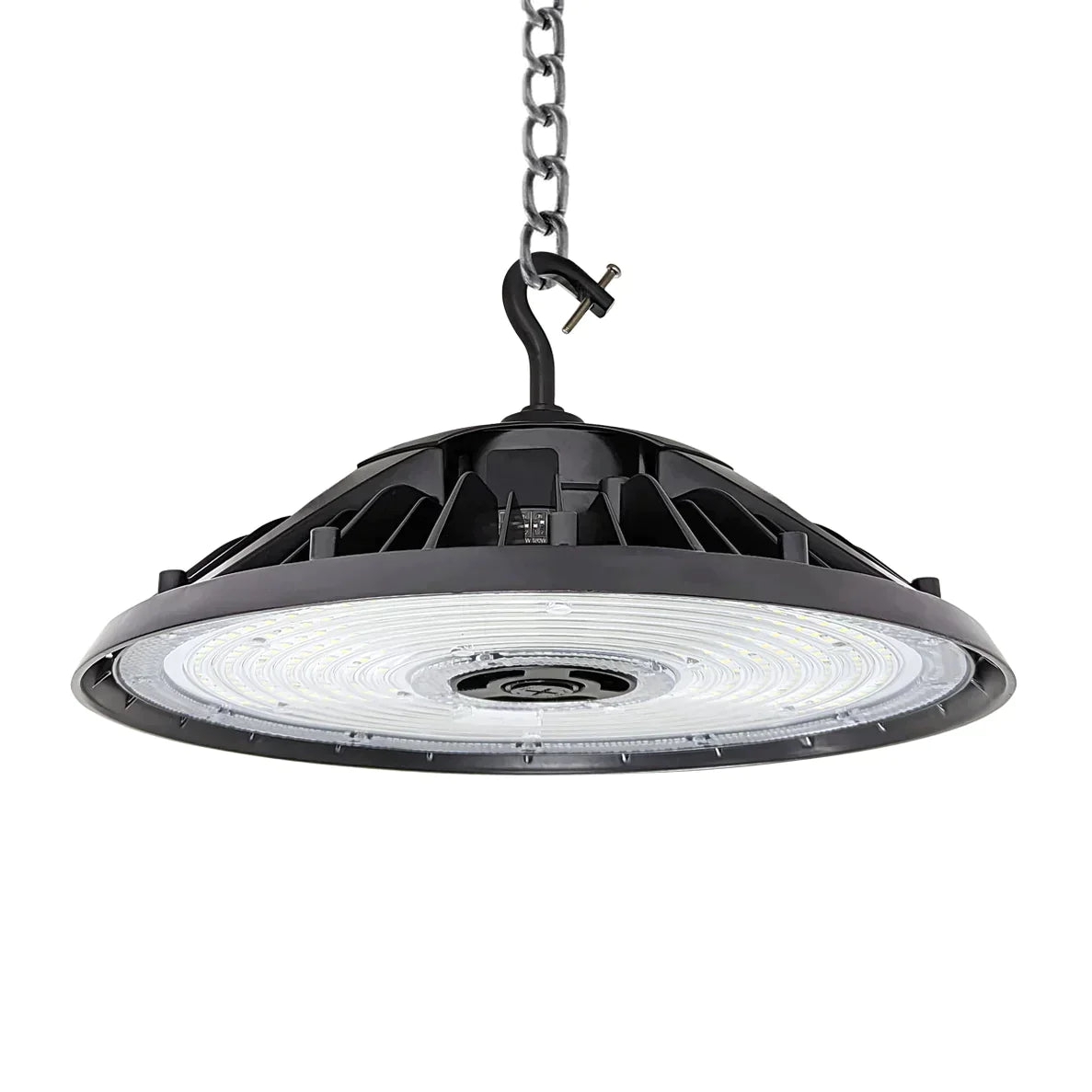

Return to main product: RHB04 Series Round LED High Bay
