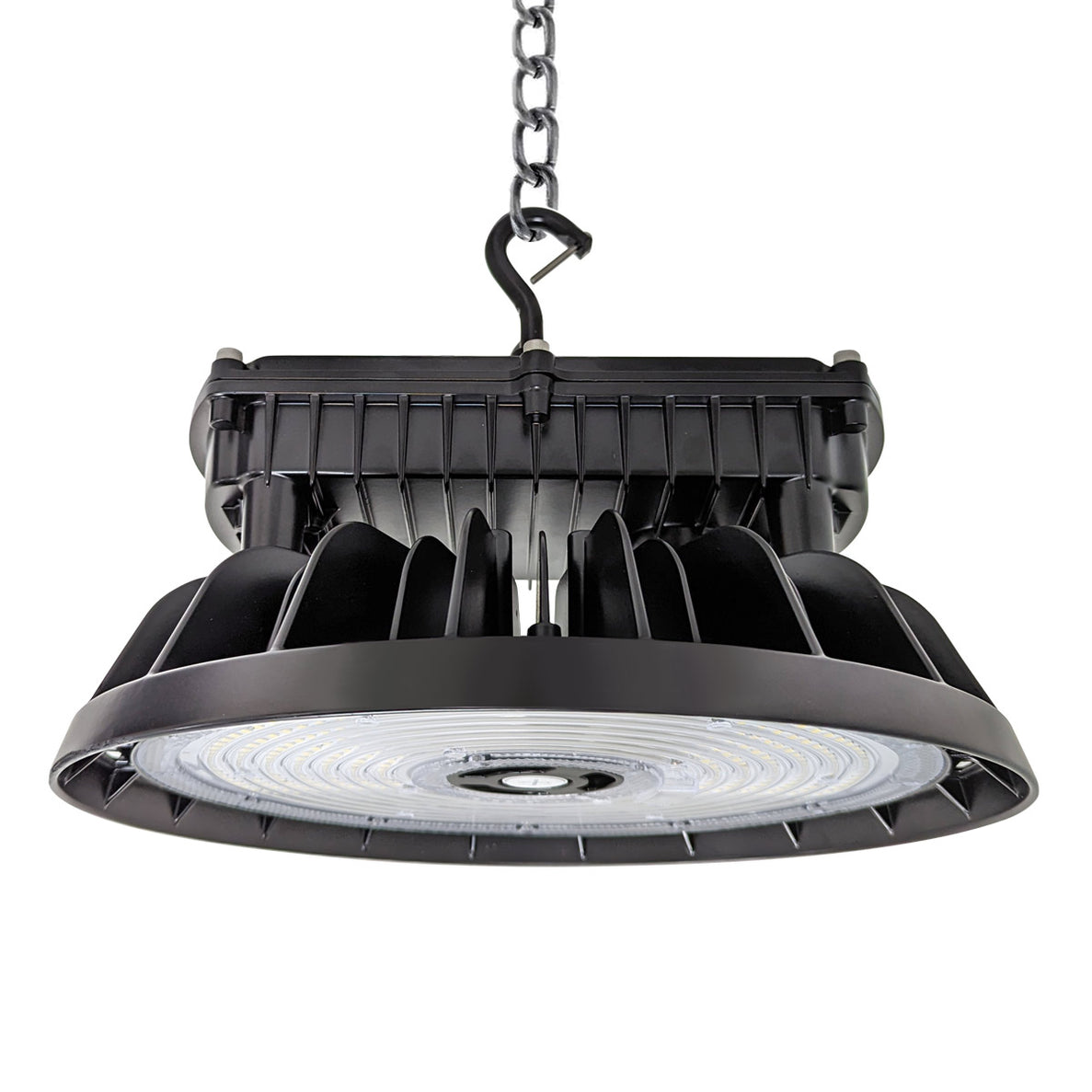

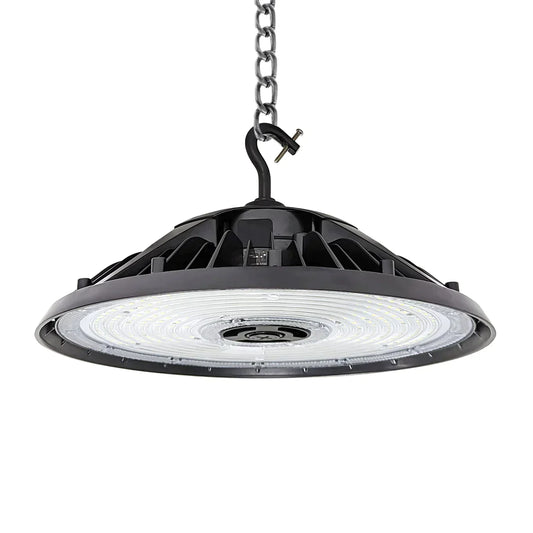

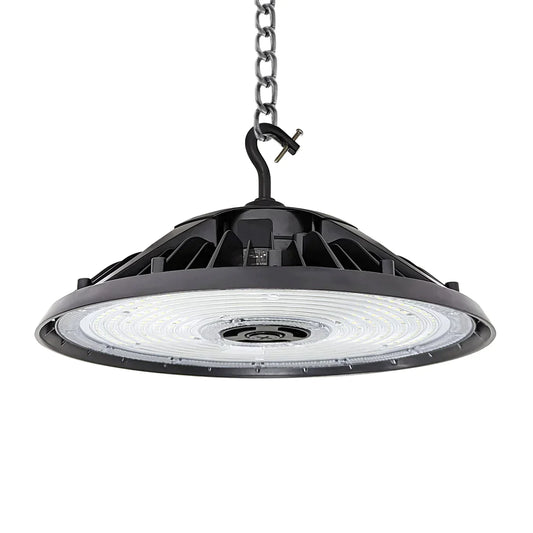

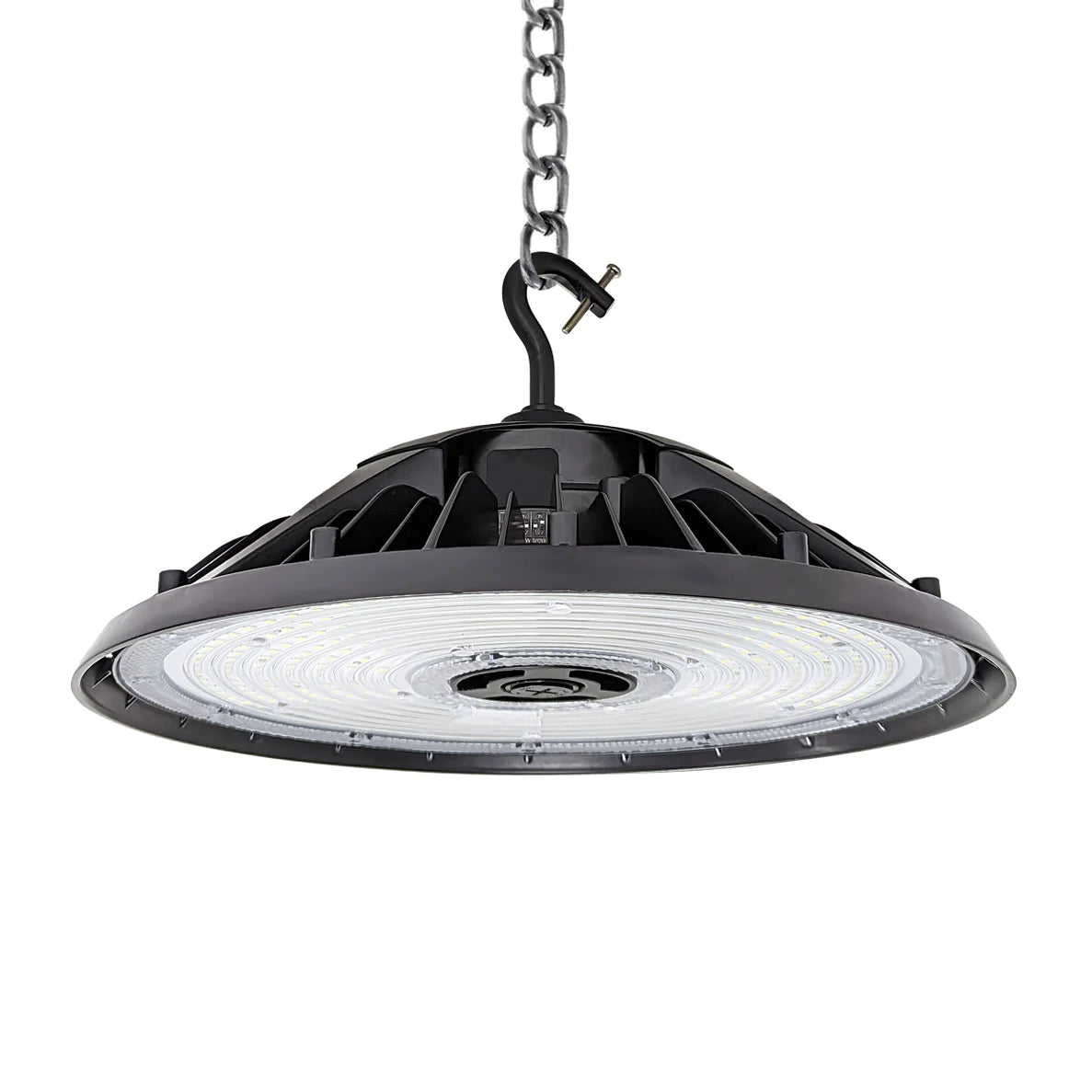

RHB04 Series Round LED High Bay

RHB04 Series Round LED High Bay

The RHB04 Series Round LED High Bay features high luminous efficacy combined with excellent build quality and a CRI of >80. Outfit your entire facility with premium lighting at a very reasonable cost. Great for retail stores and showrooms, event centers and arenas, warehouses and distribution centers.

  • Fixed or wattage selectable drivers
  • CCT fixed or selectable with 4000K & 5000K settings
  • Output from 15,300 to 53,400 lumens
  • cUL Wet Location
  • 5-Year Warranty
DLC Listed UL Listed Wattage Selectable CCT Selectable CRI 80 120-277V 277-480V 0-10V Dimming
View full details

Wide Range of Choices to Suit Any Application

The RHB04 Series of round LED high bays are available in a wide range of specifications and configurations, whether you're looking for high luminous efficacy, wide or narrow beam angle, configurable models, and more, you'll find a light to suit your high-ceiling space here.

RHB04-D Standard LED High Bay Models

150 lm/W Efficacy • Fixed Wattage & CCT • 120˚, 90˚, or 60˚ Beam Angle

These models standard lumen output hits an impressive 150 lm/W. Choose between 6 wattage options, 2 color temperatures, and 2 input voltages.

RHB04-D Standard Selectable LED High Bay Models

150 lm/W Efficacy • Selectable Wattage & Fixed or Selectable CCT • 120˚, 90˚, or 60˚ Beam Angle

Set your lumen output during installation with these wattage-selectable models. Choose between 3 wattage sets, 2 color temperatures (or selectable CCT), and 2 input voltages.

RHB04-W8H High Lumen LED High Bay Models

170 lm/W Efficacy • Fixed Wattage & CCT • 120˚, 90˚, or 60˚ Beam Angle

Outstanding lumen output with high luminous efficacy! Choose between 6 wattage options, 2 color temperatures, and 2 input voltages.

RHB04-W8H High Lumen Selectable LED High Bay Models

170 lm/W Efficacy • Selectable Wattage & Fixed or Selectable CCT • 120˚, 90˚, or 60˚ Beam Angle

These high efficacy models come with the flexibility of selectable wattage. Choose between 3 wattage sets, 2 color temperatures, and 2 input voltages.

*IES file links on this page may not contain an IES file for every available configuration of the model.

DETAILS

The RHB04 Series of round LED high bay luminaires delivers unmatched brilliance for your space. With its superior design, this luminaire boasts top-tier performance and versatility.

Efficiency at Its Finest

Choose between a luminous efficacy of 150 lm/W or a dazzling 170 lm/W. With lumen packages that reach 53,400 lumens, the RHB04 ensures a brilliantly lit environment no matter how high your ceilings, optimizing productivity and safety.

Customizable For Your Needs

Beam Angles: When you require expansive illumination or a more concentrated light spread, the RHB04 has you covered with three available beam angles.

Wattage: Opt between fixed or selectable wattage to best serve your energy consumption, installation, and inventory needs.

Pendant Mount Adapter: Offers a sleek and stylish mounting alternative.

Easy Controls

Dimming capability is built in. Add an easy plug-in motion sensor to create a dynamic and responsive lighting experience.

Installation Options

G Hook: Hang effortlessly using the included G hook for quick setups.

Angle Adjustable U Bracket: For a more tailored light direction.

CCT: Meet the needs of each space and application with 4000K and 5000K color temperature options, available as fixed or on-site selectable.

Safety First

Built with integrated surge protection, the RHB04 Series guarantees the longevity of your luminaire against unpredictable power fluctuations. Furthermore, its cUL listing for Wet Locations and an operating temperature rating from -40° to 113° F assures steadfast performance, regardless of the environment.

Ready for Tomorrow, Today

The RHB04 Series of round LED high bay luminaires are more than just lights. They are a commitment to quality, efficiency, and versatility. Illuminate your spaces with the best. Choose RHB04 for your next lighting project.

DOWNLOADS

Download Spec Sheet Spec Sheet - RHB04 Series Round LED High Bays

KEY SPECIFICATIONS

Lumens Package 100W, Up to 18,000 lumens
120W, Up to 21,500 lumens
150W, Up to 26,000 lumens
200W, Up to 34,400 lumens
240W, Up to 41,300 lumens
310W, Up to 53,400 lumens
150W Selectable (150/120/100W), Up to 26,000 lumens
240W Selectable (240/200/180W), Up to 41,300 lumens
310W Selectable (310/270/240W), Up to 53,400 lumens
System Efficacy 150 lm/W (Standard), 170 lm/W (High Lumen)
CRI 80
CCT 4000K & 5000K, fixed or selectable at install
Beam Angle 120°, 90°, or 60°.
Controls 0-10V dimming included, microwave or PIR sensor available
Enclosure Rating cUL Wet Location
System Watts Fixed wattage models available in 100W, 120W, 150W, 200W, 240W or 310W
Selectable models:
150W Selectable (150/120/100W)
240W Selectable (240/200/180W)
310W Selectable (310/270/240W)
Input Voltage 120-277VAC or 277VAC-480VAC. 120-347VAC available as special order.
Warranty 5 Years
Certifications DLC, UL
DLC Listing Primary Use Category High-Bay Luminaires for Commercial and Industrial Buildings

Accessories

Controls: Plug-in PIR or microwave motion sensor, remote controller.

Reflectors: Polycarbonate reflectors available with or without drop lens.

Mounting brackets: Angle-adjustable U bracket or pendant mount adapter
