RHB04 Series Round LED High Bay

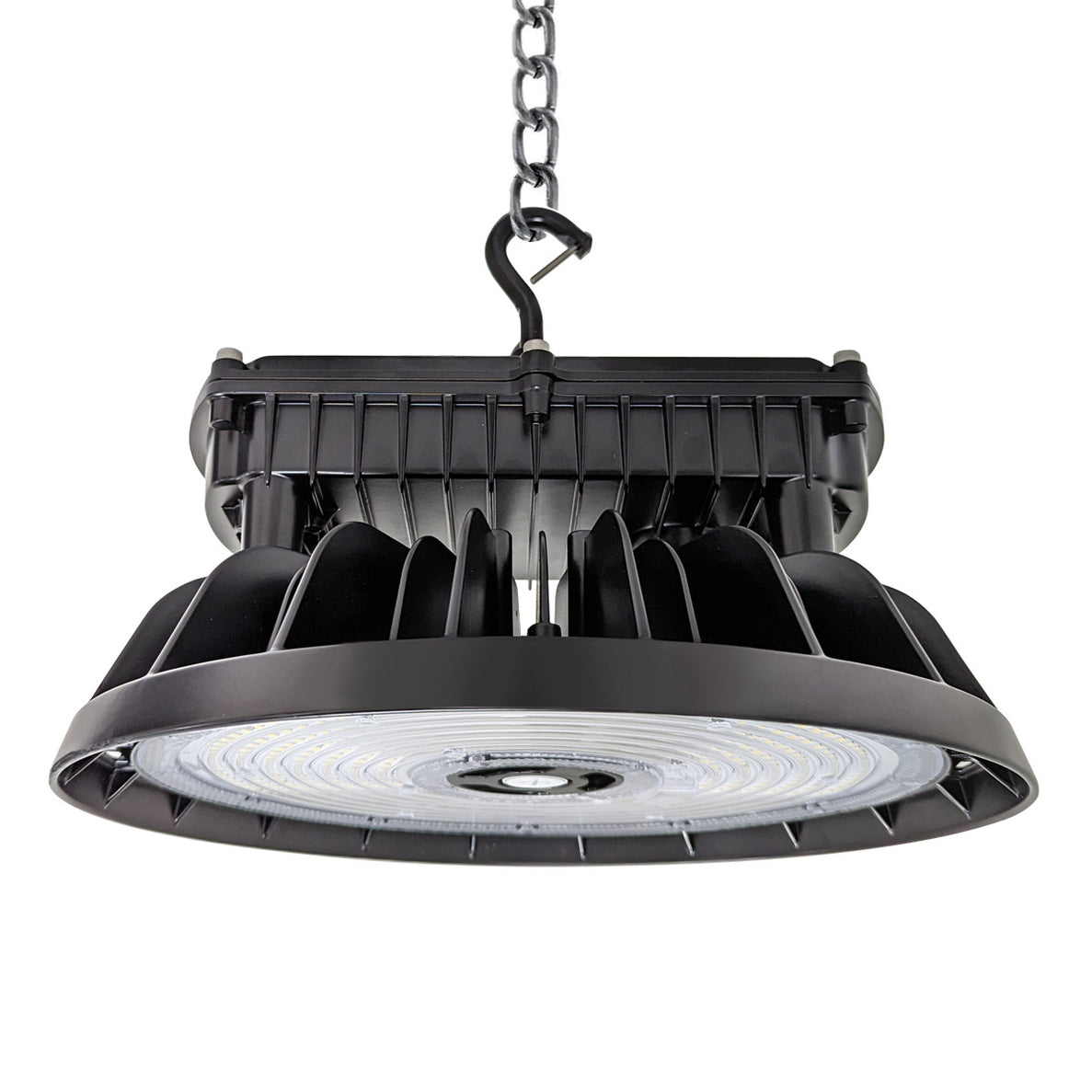

RHB04-310W Selectable UFO LED High Bay - Up to 47,000 Lumens

RHB04-310W Selectable UFO LED High Bay - Up to 47,000 Lumens

Attractive, cost-effective round LED high bay with an impressive 150 lm/W efficacy.

  • Up to 47,000 lumens
  • 310W/270W/240W
  • 4000K, 5000K or 4000K/5000K Selectable
  • 120°

CONFIGURE & REQUEST QUOTE

Select your options & add ons, then click Add to Quote. You can add multiple products or configurations before submitting your quote request.

Color Temperature
Optics
Voltage

SKU:

Return to main product:
RHB04 Series Round LED High Bay View full details

DOWNLOADS

Download Spec Sheet Spec Sheet - RHB04 Series Round LED High Bays

DLC SPECIFICATIONS

LLTVRHB04-310W-40-120 DLC Specifications

Configuration
4000K CCT
120° open area beam angle
120-277VAC
DLC Classification
Premium
DLC Lumens
47300 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
153 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB04-310W-40-120-480 DLC Specifications

Configuration
4000K CCT
120° open area beam angle
277-480VAC
DLC Classification
Premium
DLC Lumens
47300 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
153 lm/W
DLC CCT
4000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB04-310W-50-120 DLC Specifications

Configuration
5000K CCT
120° open area beam angle
120-277VAC
DLC Classification
Premium
DLC Lumens
47300 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
153 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB04-310W-50-120-480 DLC Specifications

Configuration
5000K CCT
120° open area beam angle
277-480VAC
DLC Classification
Premium
DLC Lumens
47300 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
153 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB04-310WCS-120 DLC Specifications

Configuration
CC Selectable (4000K/5000K)
120° open area beam angle
120-277VAC
DLC Classification
Premium
DLC Lumens
47000 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

LLTVRHB04-310WCS-120-480 DLC Specifications

Configuration
CC Selectable (4000K/5000K)
120° open area beam angle
277-480VAC
DLC Classification
Premium
DLC Lumens
47000 lm
DLC Wattage
310.0 Watts
Luminous Efficacy
152 lm/W
DLC CCT
5000K
DLC CRI
80
DLC Integral Controls
Yes
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings

ACCESSORIES

Controls: Plug-in PIR or microwave motion sensor, remote controller.

Reflectors: Polycarbonate reflectors available with or without drop lens.

Mounting brackets: Angle-adjustable U bracket or pendant mount adapter

Return to main product: RHB04 Series Round LED High Bay
