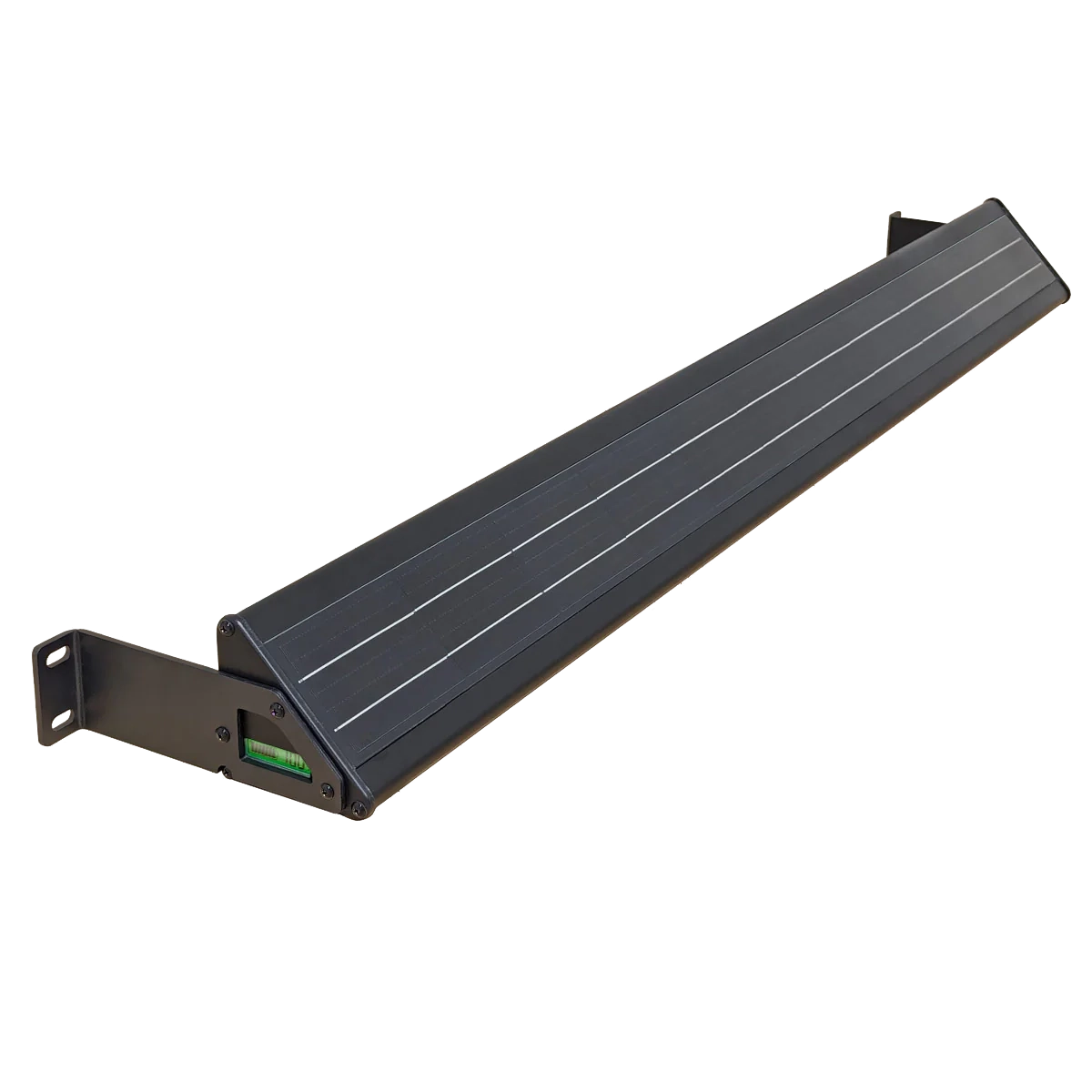

SB Series Solar LED Sign & Billboard Light
SB Series Solar LED Sign & Billboard Light
- 500 to 2,000 lumens
- 2,000 lm model typically stocked
- 4000K/5000K selectable (other CCTs by special order)
- 80 CRI for good color rendering of your signs
- Integrated solar panel & battery
Quick-Ship SB Series Solar Billboard Lights

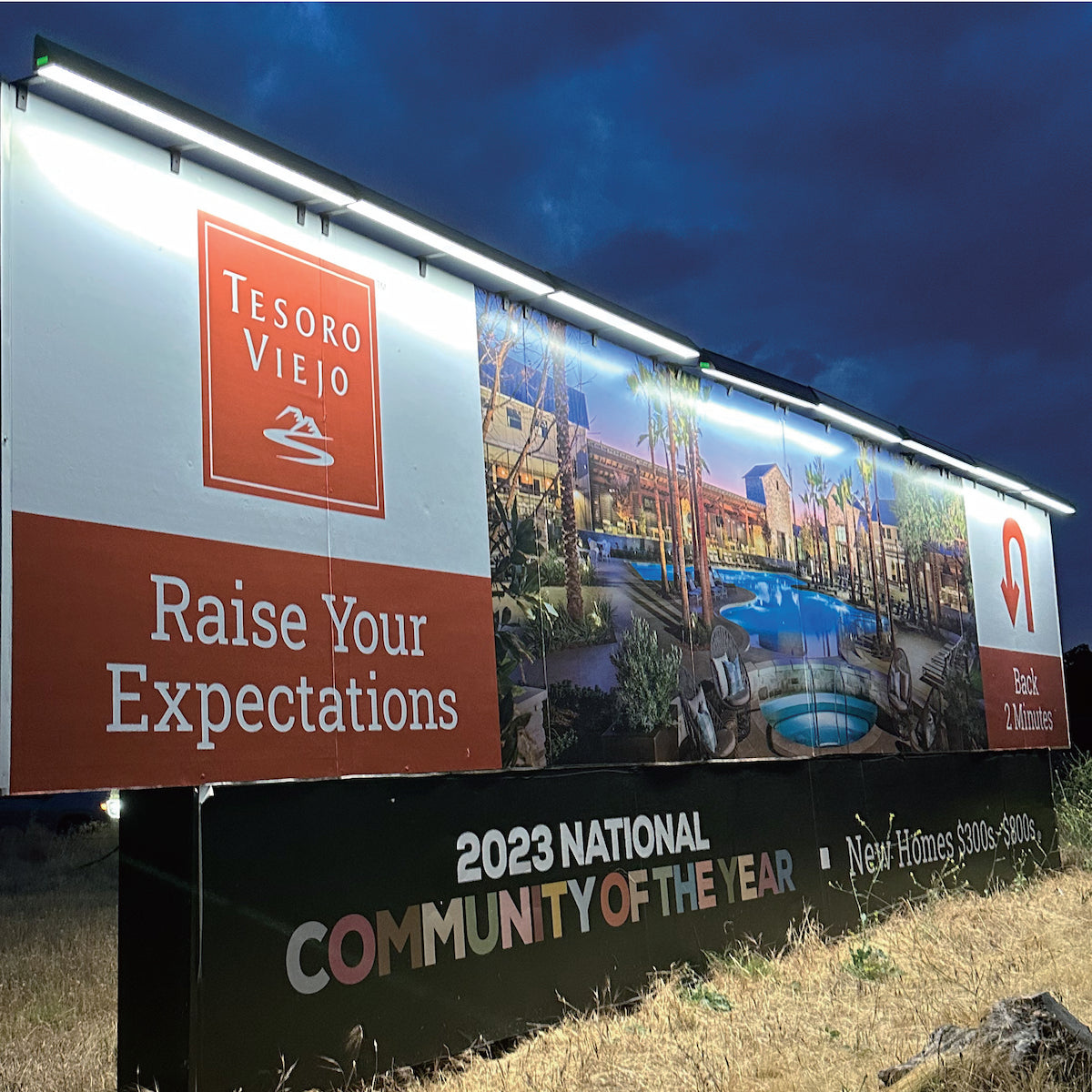

Our SB Series LED Solar Sign & Billboard Lights are a popular solution to lighting signage, especially in areas without access to an electrical connection. Below are the models in our Quick Ship program. For additional configurations, see the SB Series Solar Sign Lights datasheet.
When to Specify This Sign Light Model

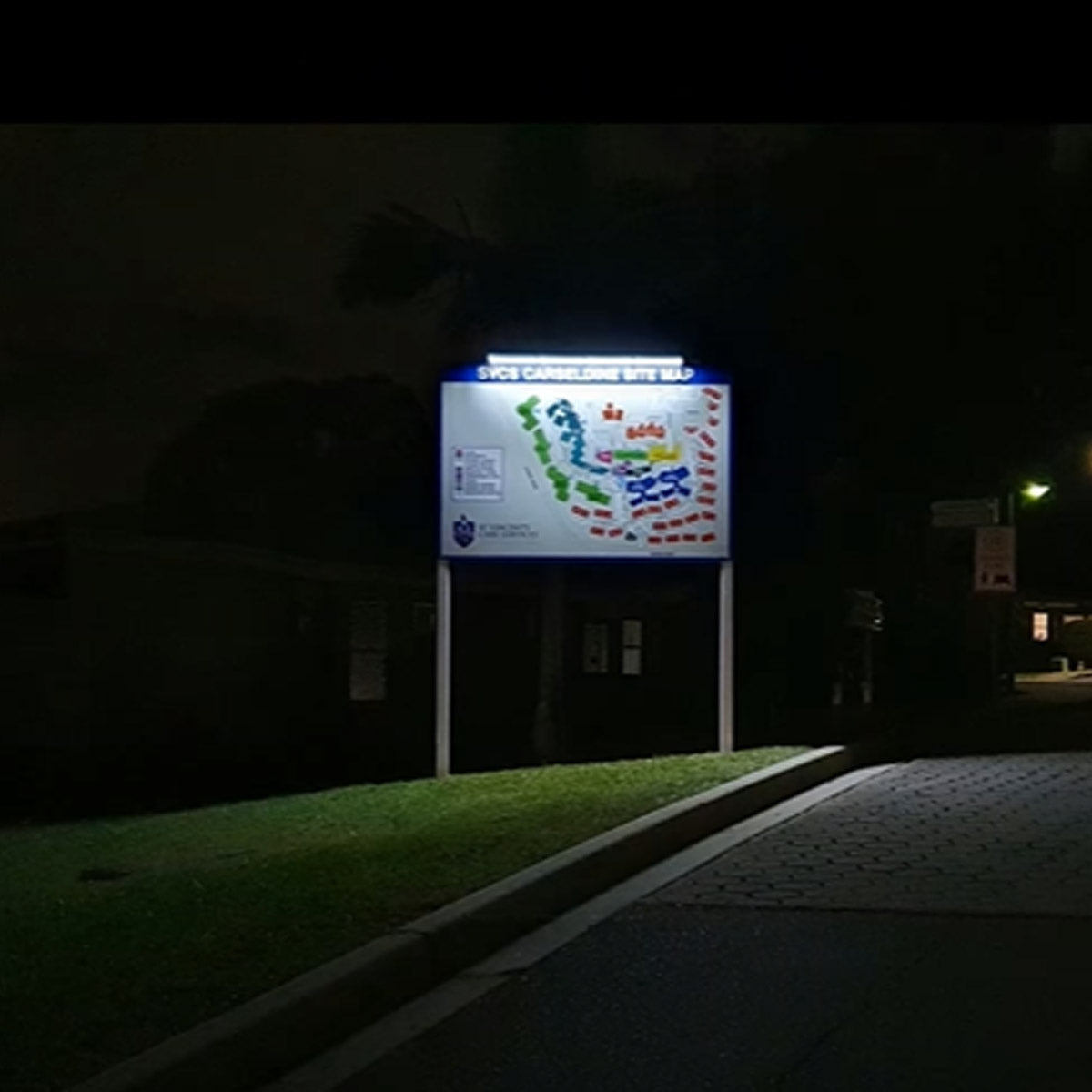

- ✔ Storefront signs, monument signs, and bulletin boards with flat mounting surfaces
- ✔ Continuous façade illumination and wall-wash lighting applications
- ✔ Advertising signage requiring high color accuracy (high CRI) for brand visibility
- ✔ Projects needing high brightness in the evening with reduced output overnight for energy efficiency
- ● Billboard lighting applications up to 8ft height

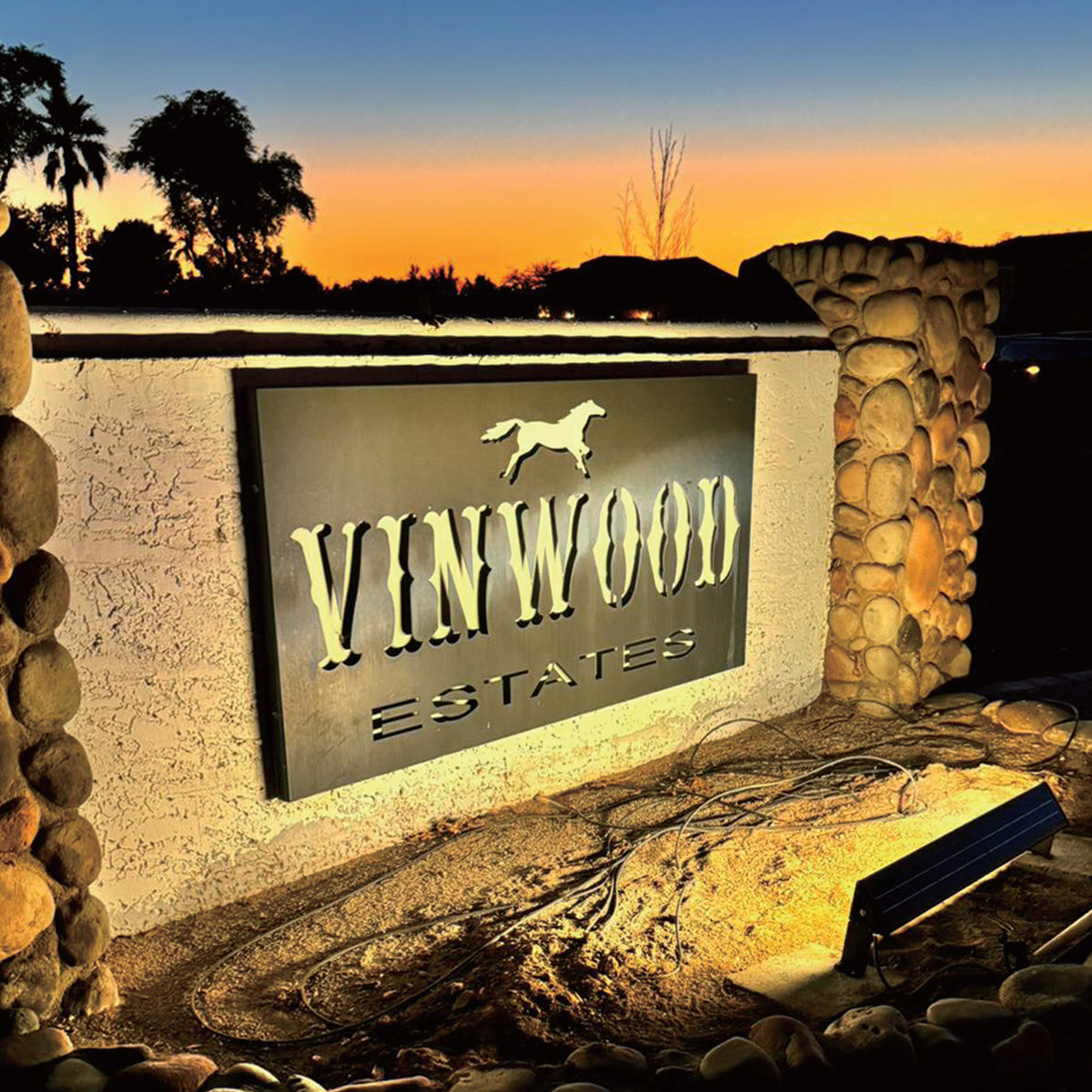

- ●Front-lighting textured monument signs where downlighting would create shadows (ground spike accessory required)
- ◇ The project requires extended high-output runtime into early morning hours
- ◇ Ideal for locations with limited solar charge or all-night visibility requirements
- ◇ The installation is pedestrian-facing or roadway-adjacent and requires enhanced glare reduction
- ◇ A warmer color temperature (CCT) is preferred for hospitality, residential, or mixed-use environments
- ◇ Billboard height exceeds 8ft
- ◇ Installations are located along highways or high-speed traffic corridors
- ◇ North-facing signage requires higher output or wider beam distribution
Sizing Guide: Quick Ship Options
| Model | 30" Sign Width |
48" Sign Width |
72" Sign Width |
96" Sign Width |
Or Minimum of One Fixture Per: |
|---|---|---|---|---|---|
| LLTVSB-20 (4ft fixture) | — | 1 | 1 | 2 | 78" |
For sign widths over 96", specify one additional fixture per 78" of additional width. Dark sign backgrounds or high ambient light environments may require increased fixture density for optimal visibility.
Provide a few project details and we’ll recommend the appropriate fixture configuration, spacing, and series.
DETAILS

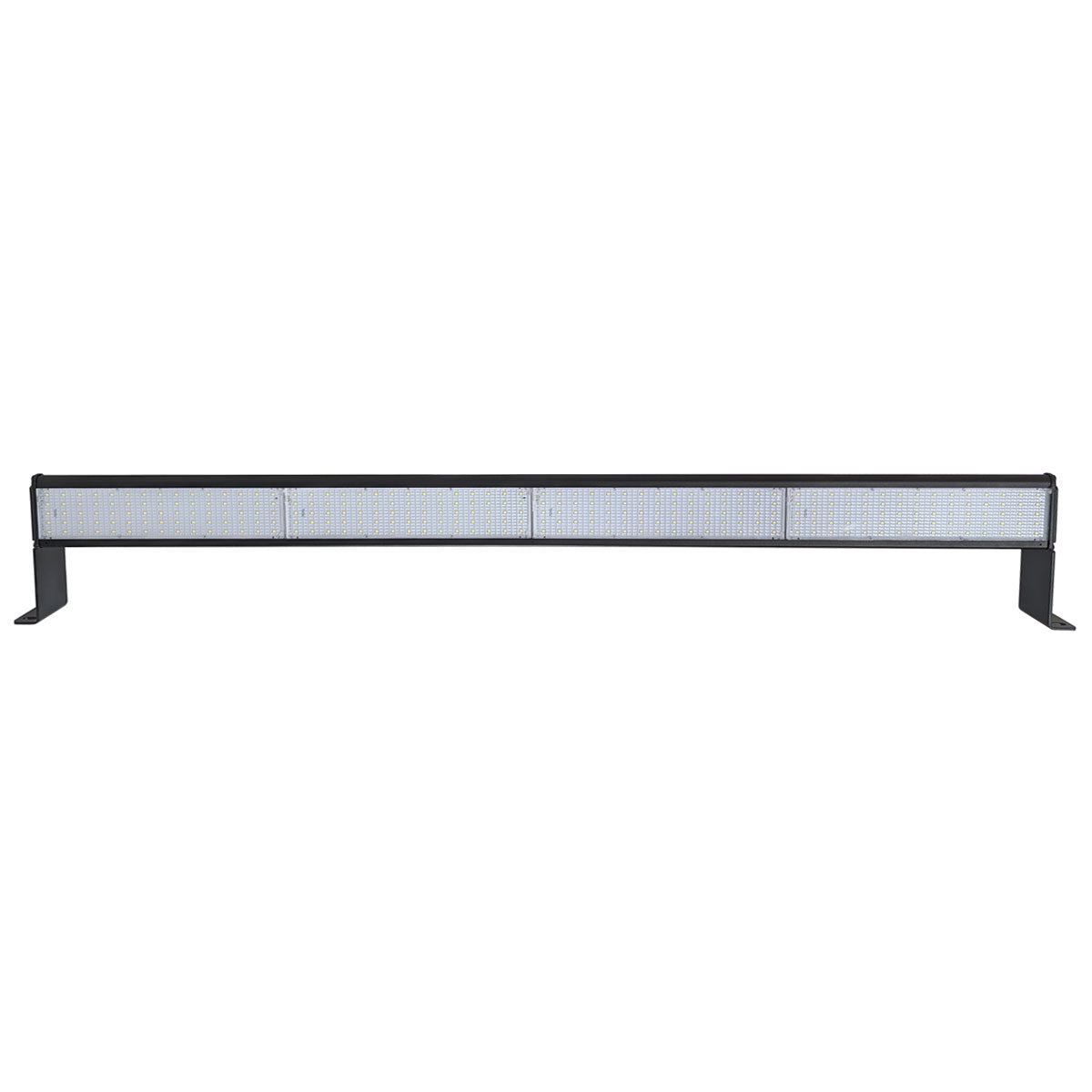

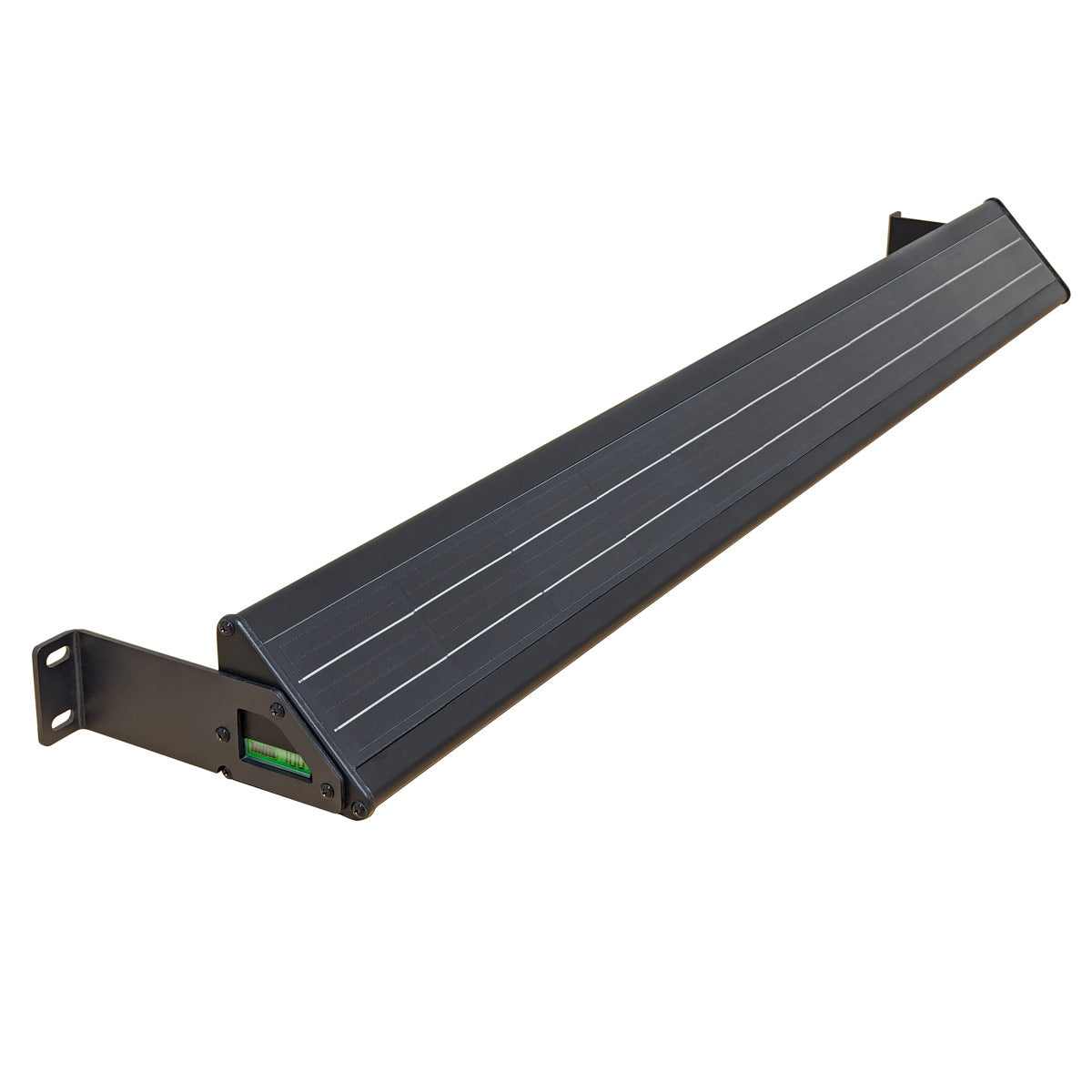

Brilliantly light your billboards, signs, and building walls with zero-energy-cost solar power. Our SB Series Solar Sign and Billboard Light features an integrated high-conversion mono-crystalline photovoltaic panel, a lithium ion battery, and efficient LED technology, all of which contribute to maximizing runtime.
- Automatically activates at dusk and in other low-light conditions
- Provides reliable illumination through the night
- Timer dimming feature conserves energy to allow the light to operate through two to three rainy days
- Comes standard with selectable 4000K/5000K CCT to cover the most popular color temperatures for sign and billboard lighting
- Easy install: no electrical connection required

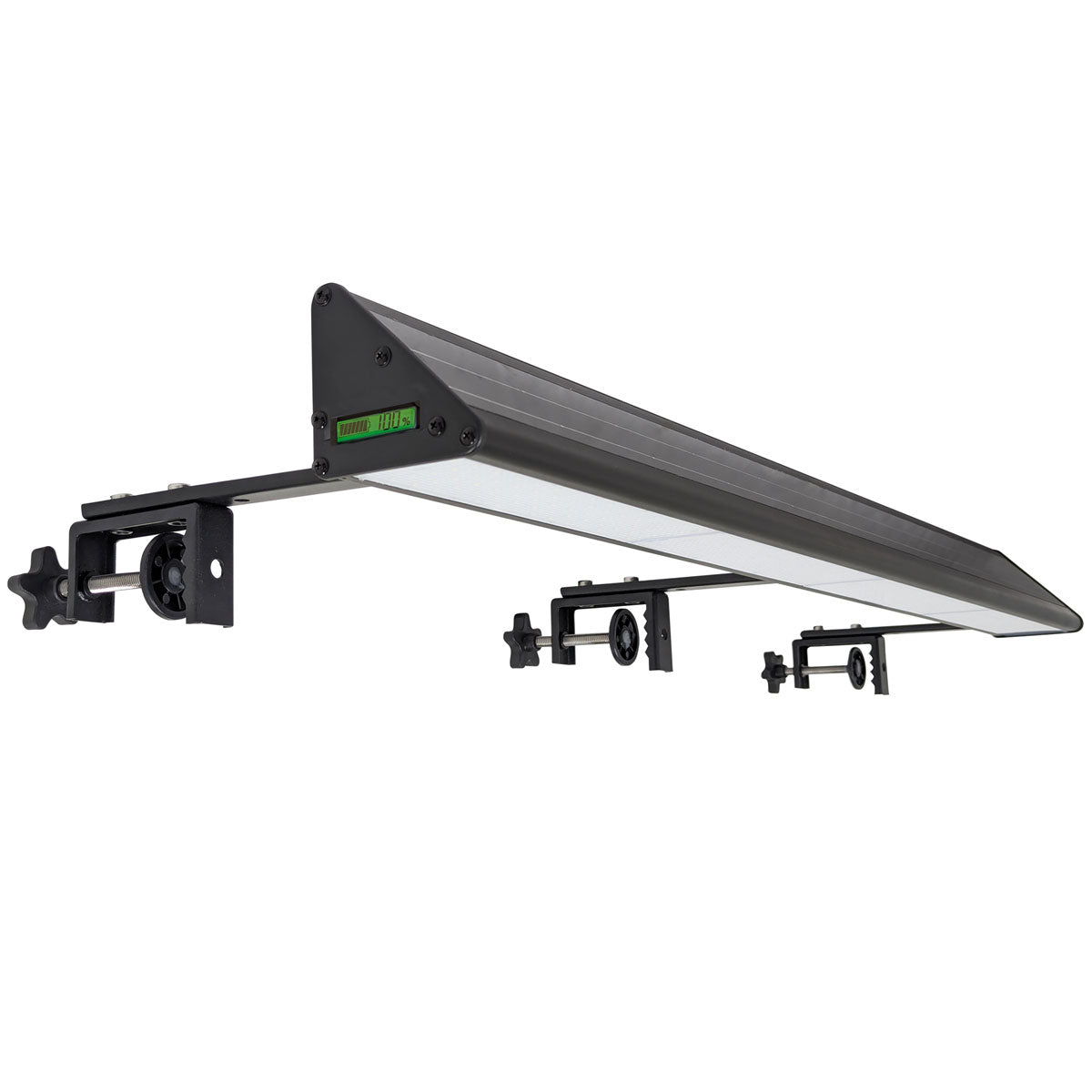

- Light can be screwed directly to the sign or wall; clamp-mount brackets are available for mounting above signs and billboards
- Available in sizes from 1ft to 4ft
- Quick-ship model is 4ft long, 2,000 lumens, with 4000K/5000K CCT
Order SB Series sign & billboard lights for your project today.
DOWNLOADS
*IES file links on this page may not contain an IES file for every available configuration of the model.
KEY SPECIFICATIONS
| Lumens & Wattage |
1ft Model: 5W, 500 lumens 2ft Model: 10W, 1,000 lumens 3ft Model: 15W, 1,500 lumens 4ft Model: 20W, 2000 lumens* * Typically stocked |
| System Efficacy | 100 lm/W |
| CRI | >80 |
| Beam Angle | 120° |
| CCT | 4000K/5000K selectable (other CCTs by special order) |
| Operation | 100% brightness for the first 4 hours, followed by extended low-light operation (25% brightness) through the remainder of the night |
| Battery | Li-Ion |
| Solar Panel Type | Mono-crystalline |
| Enclosure Rating | IP65, IK08 |

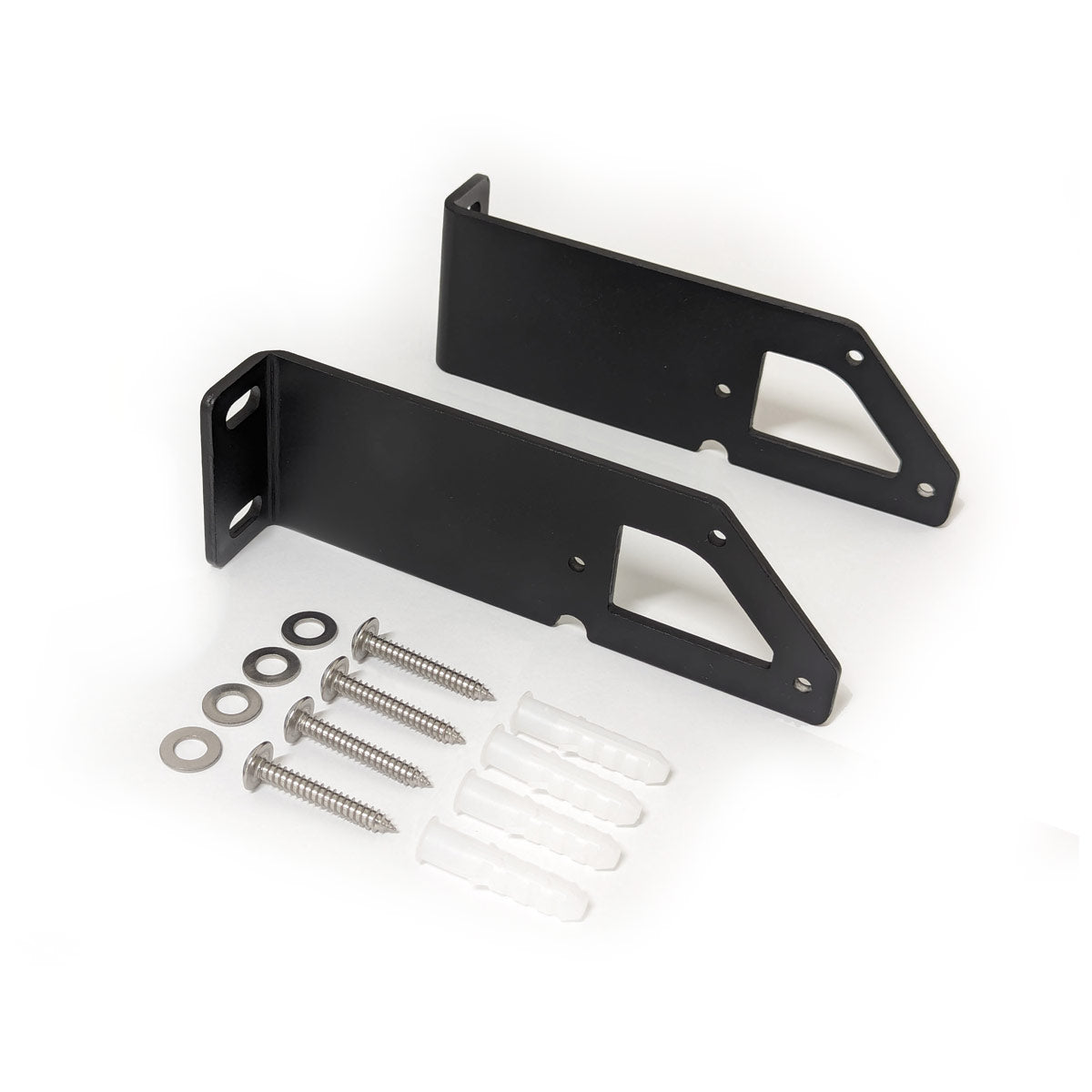

| Mounting | Surface mounting brackets included. Clamp mounts available as an accessory. |
| Warranty | 3 Years |
Accessories

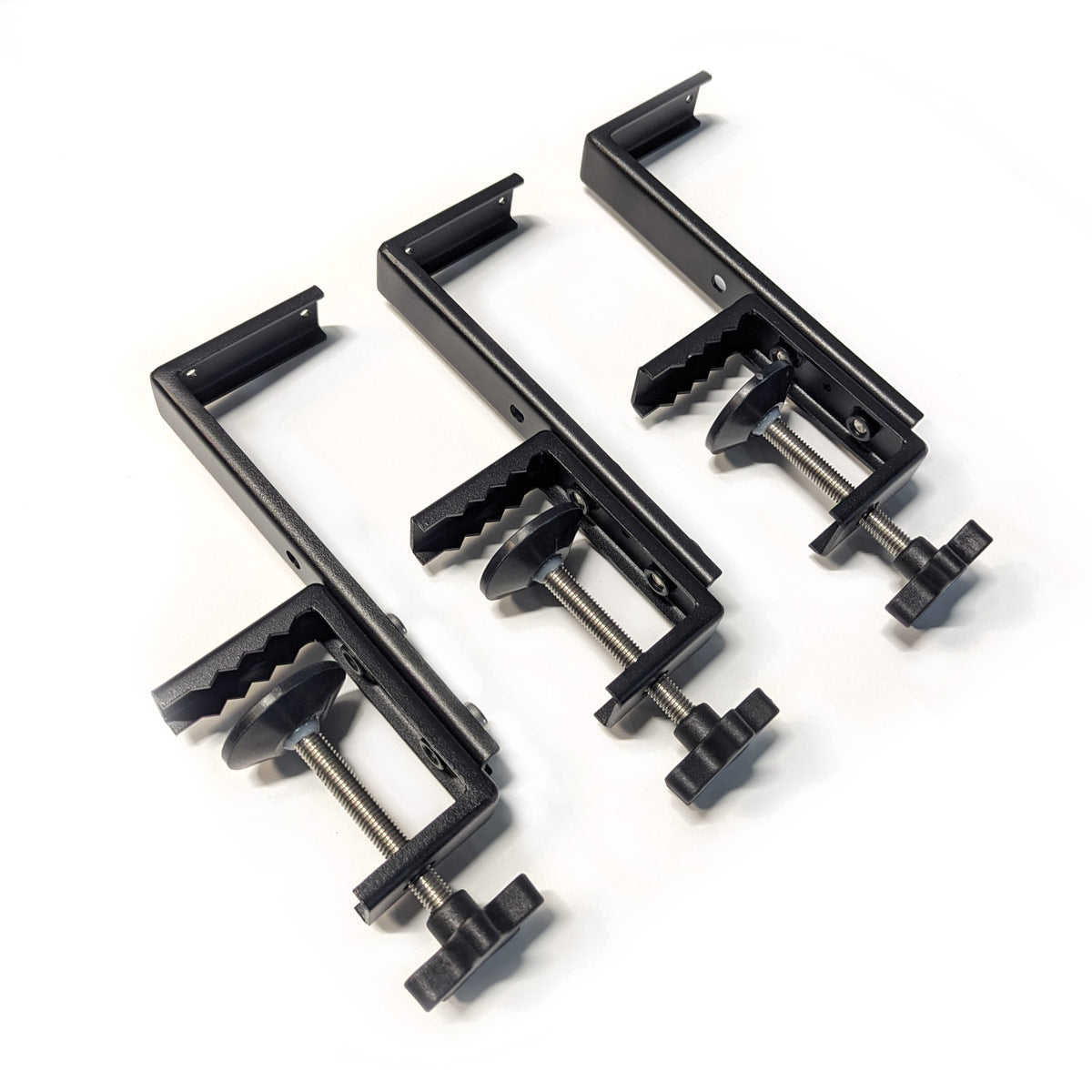

Clamp mount brackets, Additional 10W or 25W solar panel
