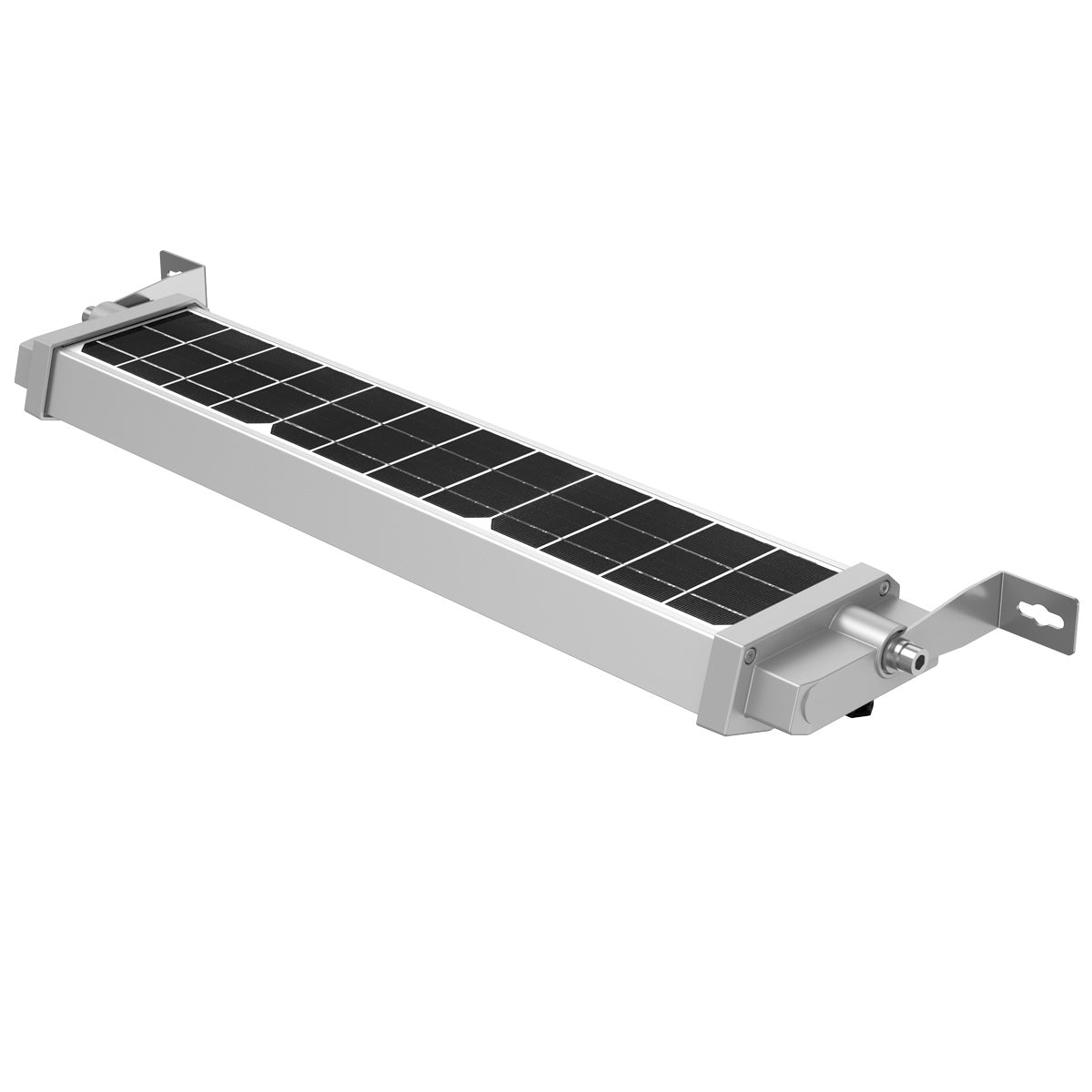

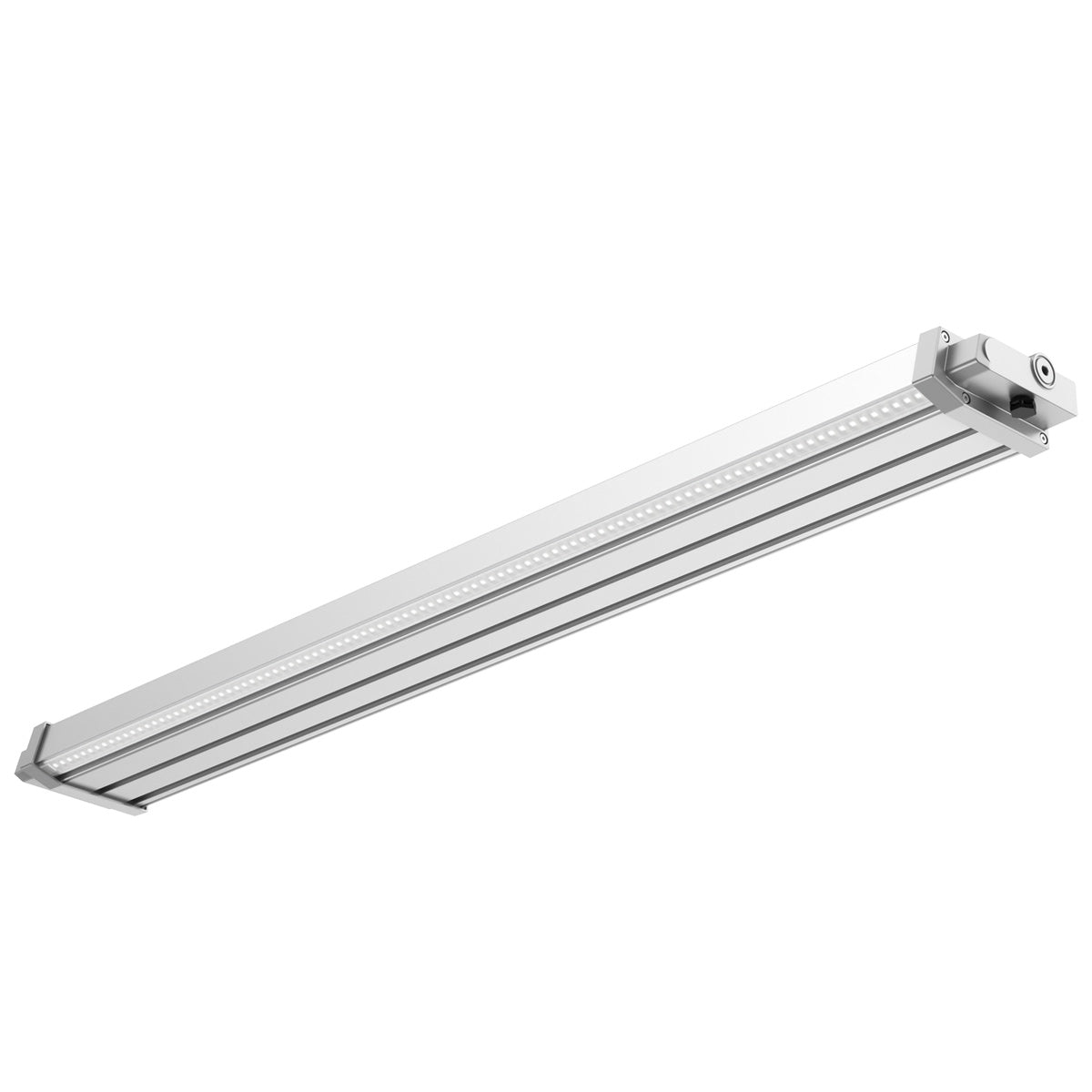

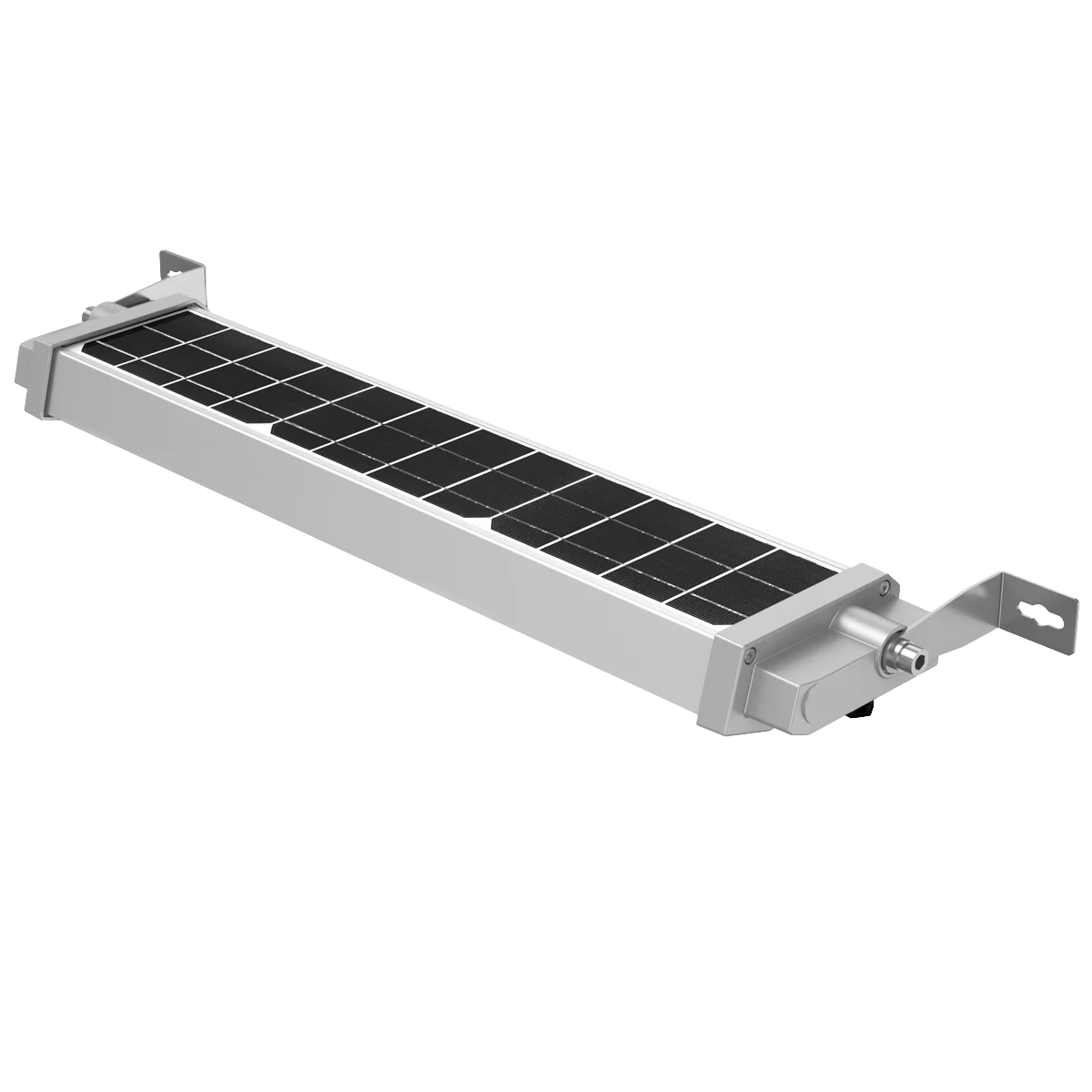

SB02 Series Solar LED Sign, Billboard & Area Light
SB02 Series Solar LED Sign, Billboard & Area Light
- Up to 1,700 lumens
- 4000K CCT
- 70 CRI
- Integrated solar panel & battery
SB02 Series Solar Billboard Lights
When to Specify This Sign Light Model
- ✔ Small to medium signs up to 5ft wide (single fixture coverage)
- ✔ Park signs and bulletin boards
- ✔ Applications requiring extended brightness into early morning hours
- ✔ Installations exposed to harsh weather conditions or frequent washdowns
- ● Billboard lighting applications up to 8ft height
- ● Bus stop and transit shelter lighting
- ● Perimeter walkway illumination
- ◇ More color-accurate rendering is required for logos, graphics, or advertising images
- ◇ The project involves continuous façade illumination or wall-wash lighting applications
- ◇ The installation is pedestrian-facing or roadway-adjacent and requires enhanced glare reduction
- ◇ A warmer color temperature (CCT) is preferred for hospitality, residential, or mixed-use environments
- ◇ Billboard height exceeds 8ft
- ◇ Installations are located along highways or high-speed traffic corridors
- ◇ North-facing signage requires higher output or wider beam distribution
Sizing Guide: Quick Ship Options
| Model | 30" Sign Width |
48" Sign Width |
72" Sign Width |
96" Sign Width |
Or Minimum of One Fixture Per: |
|---|---|---|---|---|---|
| SB02 (42" fixture) | — | 1 | — | 2 | 66" |
For sign widths over 96", specify one additional fixture per 66" of additional width. Dark sign backgrounds or high ambient light environments may require increased fixture density for optimal visibility.
Provide a few project details and we’ll recommend the appropriate fixture configuration, spacing, and series.
DETAILS

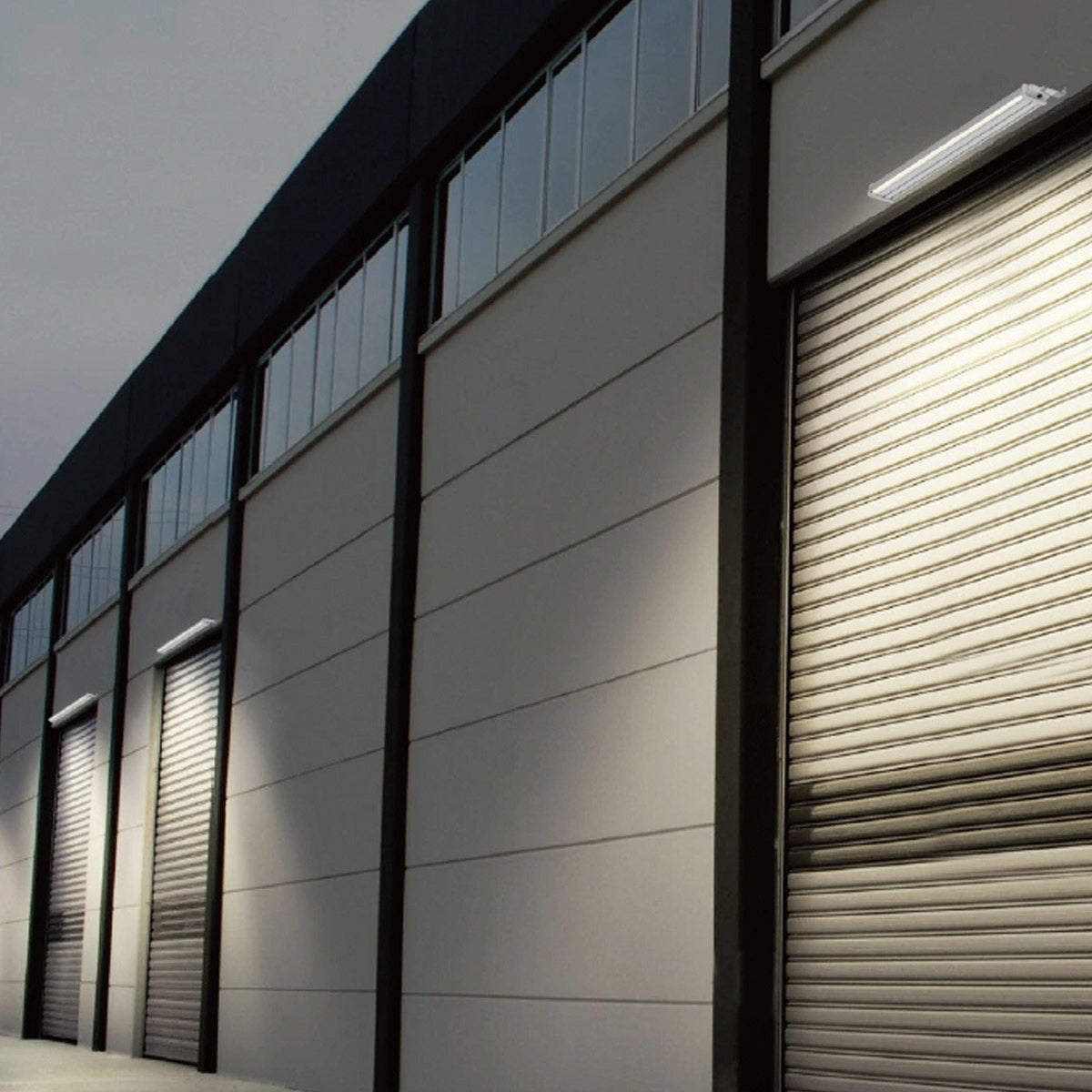

The SB02 illuminates a host of outdoor spaces, from billboards and signs to bay doors and bus shelters, at zero energy cost. With its sleek design and powerful performance, this solar LED sign and billboard light offers a sustainable and cost-effective solution for areas with no utility connection as well as for companies that simply wish to reduce their reliance on grid power and cut energy costs.
- Enjoy reliable performance, thanks to the high-conversion solar panel, efficient battery, and intelligent power management.
- The light automatically activates at dusk and in other low-light conditions, providing reliable illumination throughout the night.
- The light's aluminum alloy housing and polycarbonate lens provide long-lasting durability and protection. The housing is designed with anti-condensation vents to prevent internal fogging.
- The rotatable mounting brackets and integrated solar panel allow for quick and flexible installation.
- The rapid-recharge battery can be fully charged in as little as 6 hours. For added flexibility, the battery can be charged via USB when direct sunlight is limited.
Order SB02 Solar LED Sign & Billboard Lights for your outdoor lighting applications today.
DOWNLOADS
*IES file links on this page may not contain an IES file for every available configuration of the model.
KEY SPECIFICATIONS
| Lumens & Wattage | 10W, Up to 1,700 lumens |
| System Efficacy | Up to 170 lm/W |
| CRI | 70 |
| Beam Angle | 100° |
| CCT | 4000K |
| Operation | First Hour 100% Brightness 2nd to 4th Hour 70% 5th to 6th Hour 50% 7th Hour to Dawn 20% or until light turns off |
| Battery | LiFePO4, 51.84 Wh |
| Solar Panel Type | Mono-crystalline, 15W |
| Enclosure Rating | IP66 |

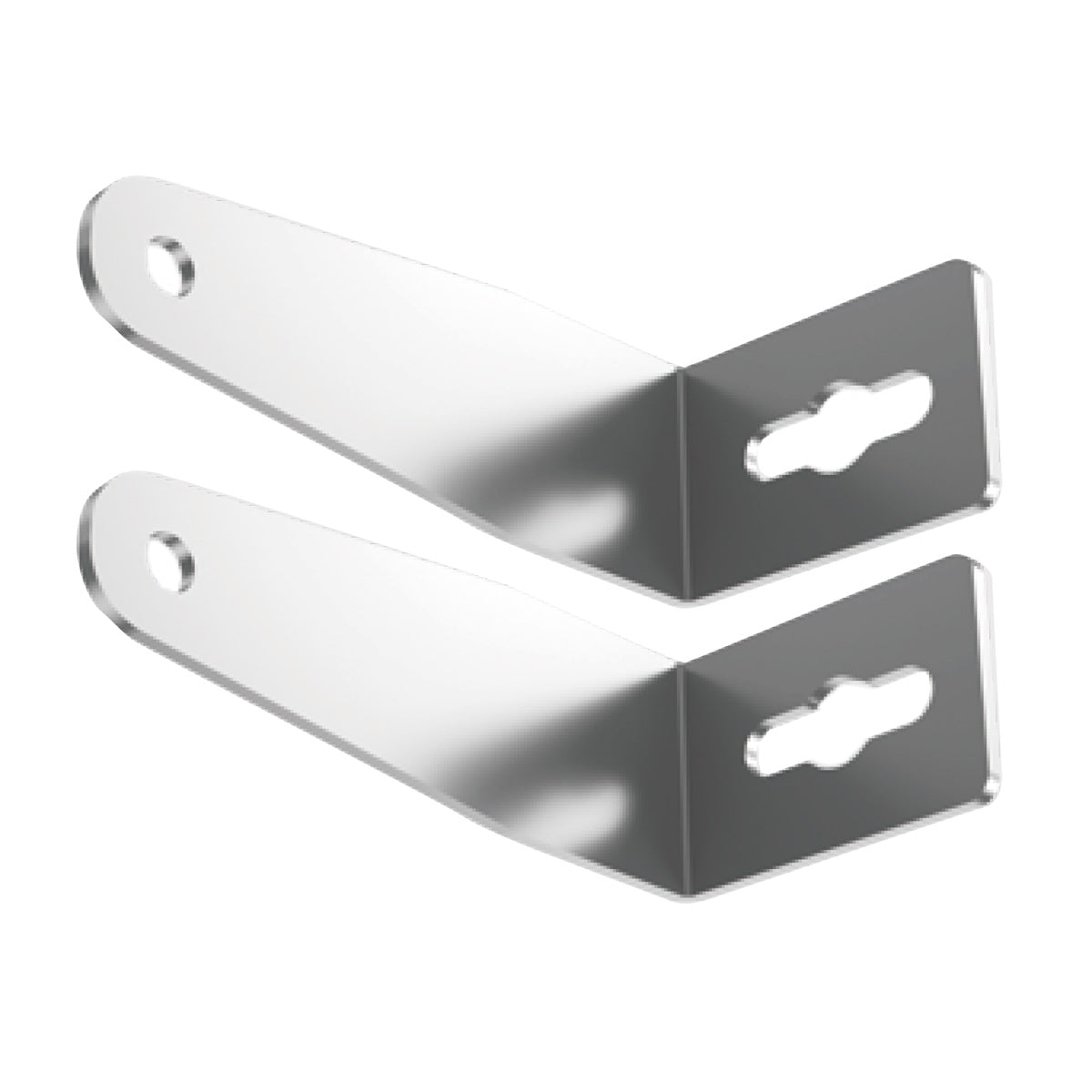

| Mounting | 2 rotatable surface mount brackets included. Fixture can be angled from -30° to 30°. |
| Warranty | 3 Years |
