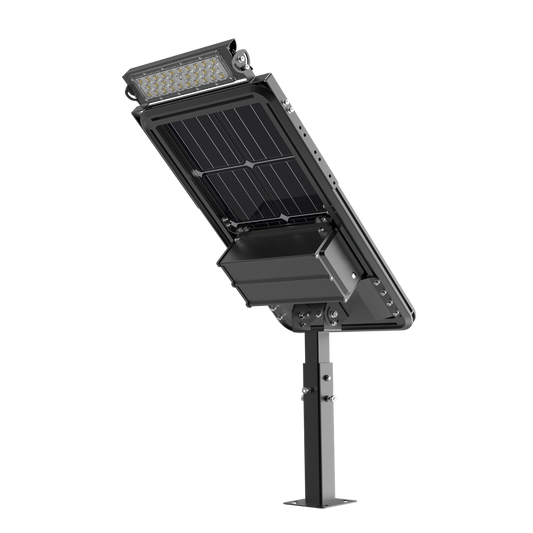

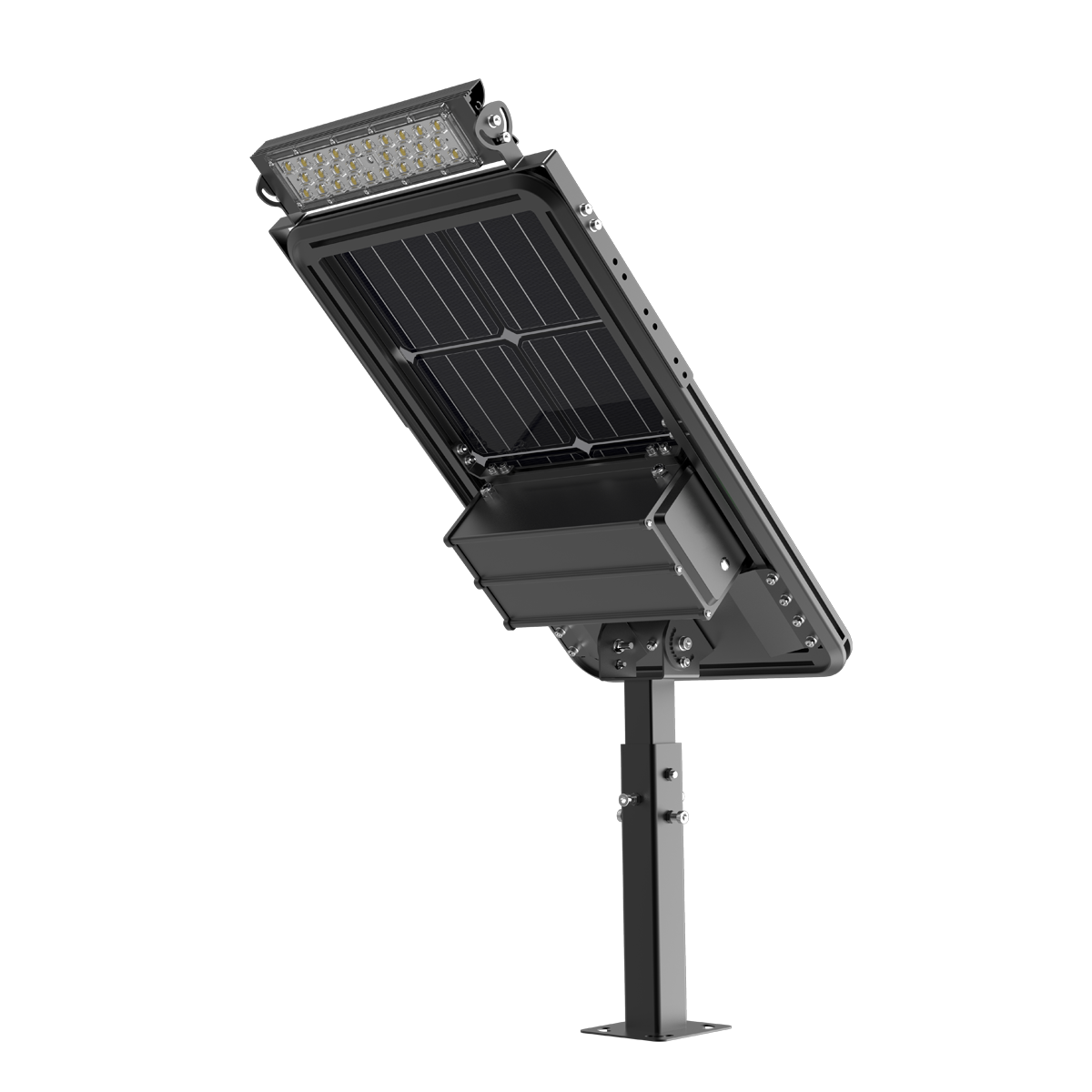

SB04 Series Solar Billboard Uplight
SB04 Series Solar Billboard Uplight
Solar-powered uplight delivers powerful illumination for large-scale signage and billboard installations. With a high-efficacy LED light source, a high-efficiency bifacial solar panel, and long-lasting lithium battery, this light is optimized for reliable, off-grid performance. Intelligent dimming and rugged construction make it a dependable solution for exposed outdoor environments, especially ones requiring wide, even light distribution.
DETAILS
Off-grid solar lighting power for billboards, monuments, and signage
- Billboard-ready with type III beam spread
- Quick charge in just 6 to 7 hours of daylight
- Auto-dimming allows for extended use, up to 2 nights on 1 charge

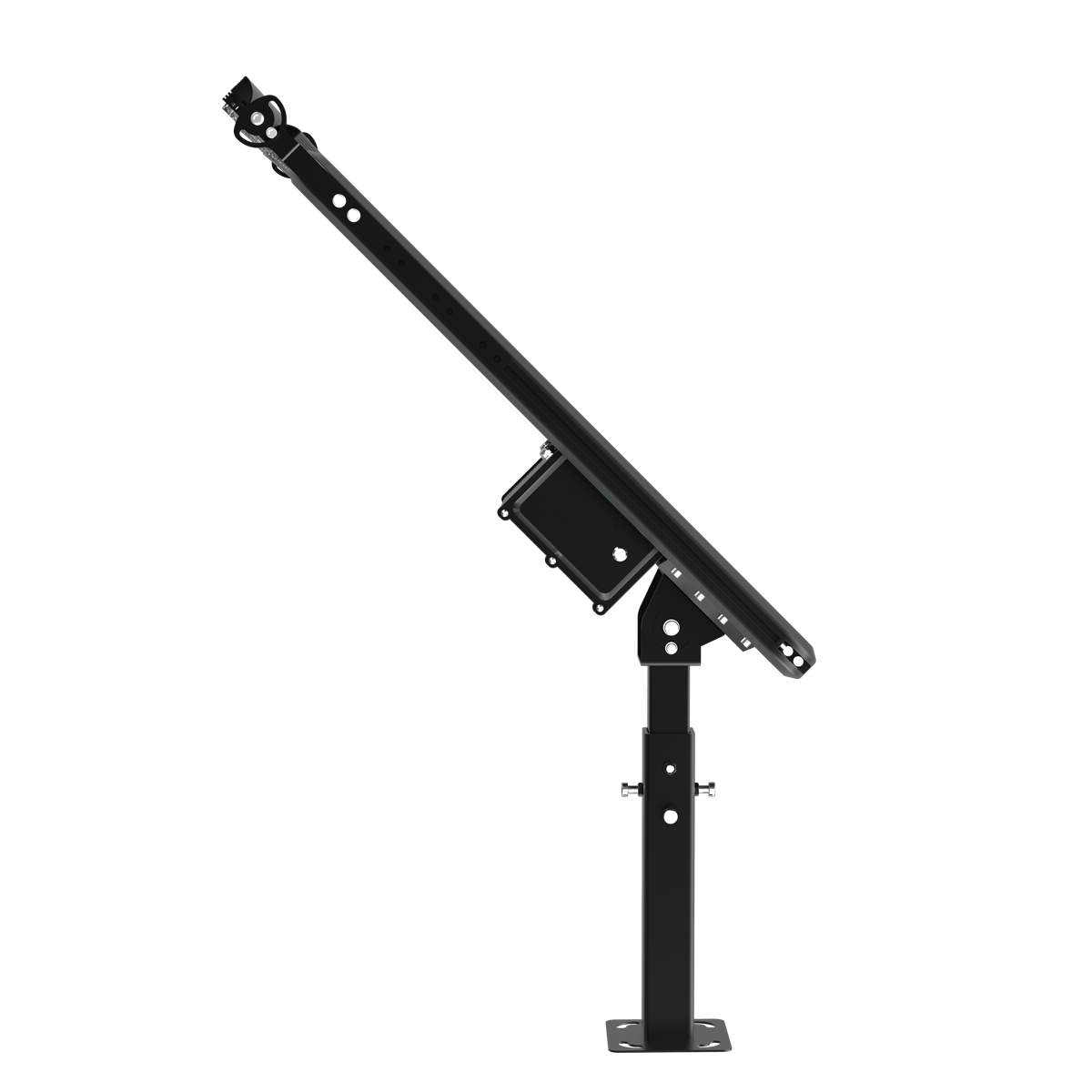

- Light can be angle-adjusted up to 60 degrees
- Height adjustable from 1.2" to 2.4"

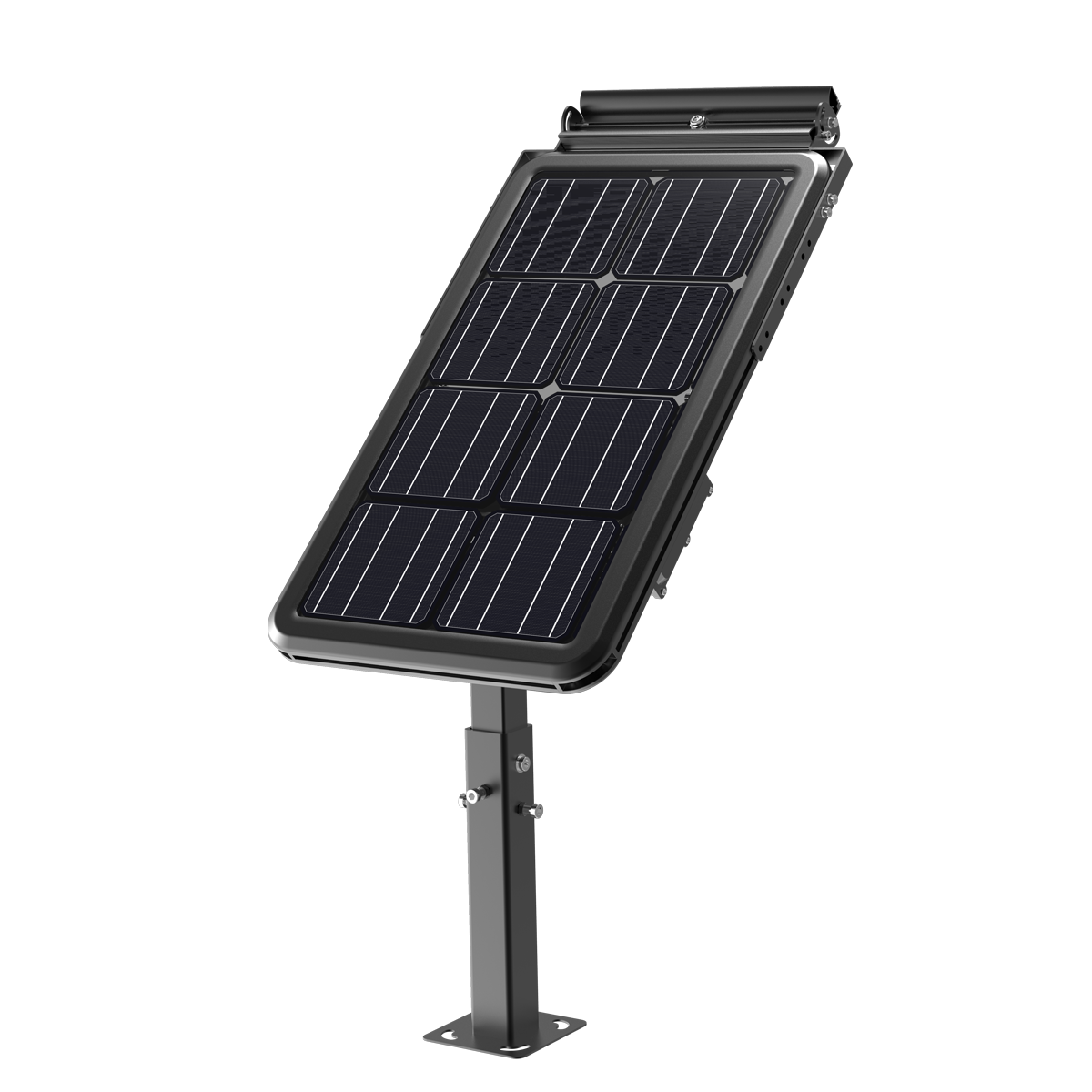

- High-output mono-crystalline solar panel
- Optional split kit allows for the light and the panel/battery to be installed as two separate pieces, up to 19.6 ft apart, to achieve maximum sun exposure on the panel
- Reach out for a quote on 15W (3,000 lumen) and 25W (5,000 lumen) models or additional color temperatures
SB04 Quick Ship Models
When to Specify This Sign Light Model
- ✔ Full-sized billboards and signs along highways
- ✔ Medium and large monument and wayfinding signs
- ✔ Signs with uneven or textured surfaces prone to shadows during downlighting
- ✔ North-facing signs with limited direct sun exposure
- ● Park and campus directories
- ● Temporary construction site signage
- ◇ More color-accurate rendering is needed for logos, graphics, or advertising
- ◇ The project involves continuous façade illumination or wall-washing
- ◇ The sign is small and a more cost-effective solution is preferred
- ◇ The project requires extended high-output runtime into early morning hours
- ◇ The installation is pedestrian-facing or roadway-adjacent and requires enhanced glare reduction
- ◇ A warmer color temperature (CCT) is preferred for hospitality, residential, or mixed-use environments
Sizing Guide: Quick Ship Options
| Model | 30" Sign Width |
48" Sign Width |
72" Sign Width |
96" Sign Width |
Or Minimum of One Fixture Per: |
|---|---|---|---|---|---|
| SB04-30 | — | — | 1 | 1 | N/A* |
*Coverage width depends upon fixture distance from the sign. Dark sign backgrounds or high ambient light environments may require increased fixture density for optimal visibility.
Provide a few project details and we’ll recommend the appropriate fixture configuration, spacing, and series.
DOWNLOADS
*IES file links on this page may not contain an IES file for every available configuration of the model.
KEY SPECIFICATIONS
| Lumens Package | 15W, 3,000 lumens 25W, 5,000 lumens 30W, 6,000 lumens* * Typically stocked |
| System Efficacy | 200 lm/W |
| CRI | 70 |
| CCT | 4000K (3000K, 6000K by special order) |
| Beam Angle | Type III |
| Controls | Timer dimming |
| Charging Time | 6-7 hours* |
| Operating Time | Time Control: 1-2 Days* |
| Battery |
15W: 12V/18AH 25W: 12V/25AH 30W: 12V/30AH |
| Solar Panel | Mono-Crystalline Bifacial Solar Panel, 18V/50W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Battery Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Mounting | Bracket Mount |
| Warranty | 3 Years |
*Performance based on ideal conditions - solar lights are heavily affected by sunlight levels temperatures, snow, dirt, and other conditions.
